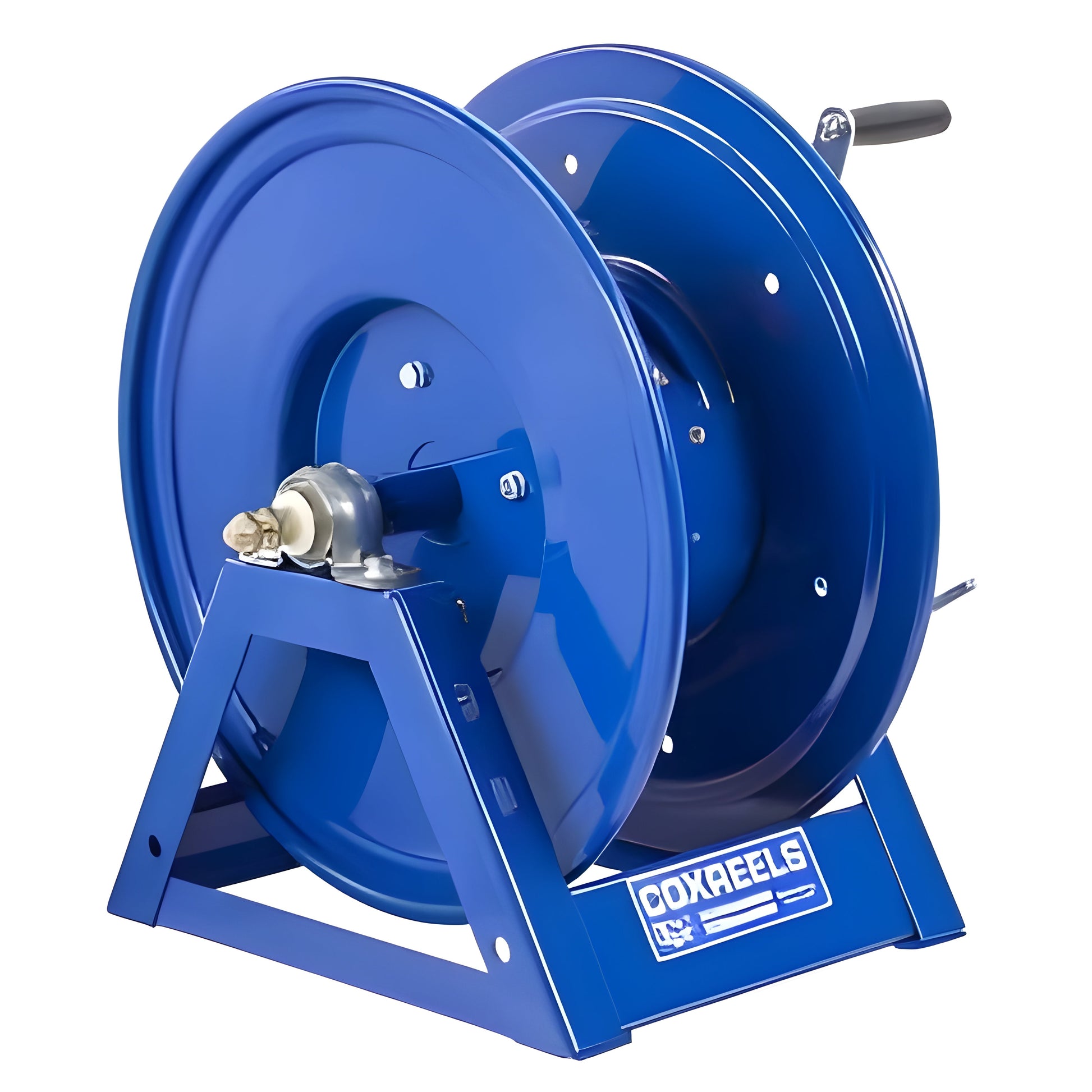

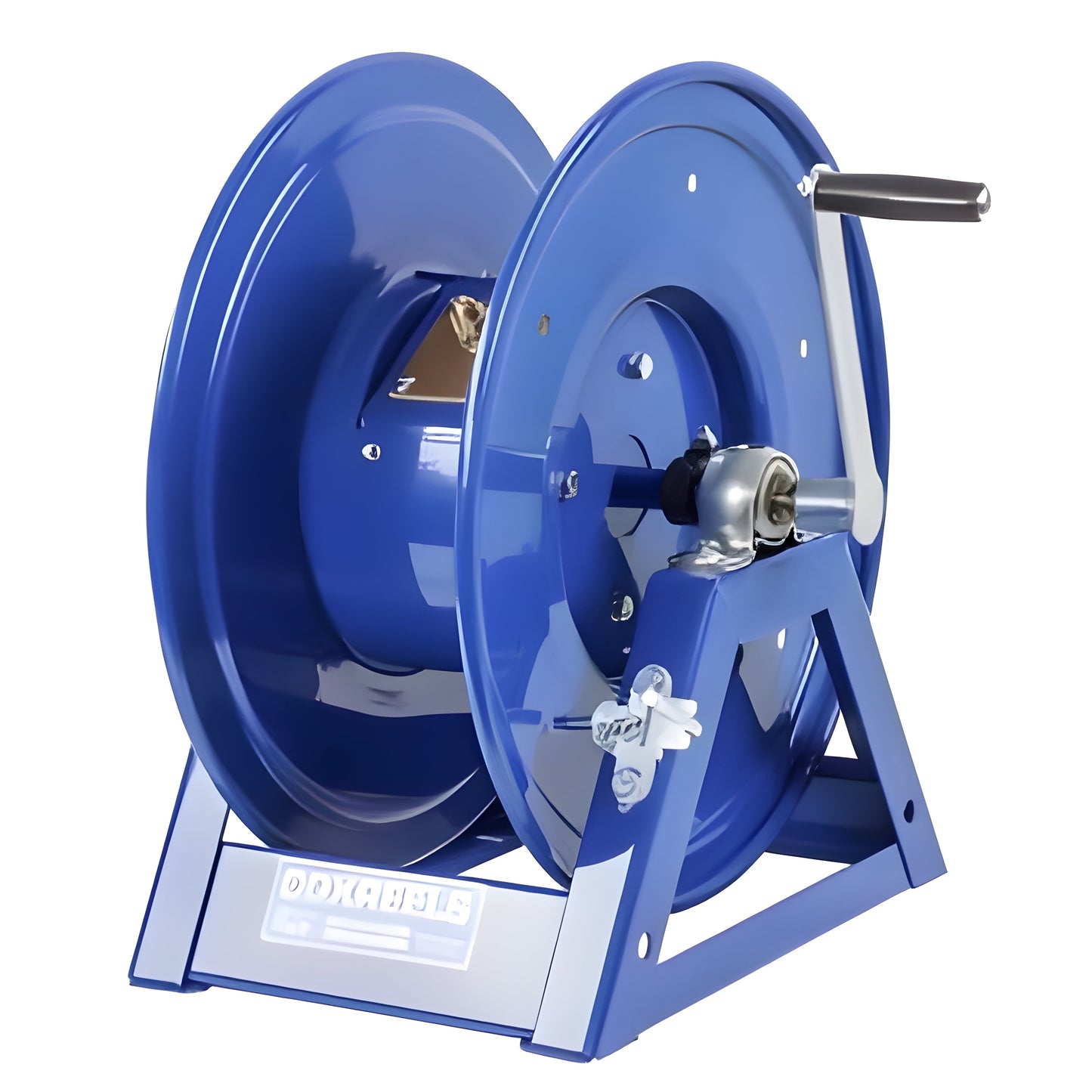

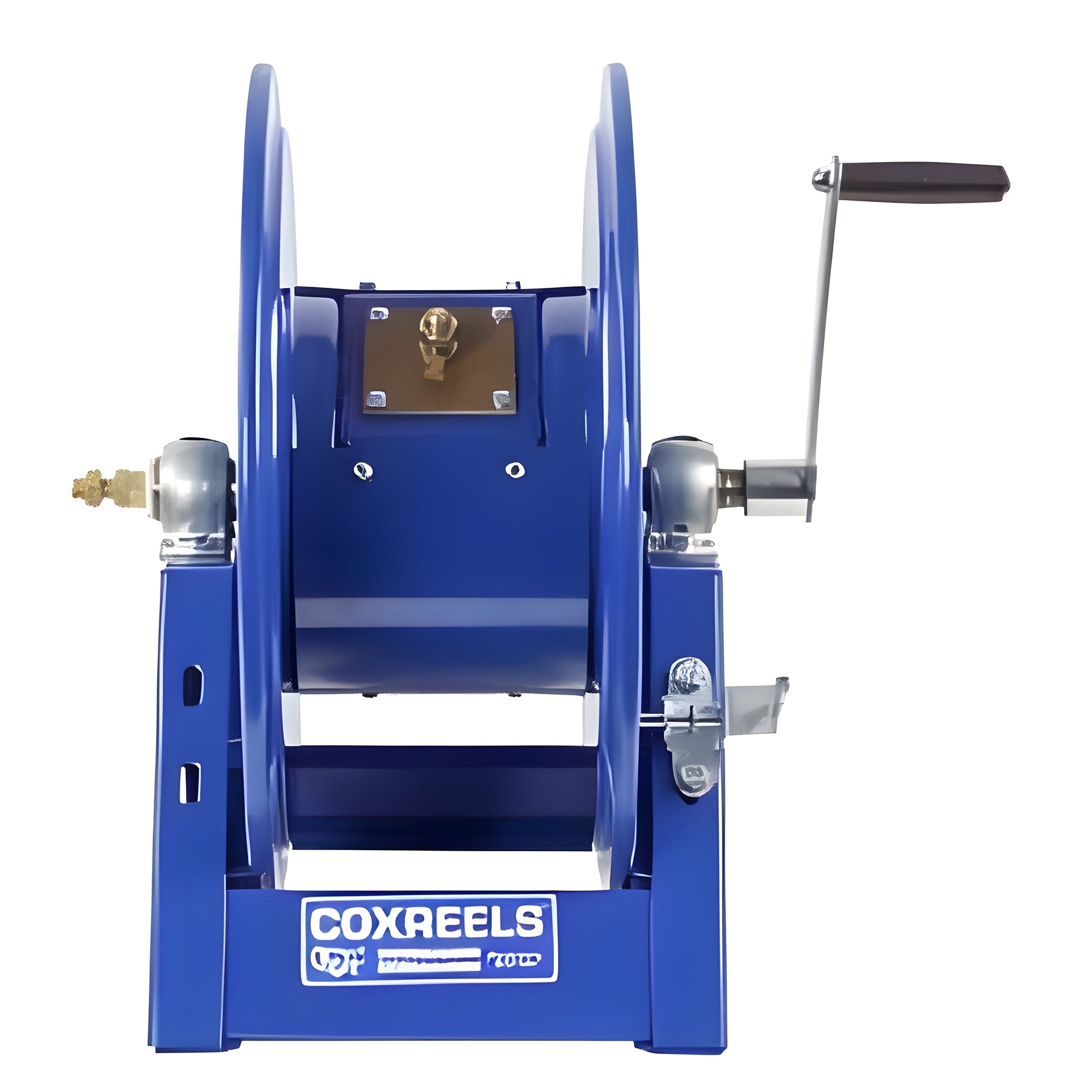

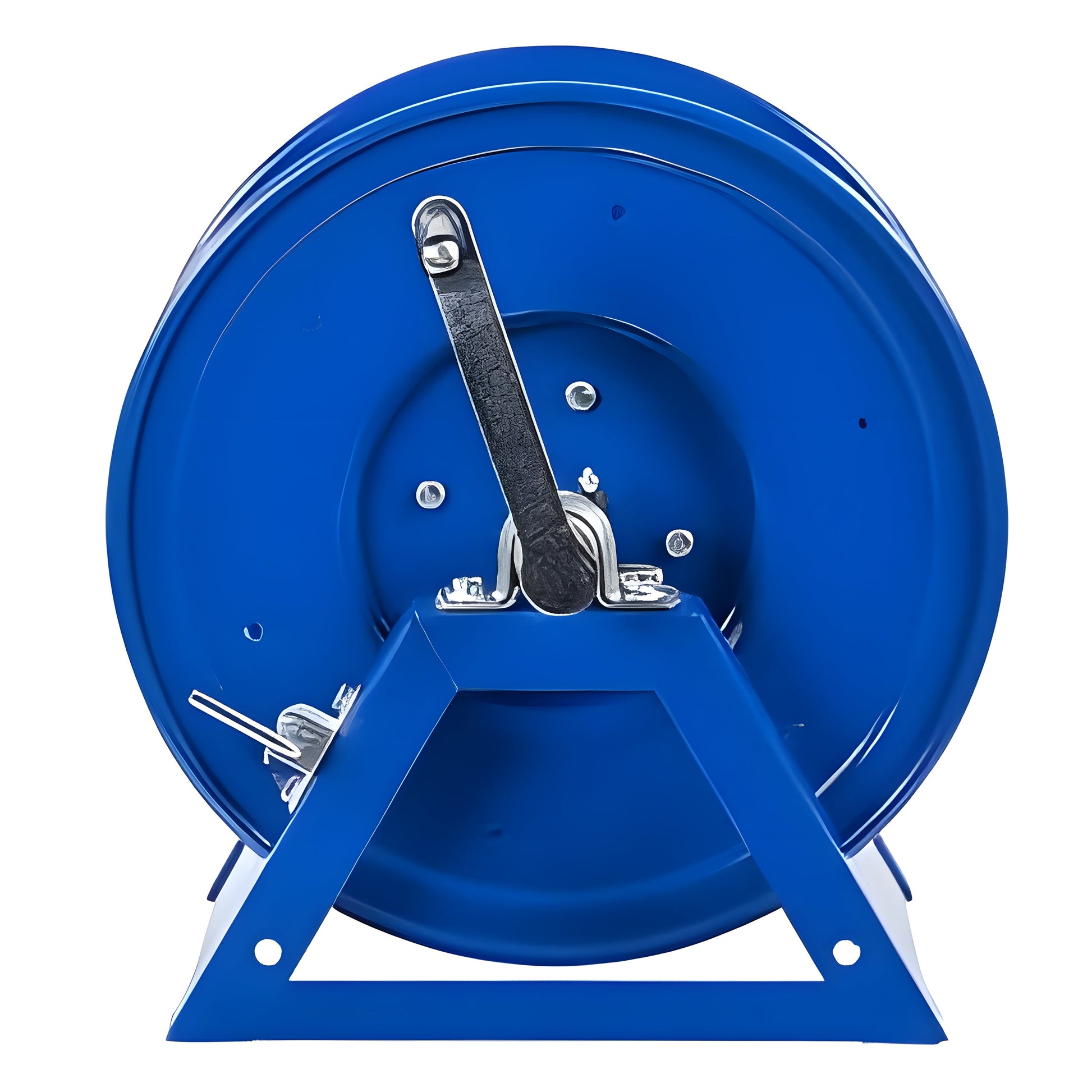

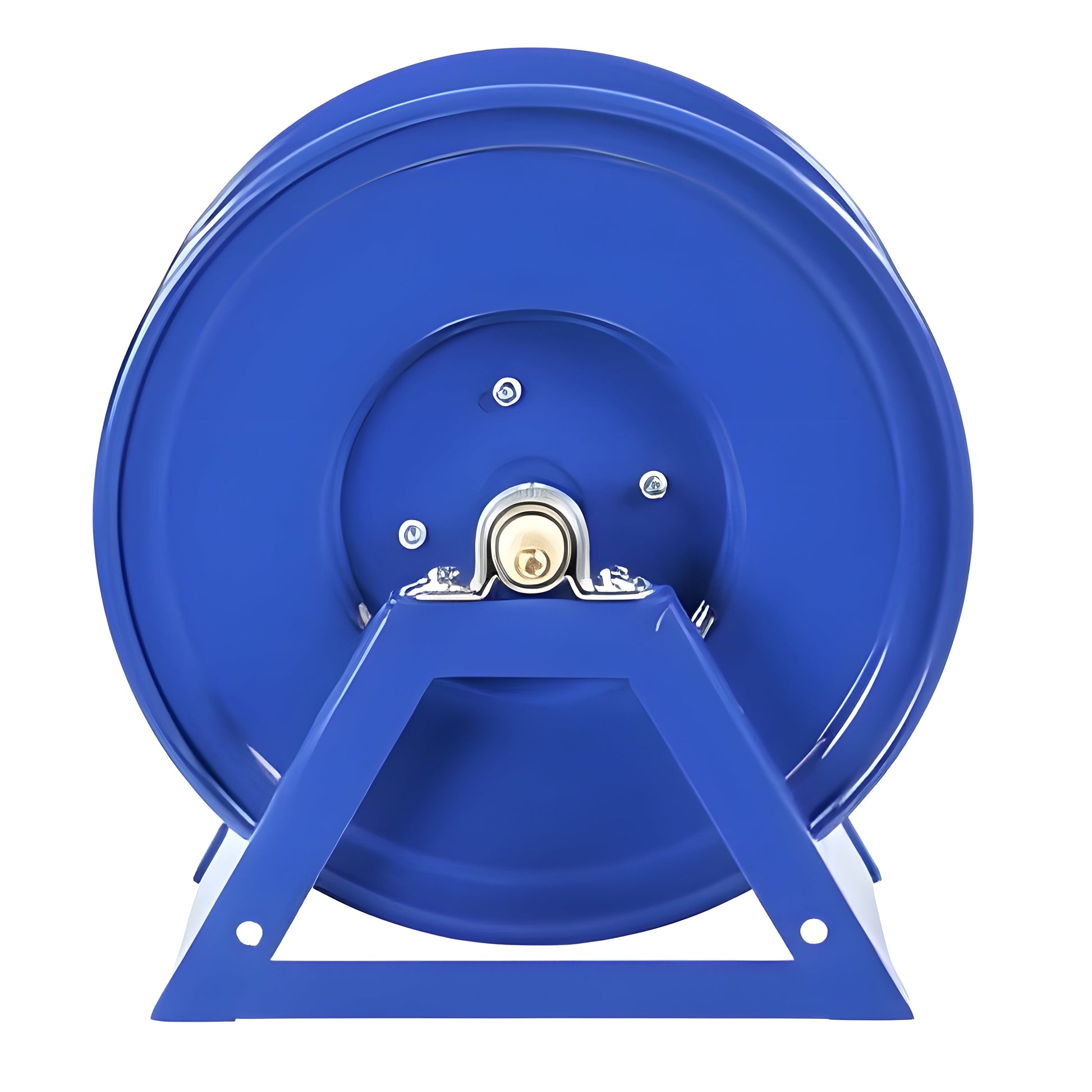

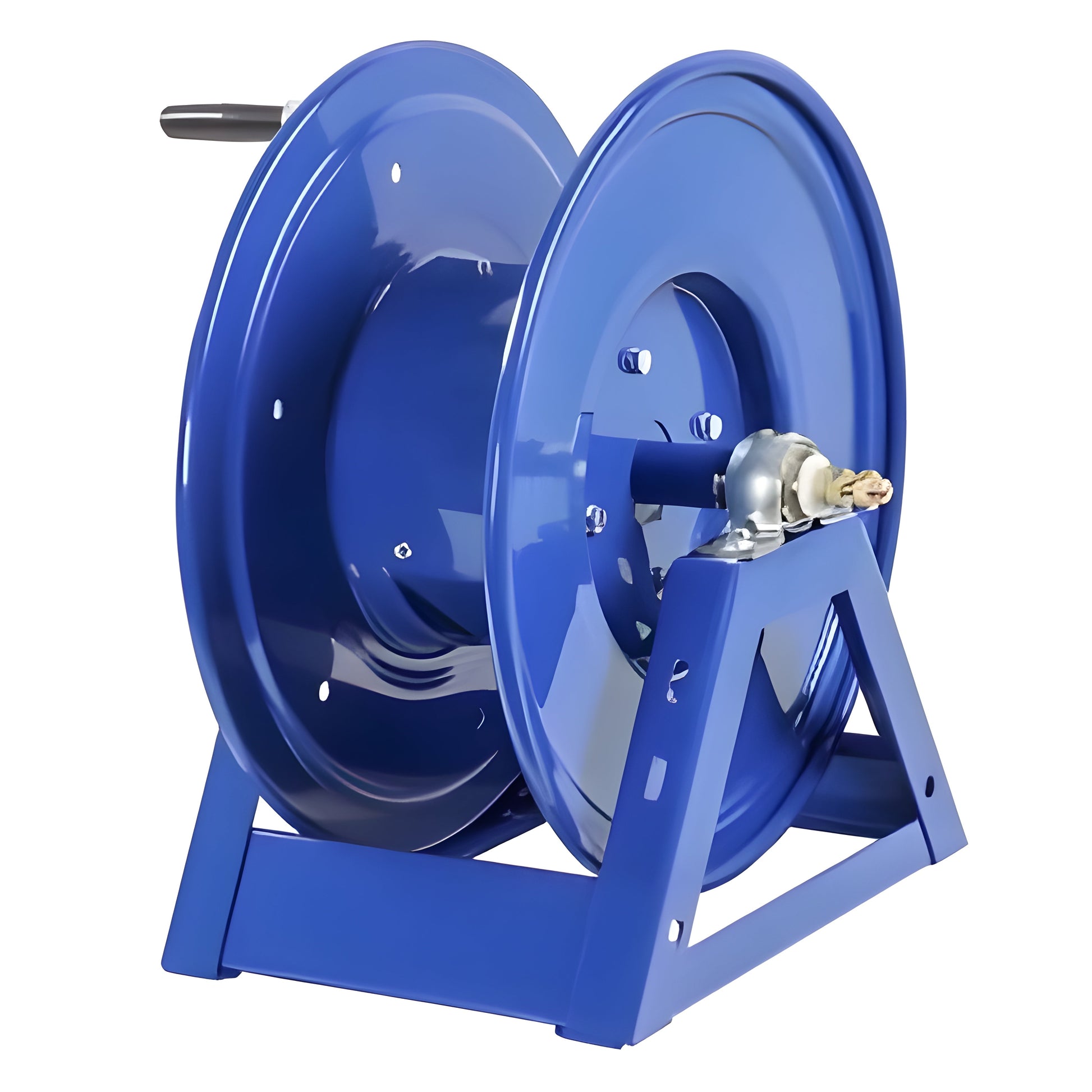

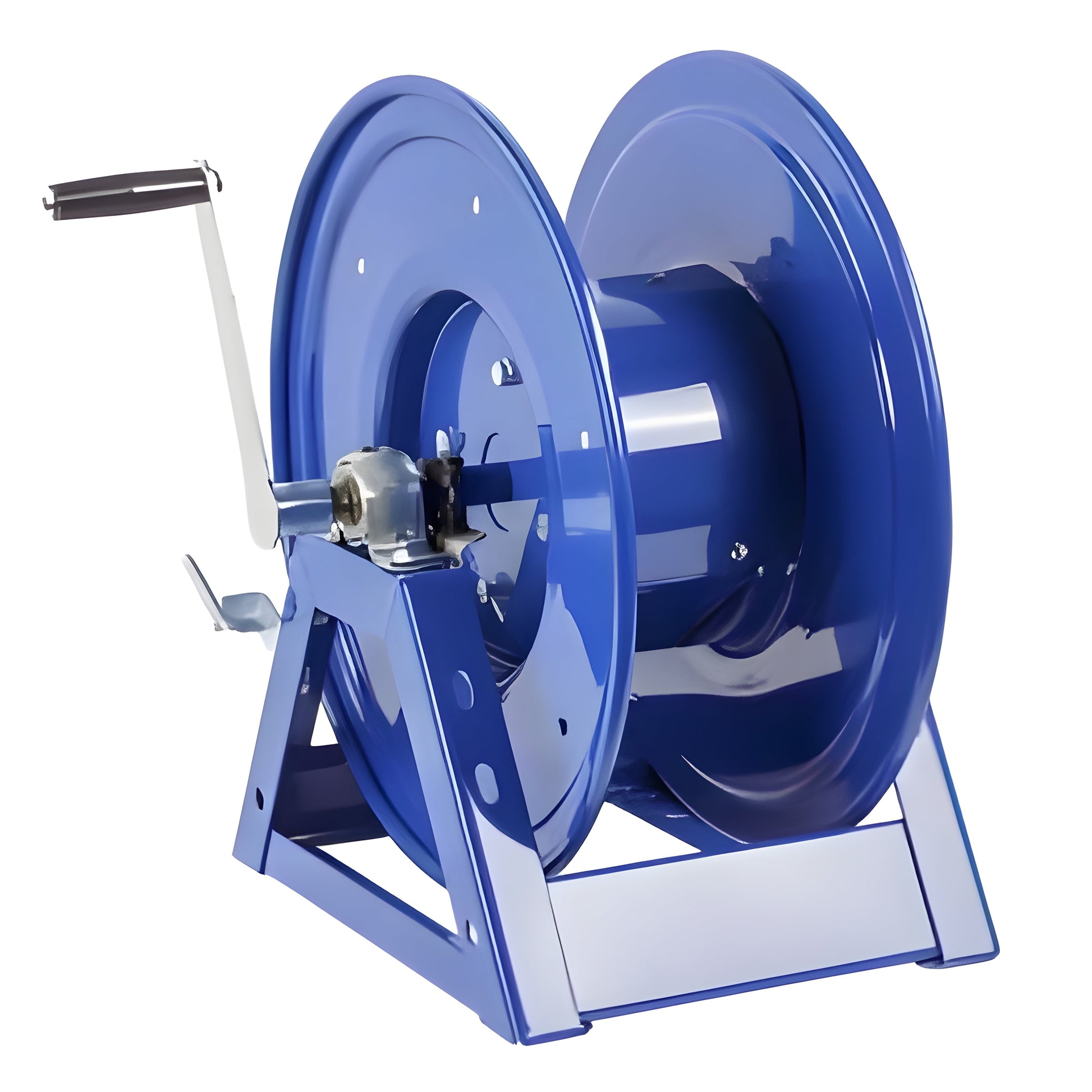

Coxreels 125WCL Series Hand Crank Or Motorized "Welding Cable" Reels - 1125WCL-12-C
125WCL Series Hand Crank Or Motorized "Welding Cable" Reels
COXREELS 1125WCL Series hand crank or motorized "Welding Cable" reels are great for grounding cable. Save time and effort as you extend the life of your expensive welding cable investment. All electrical components are set inside the drum offering a special narrow width. A stacking bracket is available to create a lead/ground combination in one organized unit.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
-
Made in the U.S.A. - Sold & Supported Worldwide.
Features
-
SLIP RING ASSEMBLY - Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
-
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
-
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
-
LOCKING PIN - Long-handled locking pin secures reel from rotation during storage or transportation.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and bevel geared crank.
Specifications
| MODEL |
HOSE |
LENGTH |
SHIP WEIGHT (LBS) |
GAUGE |
AMPS |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| 1125WCL-12-C |
No |
600' - 500' - 400' - 300' |
38 |
#2 - #1 - #1/0 - #2/0 |
450 AMP |
24.75"(W) 18.5"(H) 17.5"(L) |
15.44"(M) 10"(N) |
17.38"(X) 15.38"(Y) |
| 1125WCL-6-C |
No |
300' - 250' - 200' - 150' |
45 |
#2 - #1 - #1/0 - #2/0 |
450 AMP |
18.75"(W) 18.5"(H) 17.5"(L) |
9.44"(M) 10"(N) |
11.38"(X) 15.38"(Y) |
What Our Experts Think
-
Dual Functionality: Offers both hand crank and motorized options for flexible operation, allowing for manual or automatic retraction depending on your needs.
-
Welding Cable Management: Designed specifically for handling welding cables, reducing wear and tear while keeping cables neatly stored and easily accessible.
-
Heavy-Duty Construction: Built to endure tough industrial environments, ensuring long-term reliability and high-performance standards.
-
Smooth Retraction: Both hand crank and motorized systems provide smooth and effortless hose or cable retraction, improving workflow and efficiency.
-
Corrosion-Resistant Finish: Protected against rust and harsh conditions, ensuring the reel performs reliably in outdoor or high-moisture environments.
-
Space-Saving Design: Keeps welding cables organized and off the ground, reducing clutter and improving safety on the job site.
-
Versatile Mounting Options: Can be mounted on walls, ceilings, or floors, offering flexible installation to fit different workspaces.
Q&A
Q: What is the Coxreels 125WCL Series Hand Crank or Motorized "Welding Cable" Reel - 1125WCL-12-C?
A: The Coxreels 1125WCL-12-C is a versatile reel designed for managing welding cables. It can be operated both manually with a hand crank or motorized for automatic retraction, making it ideal for various welding applications that require flexible cable management.
Q: What is the cable capacity of this reel?
A: The 1125WCL-12-C can hold up to 100 feet of welding cable, offering ample capacity for typical welding tasks in industrial and commercial environments.
Q: How does the hand crank function?
A: The hand crank allows for manual operation, giving users complete control over cable retraction, ideal for less frequent use or where motorized functionality isn't necessary.
Q: How does the motorized function work?
A: The motorized option provides automatic retraction of the cable, saving time and reducing physical effort, especially in high-demand work environments.
Q: Is the reel durable?
A: Yes, the 125WCL Series is made with heavy-duty steel construction and a corrosion-resistant finish, ensuring long-lasting durability even in harsh welding environments.
Q: Is this reel easy to install?
A: Yes, the 1125WCL-12-C features multiple mounting options, including wall, floor, or ceiling, providing flexibility for different workspace layouts.
Q: What are typical applications for this reel?
A: This reel is perfect for use in welding shops, construction sites, automotive repair facilities, and industrial environments where reliable cable management is essential.
Maintenance Tips
-
Model: 1125WCL-12-C
-
Cable Capacity: 100 feet of 1/0 AWG welding cable
-
Pressure Rating: Not applicable (designed for cable management, not fluid transfer)
-
Construction: Heavy-duty steel frame with powder-coated finish for superior durability and corrosion resistance
-
Drive Mechanism: Hand crank or motorized option for ease of cable retraction and deployment
-
Mounting Type: Wall, floor, or ceiling mounting for flexible installation
-
Roller Design: Smooth, multi-position guide arm with reinforced rollers to reduce cable wear and ensure easy payout and retraction
-
Swivel Inlet: Full-flow swivel for maximum cable management and flexibility
-
Voltage Compatibility: Designed for use in industrial welding applications, capable of handling high-current welding cables
-
Applications: Ideal for welding environments, including workshops, industrial settings, and job sites where long cables need to be retracted and stored efficiently
-
Weight: Approximately varies based on reel size and configuration
