Coxreels 1275W Series Low Pressure Hand Crank "Welding" Hose Reels - 1275W-3-100-C
1275W Series Low Pressure Hand Crank "Welding" Hose Reels

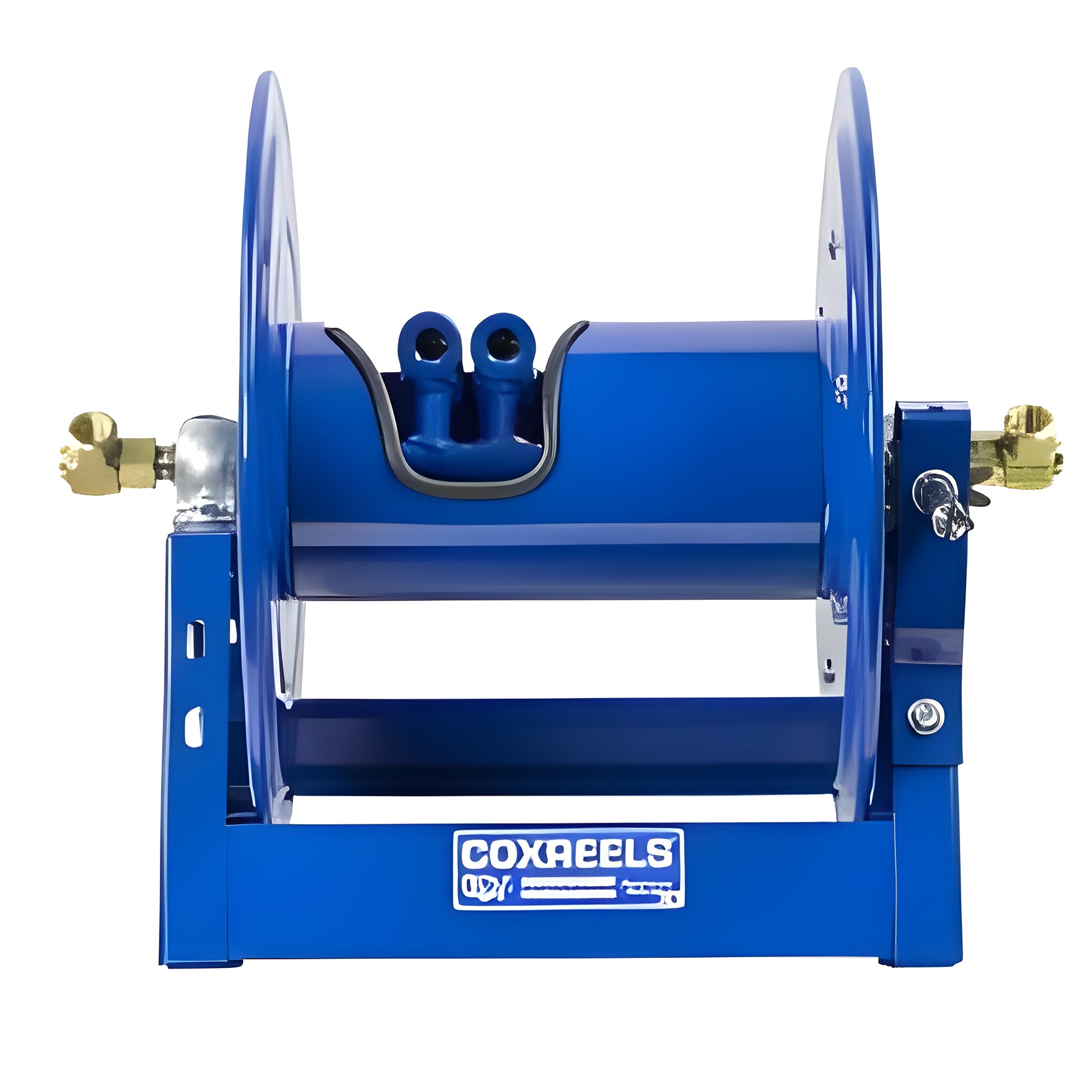

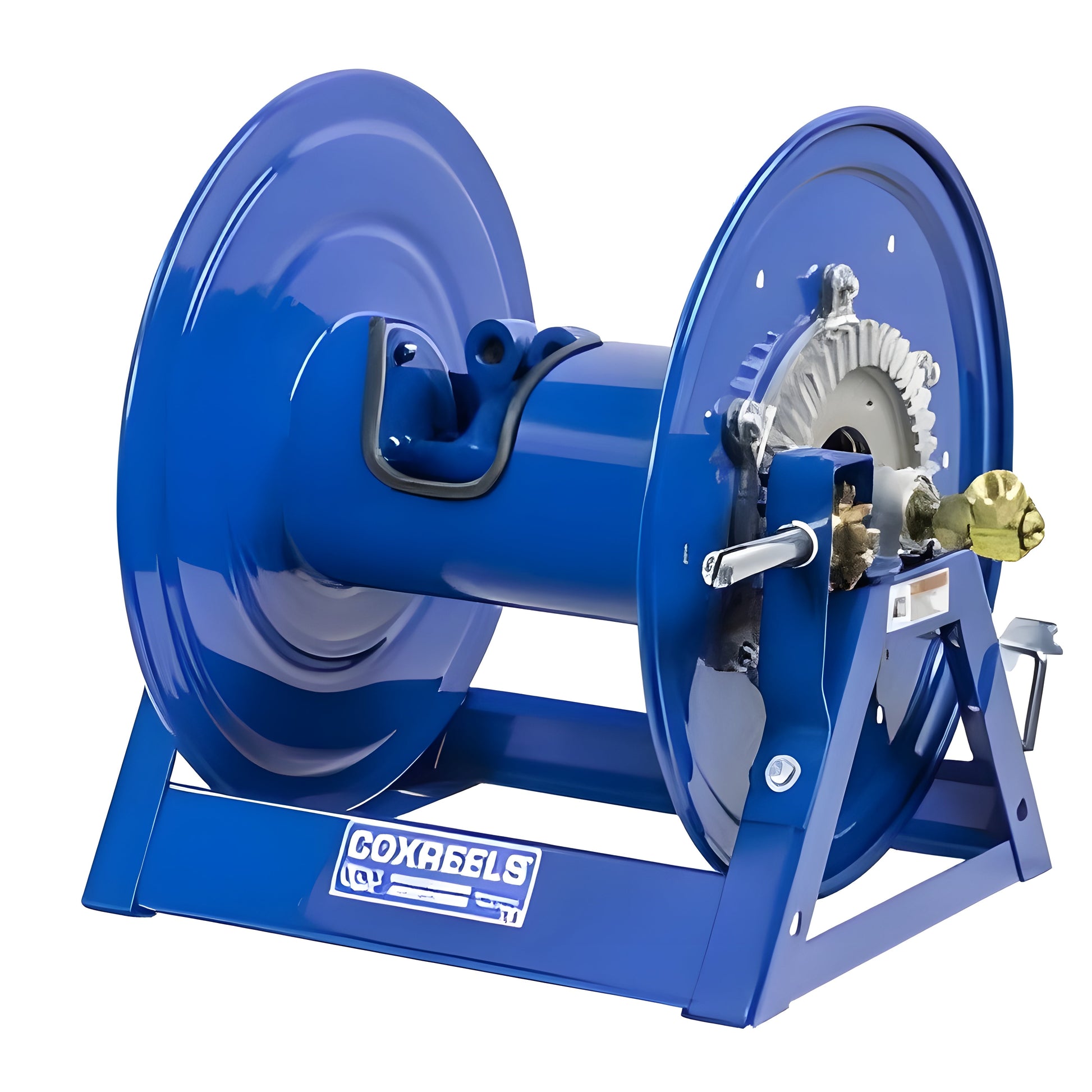

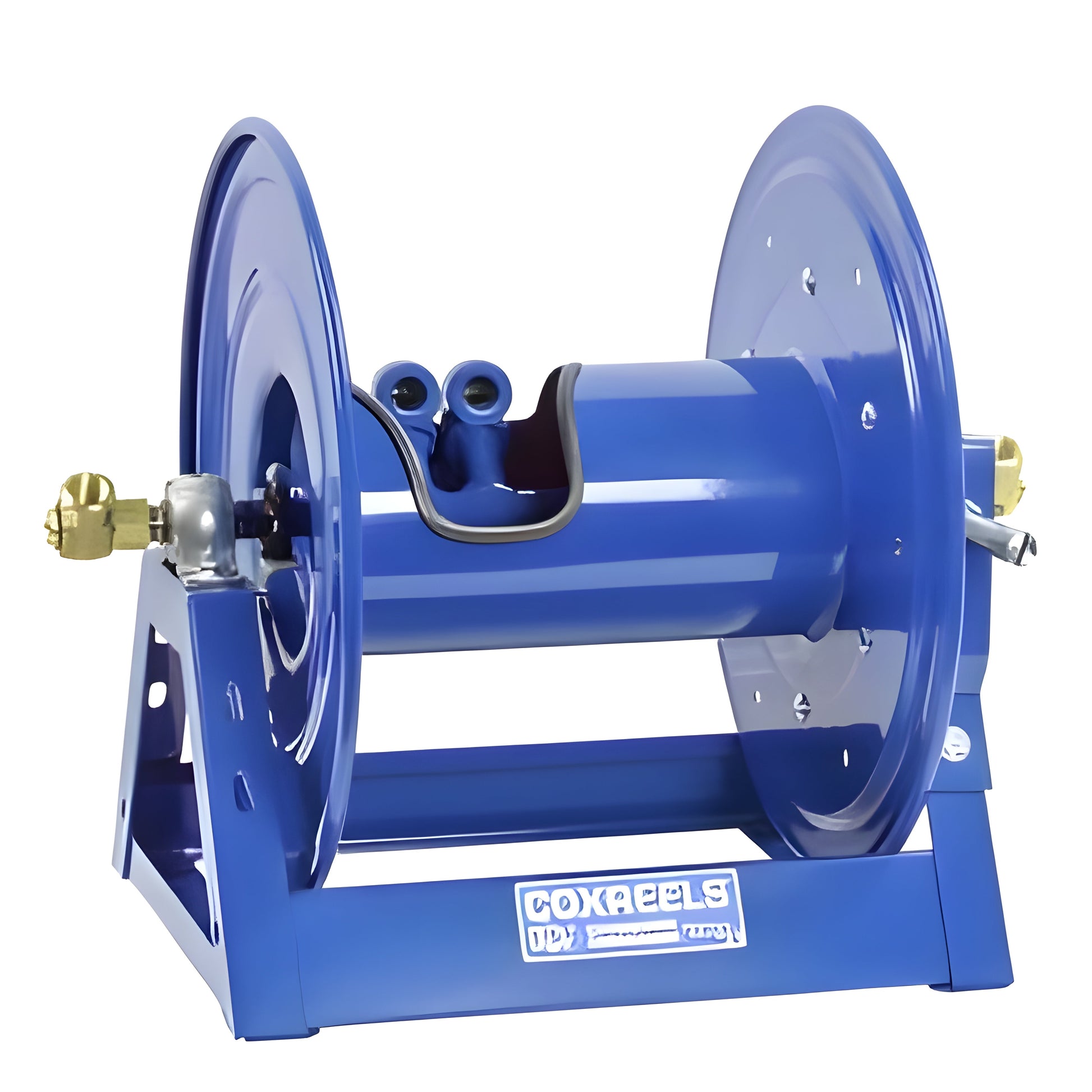

COXREELS 1275W Series hand crank "Welding" hose reels are built to manage long lengths of bulky twin line welding hose. The direct bevel gear drive, low profile outlet riser and open drum slot design are features greatly appreciated by the regular user. Dual brass swivel inlets on each side of the reel assure full flow trouble free performance.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
Features
-

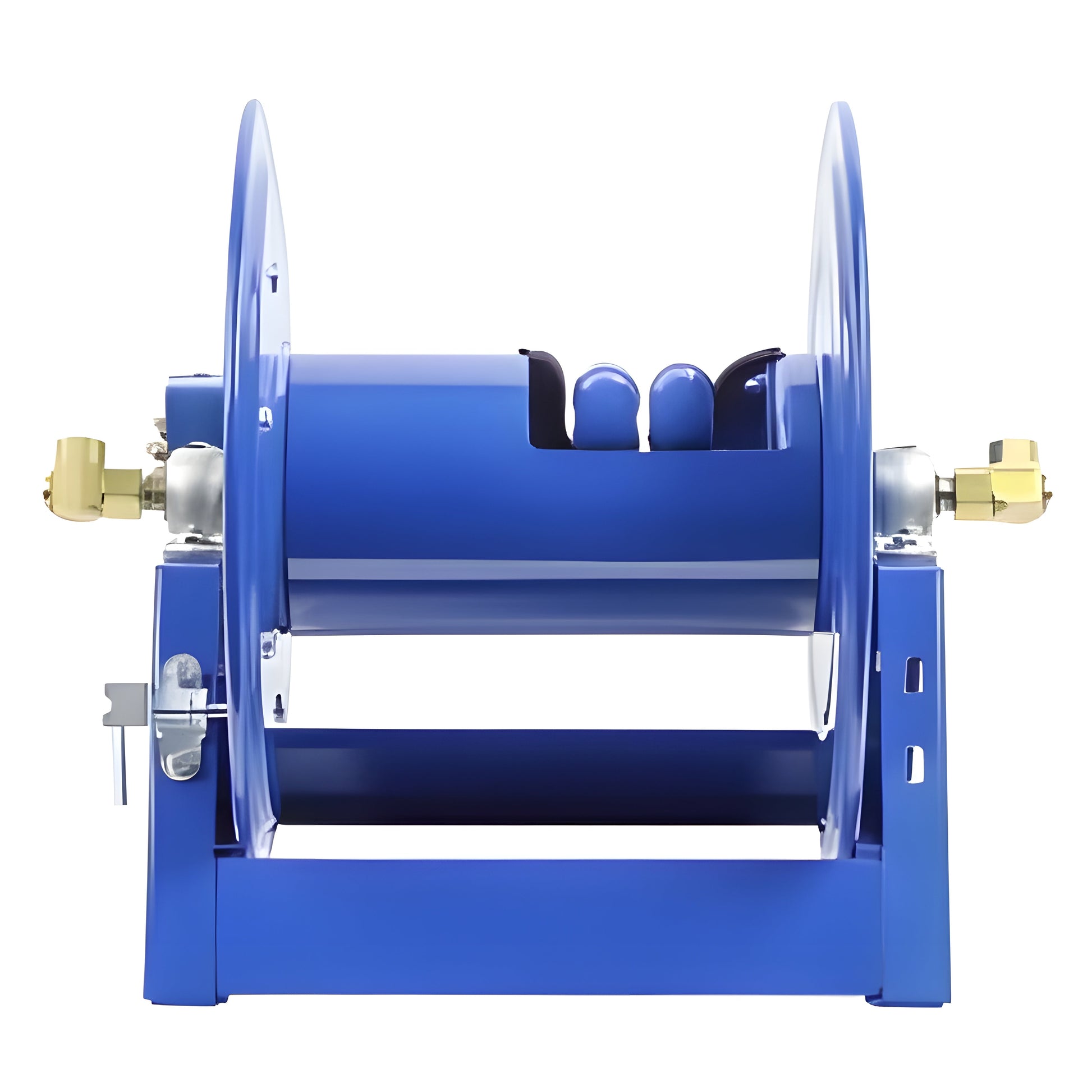

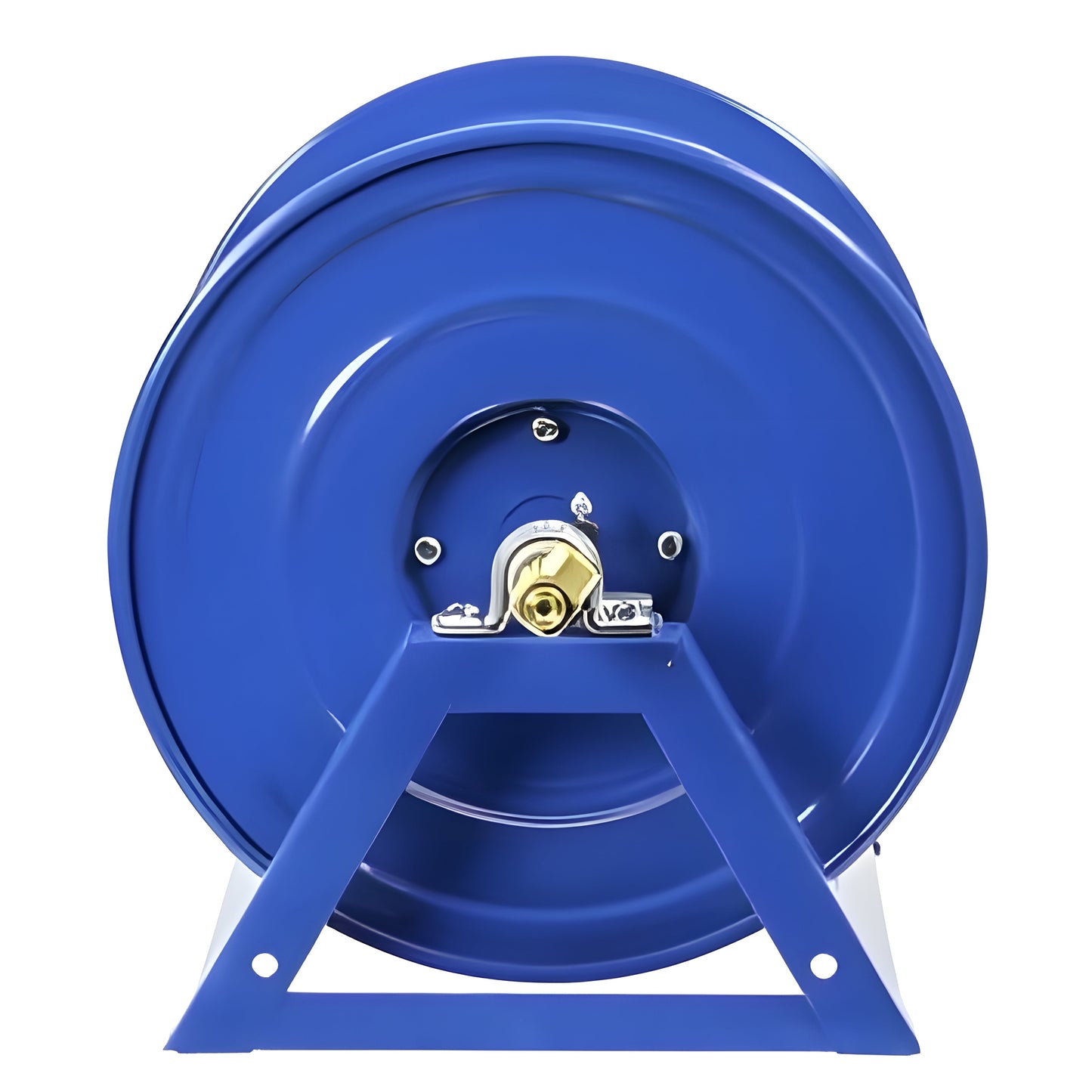

WELDING GAS SWIVEL -Dual machined from solid brass 90˚ full-flow 3/8" NPT swivel, one on each side for the real for simple VITON® seal maintenance ans ffast and easy hose installation.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
-
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
-

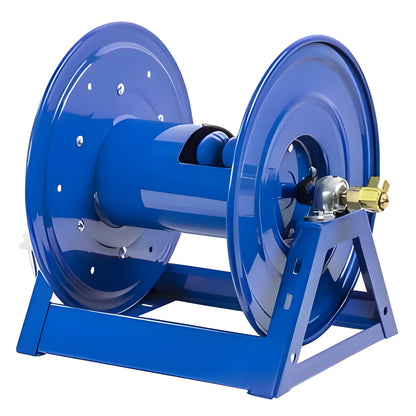

"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
-
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
-

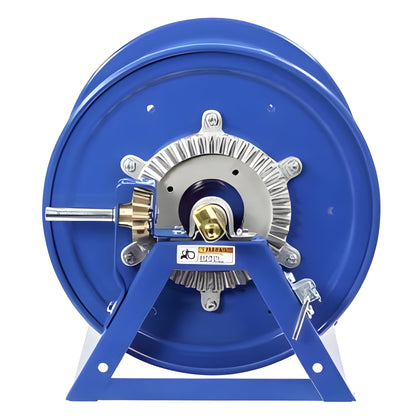

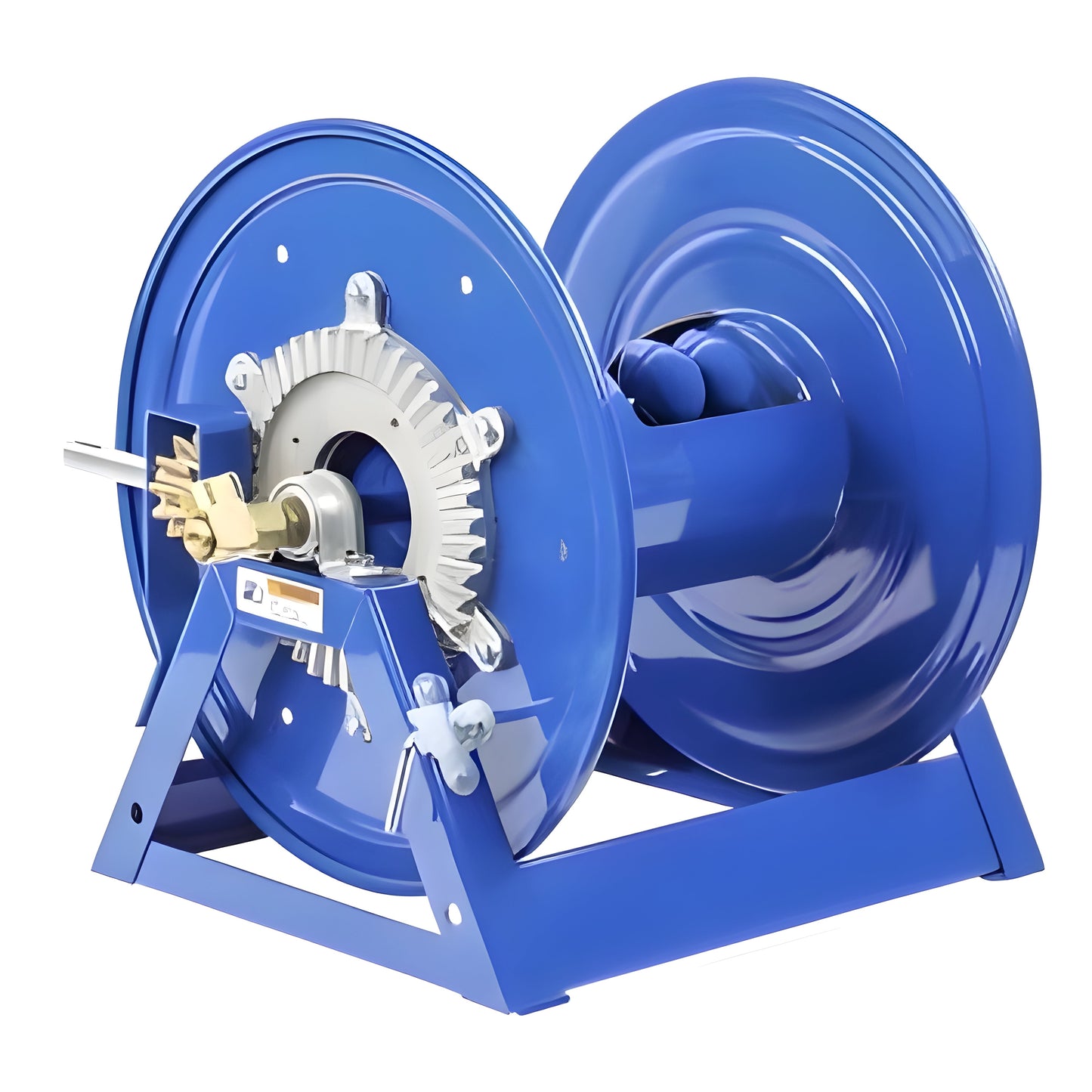

OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling, "T" Grade welding hose, and front bevel geared crank for easy mechanical retraction.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| 1275W-3-100-C |
3/8" |
0 |
100' |
Yes |
200 |
73 |
18.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
13.38"(X) 15.38"(Y) |
| 1275W-3-150-C |
3/8" |
0 |
150' |
Yes |
200 |
90 |
22.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
17.38"(X) 15.38"(Y) |
| 1275W-3-250-C |
3/8" |
0 |
250' |
Yes |
200 |
126 |
28.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
23.38"(X) 15.28"(Y) |
| 1275WL-3-100-C |
3/8" |
0 |
100' |
No |
200 |
45 |
18.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
13.38"(X) 15.38"(Y) |
| 1275WL-3-150-C |
3/8" |
0 |
150' |
No |
200 |
48 |
22.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
17.38"(X) 15.38"(Y) |
| 1275WL-3-250-C |
3/8" |
0 |
250' |
No |
200 |
56 |
28.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
23.38"(X) 15.28"(Y) |
| 1275WL-3-350-C |
3/8" |
0 |
350' |
No |
200 |
64 |
34.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
29.38"(X) 16"(Y) |
| 1275WT-3-100-C |
3/8" |
0 |
100' |
No |
200 |
77 |
18.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
13.38"(X) 15.38"(Y) |
| 1275WT-3-150-C |
3/8" |
0 |
150' |
No |
200 |
93 |
22.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
17.38"(X) 15.38"(Y) |
| 1275WT-3-250-C |
3/8" |
0 |
250' |
No |
200 |
130 |
28.88"(W) 18.63"(H) 17.63"(L) |
-"(M) -"(N) |
23.38"(X) 15.28"(Y) |
What Our Experts Think
-
Hand Crank Operation: Provides smooth and controlled hose retraction, ensuring easy handling and quick deployment for welding applications.
-
Low-Pressure Welding Use: Specifically designed for oxy-acetylene and other welding gas hose management, making it ideal for welding professionals.
-
Heavy-Duty Construction: Built with industrial-grade materials to withstand demanding environments, ensuring long-lasting performance.
-
Compact & Efficient Design: Helps keep hoses neatly stored, reducing clutter and improving workspace organization and safety.
-
Corrosion-Resistant Finish: Protective coating resists rust and wear, extending the life of both the reel and hose.
-
Versatile Mounting Options: Can be installed in different positions to fit workspace needs, whether wall, bench, or floor-mounted.
Q&A
Q: What is the Coxreels 1275W Series Low Pressure Hand Crank Welding Hose Reel - 1275W-3-100-C?
A: The Coxreels 1275W-3-100-C is a hand crank hose reel from the 1275W Series, specifically designed for low-pressure welding applications. It provides secure and efficient storage for welding hoses in industrial and commercial environments.
Q: What is the hose capacity of this reel?
A: This reel can hold up to 100 feet of low-pressure welding hose, making it ideal for professional welding operations that require extended reach and flexibility.
Q: How does the hand crank mechanism work?
A: The reel features a manual hand crank system that allows for smooth and controlled retraction of the hose, keeping it neatly organized and tangle-free.
Q: Is the reel durable?
A: Yes, the 1275W Series is built with heavy-duty steel construction and a corrosion-resistant finish, ensuring long-lasting durability in demanding welding environments.
Q: Is this reel easy to install?
A: Yes, the reel can be mounted on walls, benches, or mobile welding carts, providing flexibility for different workspace setups.
Q: What are typical applications for this reel?
A: This reel is ideal for welding professionals, fabrication shops, and industrial sites where safe and efficient hose storage is essential for oxy-fuel or other welding applications.
Maintenance Tips
-
Model: 1275W-3-100-C
-
Hose Capacity: Holds up to 100 feet of 3/8” or 1/2” low-pressure welding hose
-
Pressure Rating: Suitable for low-pressure applications, typically up to 300 PSI
-
Construction: Heavy-duty steel with a corrosion-resistant powder-coated finish, designed for industrial and commercial welding environments
-
Drive Mechanism: Hand crank operation for manual hose retraction
-
Swivel Inlet: Full-flow brass swivel for oxygen, acetylene, and other welding gases
-
Mounting Type: Hanging mount design, allowing for space-saving overhead installation
-
Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth and consistent hose payout and retraction
-
Applications: Ideal for welding and gas transfer applications, particularly in workshops, manufacturing facilities, and automotive repair shops
-
Temperature Range: Operates effectively in a wide range of temperatures, suitable for welding applications
-
Weight: Varies based on configuration and hose selection
