Coxreels CM Series "Caddy Mount" High Pressure Hand Crank Hose Reels - 112-3-100-CM

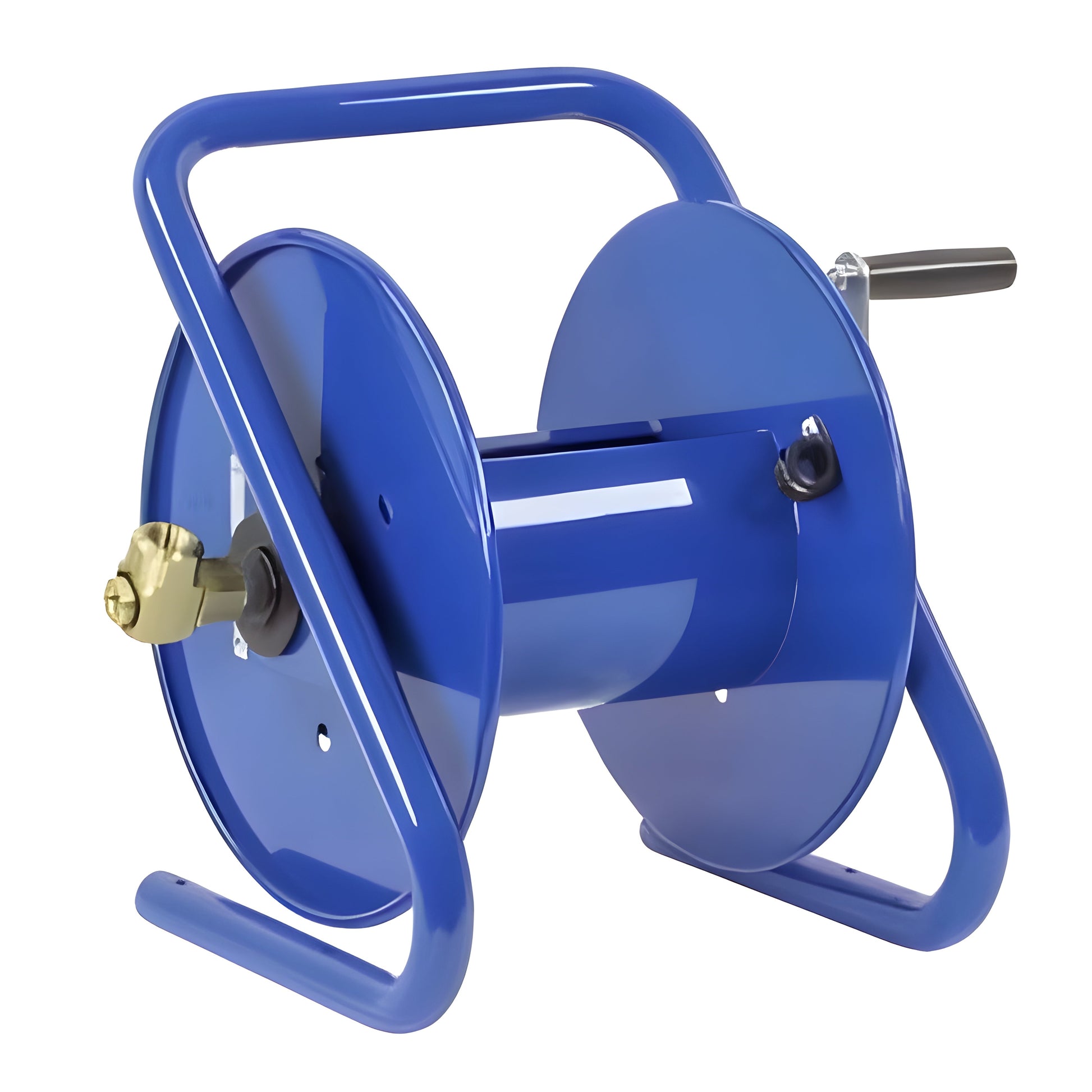

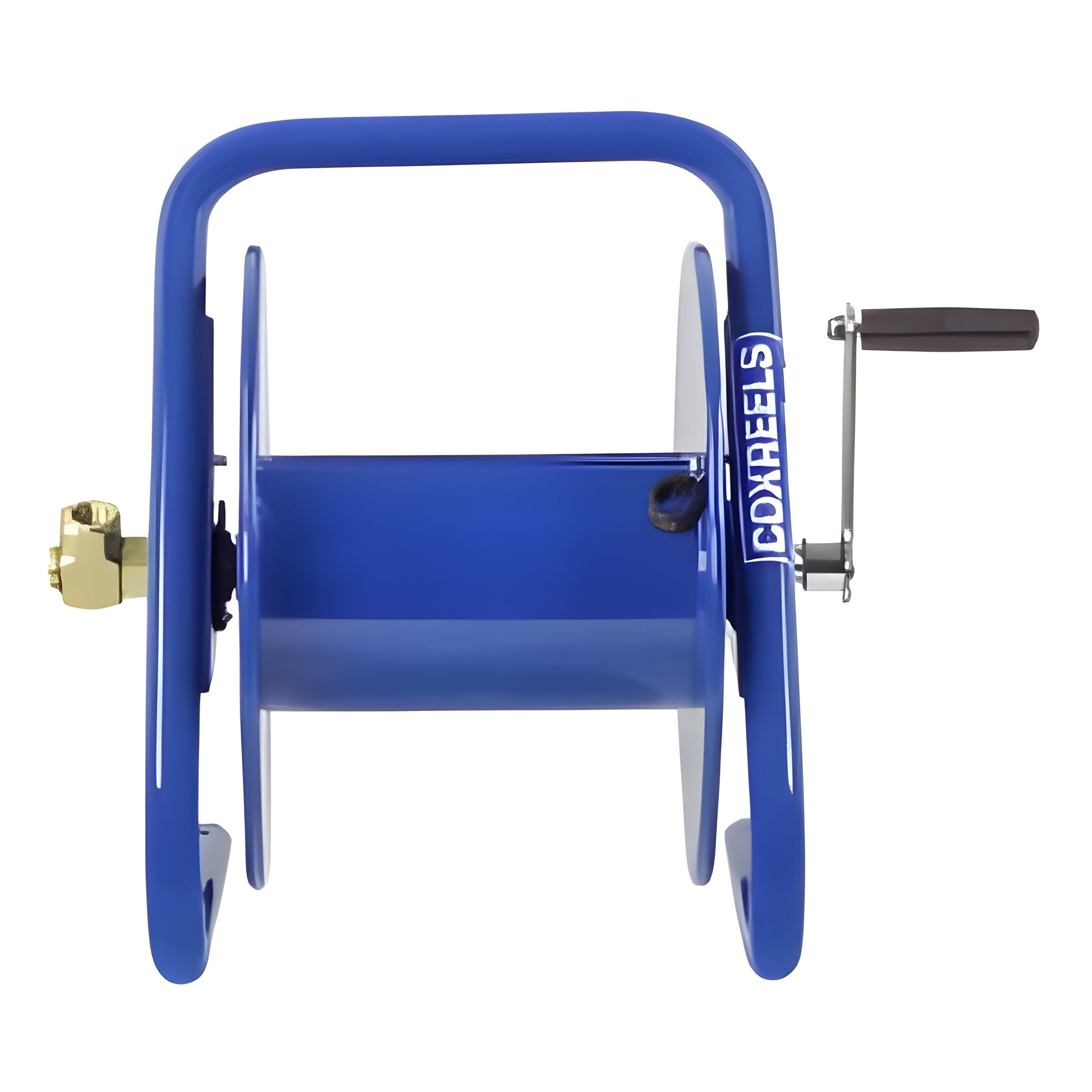

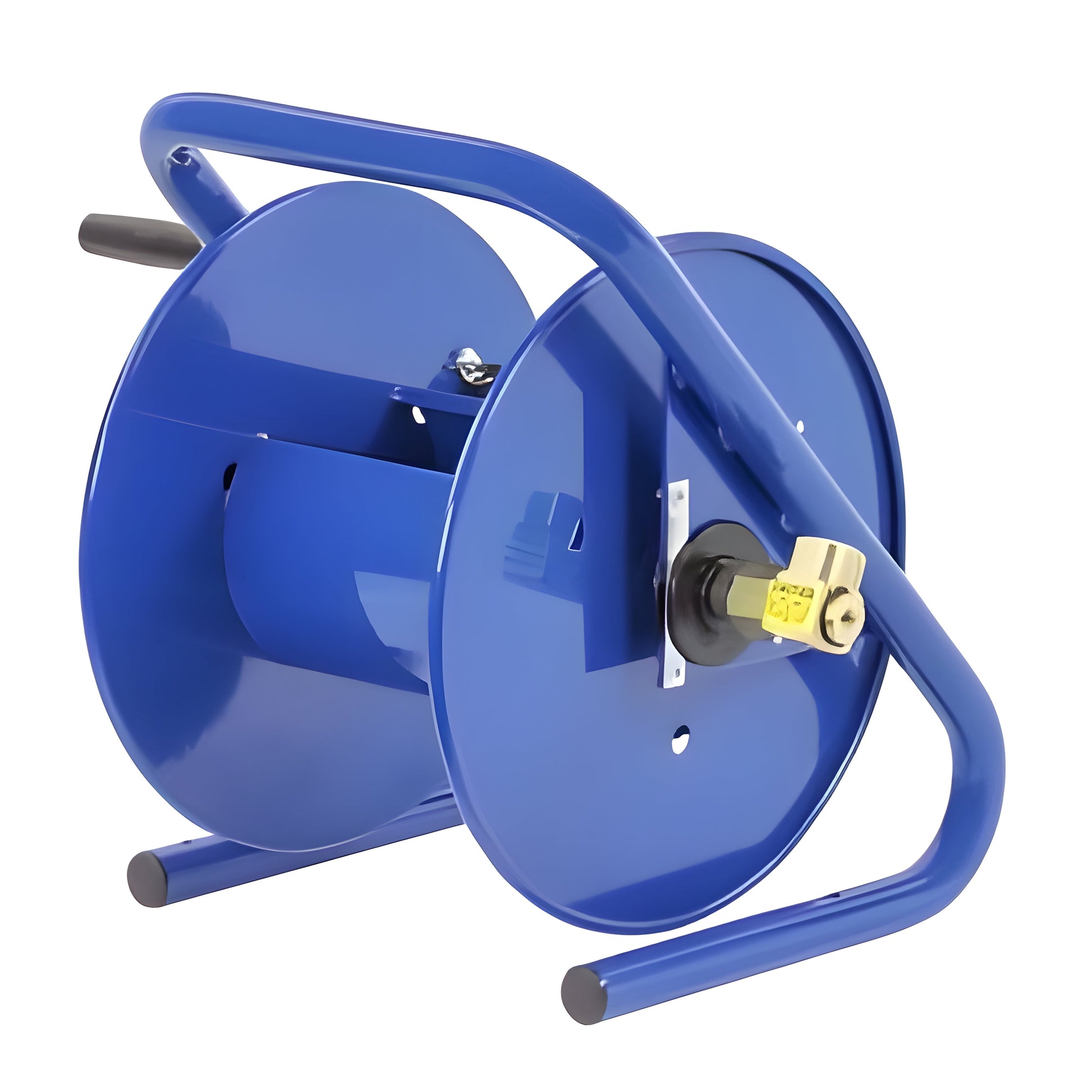

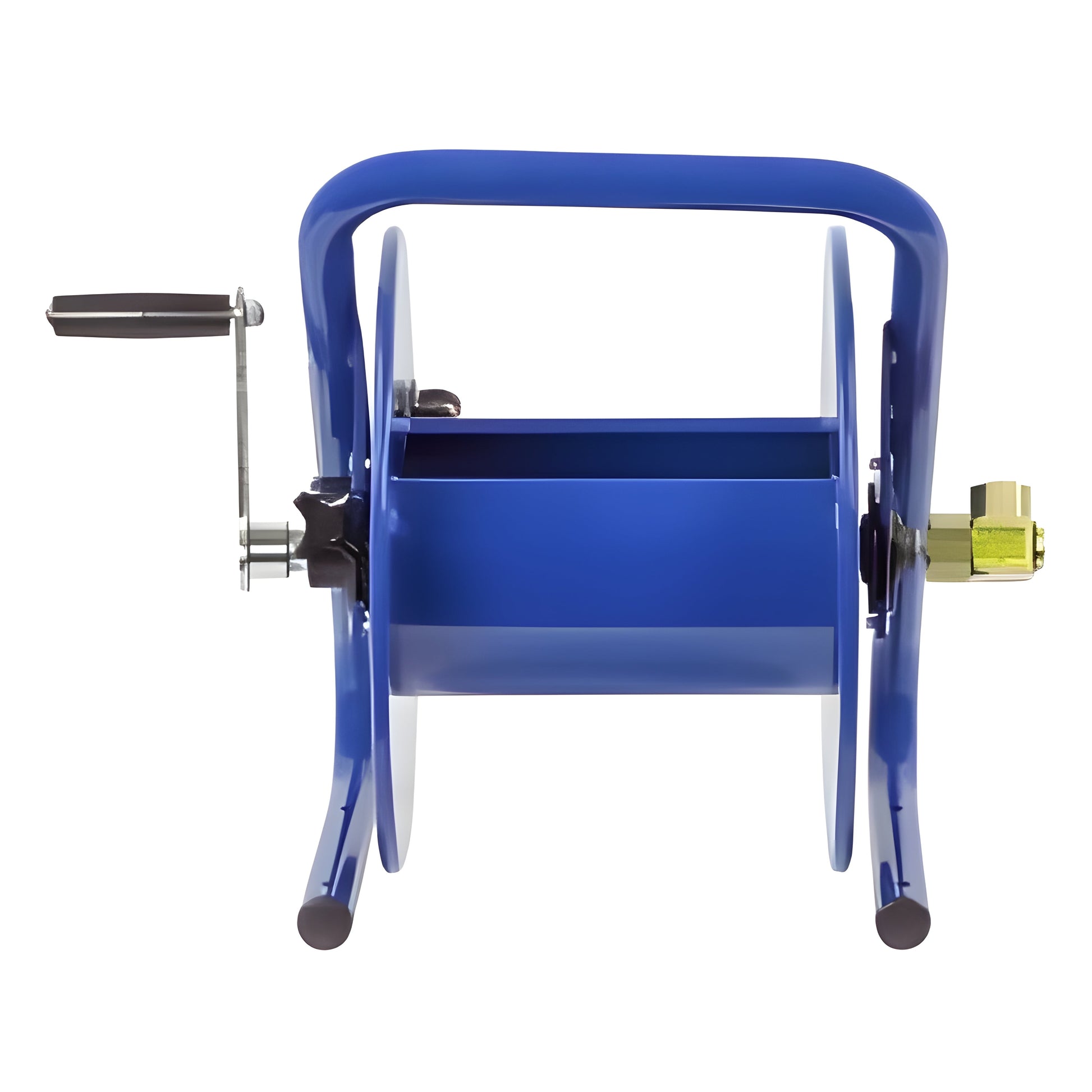

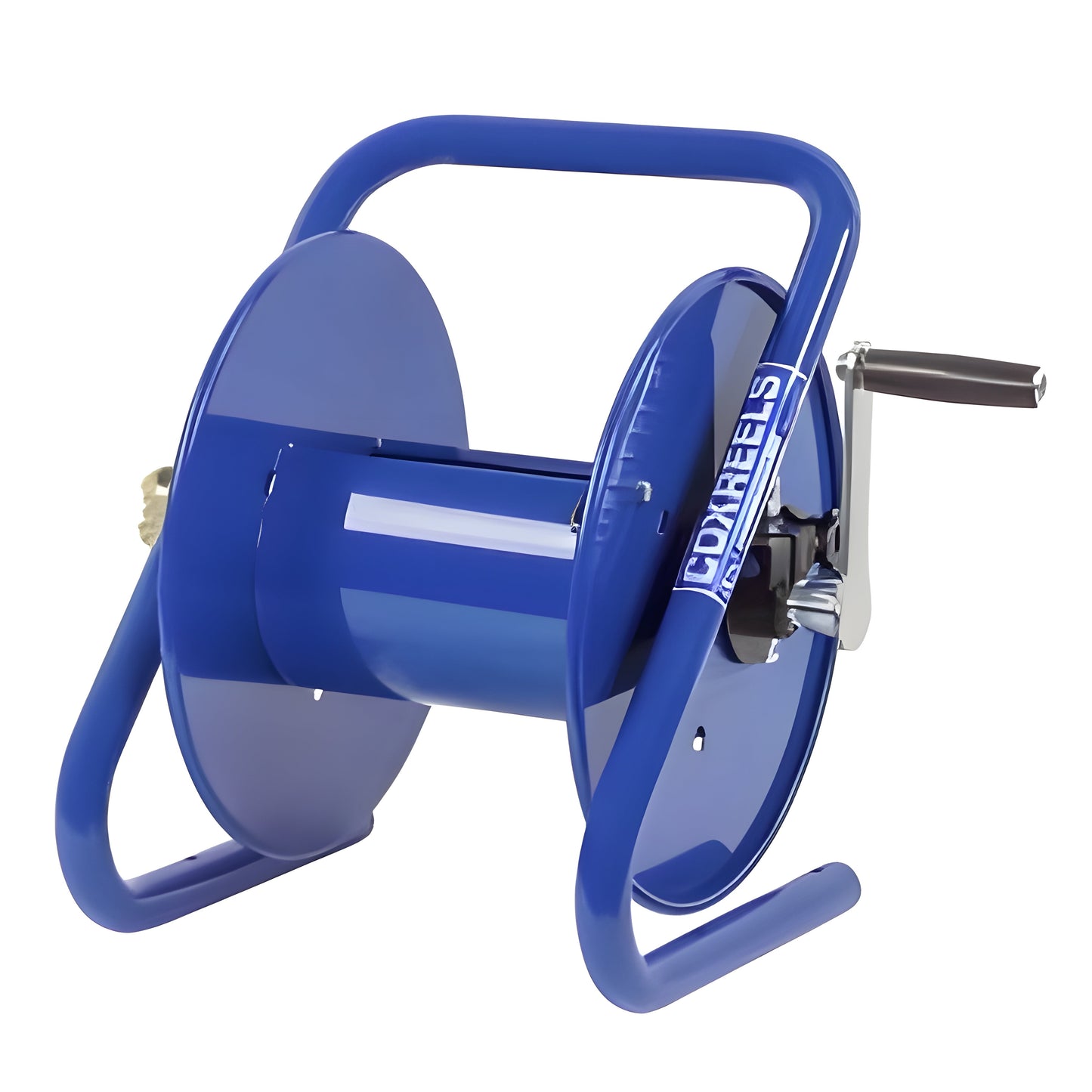

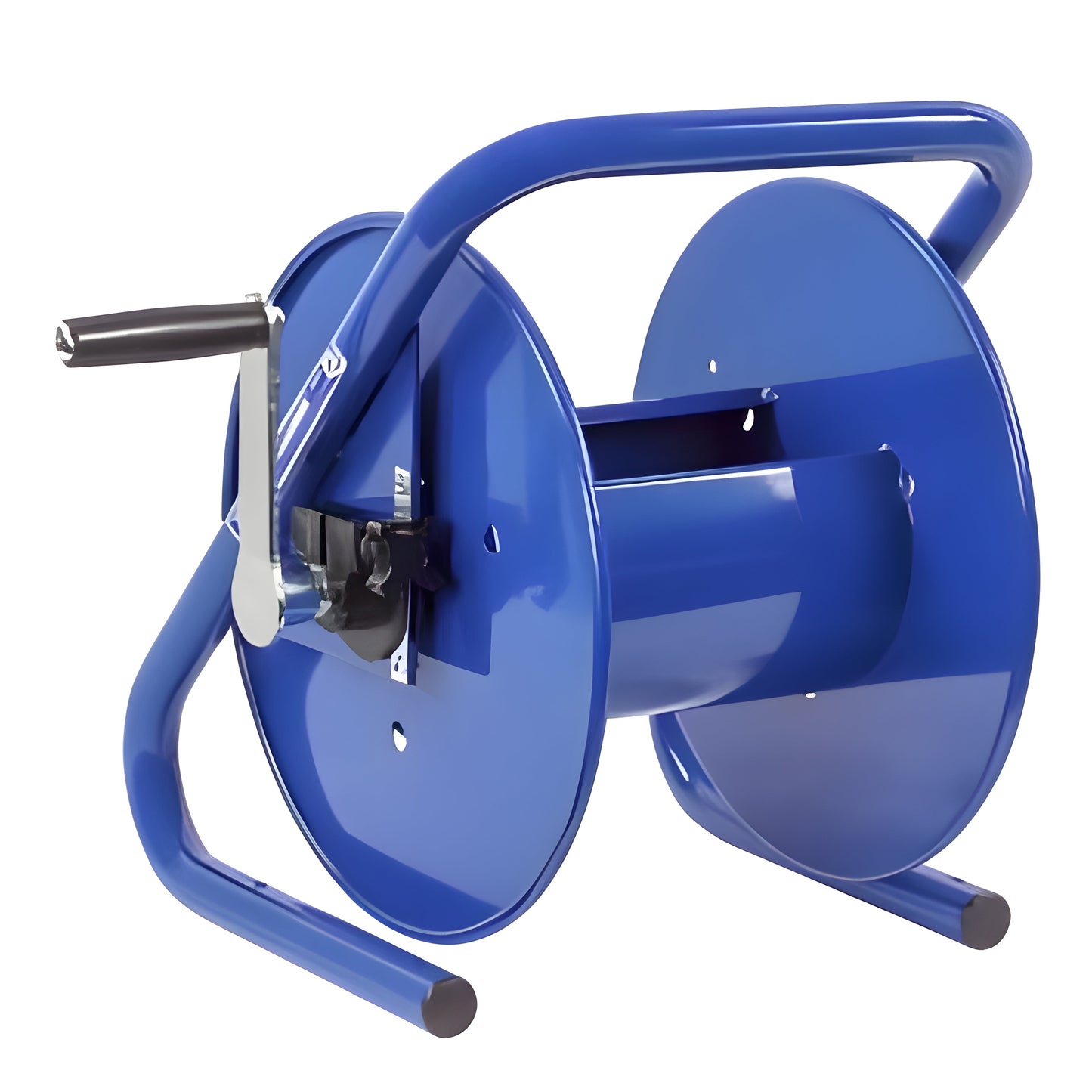

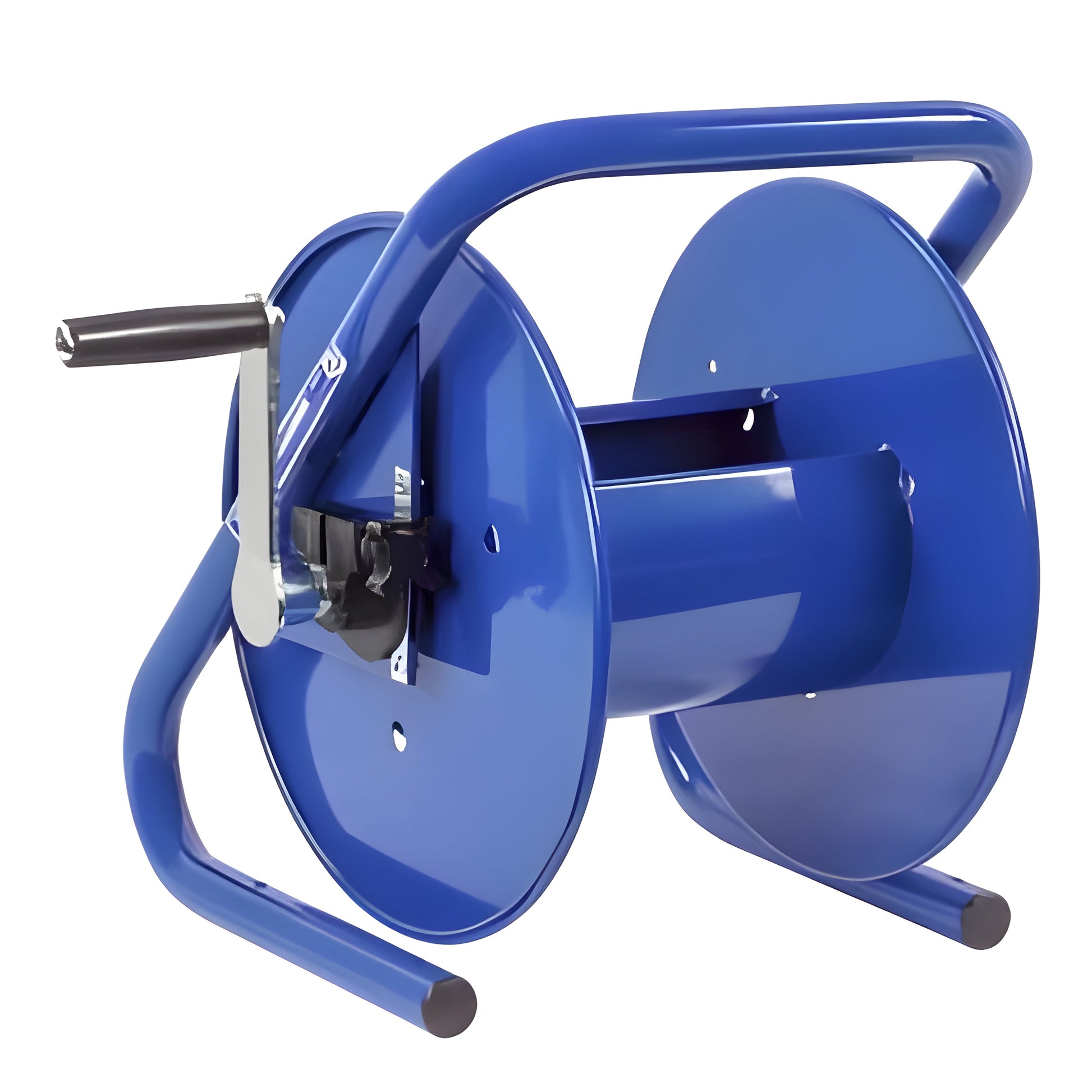

CM Series "Caddy Mount" High Pressure Hand Crank Hose Reels
COXREELS CM Series "Caddy Mount" hand crank hose reels offer lightweight, compact portability for long lengths of hose. Eliminate the task of manually coiling and uncoiling hose and easily transport it to the job site with its convenient carrying handle. High pressure applications are no problem with a 4,000 PSI rating. Also, a 4’ inlet hose with 3/4" female fitting and male garden adapter is available with this series for use with garden hose. See options below.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
FRAME DESIGN -High quality one piece 1" steel tube frame structure. Base has holes for temporary or permanent installation.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
-
STEEL CONSTRUCTION - High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, hose control bar, and direct hand crank for easy mechanical retraction.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| 112-3-100-CM |
3/8" |
5/8" |
100' |
No |
4000 |
18 |
18.5"(W) 14.75"(H) 13.13"(L) |
10.5"(M) 5.25"(N) |
11.5"(X) 10.63"(Y) |
| 112-3-150-CM |
3/8" |
5/8" |
150' |
No |
4000 |
22 |
23"(W) 14.75"(H) 13.13"(L) |
10.5"(M) 5.25"(N) |
16"(X) 10.5"(Y) |
| 117-4-225-CM |
1/2" |
7/8" |
225' |
No |
4000 |
28 |
23"(W) 18.5"(H) 18"(L) |
10.5"(M) 5.25"(N) |
16"(X) 12.63"(Y) |
What Our Experts Think
-
Caddy Mount Design: The innovative caddy mount allows for easy mobility and flexible hose management, perfect for dynamic work environments.
-
High-Pressure Capability: Handles up to 3,000 PSI, ideal for high-pressure fluid transfer applications, including air, water, and hydraulic systems.
-
Hand Crank Operation: Offers precise control for hose retraction, allowing users to quickly and safely store hoses while minimizing manual effort.
-
Heavy-Duty Construction: Built with robust materials to withstand tough industrial environments, ensuring long-term performance and reliability.
-
Corrosion-Resistant Coating: Coated for protection against rust and corrosion, making it suitable for both indoor and outdoor use in harsh conditions.
-
Space-Saving & Portable: The caddy mount design provides mobility, enabling easy transportation and efficient hose management in multiple locations.
-
Versatile Applications: Perfect for industries like construction, automotive, and maintenance, where high-pressure hose management and flexibility are required.
Q&A
Q: What is the Coxreels CM Series "Caddy Mount" High Pressure Hand Crank Hose Reel - 112-3-100-CM?
A: The Coxreels 112-3-100-CM is a high-pressure hand crank hose reel from the CM Series, featuring a caddy mount design. This reel is designed for managing high-pressure hoses in industrial and commercial applications, providing easy storage and controlled hose retraction.
Q: What is the hose capacity of this reel?
A: The 112-3-100-CM can hold up to 100 feet of high-pressure hose, making it ideal for fluid transfer tasks in demanding environments.
Q: How does the hand crank mechanism work?
A: The reel uses a manual hand crank for hose retraction, allowing users to easily wind the hose back into the reel after use, keeping the hose neat and organized.
Q: Is the reel durable?
A: Yes, the CM Series reels are built with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting durability even in tough, high-pressure environments.
Q: Is this reel easy to install?
A: Yes, the 112-3-100-CM features a caddy mount design, allowing for easy and flexible installation in various workspaces. It can be mounted on the floor or wall, depending on your setup.
Q: What are typical applications for this reel?
A: This reel is ideal for use in high-pressure applications, such as in manufacturing, automotive, construction, and other industrial settings where efficient hose management is required.
Maintenance Tips
-
Model: 112-3-100-CM
-
Hose Capacity: 100 feet of 3/8” or 1/2” high-pressure hose
-
Pressure Rating: Rated for high-pressure applications up to 5000 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for increased durability in industrial settings
-
Drive Mechanism: Hand crank operation for manual hose retraction
-
Swivel Inlet: Full-flow swivel for smooth and consistent fluid or air transfer with minimal friction
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth hose payout and retraction
-
Mounting Type: Caddy Mount design allows for easy portability and flexibility in positioning
-
Applications: Ideal for high-pressure fluid or air transfer applications in demanding environments such as automotive, industrial, and maintenance operations
-
Temperature Range: Designed to operate effectively in a wide temperature range
-
Weight: Varies based on configuration and hose length
