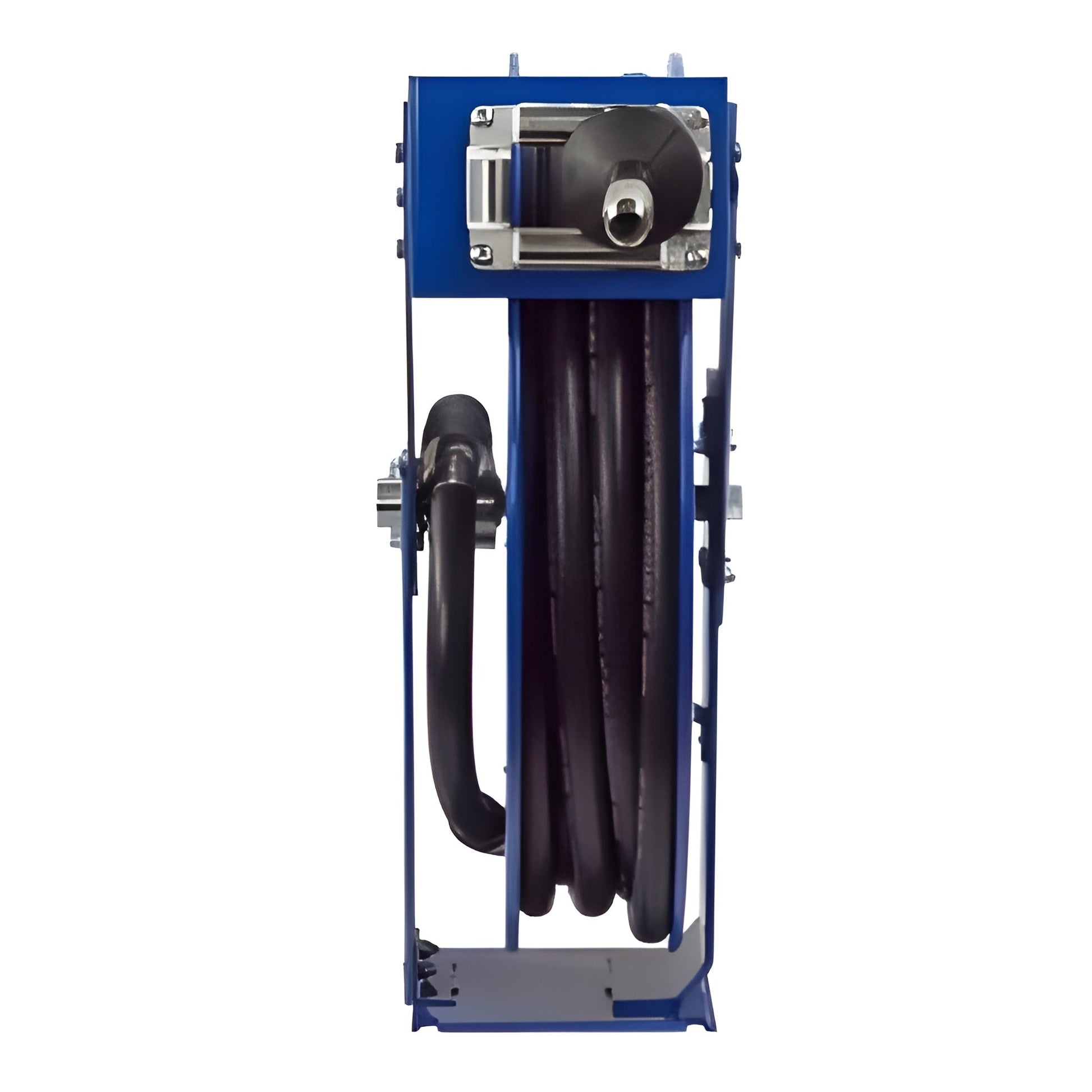

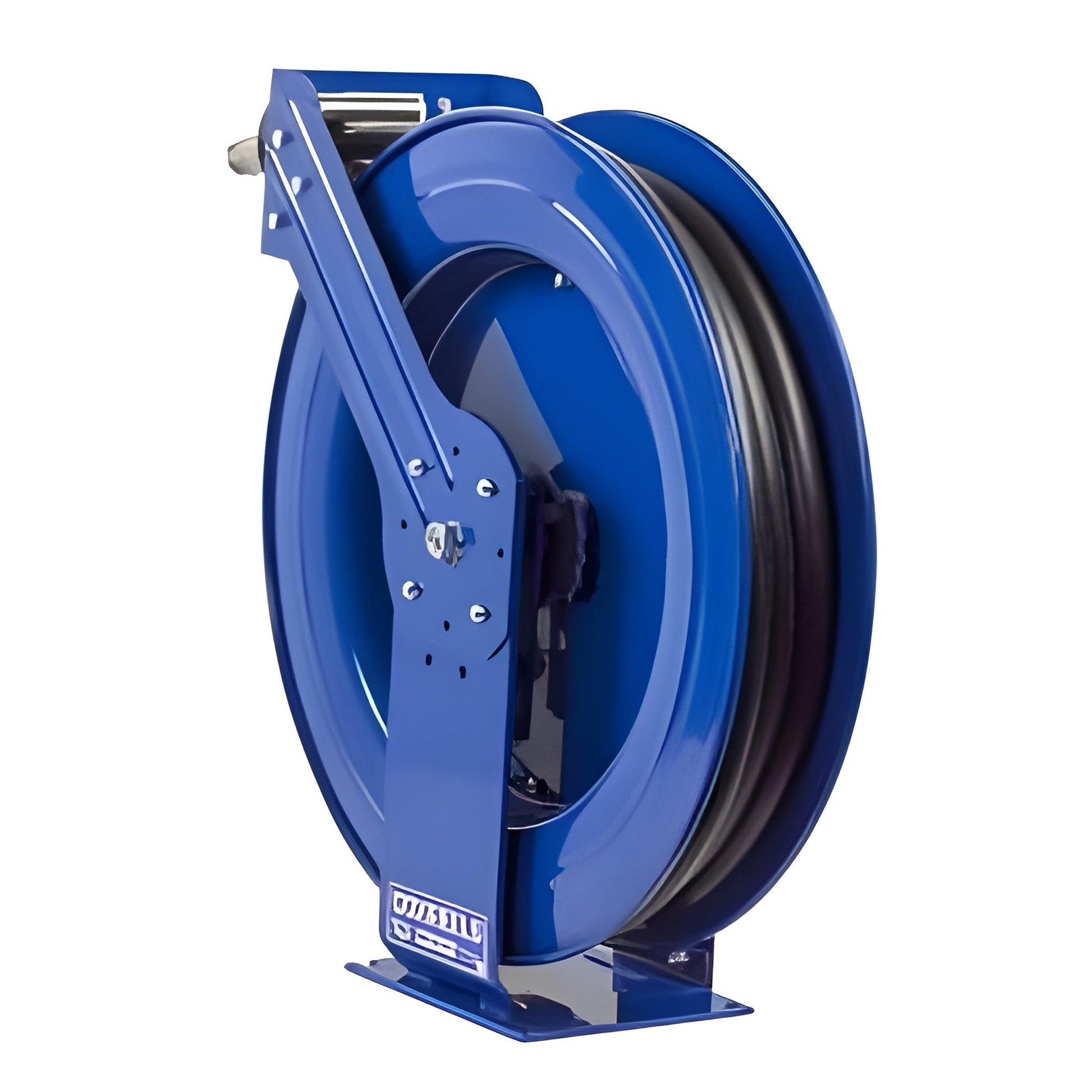

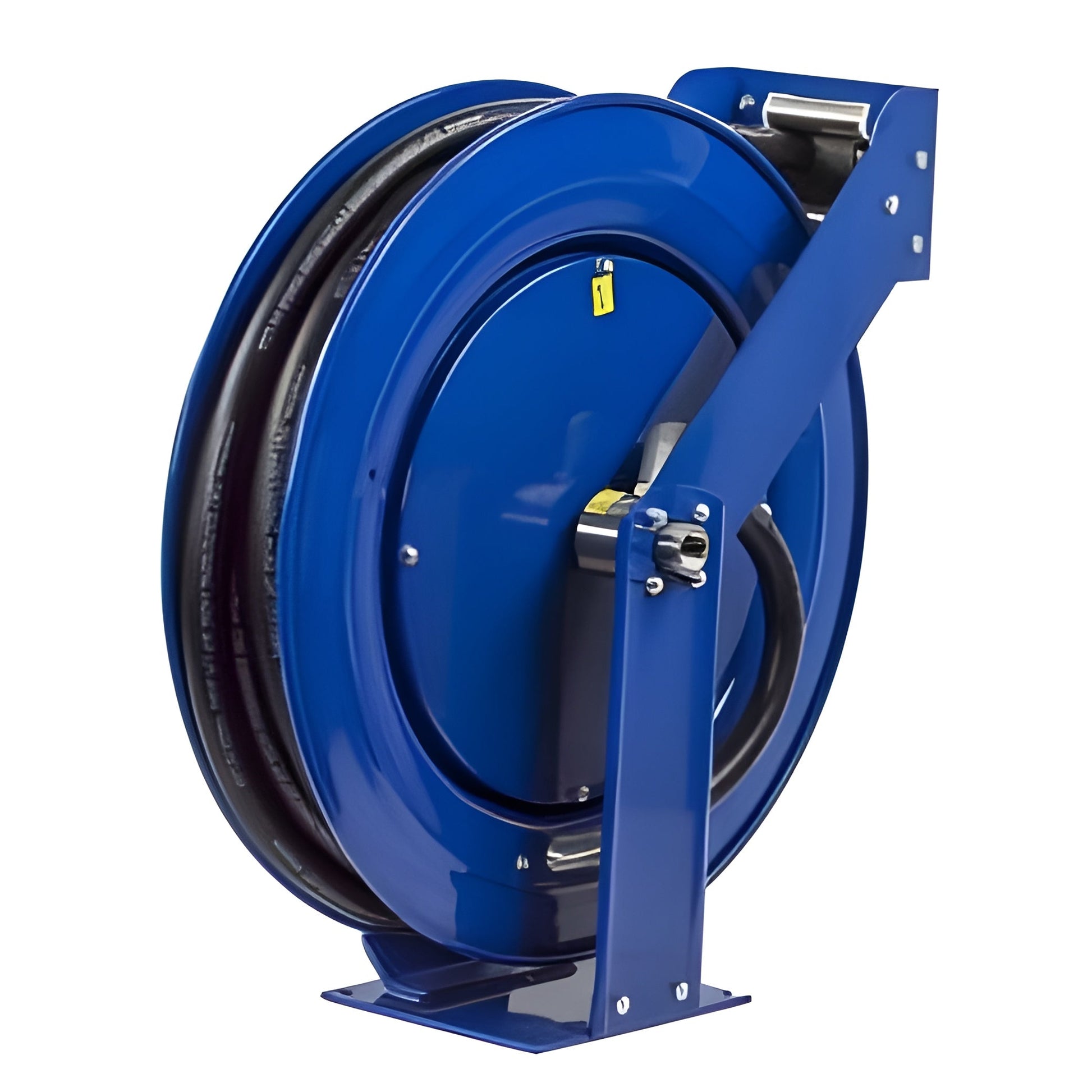

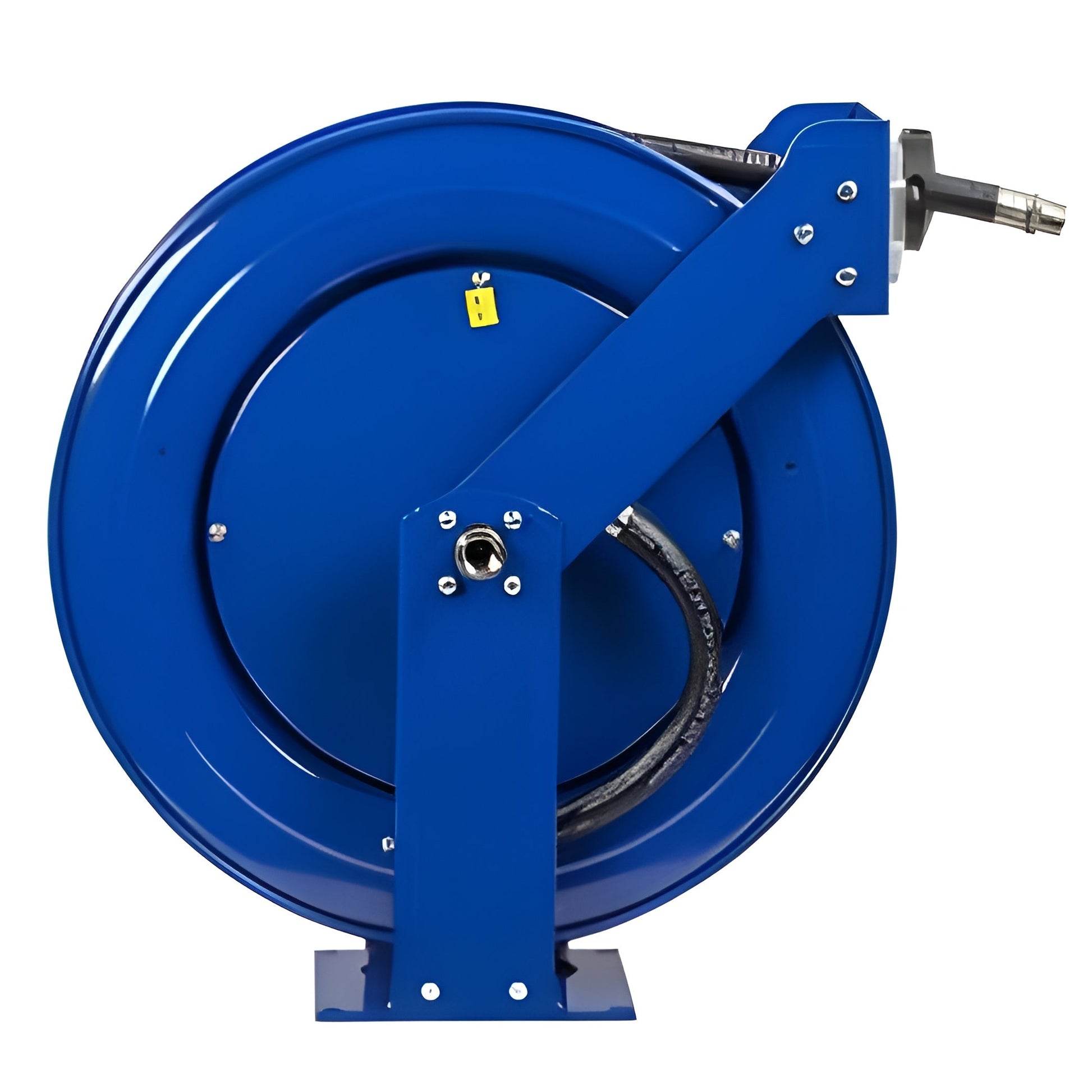

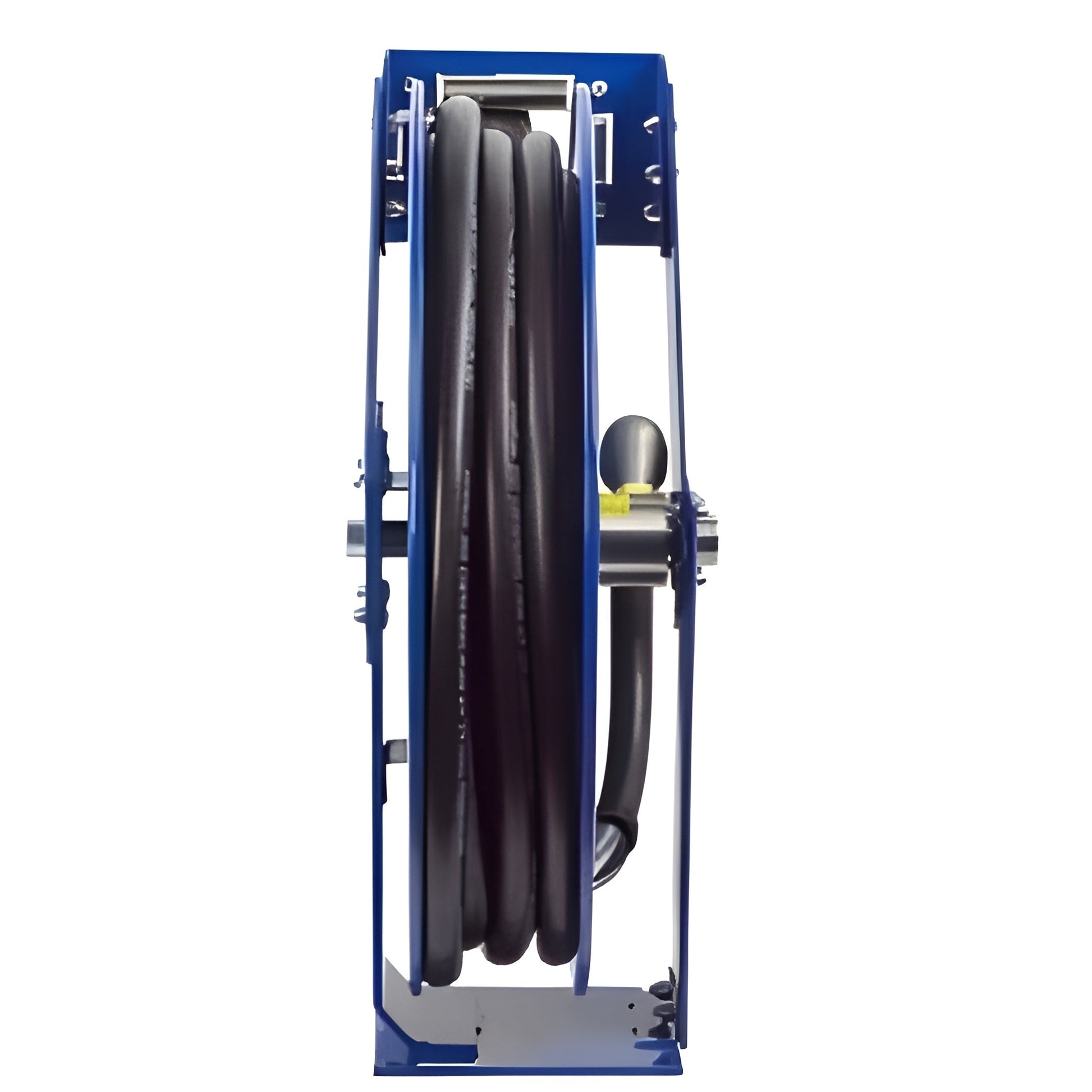

Coxreels DEF Low Pressure Series - TSH-N-550-DF-BBX
DEF Low Pressure Series
COXREELS DEF Series are equipped with a stainless steel external full-flow swivel and chemical resistant Viton seals to provide a safe, reliable Diesel Exhaust Fluid (DEF) dispensing solution. The swivel is easy to access for simple seal maintenance and fast DEF dispenser hose installation. Supreme-duty dual pedestal (T Series) configuration is outfitted with Coxreelsâ original Super Hub⢠triple axle support system to increase stability and reduce vibration during operation, making these reels the perfect DEF handling solutions for either stationary or rugged mobile applications.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Non-corrosive stainless steel 90Ë full-flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub⢠triple axle support system.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, DEF dispensing hose, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| TSH-N-550-DF-BBX |
3/4" |
1 1/8" |
50' |
Yes |
300 |
91 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-450-BBX |
1/2" |
7/8" |
50' |
No |
300 |
55 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-535-DF-BBX |
3/4" |
1 1/8" |
35' |
No |
300 |
67 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-550-DF-BBX |
3/4" |
1 1/8" |
50' |
No |
300 |
70 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-635-BBX |
1" |
1 3/8" |
35' |
No |
300 |
71 |
10"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-650-BBX |
1" |
1 3/8" |
50' |
No |
300 |
77 |
12"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
DEF-Safe Construction: Built with corrosion-resistant materials to ensure compatibility with DEF and extend the reelâs lifespan.
-
Low-Pressure Operation: Optimized for safe and efficient fluid transfer without risk of contamination.
-
Heavy-Duty Design: Durable frame and components withstand demanding environments, making it ideal for industrial and commercial use.
-
Spring Rewind Mechanism: Provides smooth, controlled hose retraction for easy operation and storage.
-
Compact & Versatile: Space-saving design allows for easy installation in various settings, from workshops to fleet maintenance facilities.
Q&A
Q: What is it?
A: A low-pressure hose reel designed for dispensing Diesel Exhaust Fluid (DEF) safely and efficiently in industrial and commercial settings.
Q: Who is it for?
A: Ideal for fleet maintenance, automotive shops, and industrial facilities needing a reliable DEF dispensing solution.
Q: Why choose this hose reel?
A: Ensures safe, clean, and efficient DEF handling, with a rugged design and hassle-free operation for professional use.
Maintenance Tips
-
Regular Inspection: Check the hose, fittings, and reel for wear, cracks, or leaks. Replace any damaged parts.
-
Keep Clean: Wipe down the reel and hose to prevent DEF crystallization, which can clog components.
-
Check Hose Retraction: Ensure smooth retraction and extension; lubricate moving parts if needed.
-
Monitor Flow Performance: Verify consistent DEF flow and inspect for kinks or blockages in the hose.
-
Protect from Contamination: Keep the hose and reel covered when not in use to prevent dirt or debris from entering the DEF system.
-
Avoid Excessive Pressure: Use the reel within its recommended pressure rating to prevent premature wear.
-
Secure Mounting: Ensure the reel is firmly installed to prevent vibration damage.
