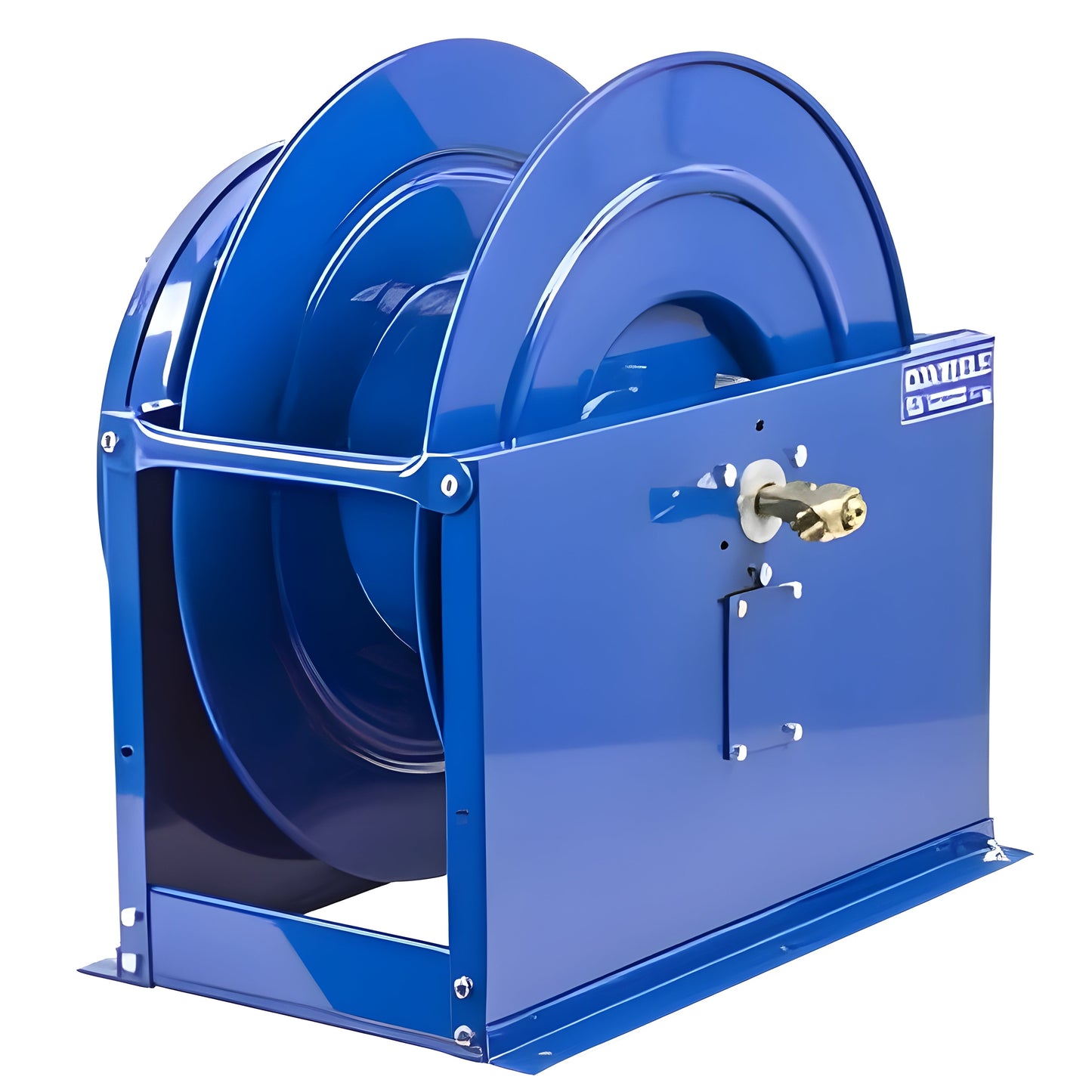

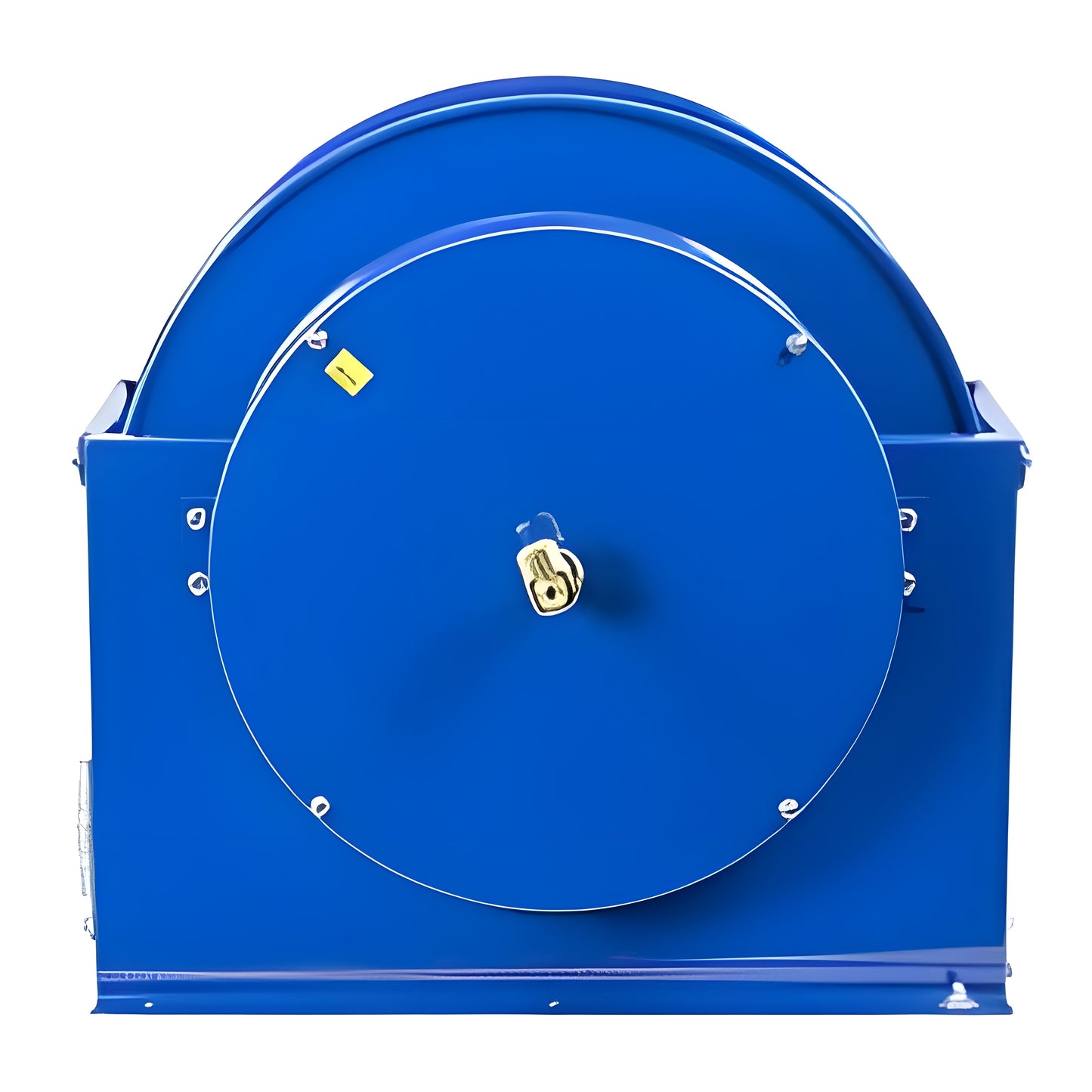

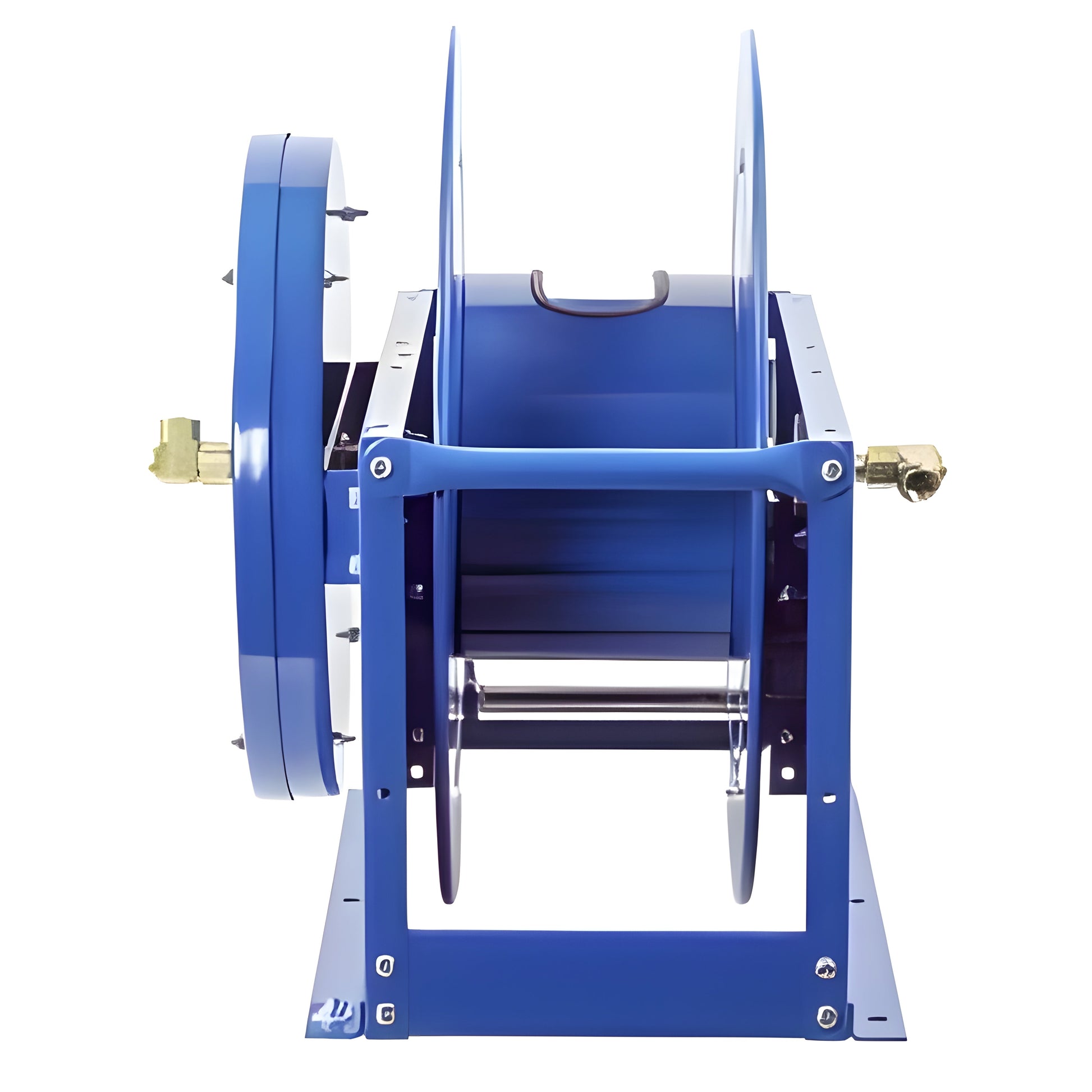

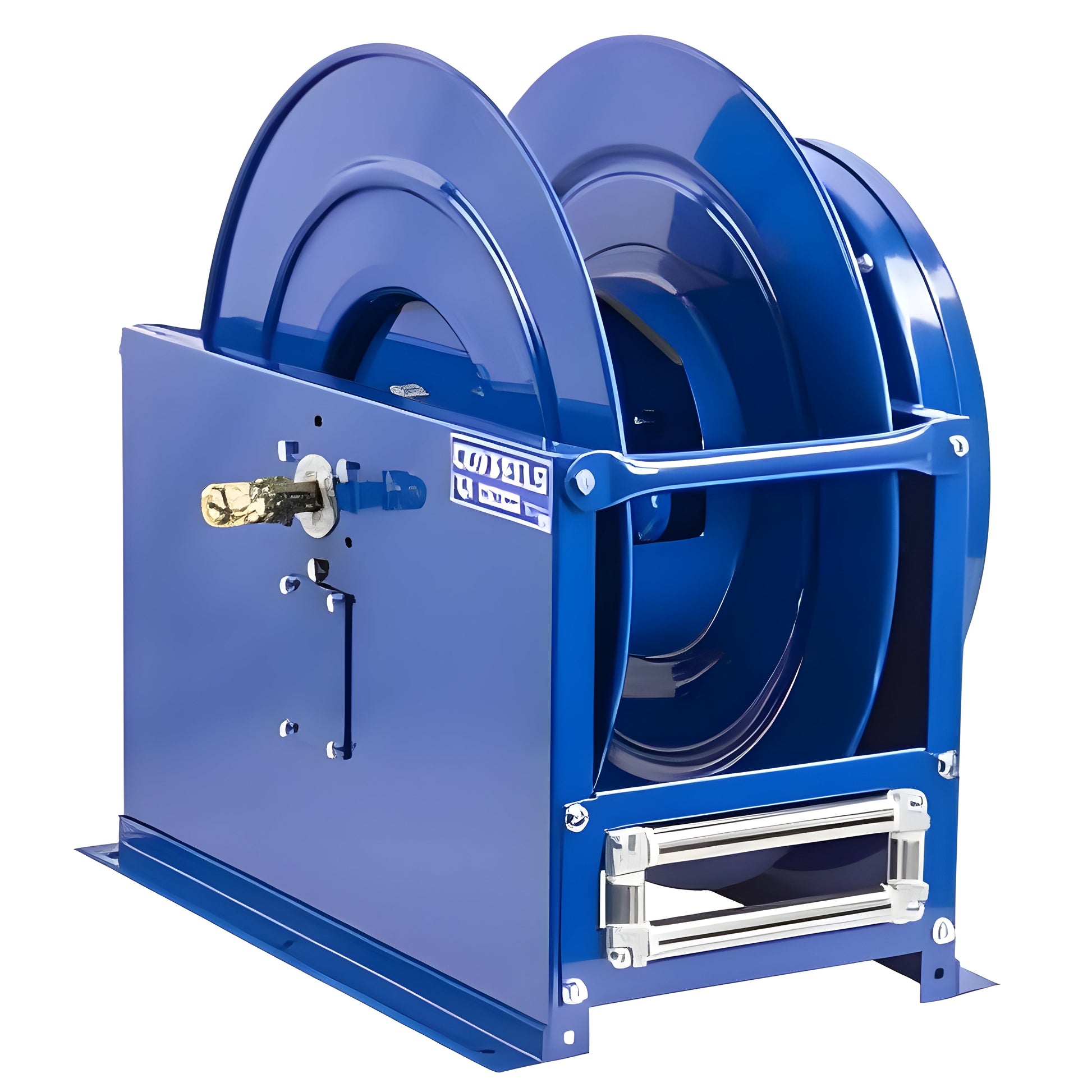

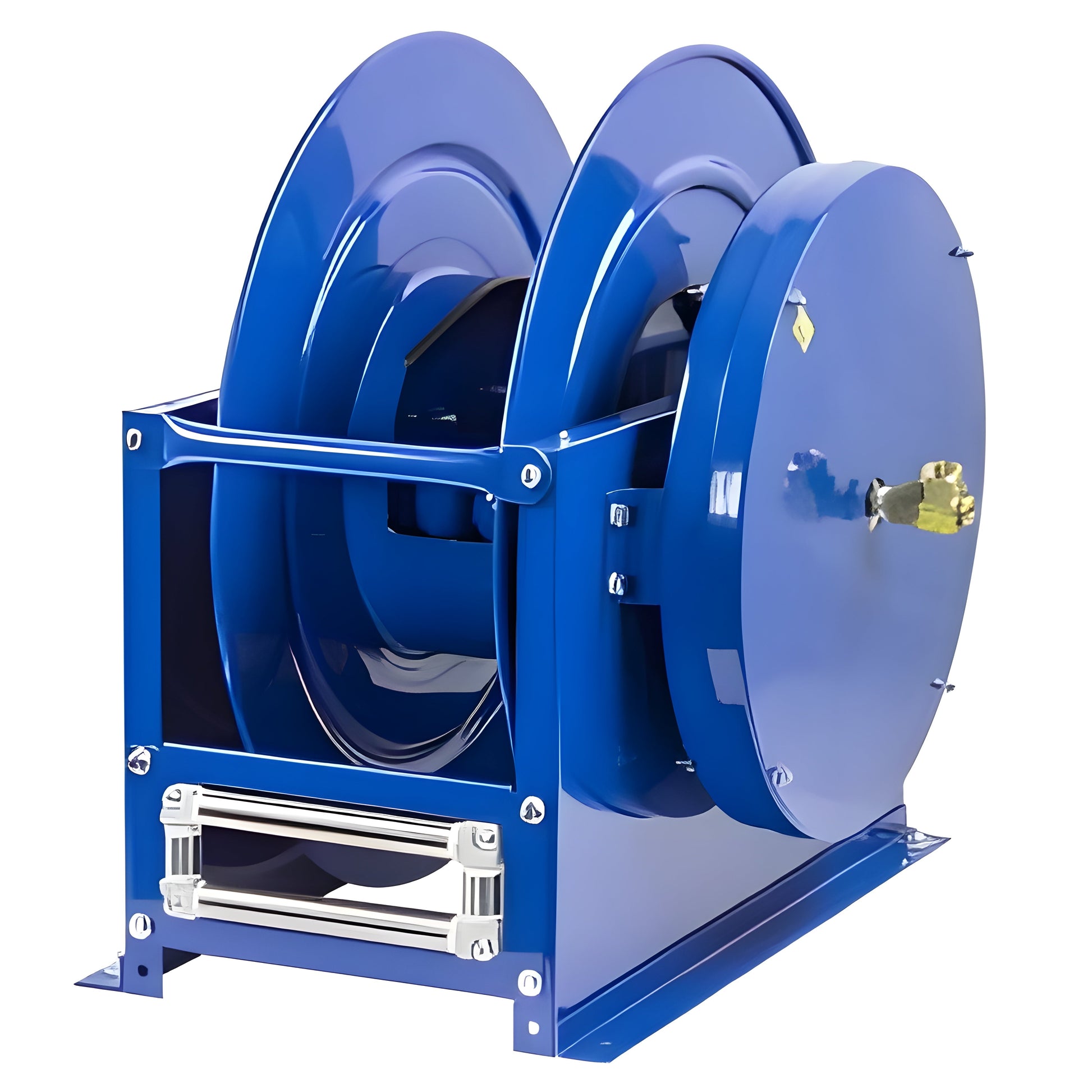

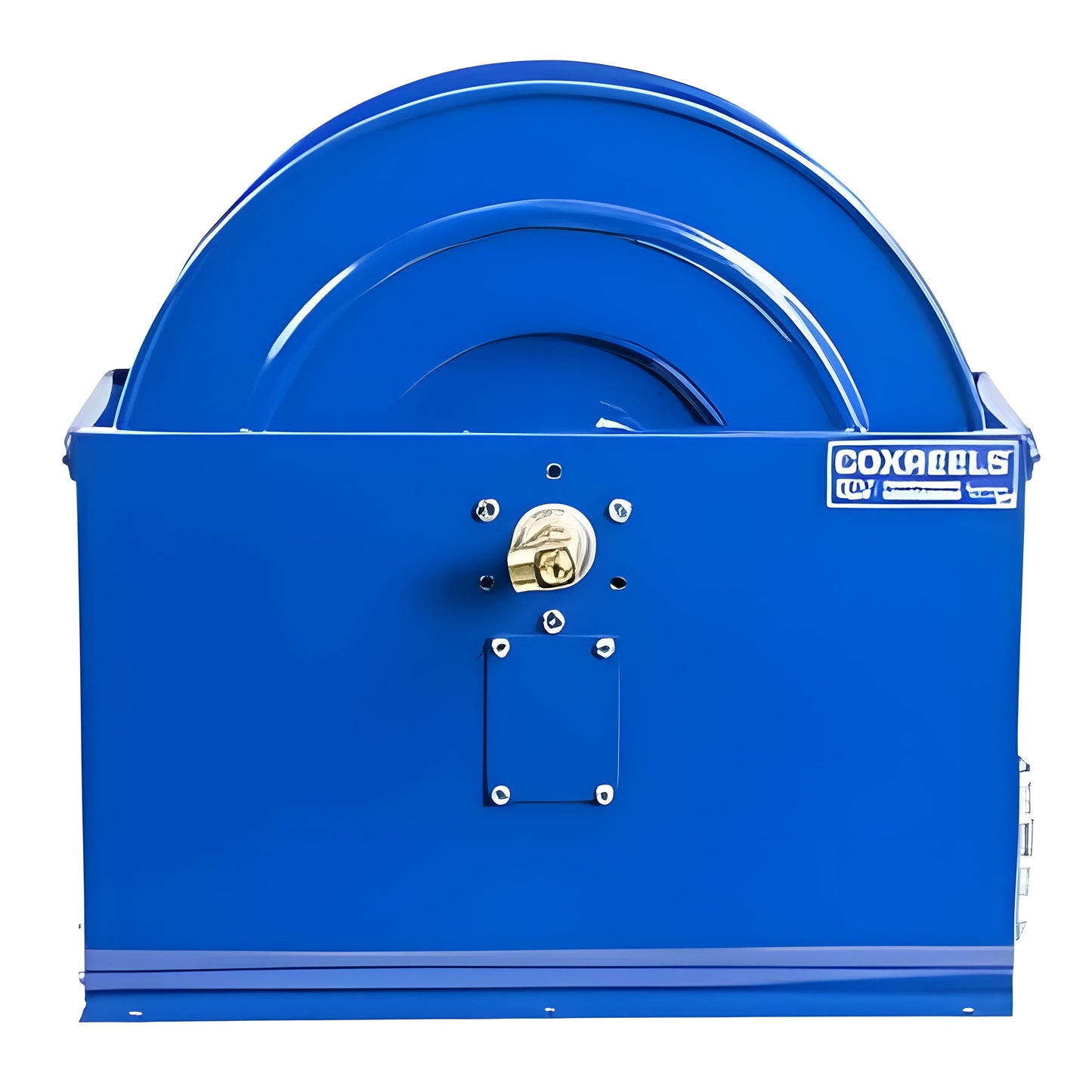

Coxreels DP Series "Dual Product Delivery" Low-Pressure Spring Driven Hose Reels - DLPL-3100

DP Series "Dual Product Delivery" Low-Pressure Spring Driven Hose Reels

COXREELS DP Series "Dual Product Delivery" spring driven hose reels have two swivel inlets and two outlets for dual hose applications. Like the SP Series they are built to handle large hose diameters used in applications demanding large volume delivery in low and medium pressures. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.

Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer's limited warranty
Made in the U.S.A. - Sold & Supported Worldwide

Features

SWIVEL - Two external fluid paths with machined solid brass 90º full-flow NPT swivel inlets for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
BOX STYLE FRAME DESIGN - Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
OULET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, heavy duty stainless steel pinch-proof rollers, stainless steel pawl spring, and long lasting self lubricated flange bearings.

Specifications

MODEL	I.D	O.D	LENGTH	HOSE	MAX PSI	SHIP WEIGHT (LBS)	OVERALL DIMENSIONS (W) (H) (L)	MOUNTING PATTERN (M) (N)	BASE (X) (Y)
DLPL-3100	3/8"	3/4"	100'	No	300	117	21.5"(W) 24.5"(H) 26.38"(L)	14"(M) 22"(N)	15.38"(X) 25"(Y)
DLPL-350	3/8"	3/4"	50'	No	300	94	21.5"(W) 20.5"(H) 22.88"(L)	14"(M) 22"(N)	15.38"(X) 21.5"(Y)
DLPL-375	3/8"	3/4"	75'	No	300	115	21.5"(W) 20.5"(H) 22.88"(L)	14"(M) 22"(N)	15.38"(X) 21.5"(Y)
DLPL-4100	1/2"	7/8"	100'	No	300	138	21.5"(W) 28.5"(H) 30.38"(L)	14"(M) 22"(N)	15.38"(X) 29"(Y)
DLPL-450	1/2"	7/8"	50'	No	300	97	21.5"(W) 20.5"(H) 22.88"(L)	14"(M) 22"(N)	15.38"(X) 21.5"(Y)
DLPL-475	1/2"	7/8"	75'	No	300	104	21.5"(W) 24.5"(H) 26.38"(L)	14"(M) 22"(N)	15.38"(X) 25"(Y)
DLPL-525	3/4"	1 1/4"	25'	No	300	93	23.88"(W) 20.5"(H) 22.88"(L)	14"(M) 22"(N)	15.38"(X) 21.5"(Y)
DLPL-550	3/4"	1 1/4"	50'	No	300	100	23.88"(W) 24.5"(H) 26.38"(L)	14"(M) 22"(N)	15.38"(X) 25"(Y)

What Our Experts Think

Dual Product Delivery: Capable of managing two separate hoses simultaneously, offering a convenient solution for delivering different fluids or gases from a single reel.
Low-Pressure Capability: Handles pressures up to 1,000 PSI, making it ideal for air, water, or light fluid transfer applications.
Spring-Driven Retraction: Provides smooth, automatic hose retraction, ensuring quick and effortless storage while reducing wear and tear on hoses.
Heavy-Duty Construction: Built to withstand tough work environments, ensuring long-term durability and reliable performance.
Space-Saving Design: Optimizes hose storage by combining two products in one reel, reducing clutter and improving workspace organization.
Corrosion-Resistant Finish: Coated with protective finishes to prevent rust, enhancing the reel's lifespan in harsh outdoor or industrial conditions.
Flexible Mounting Options: Can be mounted on walls, ceilings, or floors, allowing for versatile installation based on available space and application needs.

Q&A

Q: What is the Coxreels DP Series "Dual Product Delivery" Low-Pressure Spring Driven Hose Reel - DLPL-3100?
A: The Coxreels DLPL-3100 is a dual-product delivery, low-pressure hose reel designed to manage two hoses simultaneously. Featuring a spring-driven mechanism, it offers automatic retraction for both hoses, making it ideal for applications that require multiple fluid or air transfers.

Q: What is the hose capacity of this reel?
A: The DLPL-3100 can hold up to 100 feet of two separate low-pressure hoses, allowing for efficient management of multiple fluid or air lines in industrial and commercial environments.

Q: How does the spring-driven mechanism work?
A: The reel utilizes a spring rewind system that automatically retracts both hoses after use, keeping them organized and reducing the need for manual effort to store the hoses.

Q: Is the reel durable?
A: Yes, the DP Series is built with heavy-duty materials and features a corrosion-resistant finish, ensuring reliability and longevity even in harsh conditions.

Q: Is this reel easy to install?
A: Yes, the DLPL-3100 offers flexible mounting options, including wall, floor, or ceiling installations, providing versatility for various setups.

Q: What are typical applications for this reel?
A: This reel is ideal for use in environments where two different low-pressure hoses are needed, such as in workshops, automotive repair shops, industrial facilities, or for managing air and water lines.

Maintenance Tips

Model: DLPL-3100

Hose Capacity: Designed to accommodate two separate hoses (up to 100 feet each of 1/2” or 3/8” hose) for dual product delivery
Pressure Rating: Suitable for low-pressure applications up to 300 PSI
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for long-lasting performance in industrial and commercial environments
Drive Mechanism: Spring-driven automatic rewind for efficient, smooth hose retraction
Swivel Inlet: Dual full-flow swivels for continuous fluid or air delivery with reduced hose wear
Roller Design: Multi-position guide arm with reinforced rollers for smooth hose payout and retraction
Mounting Type: Wall, floor, or ceiling mounting options for flexible installation
Applications: Perfect for dual product delivery systems in environments that require multiple fluid or air transfer lines, such as automotive service, maintenance, and light industrial applications
Temperature Range: Operates effectively in a wide temperature range, suitable for industrial settings
Weight: Varies based on hose length and configuration
