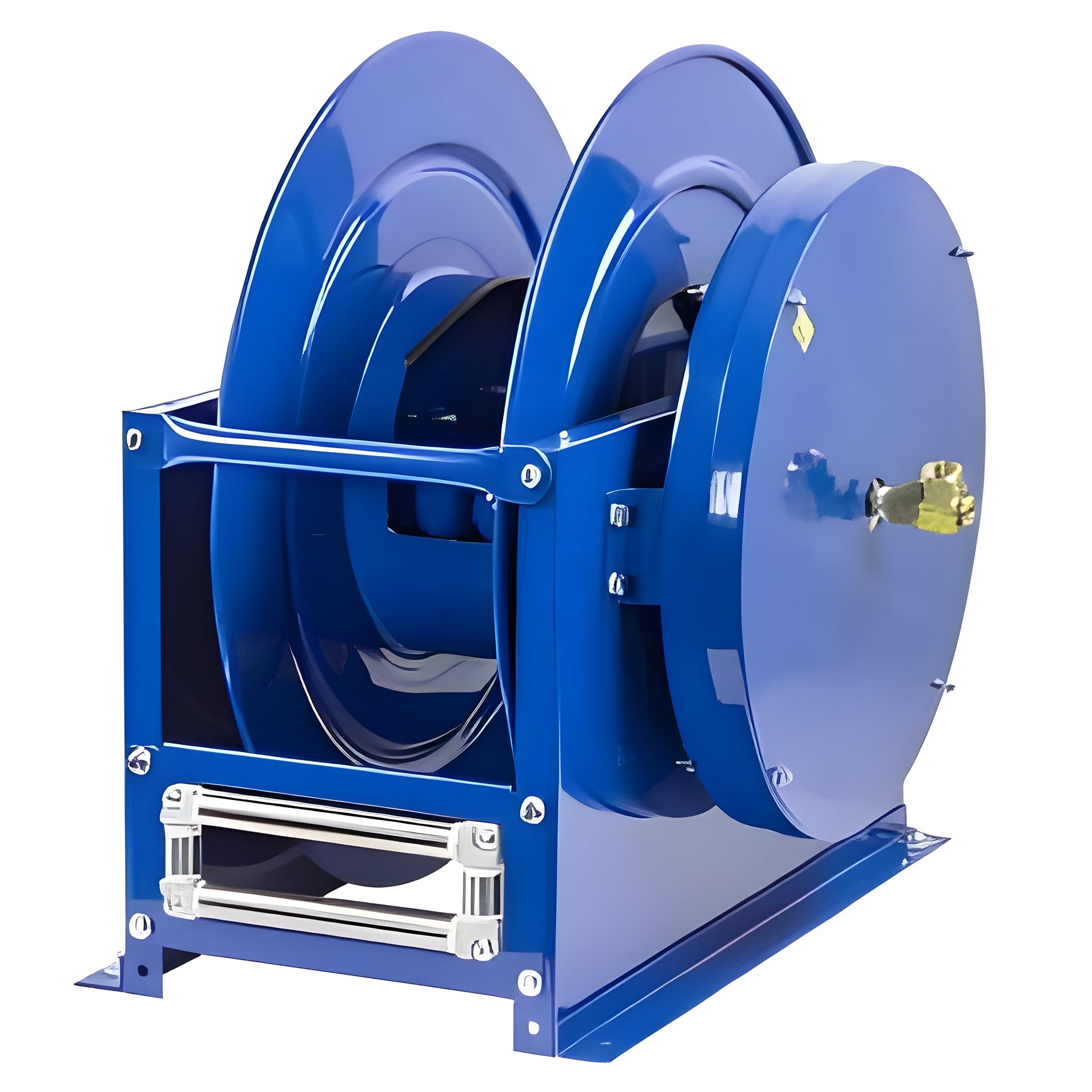

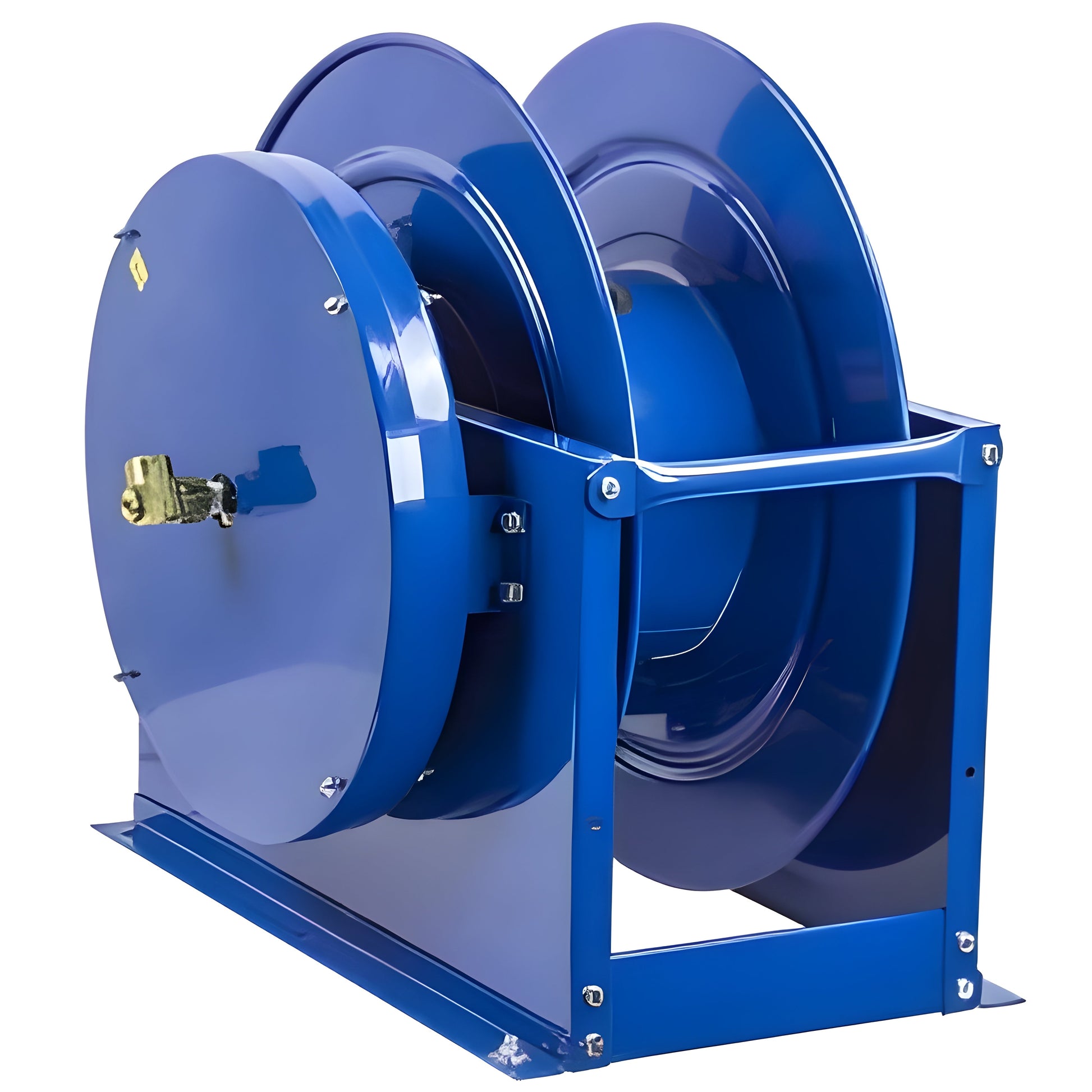

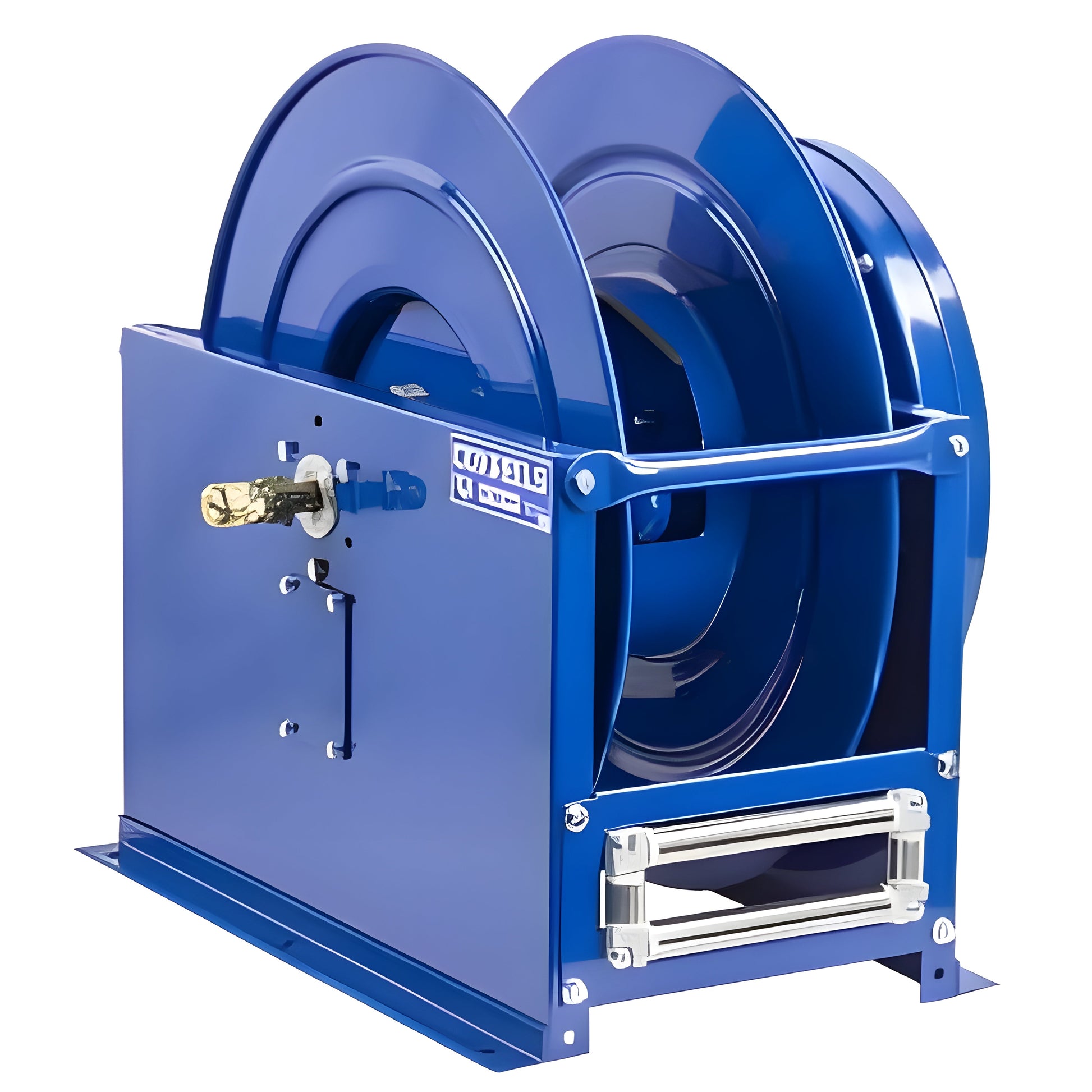

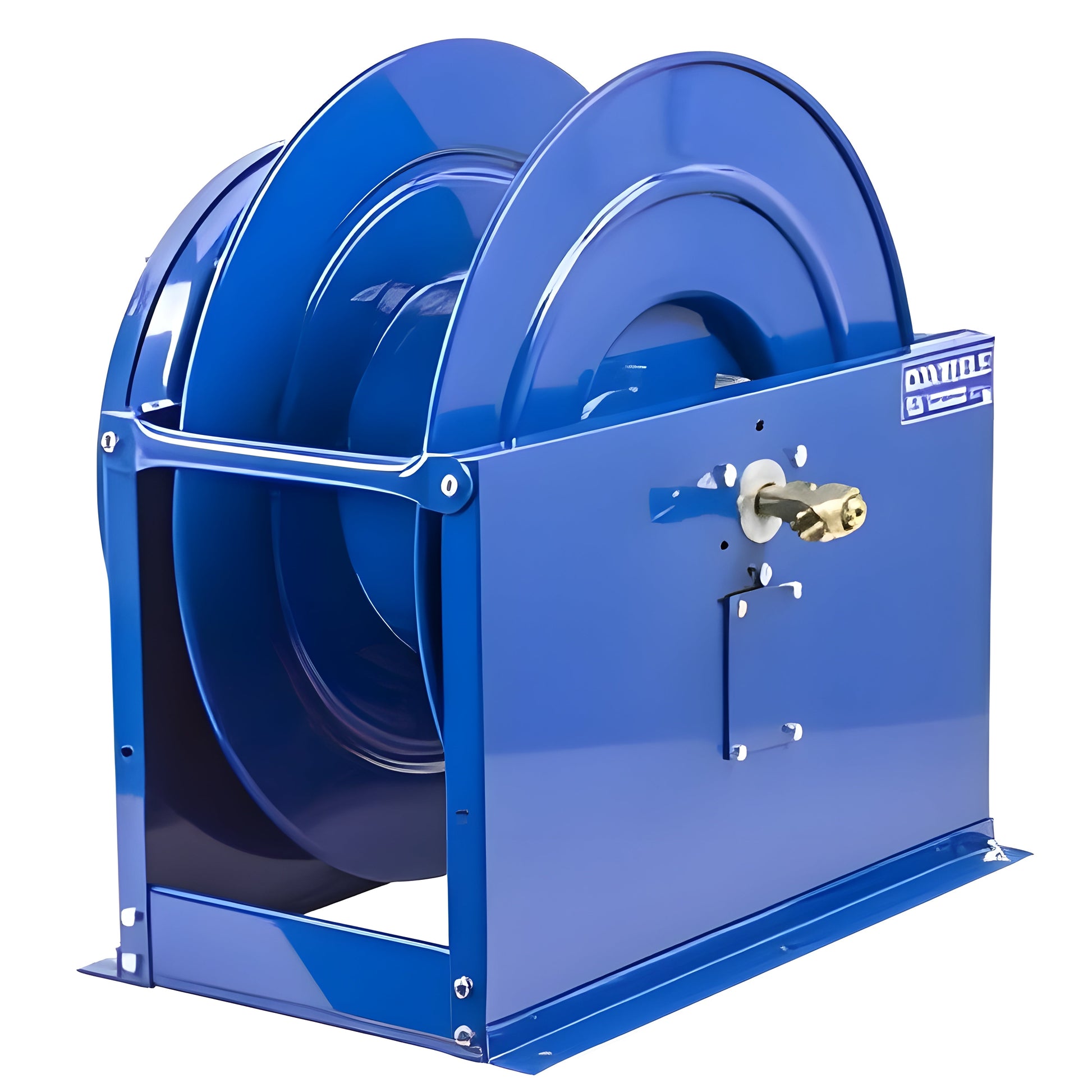

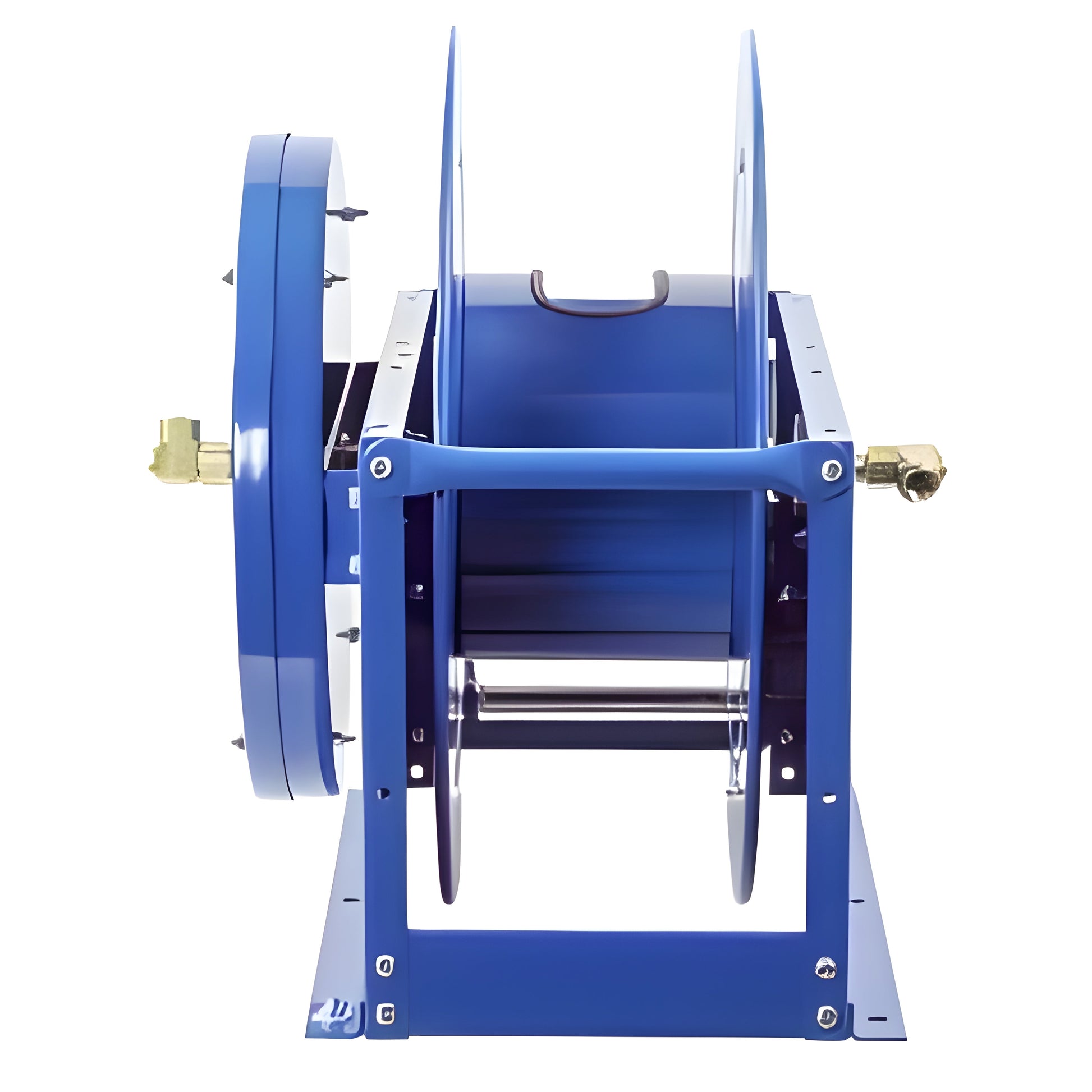

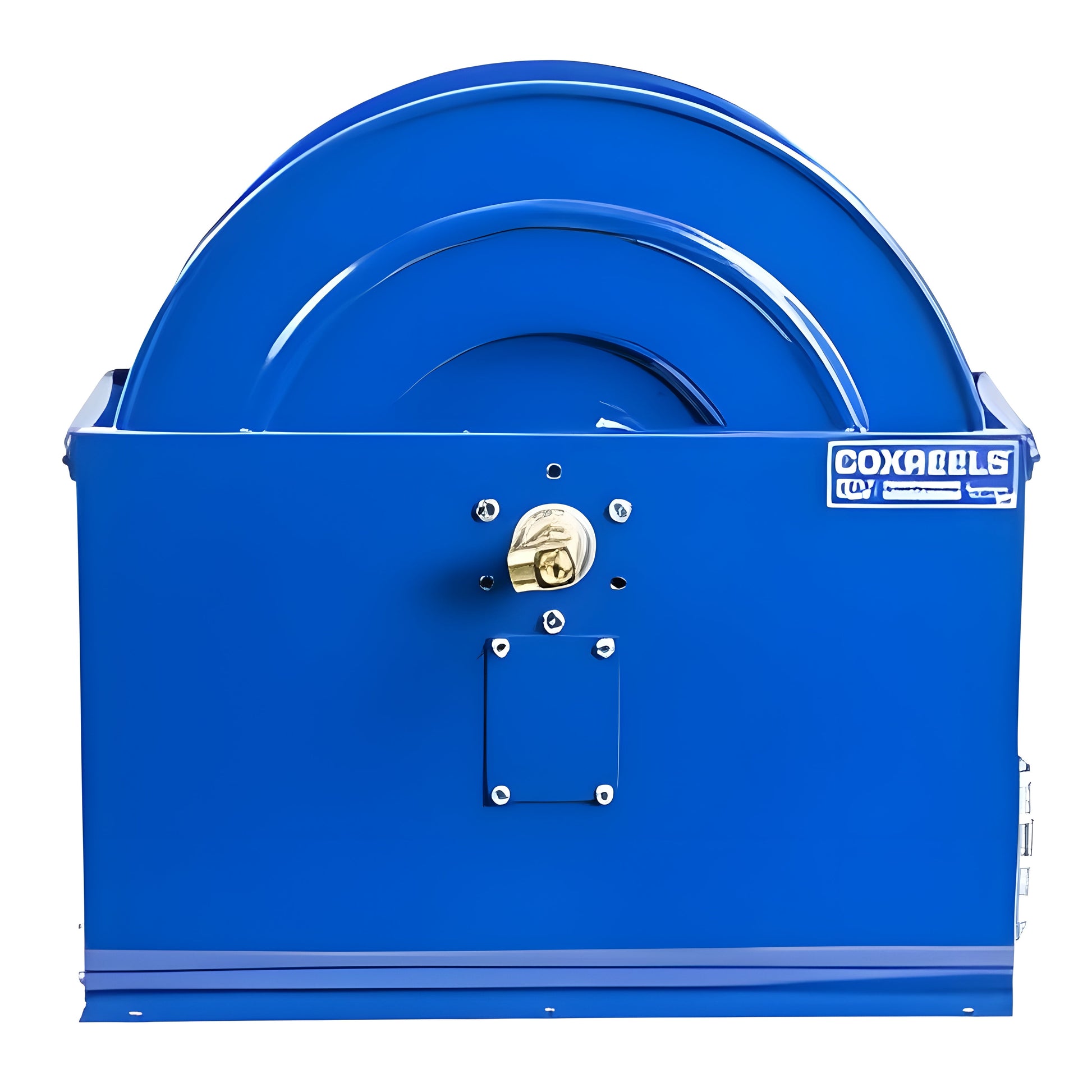

Coxreels DP Series "Dual Product Delivery" Medium-Pressure Spring Driven Hose Reels - DMPL-3100
DP Series "Dual Product Delivery" Medium-Pressure Spring Driven Hose Reels
COXREELS® DP Series "Dual Product Delivery" spring driven hose reels have two swivel inlets and two outlets for dual hose applications. Like the SP Series they are built to handle large hose diameters used in applications demanding large volume delivery in low and medium pressures. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Two external fluid paths with machined solid brass 90º full-flow NPT swivel inlets for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- BOX STYLE FRAME DESIGN - Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
- OULET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, heavy duty stainless steel pinch-proof rollers, stainless steel pawl spring, and long lasting self lubricated flange bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| DMPL-3100 |
3/8" |
3/8" |
100' |
No |
3000 |
120 |
21.5"(W) 24.5"(H) 26.38"(L) |
14"(M) 22"(N) |
15.38"(X) 25"(Y) |
| DMPL-350 |
3/8" |
13/16" |
50' |
No |
3000 |
99 |
21.5"(W) 20.5"(H) 22.88"(L) |
14"(M) 22"(N) |
15.38"(X) 21.5"(Y) |
| DMPL-375 |
3/8" |
13/16" |
75' |
No |
3000 |
128 |
21.5"(W) 20.5"(H) 22.88"(L) |
14"(M) 22"(N) |
15.38"(X) 21.5"(Y) |
| DMPL-4100 |
1/2" |
15/16" |
100' |
No |
3000 |
138 |
21.5"(W) 28.5"(H) 30.38"(L) |
14"(M) 22"(N) |
15.38"(X) 29"(Y) |
| DMPL-450 |
1/2" |
15/16" |
50' |
No |
3000 |
102 |
21.5"(W) 20.5"(H) 22.88"(L) |
14"(M) 22"(N) |
15.38"(X) 21.5"(Y) |
| DMPL-475 |
1/2" |
15/16" |
75' |
No |
3000 |
115 |
21.5"(W) 24.5"(H) 26.38"(L) |
14"(M) 22"(N) |
15.38"(X) 25"(Y) |
What Our Experts Think
-
Dual Product Delivery: Designed to handle two different hoses simultaneously, making it ideal for multi-fluid applications.
-
Medium-Pressure Capability: Supports a variety of industrial uses, including air, water, and hydraulic fluid transfer.
-
Spring-Driven Retraction: Ensures smooth, automatic hose rewind for effortless operation.
-
Heavy-Duty Construction: Built for durability, reliability, and long-term performance in demanding environments.
-
Corrosion-Resistant Finish: Protects against rust and wear, ensuring longevity in indoor and outdoor settings.
-
Compact & Space-Efficient: Keeps hoses neatly stored and organized, reducing workspace clutter.
Q&A
Q: What is the Coxreels DP Series "Dual Product Delivery" Medium-Pressure Spring Driven Hose Reel - DMPL-3100?
A: A dual-line, spring-driven hose reel designed to handle two different fluids or gases simultaneously in medium-pressure applications.
Q: What is the hose capacity?
A: It accommodates dual hoses, each up to 100 feet in length, making it ideal for multi-product transfer.
Q: What makes this reel unique?
A: The dual-product delivery system allows efficient handling of two separate lines, reducing setup time and increasing efficiency.
Q: How does the spring-driven mechanism work?
A: It features an automatic rewind system, ensuring smooth and hassle-free hose retraction.
Q: What materials is the reel made from?
A: Constructed with high-quality steel and corrosion-resistant components for durability in industrial settings.
Q: Where can this reel be used?
A: Ideal for fueling, lubrication, and fluid transfer in automotive, aviation, and industrial applications.
Maintenance Tips
-
Model: DMPL-3100
-
Hose Capacity: Holds up to 100 feet of dual 3/8” medium-pressure hoses
-
Pressure Rating: Designed for medium-pressure applications up to 3000 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth and effortless hose retraction
-
Swivel Inlet: Dual full-flow brass swivels to ensure unrestricted fluid transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth hose payout and retraction
-
Mounting Type: Wall, floor, or ceiling mount for versatile installation options
-
Applications: Ideal for dual fluid or gas transfer in industrial, automotive, and service truck applications
-
Temperature Range: Operates efficiently in a wide range of environmental conditions
-
Weight: Varies based on hose configuration
