Coxreels EN Series "Enclosed" Medium-Pressure Spring Driven Hose Reels - ENM-N-325
EN Series "Enclosed" Medium-Pressure Spring Driven Hose Reels

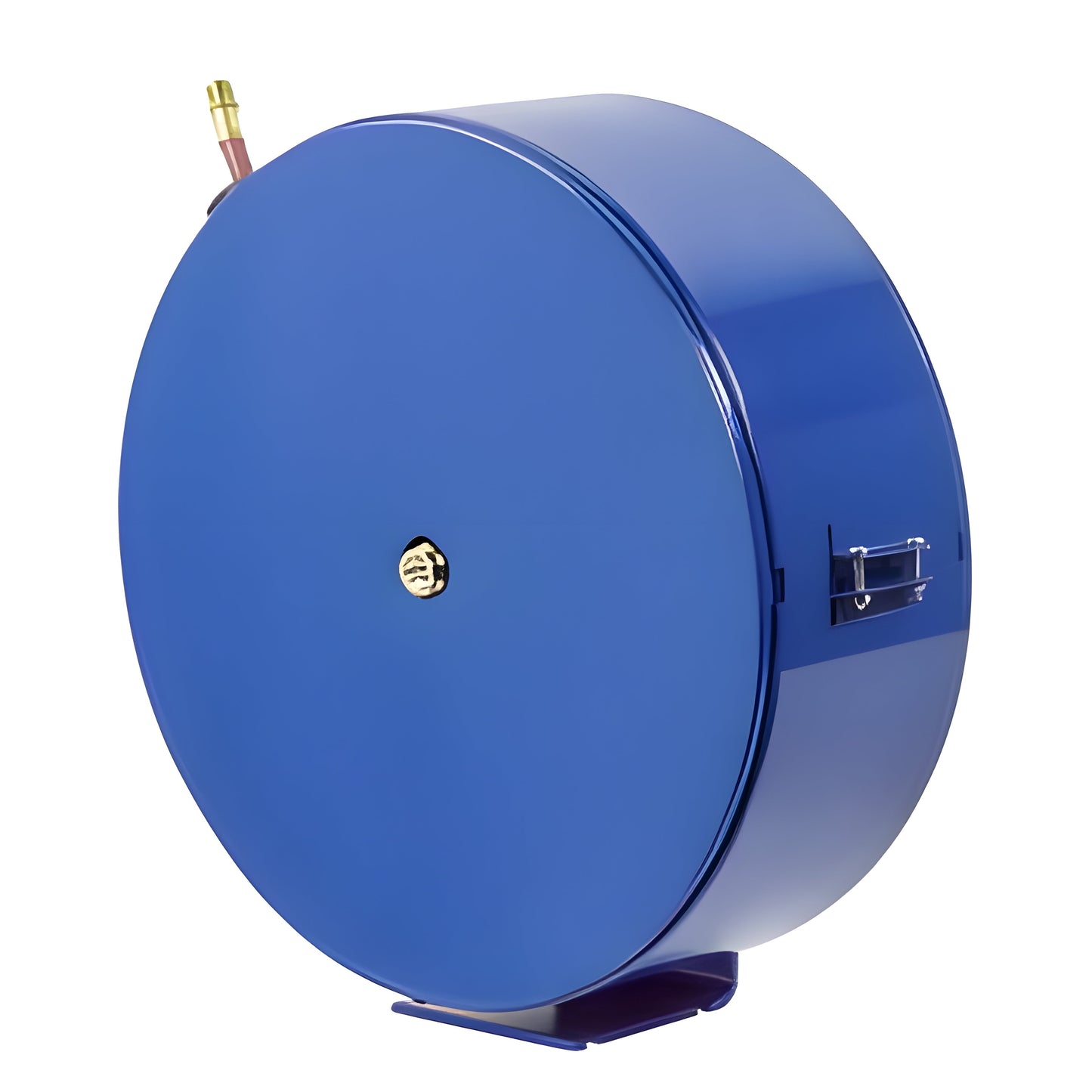

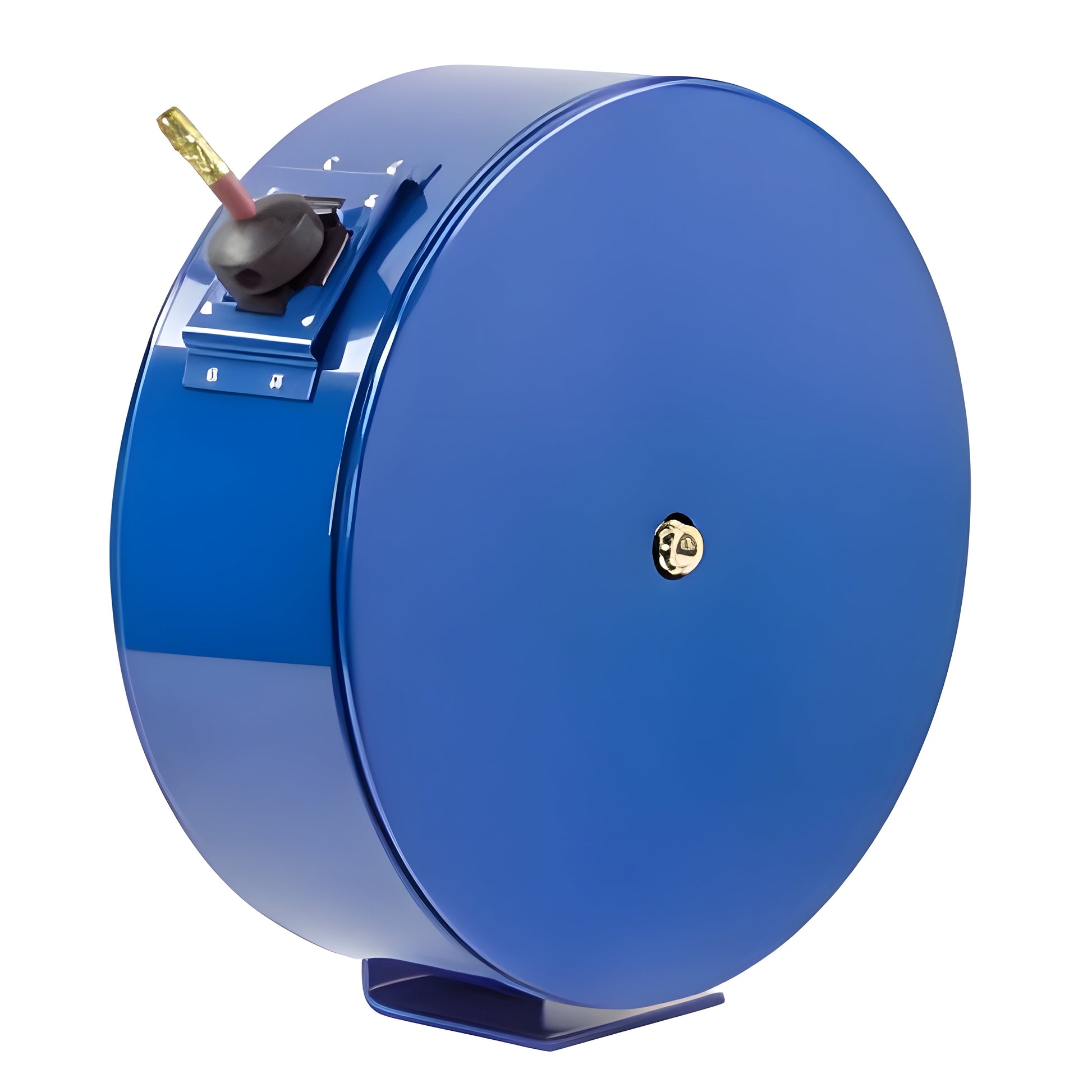

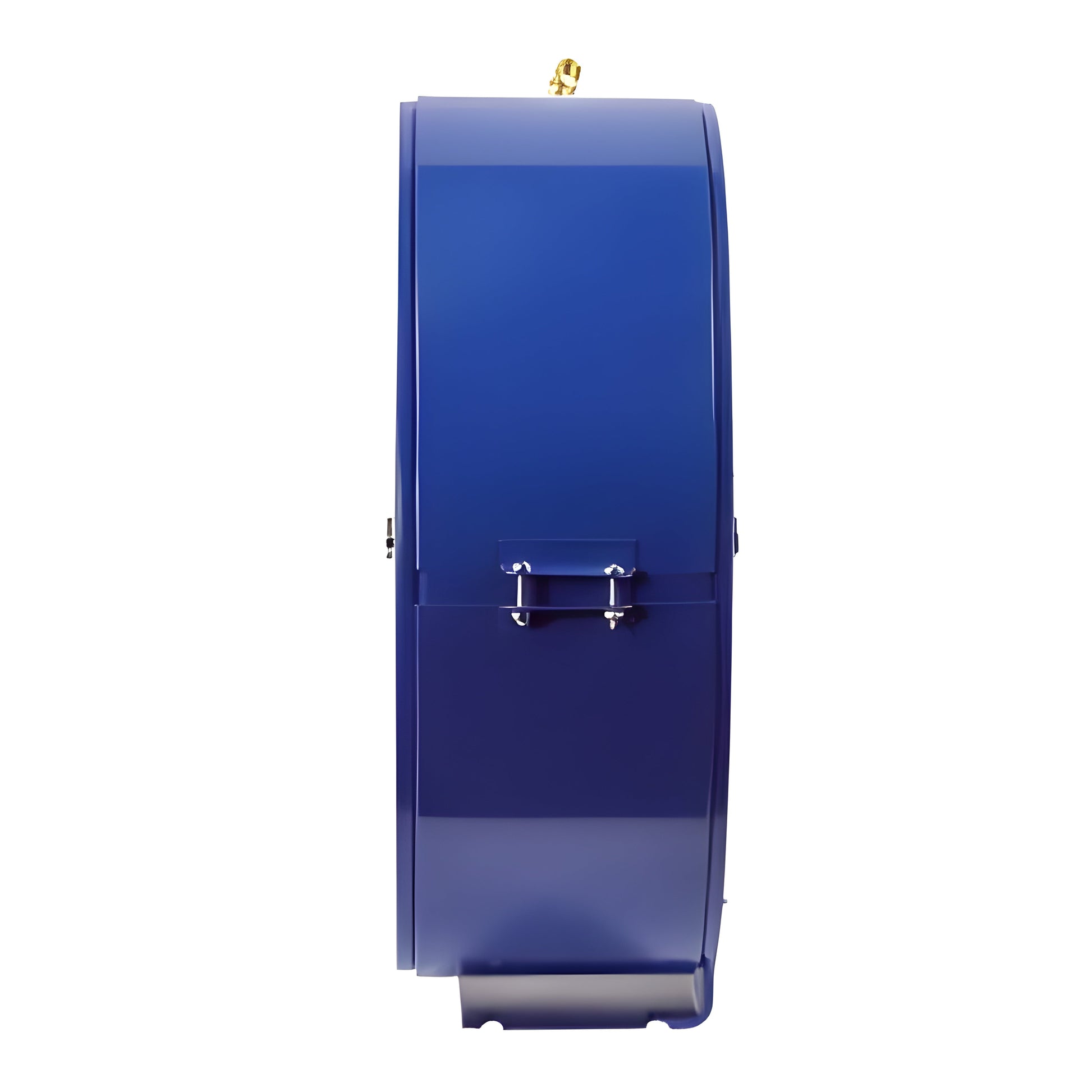

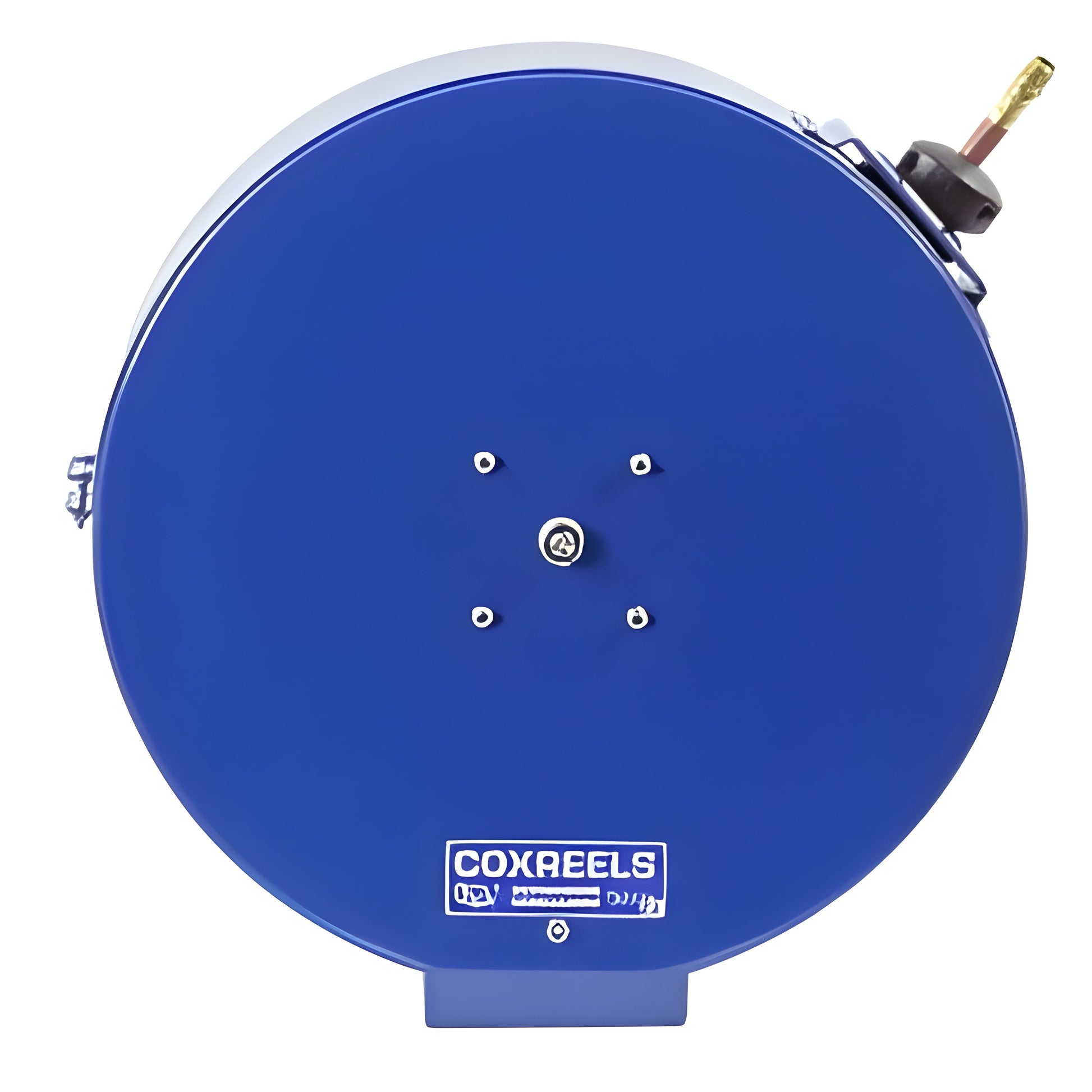

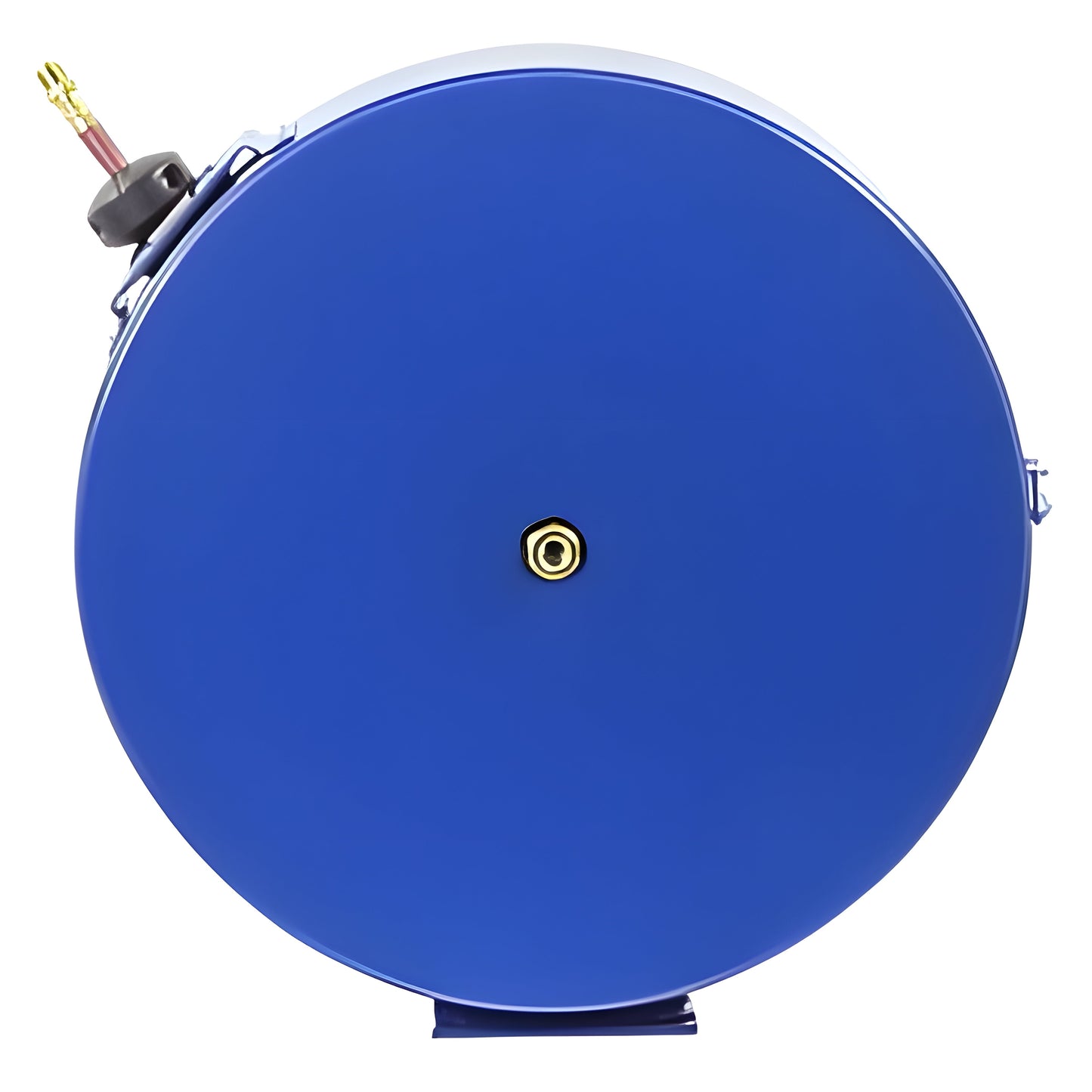

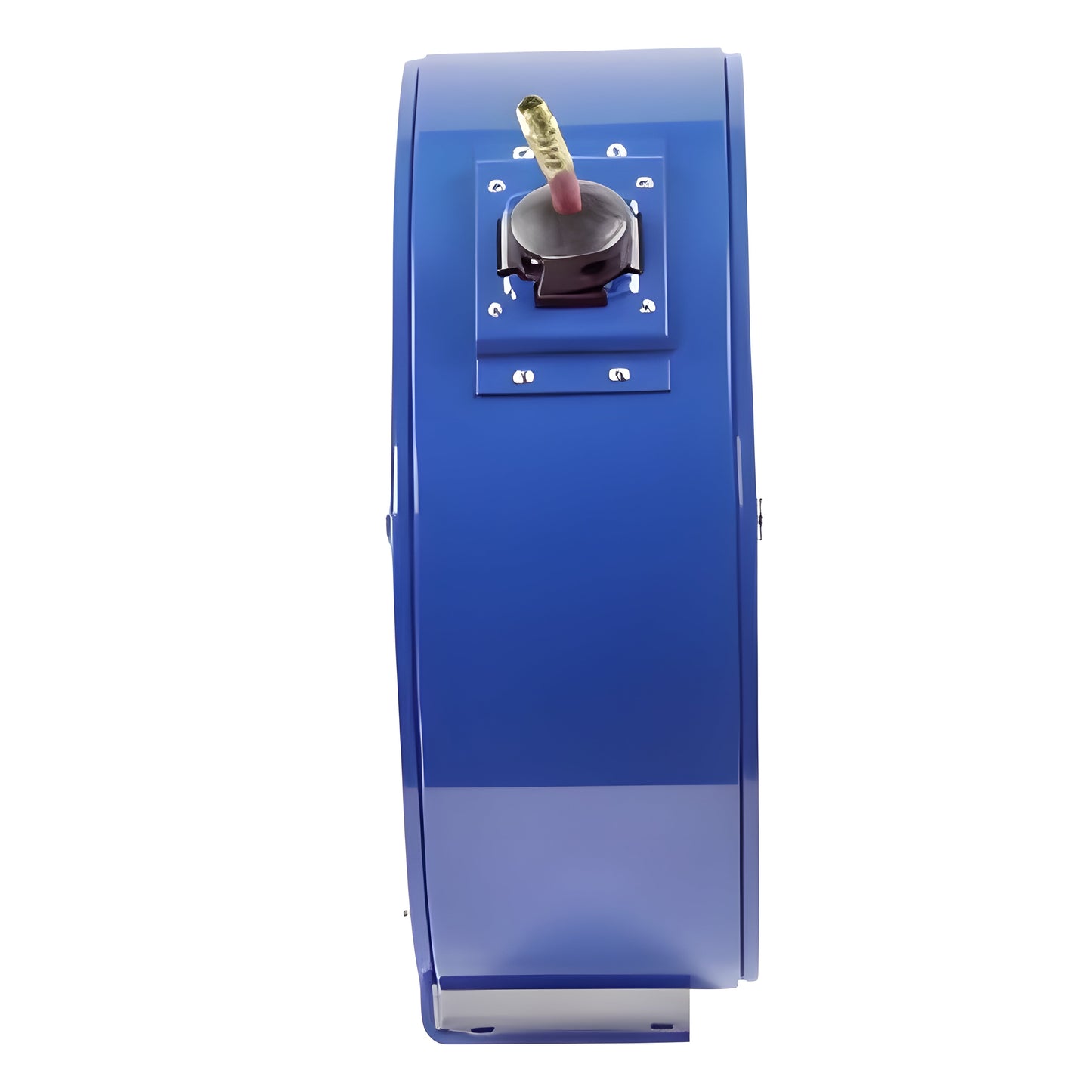

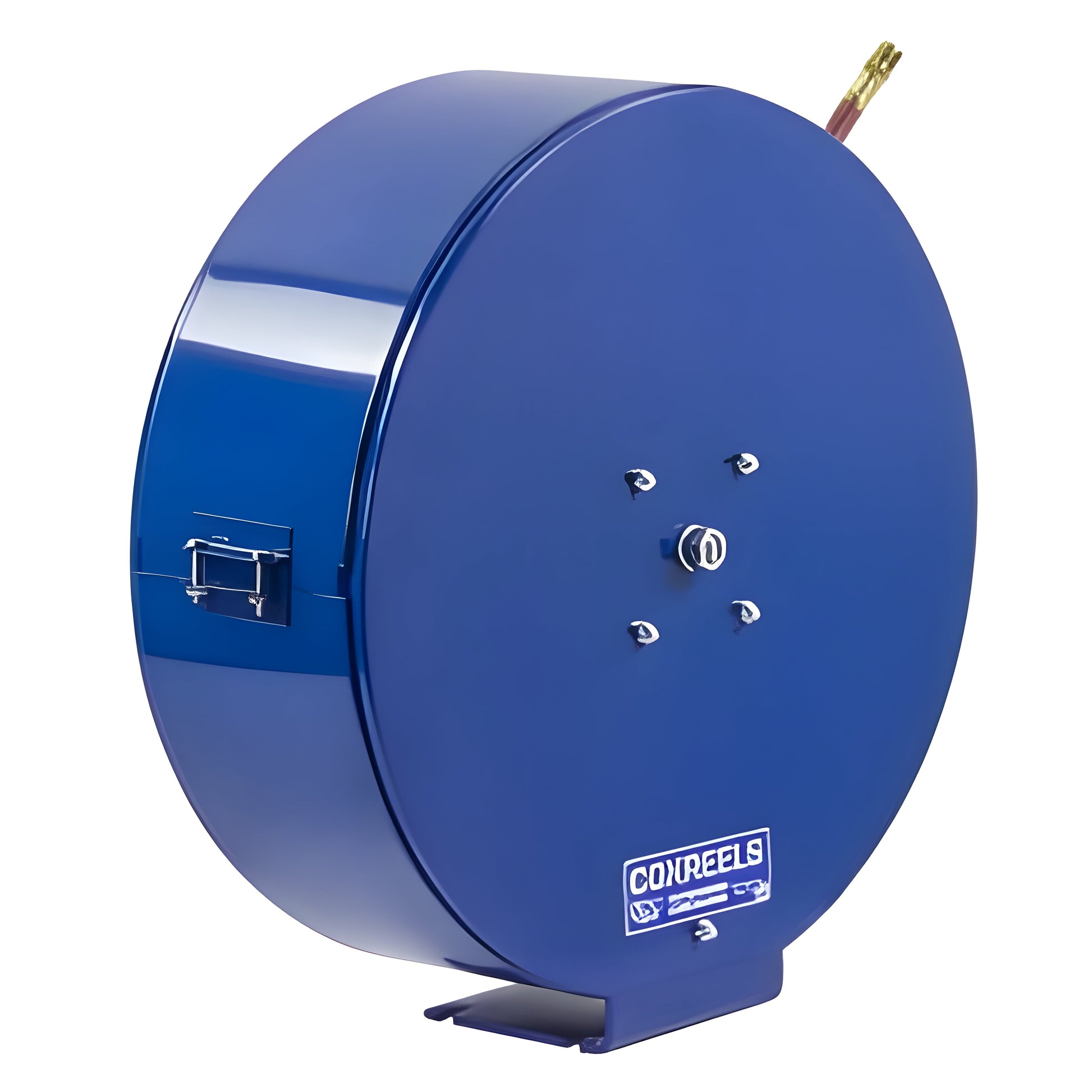

COXREELS EN Series "Enclosed" spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3 piece casing is easy to assemble and disassemble for simple installation and maintenance.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hub™dual axle support system.
- ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| C-MP-325-325 |
3/8" |
11/16" |
25' |
Yes |
3000 |
80 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MP-335-335 |
3/8" |
11/16" |
35' |
Yes |
3000 |
86 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MP-425-425 |
1/2" |
13/16" |
25' |
Yes |
3000 |
78 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MP-430-430 |
1/2" |
13/16" |
30' |
Yes |
3000 |
84 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-325-325 |
3/8" |
11/16" |
25' |
No |
3000 |
66 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-335-335 |
3/8" |
11/16" |
35' |
No |
3000 |
68 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-425-425 |
1/2" |
13/16" |
25' |
No |
3000 |
64 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-430-430 |
1/2" |
13/16" |
30' |
No |
3000 |
66 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Enclosed Design: Fully enclosed housing protects the hose from dirt, debris, and environmental elements, extending the lifespan of the hose and reel.
-
Medium-Pressure Capability: Designed to handle up to 3,000 PSI, making it ideal for air, water, and medium-pressure fluid transfer applications.
-
Spring-Driven Retraction: Features smooth, automatic retraction for efficient hose storage, reducing manual effort and preventing tangling.
-
Heavy-Duty Construction: Built with durable materials that can withstand demanding industrial environments, ensuring long-lasting performance.
-
Corrosion-Resistant Coating: Coated with a protective finish to guard against rust, making it suitable for both indoor and outdoor use.
-
Space-Saving Design: Compact yet efficient, keeping hoses organized and stored safely, optimizing workspaces and preventing clutter.
-
Versatile Mounting Options: Can be installed in various configurations (wall, ceiling, or floor mounting), providing flexibility for different applications.
Q&A
Q: What is the Coxreels EN Series "Enclosed" Medium-Pressure Spring Driven Hose Reel - ENM-N-325?
A: The Coxreels ENM-N-325 is a medium-pressure spring-driven hose reel from the EN Series, featuring an enclosed design. This reel is ideal for applications where a protective housing is needed to shield the hose and internal components from dirt, debris, and environmental elements.
Q: What is the hose capacity of this reel?
A: The ENM-N-325 can hold up to 325 feet of medium-pressure hose, making it suitable for managing hoses in a variety of industrial and commercial applications.
Q: How does the spring-driven mechanism work?
A: The reel utilizes a spring-driven rewind system, allowing the hose to automatically retract after use. This feature ensures smooth operation and reduces manual effort while keeping the hose neatly stored.
Q: Is the reel durable?
A: Yes, the EN Series is constructed from high-quality materials with a protective, corrosion-resistant finish, ensuring long-lasting durability even in harsh environments.
Q: Is this reel easy to install?
A: Yes, the ENM-N-325 offers versatile installation options, including wall, floor, or ceiling mounting, providing flexibility for different workspace setups.
Q: What are typical applications for this reel?
A: This reel is ideal for use in environments where medium-pressure hoses need to be protected, such as in automotive repair shops, manufacturing facilities, and industrial plants where the hose is exposed to the elements or contaminants.
Maintenance Tips
-
Model: ENM-N-325
-
Hose Capacity: Designed for up to 100 feet of 3/8” or 1/2” medium-pressure hose
-
Pressure Rating: Rated for medium-pressure applications up to 3000 PSI
-
Construction: Heavy-duty steel frame with enclosed housing to protect the hose from external damage, debris, and environmental factors
-
Drive Mechanism: Spring-driven automatic rewind for smooth, efficient hose retraction
-
Swivel Inlet: Full-flow swivel for continuous fluid or air delivery with minimal hose wear
-
Roller Design: Multi-position guide arm with reinforced rollers to maintain smooth and consistent hose operation
-
Mounting Type: Wall, floor, or ceiling mounting options for flexible installation
-
Applications: Ideal for medium-pressure fluid or air transfer in environments where hose protection is essential, such as automotive, industrial, and commercial applications
-
Temperature Range: Operates effectively in a wide temperature range, suitable for industrial settings
-
Weight: Varies based on hose length and configuration
