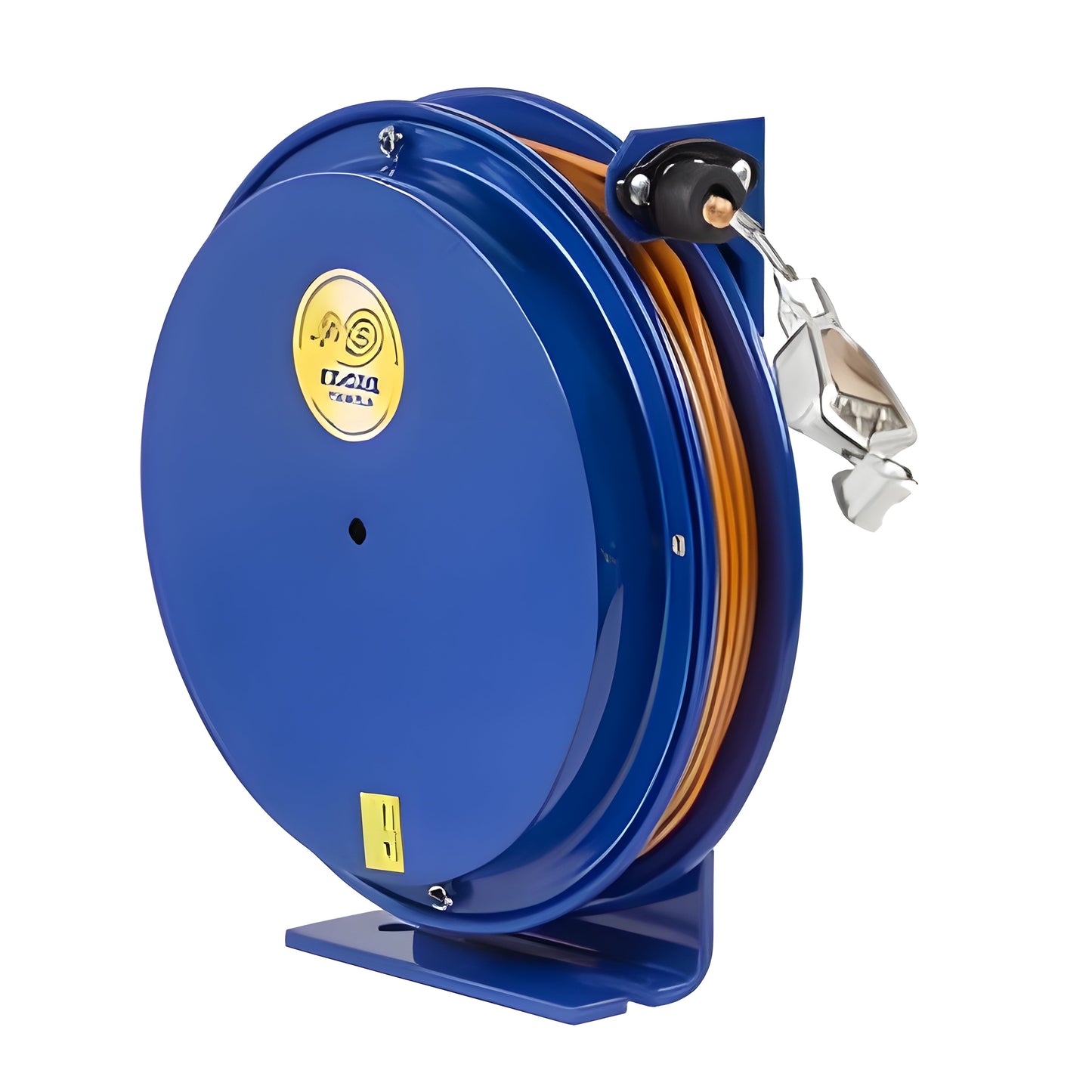

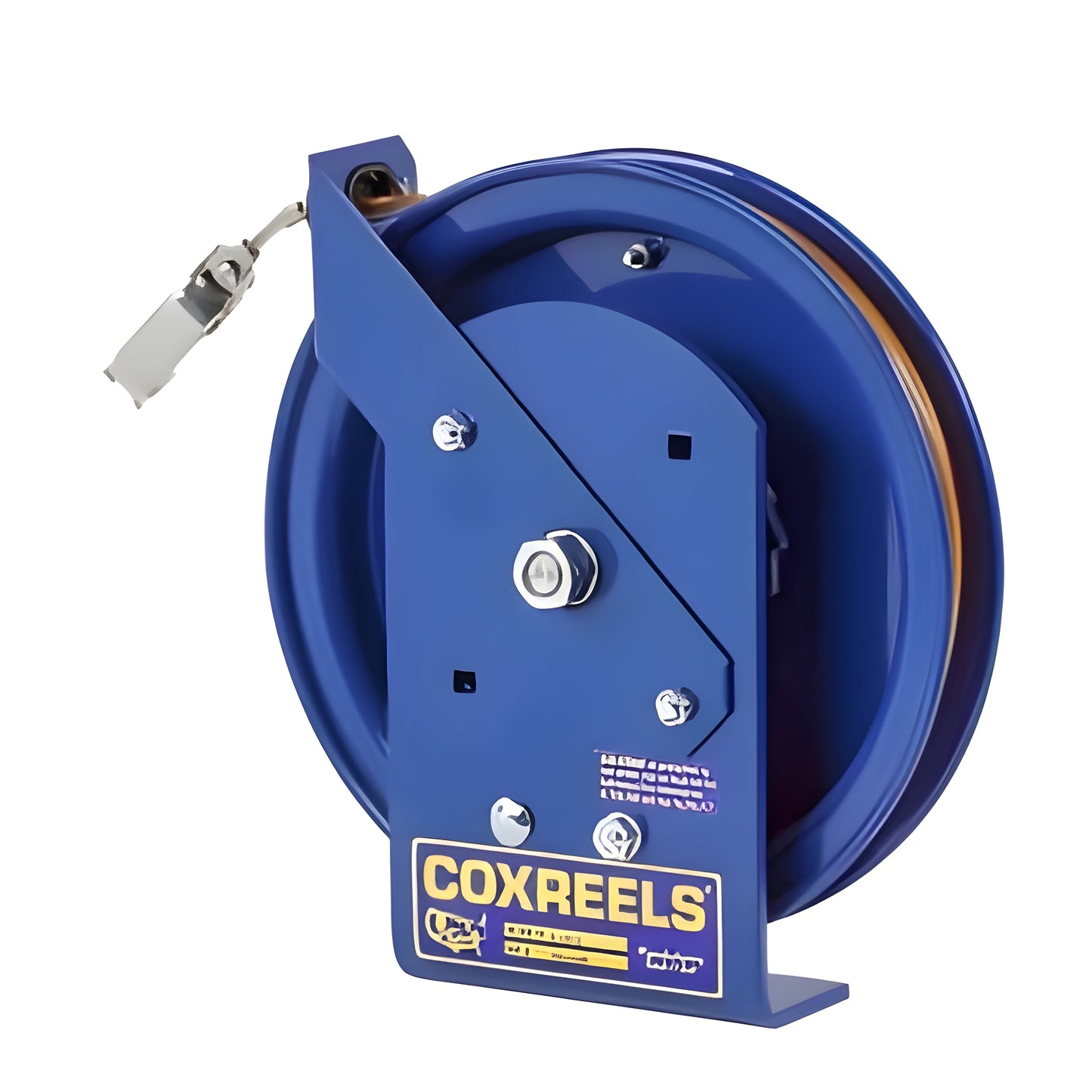

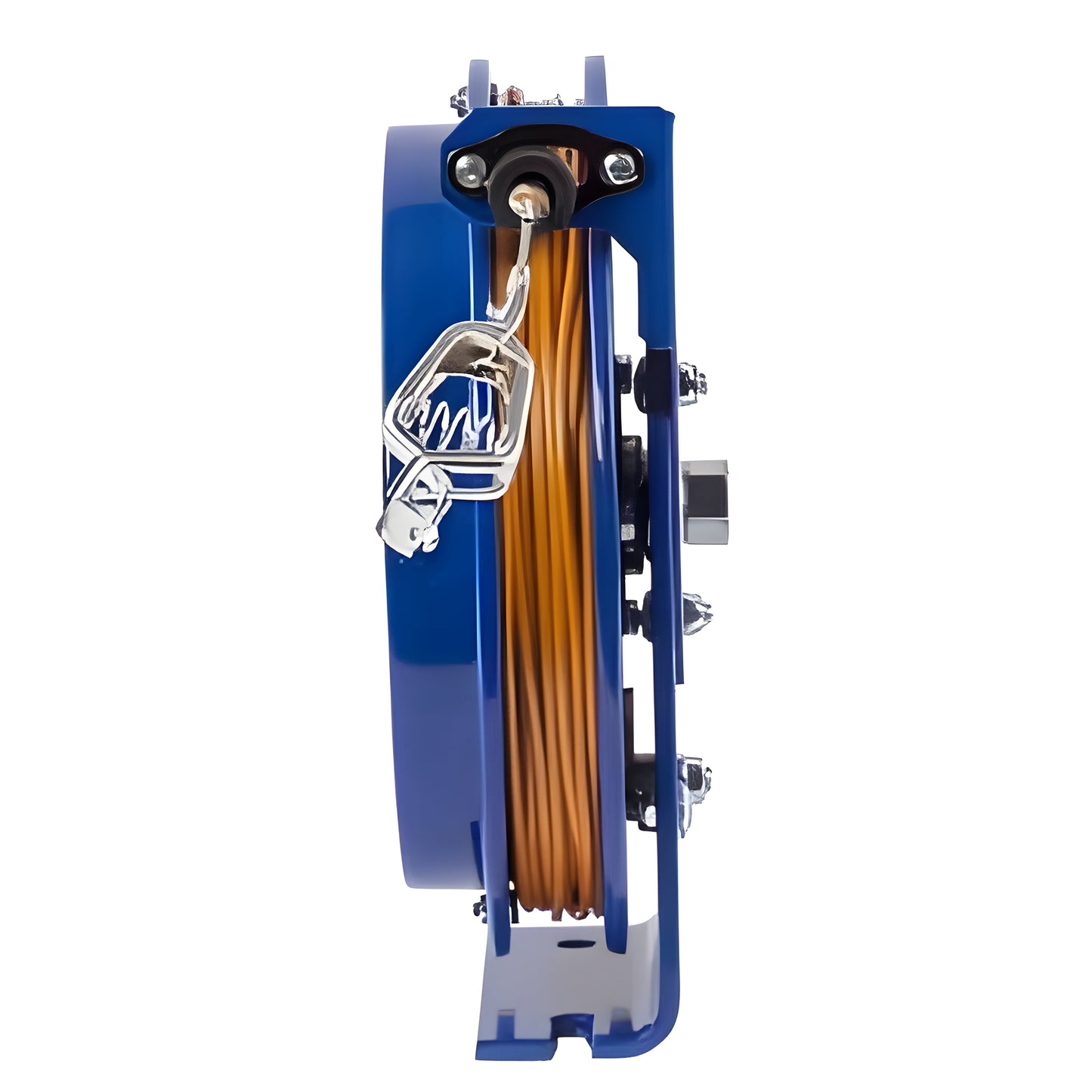

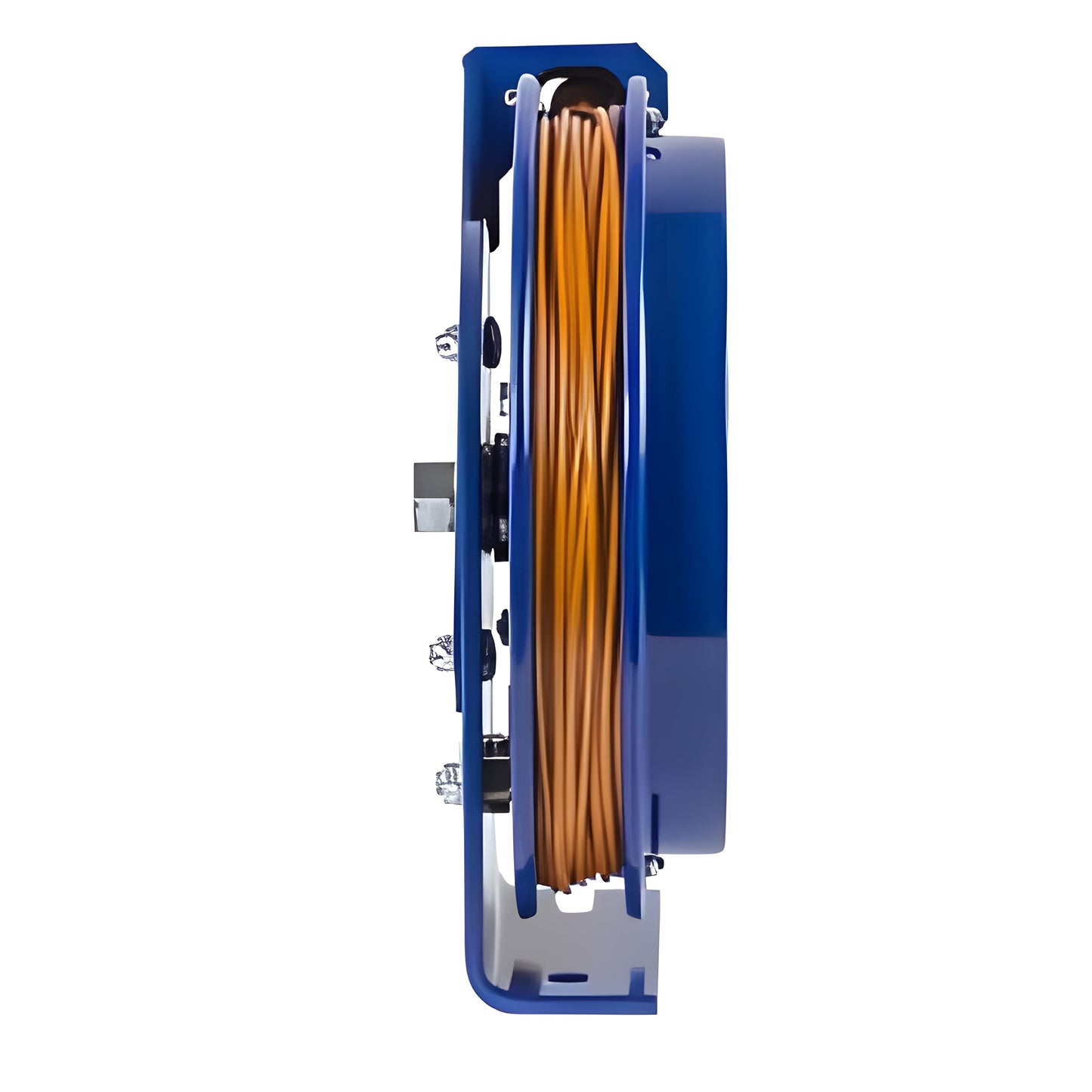

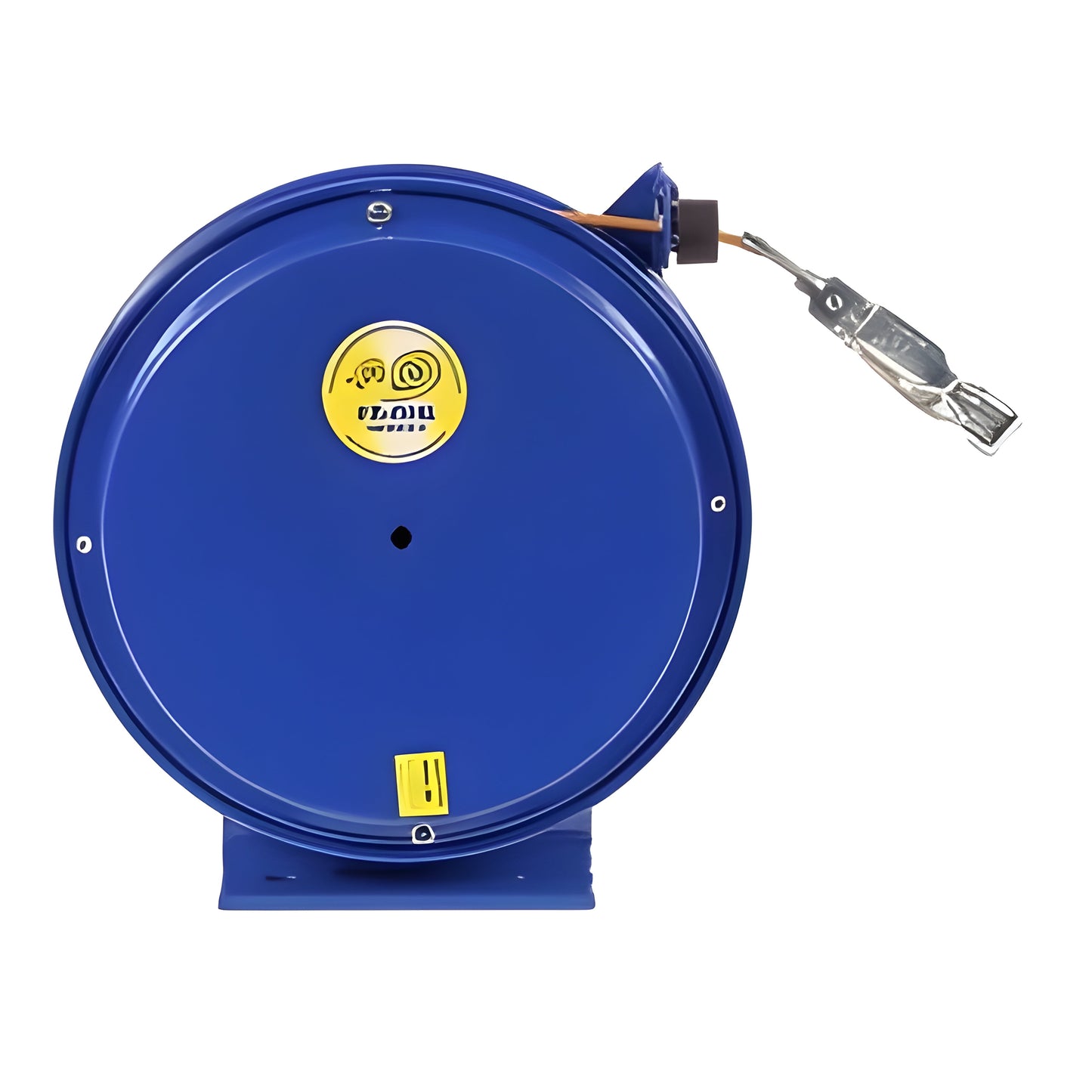

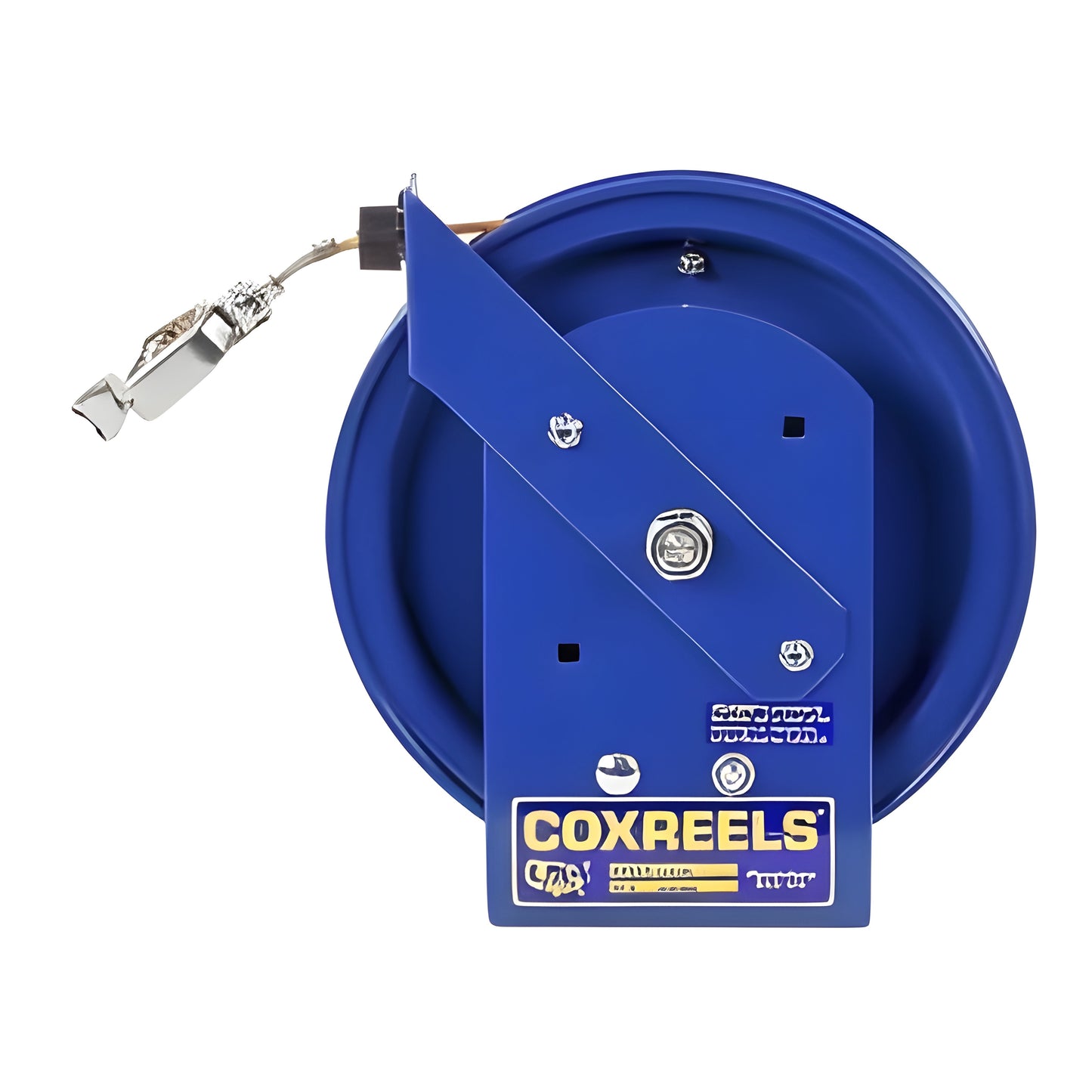

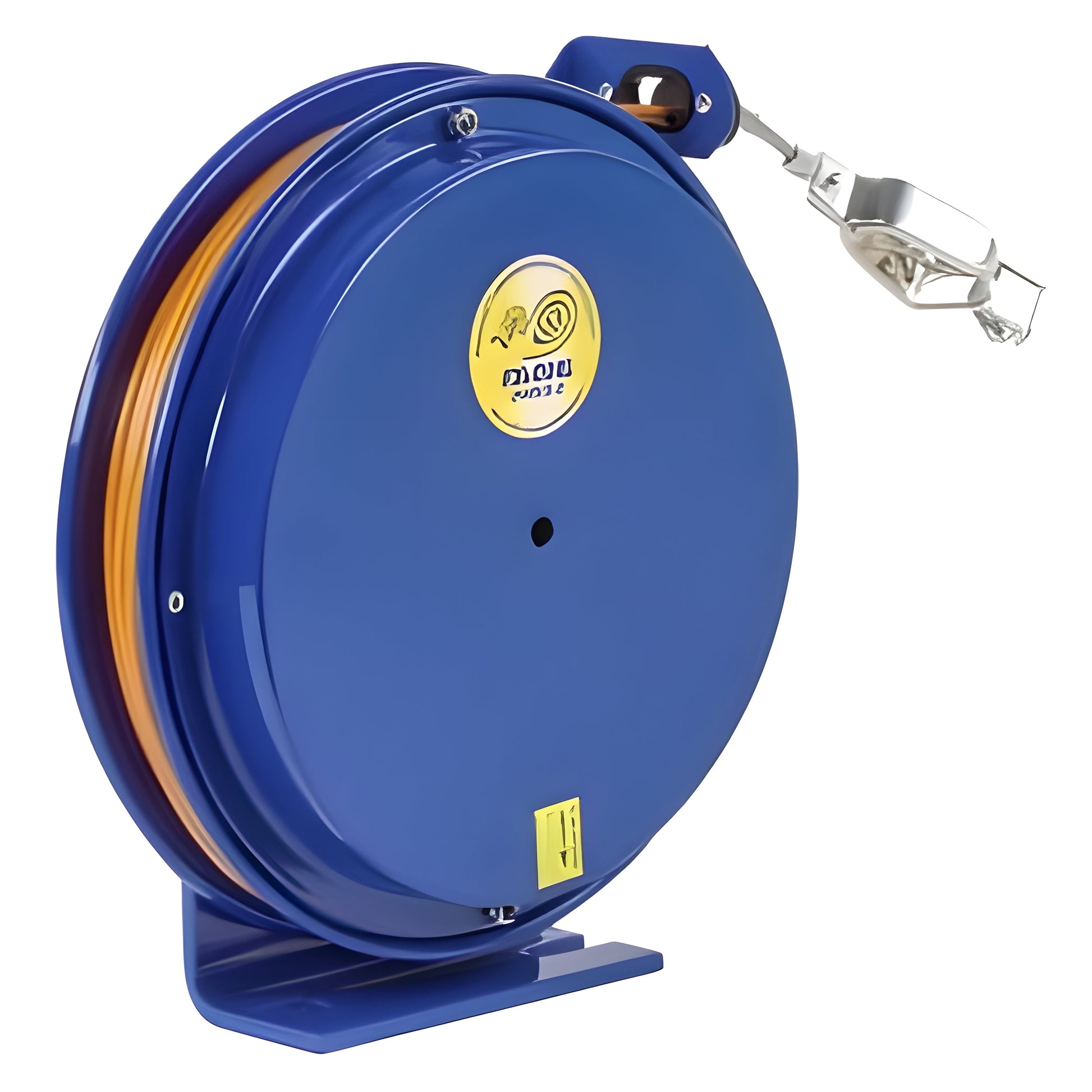

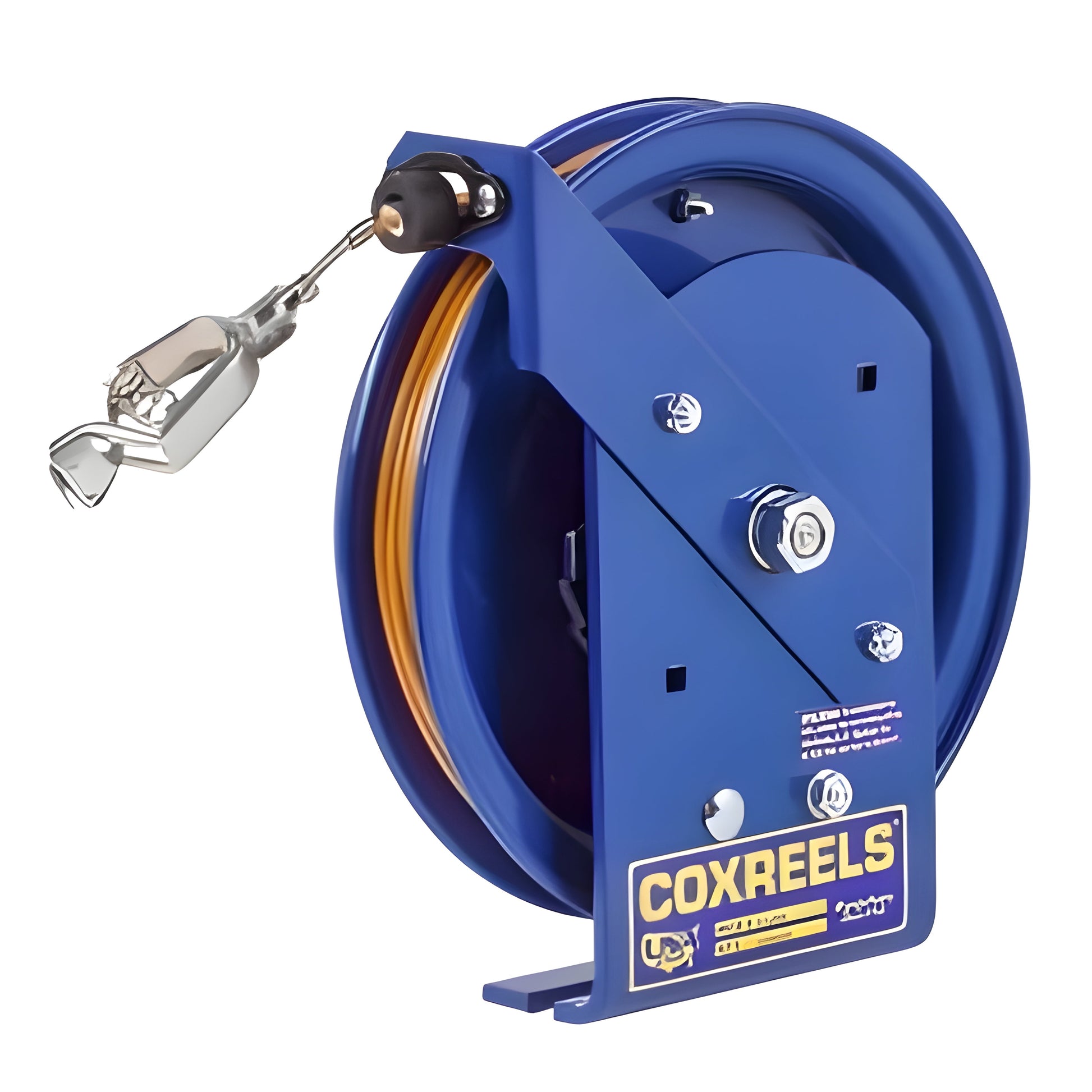

Coxreels EZ-SD Series "Static Discharge" Cable Reels - EZ-SD-100
EZ-SD Series "Static Discharge" Cable Reels
COXREELS EZ-SD Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static build-up could ignite a spark and subsequent explosion.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- STEEL CABLE - 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
HOSE |
LENGTH |
SHIP WEIGHT (LBS) |
GAUGE |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| EZ-SD-100 |
Yes |
100' |
32 |
5/32" |
4"(W) 15"(H) 14.5"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-100-1 |
Yes |
100' |
32 |
5/32" |
4"(W) 15"(H) 14.5"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-35 |
Yes |
35' |
18 |
5/32" |
3.88"(W) 11.5"(H) 11"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-35-1 |
Yes |
35' |
18 |
5/32" |
3.88"(W) 11.5"(H) 11"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-50 |
Yes |
50' |
20 |
5/32" |
3.88"(W) 11.5"(H) 11"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-50-1 |
Yes |
50' |
20 |
5/32" |
3.88"(W) 11.5"(H) 11"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-75 |
Yes |
75' |
31 |
5/32" |
4"(W) 15"(H) 14.5"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SD-75-1 |
Yes |
75' |
31 |
5/32" |
4"(W) 15"(H) 14.5"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SDL-100 |
No |
100' |
28 |
5/32" |
4"(W) 15"(H) 14.5"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
| EZ-SDL-50 |
No |
50' |
18 |
5/32" |
3.88"(W) 11.5"(H) 11"(L) |
4"(M) -"(N) |
2.5"(X) 6"(Y) |
What Our Experts Think
-
Heavy-Duty Performance: Designed for high-temperature exhaust and ventilation applications.
-
Spring-Driven Retraction: Ensures smooth, controlled retraction for hassle-free operation.
-
Durable Steel Construction: Built to withstand demanding industrial environments.
-
Compact & Efficient Design: Saves space while providing maximum functionality.
-
Corrosion-Resistant Finish: Protects against wear and harsh conditions for long-lasting use.
-
Easy Installation & Maintenance: User-friendly setup with minimal upkeep required.
-
Versatile Applications: Ideal for automotive, welding, and industrial exhaust extraction.
Q&A
Q: What is the Coxreels EZ-SD Series "Static Discharge" Cable Reel - EZ-SD-100?
A: The Coxreels EZ-SD-100 is a high-quality, spring-driven cable reel designed for grounding applications to safely dissipate static electricity in hazardous environments.
Q: What industries is this reel used in?
A: It is ideal for fueling, aviation, chemical, and industrial applications where static discharge poses a safety risk.
Q: How does the spring-driven mechanism work?
A: The reel features a spring-retraction system for automatic cable rewind, ensuring easy operation and secure cable storage.
Q: What type of cable does it support?
A: The EZ-SD-100 is designed to accommodate static discharge grounding cables, which help prevent dangerous static buildup.
Q: Is the reel durable?
A: Yes, it is built with heavy-duty steel and a corrosion-resistant finish for long-lasting performance in demanding environments.
Q: Is it easy to install?
A: Yes, the reel is designed for versatile mounting options, including wall, ceiling, or floor installation for optimal convenience
Maintenance Tips
-
Regular Cleaning: Wipe the reel and cable with a clean, damp cloth to remove dust and debris. Avoid using harsh chemicals.
-
Inspect Cable: Check for wear, fraying, or damage to the cable. Replace if any damage is found.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the reel's moving components to ensure smooth operation.
-
Check Tension: Adjust the spring tension if the reel does not retract smoothly or with proper force.
-
Secure Mounting: Periodically check mounting bolts to ensure the reel is securely fastened to avoid instability.
-
Proper Storage: When not in use, store the reel in a dry, protected area to prevent damage from environmental factors
