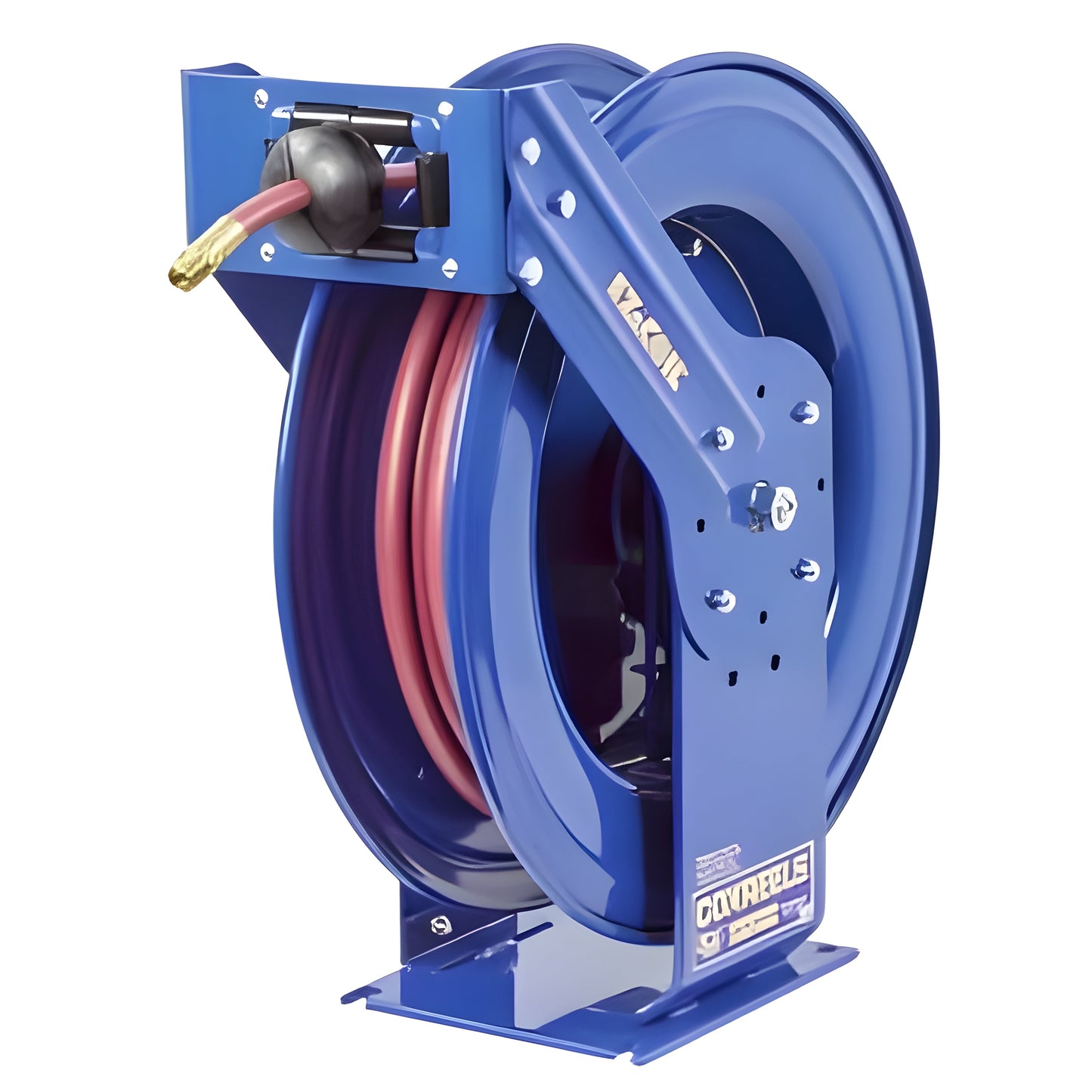

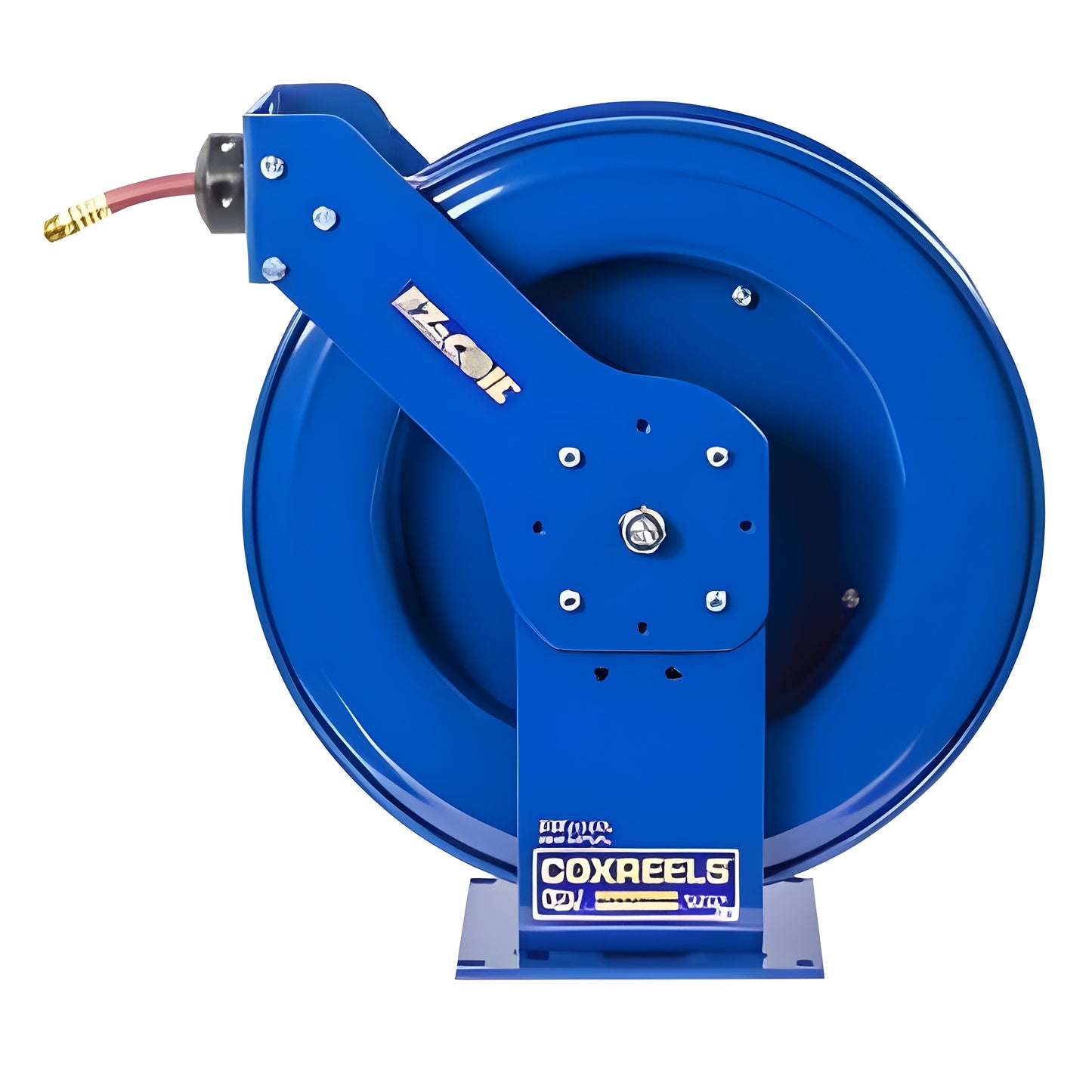

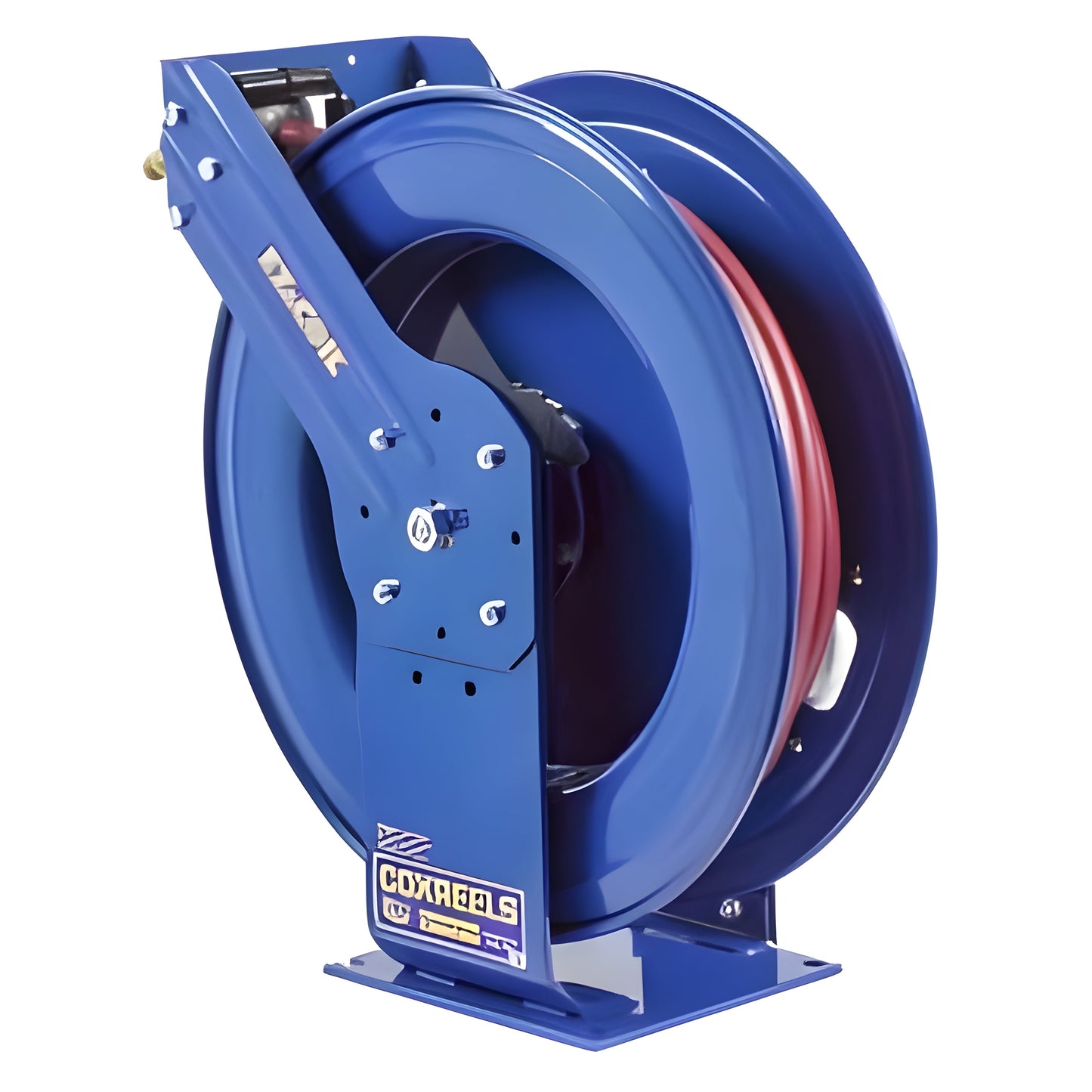

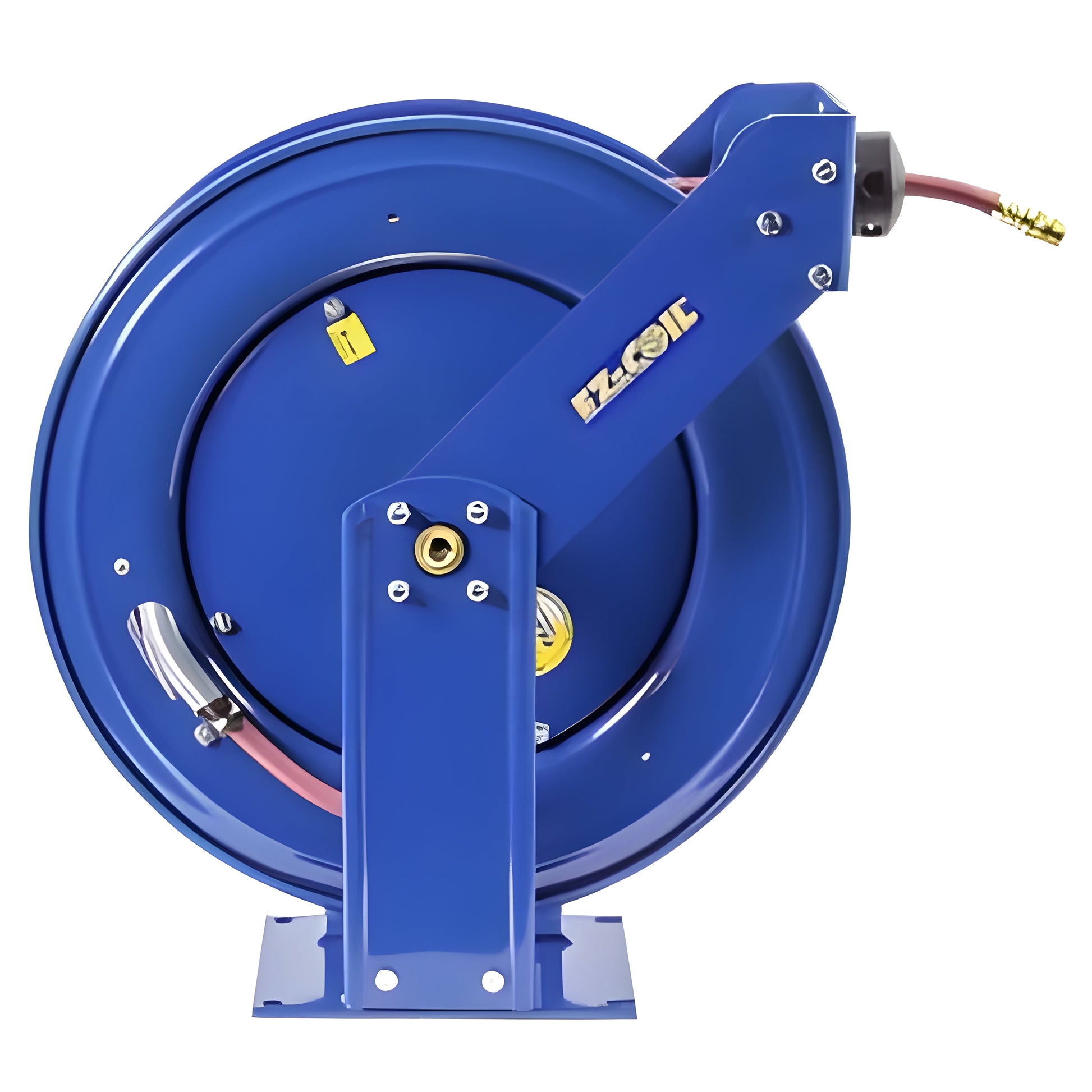

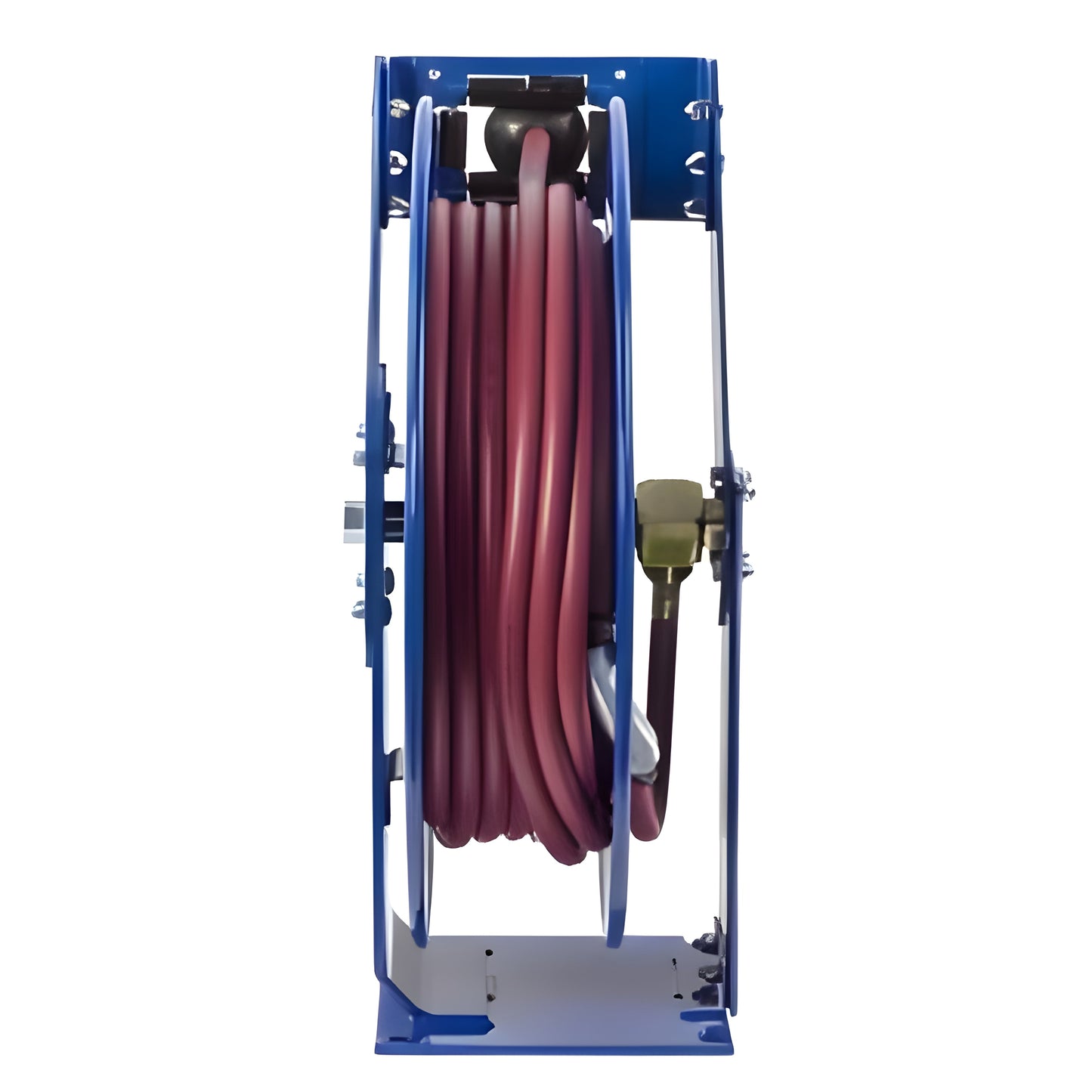

Coxreels EZ-T Series "Truck Mount" Low Pressure Spring Driven Hose Reels - EZ-TSH-3100
EZ-T Series "Truck Mount" Low Pressure Spring Driven Hose Reels
COXREELS EZ-T Series "Truck Mount" spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels Super Hub⢠provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-

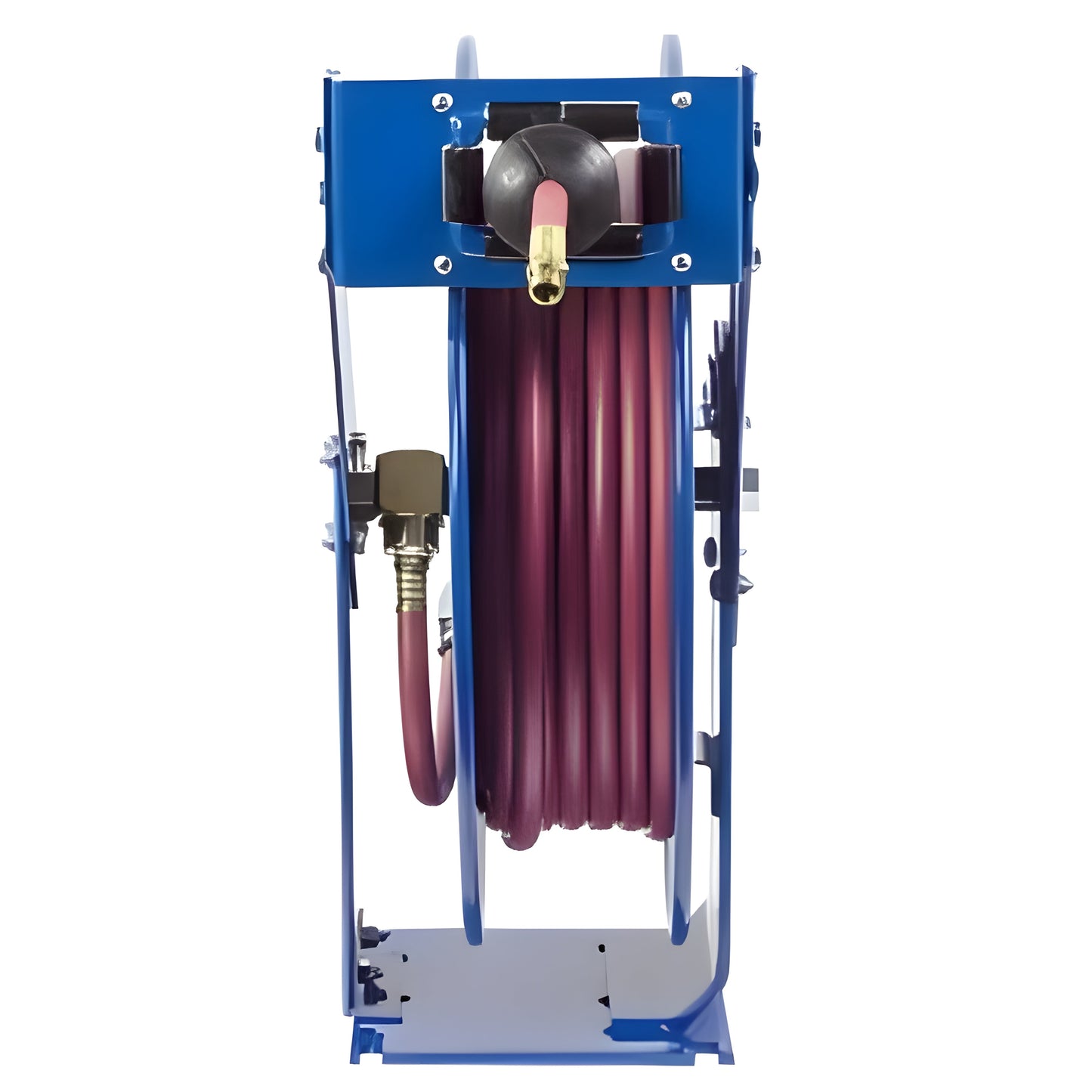

SWIVELÂ - Machined from solid brass 90Âş full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
EZ-COILÂŽ EQUIPPEDÂ - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
-
CNC SPUN DISCSÂ - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub⢠triple axle support
-
MULTI-POSITION GUIDE ARMÂ - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDEÂ - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| EZ-TSH-3100 |
3/8" |
5/8" |
100' |
Yes |
300 |
85 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-350 |
3/8" |
5/8" |
50' |
Yes |
300 |
61 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-375 |
3/8" |
5/8" |
75' |
Yes |
300 |
82 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-4100 |
1/2" |
3/4" |
100' |
Yes |
300 |
95 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-450 |
1/2" |
3/4" |
50' |
Yes |
300 |
63 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-475 |
1/2" |
3/4" |
75' |
Yes |
300 |
82 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-535 |
3/4" |
1 1/16" |
35' |
Yes |
300 |
77 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSH-550 |
3/4" |
1 1/16" |
50' |
Yes |
300 |
83 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-3100 |
3/8" |
5/8" |
100' |
No |
300 |
74 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-350 |
3/8" |
5/8" |
35' |
No |
300 |
55 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-375 |
3/8" |
5/8" |
75' |
No |
300 |
73 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-4100 |
1/2" |
3/4" |
100' |
No |
300 |
80 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-450 |
1/2" |
3/4" |
50' |
No |
300 |
55 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-475 |
1/2" |
3/4" |
75' |
No |
300 |
73 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-535 |
3/4" |
1 1/16" |
35' |
No |
300 |
67 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| EZ-TSHL-550 |
3/4" |
1 1/16" |
50' |
No |
300 |
70 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Truck Mount Design: Specifically engineered for mobile applications, providing reliable hose management for service trucks, utility vehicles, and field operations.
-
Low-Pressure Capability: Designed for air and water applications, making it perfect for industrial, agricultural, and commercial use.
-
Spring-Driven Retraction: Features a self-retracting mechanism for smooth and effortless hose storage, reducing manual effort and improving efficiency.
-
Heavy-Duty Steel Construction: Built with industrial-strength materials to withstand harsh working conditions and ensure long-lasting performance.
-
Corrosion-Resistant Finish: Coated for maximum protection against rust and environmental wear, making it ideal for outdoor and on-the-go use.
-
Compact & Space-Saving: Designed to optimize workspace on trucks, keeping hoses neatly stored and easily accessible.
-
Versatile Applications: Ideal for industries such as construction, maintenance, and agriculture where mobile hose access is essential.
Q&A
Q: What is the Coxreels EZ-T Series "Truck Mount" Low Pressure Spring Driven Hose Reel - EZ-TSH-3100?
A: The Coxreels EZ-TSH-3100 is a low-pressure, spring-driven hose reel from the EZ-T Series, specifically designed for truck-mounted applications. It features a compact, durable design with an automatic spring rewind system for efficient hose management in mobile environments.
Q: What is the hose capacity of this reel?
A: This reel can accommodate up to 100 feet of low-pressure hose, making it ideal for service trucks, mobile applications, and fieldwork.
Q: How does the spring-driven mechanism work?
A: The reel utilizes a self-retracting spring rewind system that automatically retracts the hose after use, reducing manual effort and keeping the hose neatly stored.
Q: Is the reel durable?
A: Yes, the EZ-TSH-3100 is constructed from high-quality, heavy-duty materials with a corrosion-resistant finish, ensuring durability in harsh outdoor and mobile work conditions.
Q: Is this reel easy to install?
A: Yes, it is designed for easy truck mounting, allowing secure installation on service vehicles, trailers, or mobile workstations.
Q: What are typical applications for this reel?
A: This reel is ideal for mobile fluid delivery, air, and water hose management in industries such as construction, agriculture, maintenance, and service truck operations.
Maintenance Tips
-
Model: EZ-TSH-3100
-
Hose Capacity: Holds up to 100 feet of 3/8â or 1/2â low-pressure hose
-
Pressure Rating: Designed for low-pressure applications, typically up to 300 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish, built for rugged mobile environments
-
Drive Mechanism: Spring-driven automatic rewind for smooth and effortless hose retraction
-
Swivel Inlet: Full-flow brass swivel for optimal fluid or air transfer with minimal restriction
-
Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth and controlled hose payout and rewind
-
Mounting Type: Truck mount design, allowing for secure installation on trucks, trailers, and service vehicles
-
Applications: Ideal for low-pressure fluid or air transfer in mobile service, construction, agricultural, and maintenance applications
-
Temperature Range: Operates effectively in a wide temperature range, making it suitable for outdoor and on-the-go use
-
Weight: Varies based on hose configuration and reel setup
