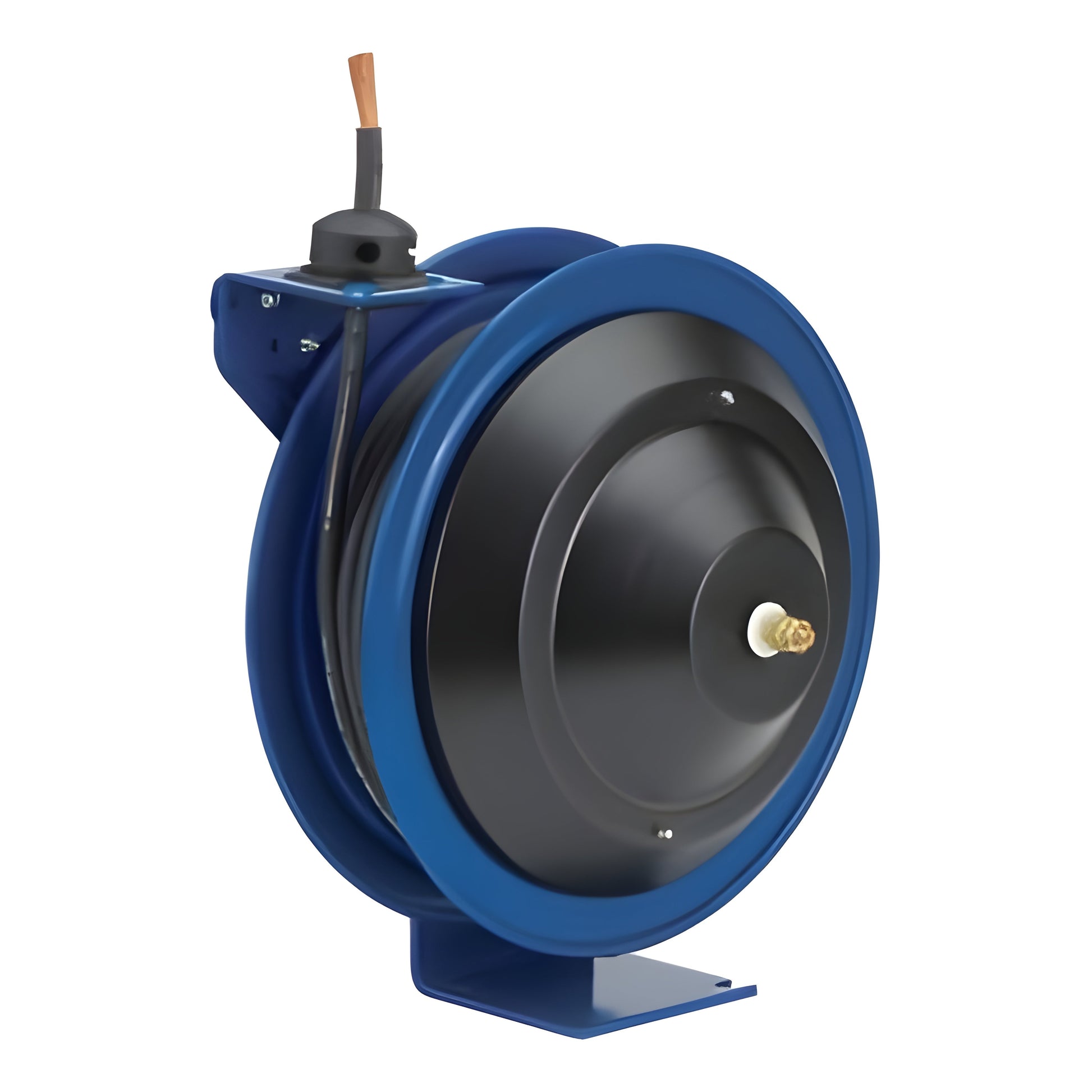

Coxreels P-WC Series Spring Driven "Welding Cable" Reels - P-WC13-2501
P-WC Series Spring Driven "Welding Cable" Reels
COXREELS P-WC Series spring driven "Welding Cable" reels protect and extend the life of your welding cable by neatly and conveniently storing it on a 25, 35 or 50 foot self-retracting welding cable reel. They are the solution for keeping your work area safe, organized and efficient.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
COMPONENT COVERÂ - External, easily accesible, heavy gauge CPCâ„¢ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
-
CARTRIDGE MOTORÂ - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
-
CNC SPUN DISCSÂ - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASEÂ - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.Exclusive Super Hubâ„¢dual axle support system.
-
MULTI-POSITION GUIDE ARMÂ - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDEÂ - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cable stop, welding cable, cable clamp available, and sturdy permanently lubricated precision bearings.
SpecificationsÂ
| MODEL |
HOSE |
LENGTH |
SHIP WEIGHT (LBS) |
GAUGE |
AMPS |
VOLTS |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| P-WC13-2501 |
Yes |
25' |
35 |
1GA |
300 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13-2510 |
Yes |
25' |
37 |
1/0 |
350 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13-3502 |
Yes |
35' |
36 |
2GA |
225 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13-3504 |
Yes |
35' |
34 |
4GA |
150 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13-3506 |
Yes |
35' |
31 |
6GA |
75 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13-5004 |
Yes |
50' |
39 |
4GA |
150 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13-5006 |
Yes |
50' |
35 |
6GA |
75 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-2501 |
No |
25' |
26 |
1GA |
300 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-2510 |
No |
25' |
26 |
1/0 |
350 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-3502 |
No |
35' |
26 |
2GA |
225 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-3504 |
No |
35' |
26 |
4GA |
150 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-3506 |
No |
35' |
26 |
6GA |
75 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-5004 |
No |
50' |
28 |
4GA |
150 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC13L-5006 |
No |
50' |
28 |
6GA |
75 |
600 |
8.5"(W) 14.5"(H) 13.75"(L) |
3"(M) 5"(N) |
5"(X) 6"(Y) |
| P-WC17-3520 |
Yes |
50' |
60 |
2/0 |
450 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17-5001 |
Yes |
50' |
60 |
1GA |
300 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17-5002 |
Yes |
50' |
56 |
2GA |
225 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17-5010 |
Yes |
50' |
64 |
1/0 |
350 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17-5020 |
Yes |
50' |
68 |
2/0 |
450 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17L-3520 |
No |
35' |
42 |
2/0 |
450 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17L-5001 |
No |
50' |
42 |
1GA |
300 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17L-5002 |
No |
50' |
42 |
2GA |
225 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17L-5010 |
No |
50' |
42 |
1/0 |
350 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-WC17L-5020 |
No |
50' |
42 |
2/0 |
450 |
600 |
11"(W) 18.25"(H) 17.25"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
Welding-Specific Design: Tailored for managing welding cables, offering reliable storage and easy access in welding environments.
-
Spring-Driven Retraction: Automatic retraction for smooth, quick storage, reducing hose wear and optimizing workspace.
-
Heavy-Duty Construction: Built to endure tough conditions, ensuring long-lasting durability in welding and industrial applications.
-
Corrosion-Resistant Finish: Protects against rust and environmental damage, extending the reel's lifespan.
-
Cable Management: Designed to handle large welding cables with ease, preventing tangling and ensuring safe, organized storage.
-
Compact & Efficient: Space-saving design ensures cables are neatly stored and easily accessed when needed.
-
Versatile Use: Ideal for welding, fabrication, and industrial maintenance applications.
Q&A
Q: What is the Coxreels P-WC Series Spring Driven "Welding Cable" Reel - P-WC13-2501?
A: The Coxreels P-WC13-2501 is a spring-driven hose reel specifically designed for storing and managing welding cables. It provides smooth, automatic cable retraction, ensuring an organized workspace and reducing cable wear.
Q: What is the cable capacity of this reel?
A: The P-WC13-2501 can accommodate up to 250 feet of welding cable, making it suitable for a wide range of welding applications in various industrial and commercial settings.
Q: How does the spring-driven mechanism work?
A: The reel features an automatic spring rewind system that retracts the cable smoothly after use, helping to keep the workspace tidy and reducing manual effort during retraction.
Q: Is the reel durable?
A: Yes, the P-WC Series is made from heavy-duty steel with a corrosion-resistant finish, ensuring long-lasting performance even in tough environments where welding cables are used.
Q: Is this reel easy to install?
A: Yes, the P-WC13-2501 offers multiple mounting options, including wall, floor, and ceiling installation, providing flexibility for different workspace configurations.
Q: What are typical applications for this reel?
A: This reel is ideal for storing welding cables in workshops, construction sites, and manufacturing facilities, ensuring easy access and preventing tangles or damage to the cables.
Maintenance Tips
-
Regular Cleaning: Wipe the reel and cable with a clean, damp cloth to remove dirt, dust, and welding debris. Avoid using abrasive cleaners that may damage the surface.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the spring mechanism and any moving components to ensure smooth retraction and operation.
-
Inspect Cable and Fittings: Check the welding cable for signs of wear, fraying, or damage. Replace any damaged sections to avoid electrical hazards. Ensure all fittings are secure and free from corrosion.
-
Monitor Electrical Load: Ensure the reel is being used within the recommended electrical load limits to prevent overloading or damaging the cable.
-
Adjust Spring Tension: If the cable retraction becomes slow or uneven, adjust the spring tension according to the manufacturer’s instructions for optimal performance.
-
Tighten Fasteners: Periodically check and tighten all bolts, screws, and other fasteners to ensure the reel is securely mounted.
-
Proper Storage: Store the reel in a dry, cool location to prevent exposure to moisture or extreme temperatures that could damage the cable or reel.
