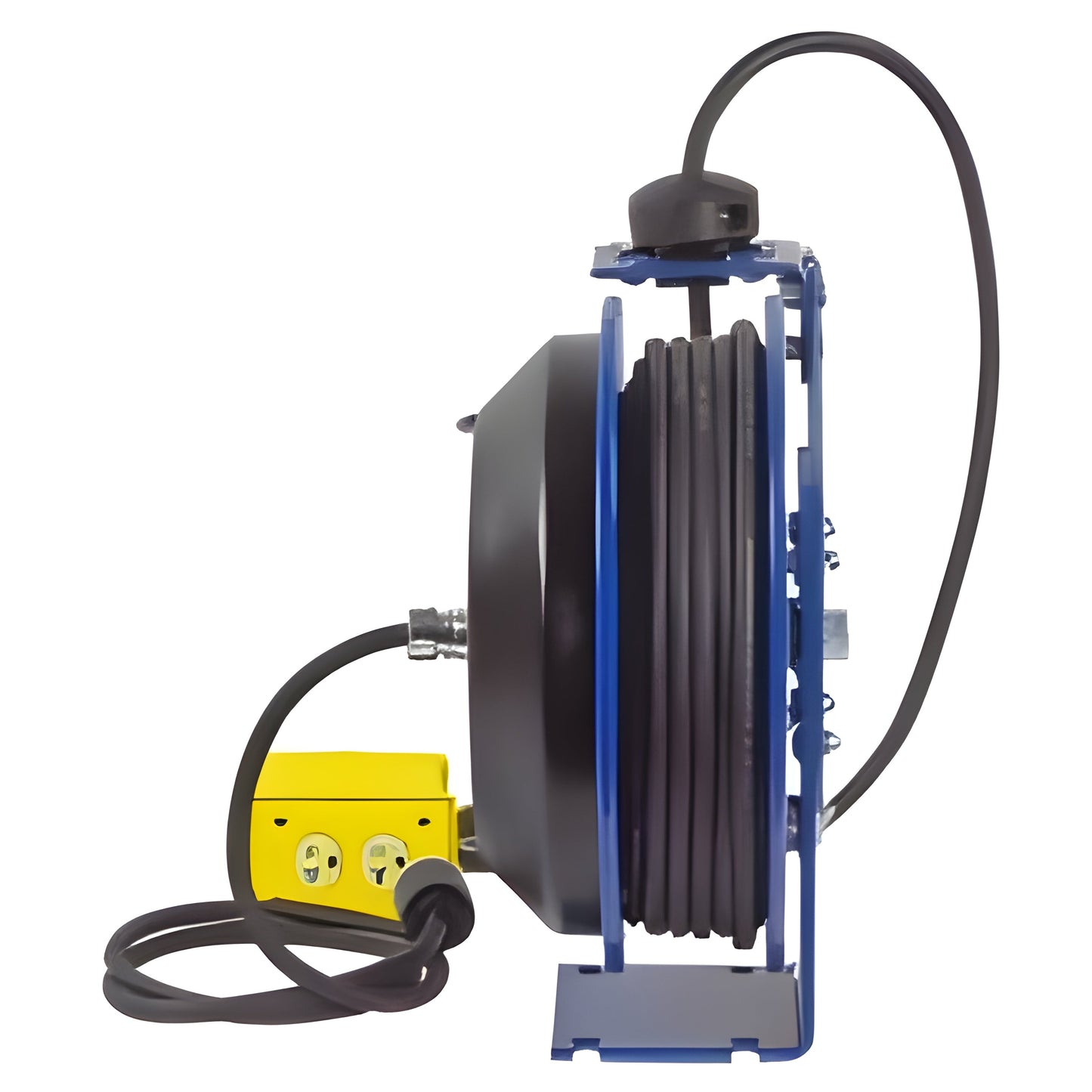

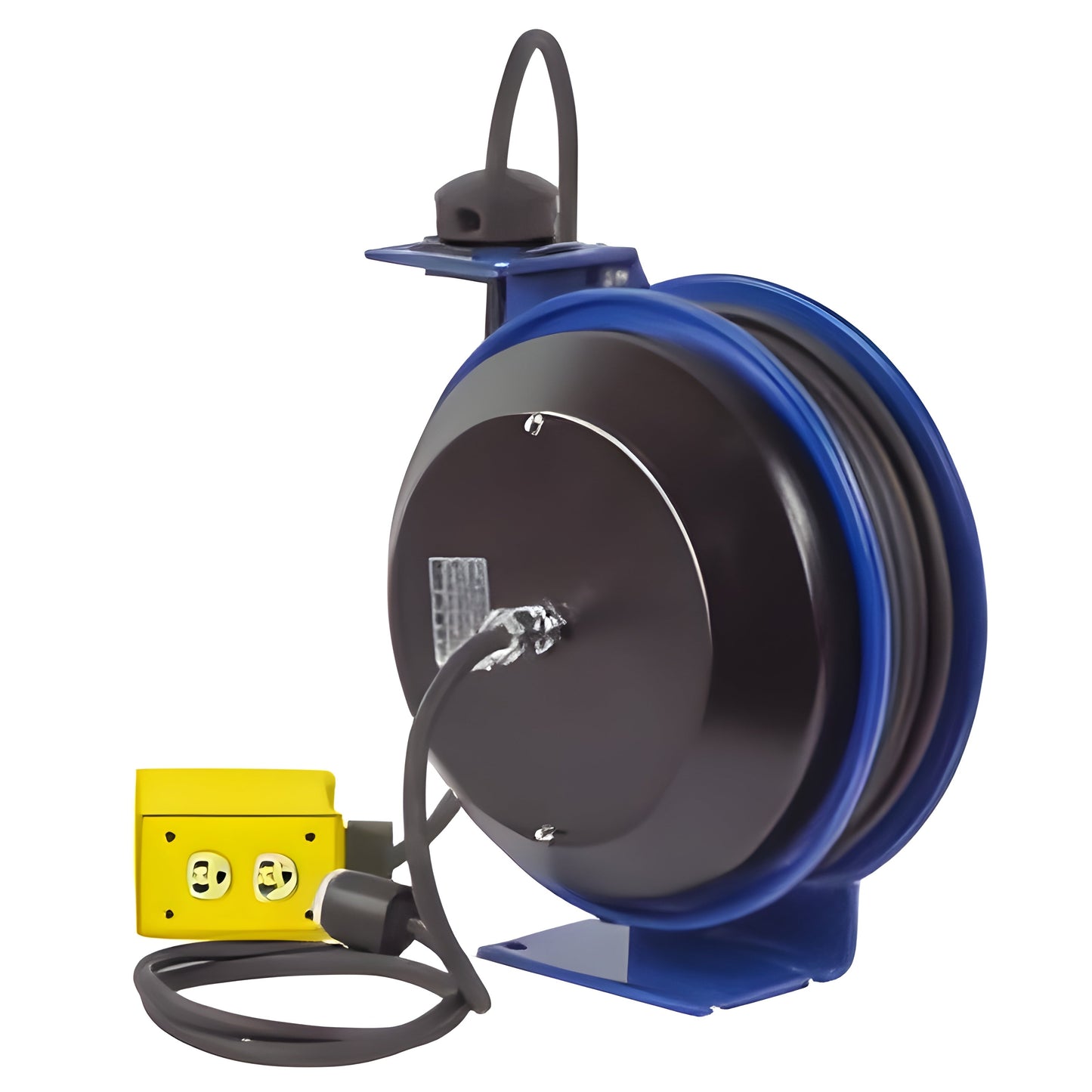

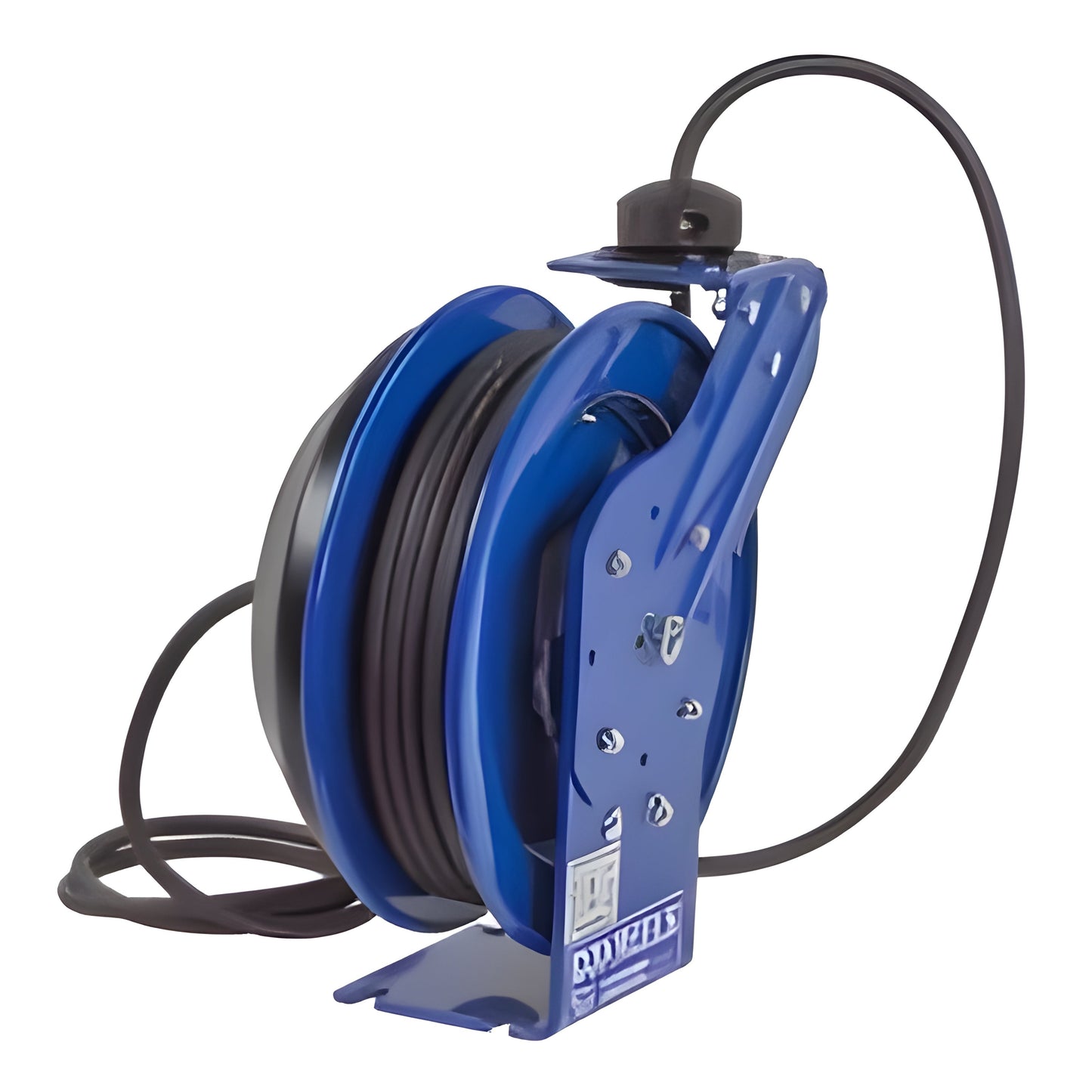

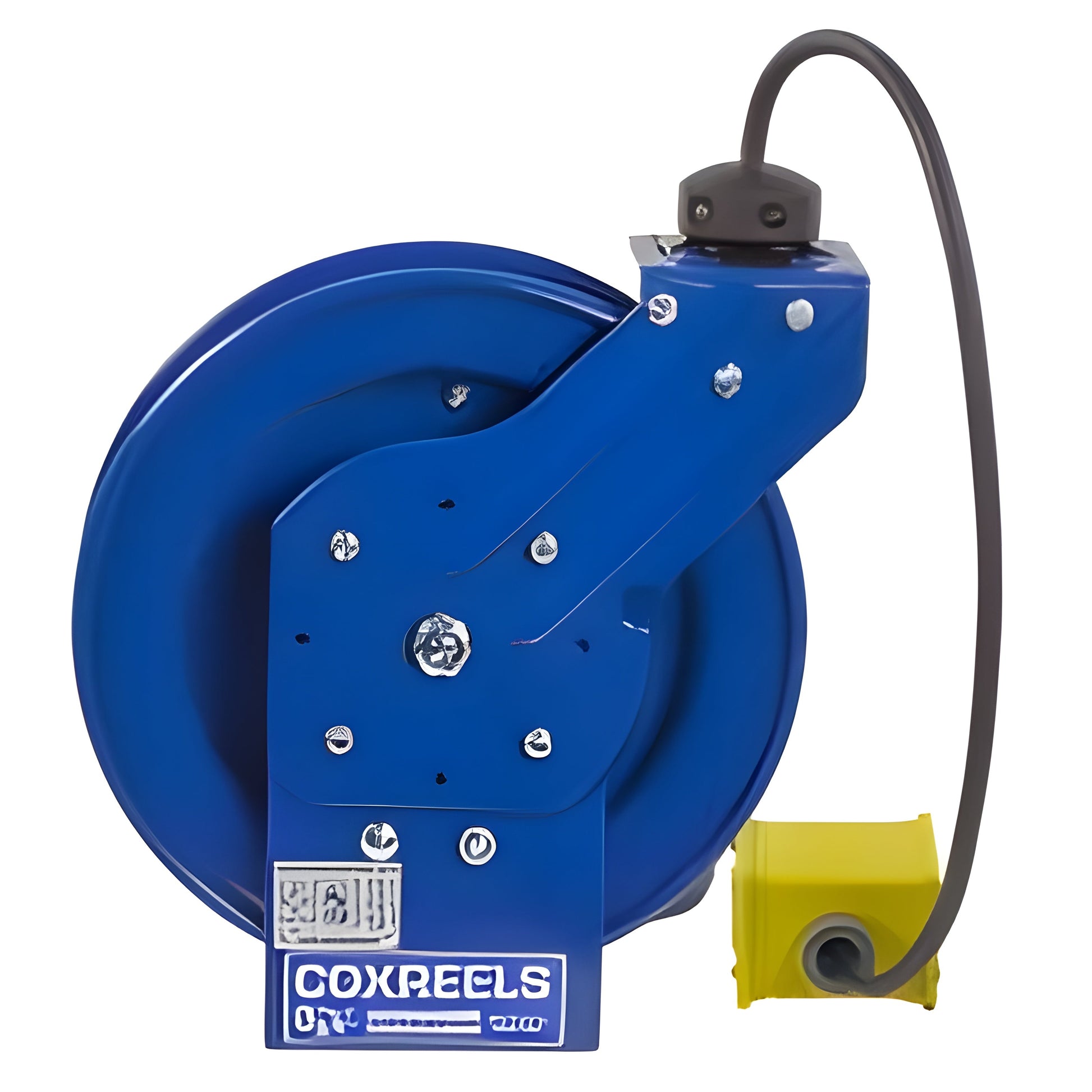

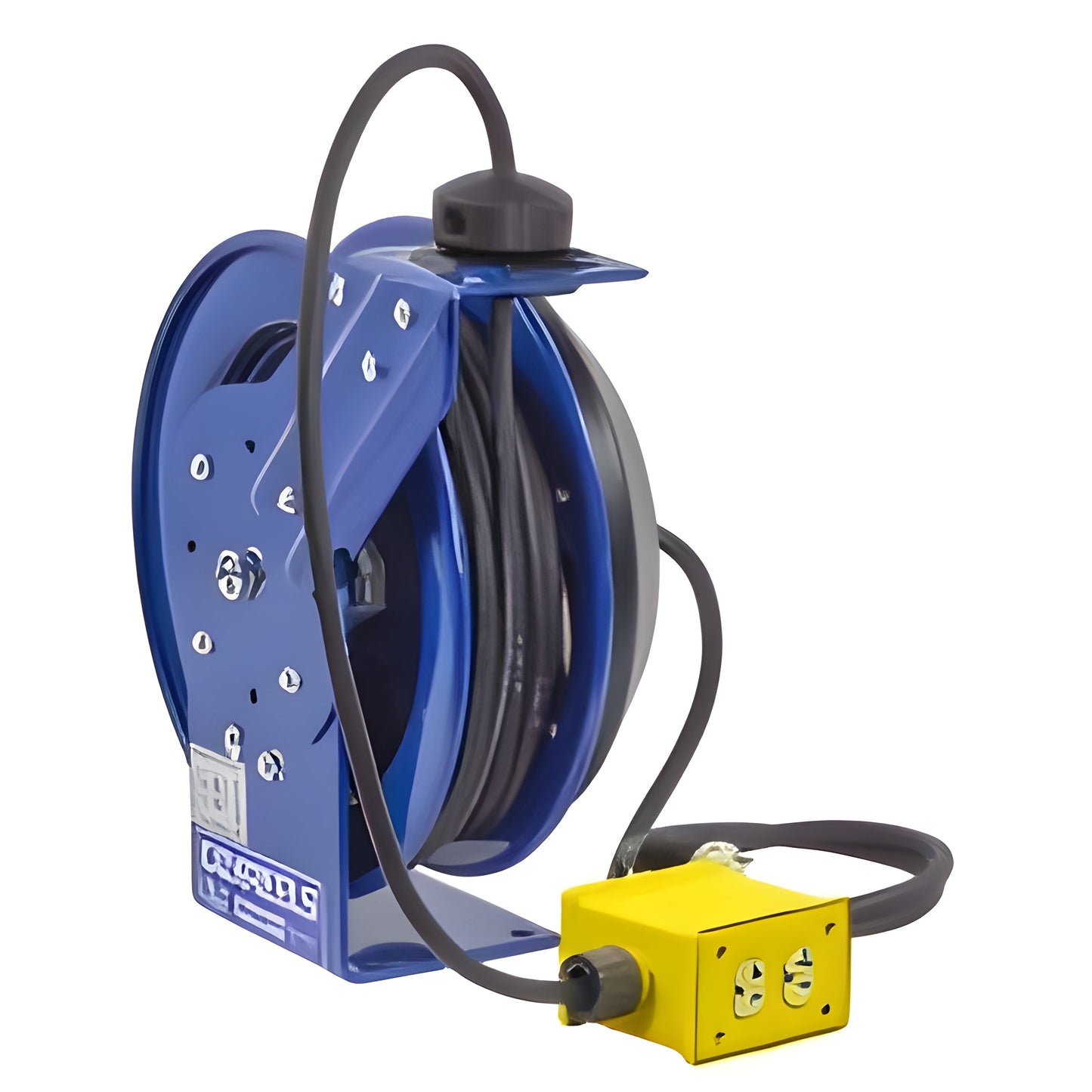

Coxreels PC Series spring driven "Power Cord" reels - PC13-3512-A

PC Series spring driven "Power Cord" reels

COXREELS PC Series spring driven "Power Cord" reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modelled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions.

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
Features
  • COMPONENT COVER - External, easily accessible, heavy gauge CPCâ„¢ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - Long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cord stop, 5' lead cable and grounding plug, sturdy permanently lubricated precision bearings, and accessory of your choice.
Specifications
MODEL LENGTH HOSE SHIP WEIGHT (LBS) AMPS VOLTS OVERALL DIMENSIONS (W) (H) (L) MOUNTING PATTERN (M) (N)
PC13-3512-A 35' Yes 37 20 115 8.50"(W) 14.88"(H) 13.50"(L) 3"(M) 5"(N)
PC13-3512-B 35' Yes 38 20 115 8.50"(W) 14.88"(H) 13.50"(L) 3"(M) 5"(N)
PC13-3512-F 35' Yes 39 20 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-3516-A 35' Yes 34 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-3516-C 35' Yes 35 0.3 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-3516-D 35'
Yes
 35 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-3516-E 35' Yes 34 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-3516-F 35' Yes 36 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5012-A 50' Yes 40 20 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5012-B 50' Yes 41 20 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5012-F 50' Yes 42 20 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5012-X 50' Yes 40 20 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5016-A 50' Yes 36 13 115 8.5"(W) 14.88"(H) 13"(L) 3"(M) 5"(N)
PC13-5016-C 50' Yes 37 0.3 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5016-D 50' Yes 37 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5016-E 50' Yes 36 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5016-F 50' Yes 38 13 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5016-H 50' Yes 38 0.17 120 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13-5016-K 50' Yes 37 0.3 115 8.50"(W) 14.88"(H) 13.50"(L) 3"(M) 5"(N)
PC13-5016-M 50' Yes 37 0.3 115 8.50"(W) 14.88"(H) 13.50"(L) 3"(M) 5"(N)
PC13L-5012 50' No 29 25 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC13L-5016 50' No 31 25 115 8.5"(W) 14.88"(H) 13.5"(L) 3"(M) 5"(N)
PC17-3510-X 50' Yes 48 30 115 11"(W) 18.63"(H) 17"(L) 4"(M) 5"(N)
PC17-5010-X 50' Yes 56 30 115 11"(W) 18.63"(H) 17"(L) 4"(M) 5"(N)
PC17L-5010 50' No 49 35 115 11"(W) 18.63"(H) 17"(L) 4"(M) 5"(N)
PC19-7512-A 75' Yes 67 20 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7512-B 75' Yes 68 20 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7512-F 75' Yes 67 20 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7512-X 75' Yes 66 20 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7516-A 75' Yes 60 13 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7516-E 75' Yes 60 13 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7516-F 75' Yes 60 13 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19-7516-X 75' Yes 60 13 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19L-7512 75' No 53 25 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC19L-7516 75' No 52 25 115 10.13"(W) 21"(H) 19.5"(L) 4"(M) 5"(N)
PC24-0012-A 100' Yes 81 20 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0012-B 100' Yes 84 20 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0012-F 100' Yes 83 20 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0012-X 100' Yes 62 20 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0016-A 100' Yes 73 13 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0016-C 100' Yes 75 0.3 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0016-D 100' Yes 73 13 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0016-E 100' Yes 73 13 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0016-F 100' Yes 73 13 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24-0016-X 100' Yes 71 13 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24L-0012 100' No 64 25 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
PC24L-0016 100' No 62 25 115 10.25"(W) 25.5"(H) 24"(L) 4"(M) 5"(N)
What Our Experts Think

Power Cord Management: Specifically designed to manage heavy-duty power cords, preventing tangling and extending their lifespan.

  • Spring-Driven Retraction: Automatic retraction system for easy, smooth storage and quick deployment, keeping cords organized and accessible.
  • Heavy-Duty Construction: Built with robust materials to withstand industrial environments and frequent use, ensuring longevity.
  • Corrosion-Resistant Coating: Protects against rust and wear, ensuring durability in harsh conditions such as outdoor work or high-moisture environments.
  • Space-Saving Design: Compact reel structure keeps cords neatly stored while optimizing valuable workspace.
  • Versatile Use: Ideal for industries like construction, manufacturing, and automotive that require efficient power cord management.
  • Low Maintenance: Designed for easy upkeep, ensuring hassle-free operation and long-term use.
Q&A

Q: What is the Coxreels PC Series Spring Driven "Power Cord" Reel - PC13-3512-A?
A: The Coxreels PC13-3512-A is a spring-driven power cord reel designed for safe, efficient storage and retraction of power cords, ensuring a clutter-free workspace and preventing tangles.

Q: What is the power cord capacity of this reel?
A: The PC13-3512-A can accommodate up to 35 feet of power cord, making it perfect for environments where cords need to be easily extended and retracted.

Q: How does the spring-driven mechanism work?
A: This reel features an automatic spring rewind system, which retracts the power cord smoothly and quickly, reducing manual effort and keeping the cord neatly stored when not in use.

Q: Is the reel durable?
A: Yes, the PC Series is built with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting durability even in tough industrial and commercial environments.

Q: Is this reel easy to install?
A: Yes, the PC13-3512-A offers multiple mounting options, including wall, floor, or ceiling installation, making it versatile for different workspace setups.

Q: What are typical applications for this reel?
A: This reel is ideal for managing power cords in workshops, factories, construction sites, and maintenance areas where frequent extension and retraction of cords are necessary.

Maintenance Tips
  • Regular Cleaning: Wipe the reel and power cord with a damp cloth to remove dirt, dust, and debris. Avoid using abrasive cleaners or chemicals that could damage the reel's finish.
  • Lubricate Moving Parts: Apply a silicone-based lubricant to the spring mechanism, hose reel components, and pivot points for smooth operation and to prevent wear.
  • Inspect Power Cord and Fittings: Regularly check the power cord for any signs of wear, fraying, or cracks. Ensure all connections and fittings are tight and in good condition. Replace any damaged components immediately to avoid electrical hazards.
  • Monitor Electrical Load: Ensure the operating voltage and current are within the specified limits to prevent overloading the system, which can cause damage to the reel or power cord.
  • Adjust Spring Tension: If the retraction is slow or uneven, adjust the spring tension according to the manufacturer's instructions to ensure smooth operation.
  • Check for Overheating: Ensure that the reel is not exposed to excessive heat or direct sunlight, which could cause damage to the power cord or the reel itself.
  • Tighten Fasteners: Periodically check and tighten bolts, screws, and mounting hardware to ensure the reel is securely fastened.
  • Proper Storage: Store the reel in a dry, cool environment when not in use to prevent exposure to harsh weather conditions that could cause damage to the reel or power cord.
