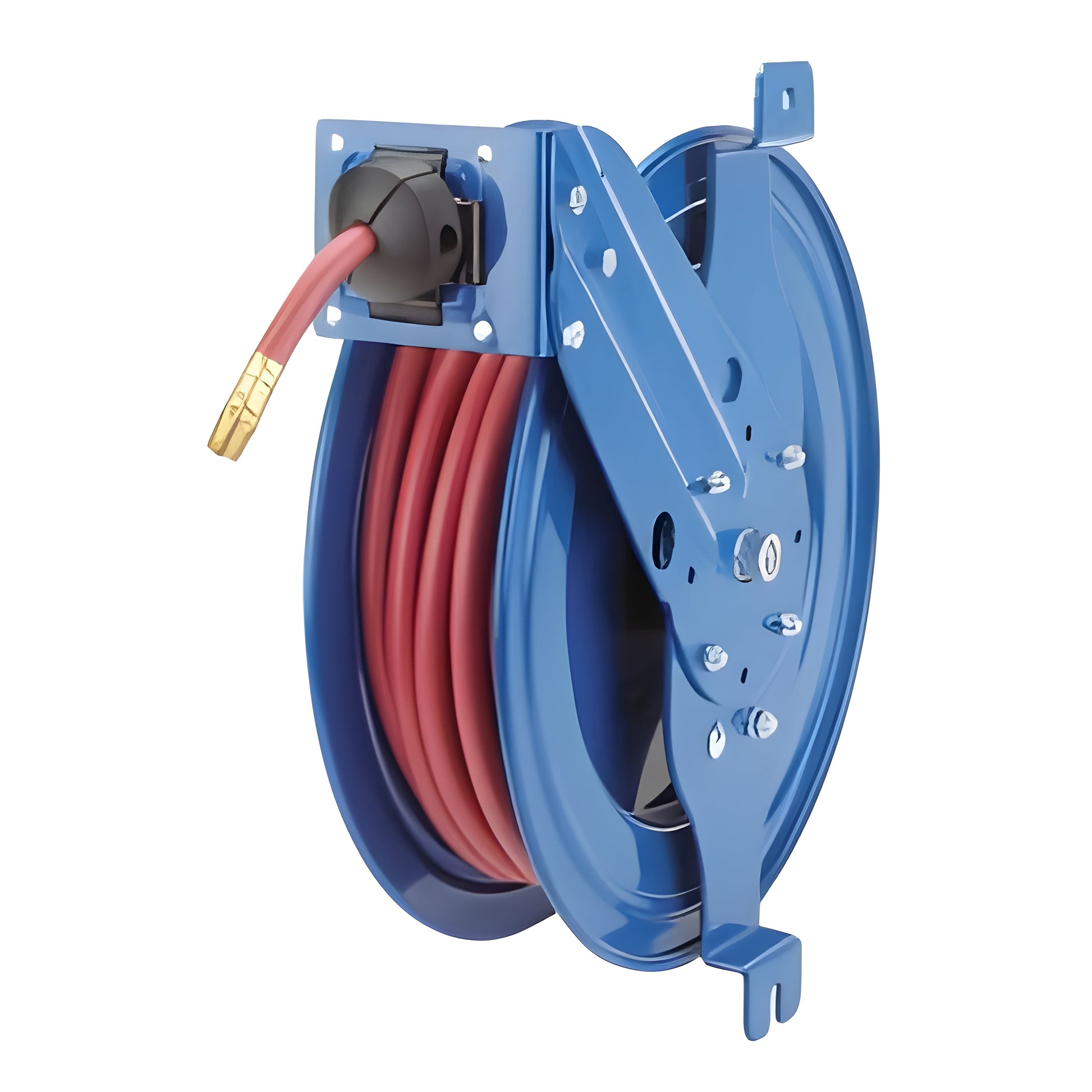

Coxreels SG Series Medium-Pressure Spring Driven Hose Reels - SG17-M325
SG Series Medium-Pressure Spring Driven Hose Reels
Coxreels SG Series expand the capabilities of the "Side Mount" spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SG Series (for air/water, oil and grease) ) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard ½" wrench.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- SIDE MOUNT DESIGN - Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- MULTI-POSITION GUIDE ARM - Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose, and sturdy permanently lubricated precision bearings
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| SG17-M325 |
3/8" |
11/16" |
25' |
Yes |
3000 |
46 |
6.75"(W) 19.5"(H) 17"(L) |
18"(M) -"(N) |
-"(X) 2.5"(Y) |
| SG17-M425 |
1/2" |
13/16" |
25' |
Yes |
2500 |
46 |
7.25"(W) 19.5"(H) 17"(L) |
2.88"(M) -"(N) |
-"(X) 20.5"(Y) |
| SG19-M350 |
3/8" |
11/16" |
50' |
Yes |
3000 |
63 |
8.5"(W) 22"(H) 19.5"(L) |
2.88"(M) -"(N) |
-"(X) 20.5"(Y) |
| SG19-M450 |
1/2" |
13/16" |
50' |
Yes |
2500 |
65 |
9.38"(W) 22"(H) 19.5"(L) |
2.88"(M) -"(N) |
-"(X) 20.5"(Y) |
What Our Experts Think
-
Medium-Pressure Performance: Handles pressures up to 3,000 PSI, making it ideal for air, water, or hydraulic fluid transfer in demanding environments.
-
Spring-Driven Retraction: Features an auto-retract system for smooth and effortless hose storage, reducing manual effort and preventing kinks.
-
Heavy-Duty Steel Construction: Built to withstand industrial conditions, ensuring long-lasting durability and reliable performance.
-
Compact & Space-Saving Design: Optimized for efficient hose management while maintaining accessibility in tight workspaces.
-
Corrosion-Resistant Finish: Protects against rust and wear, extending the lifespan of the reel in harsh environments.
-
Versatile Mounting Options: Can be wall, ceiling, or floor-mounted for flexible installation in different work settings.
-
Safety & Efficiency: Keeps hoses neatly stored, preventing workplace hazards and improving operational efficiency.
Q&A
Q: What is the Coxreels SG Series Medium-Pressure Spring Driven Hose Reel - SG17-M325?
A: The Coxreels SG17-M325 is a medium-pressure, spring-driven hose reel designed for efficient hose management, featuring a sturdy construction and automatic retraction for smooth operation in demanding environments.
Q: What is the hose capacity of this reel?
A: The SG17-M325 can accommodate up to 25 feet of medium-pressure hose, making it ideal for industrial and commercial applications.
Q: How does the spring-driven mechanism work?
A: The built-in spring rewind system allows for automatic hose retraction, reducing effort and keeping the hose neatly stored when not in use.
Q: Is the reel durable?
A: Yes, the SG Series is constructed with heavy-duty steel and features a corrosion-resistant powder-coated finish for long-lasting durability.
Q: Is this reel easy to install?
A: Yes, it offers multiple mounting options, including wall, floor, or overhead installation, providing flexibility based on workspace needs.
Q: What are typical applications for this reel?
A: Ideal for use in industrial, automotive, and maintenance settings where controlled hose deployment and retraction are required for medium-pressure fluid transfer.
Maintenance Tips
-
Model: SG17-M325
-
Hose Capacity: 25 feet of 3/8” medium-pressure hose
-
Pressure Rating: Rated up to 4000 PSI for high-performance applications
-
Construction: Heavy-duty steel with a corrosion-resistant powder-coated finish for long-lasting durability
-
Mounting Type: Versatile wall, floor, ceiling, or truck-mount installation options
-
Retrieval System: Spring-driven automatic rewind for effortless hose retraction
-
Swivel Inlet: Full-flow, external fluid path swivel for maximum performance and durability
-
Hose Stop: Adjustable hose stop to set desired hose length during operation
-
Roller Bracket: Multi-position guide arm with reinforced rollers for smooth and controlled hose payout
-
Applications: Ideal for air, water, oil, or fluid transfer in industrial, automotive, and maintenance settings
