Coxreels SM Series "Swivel Mount" High Pressure Hand Crank Hose Reels - SM12-3-100
SM Series "Swivel Mount" High Pressure Hand Crank Hose Reels

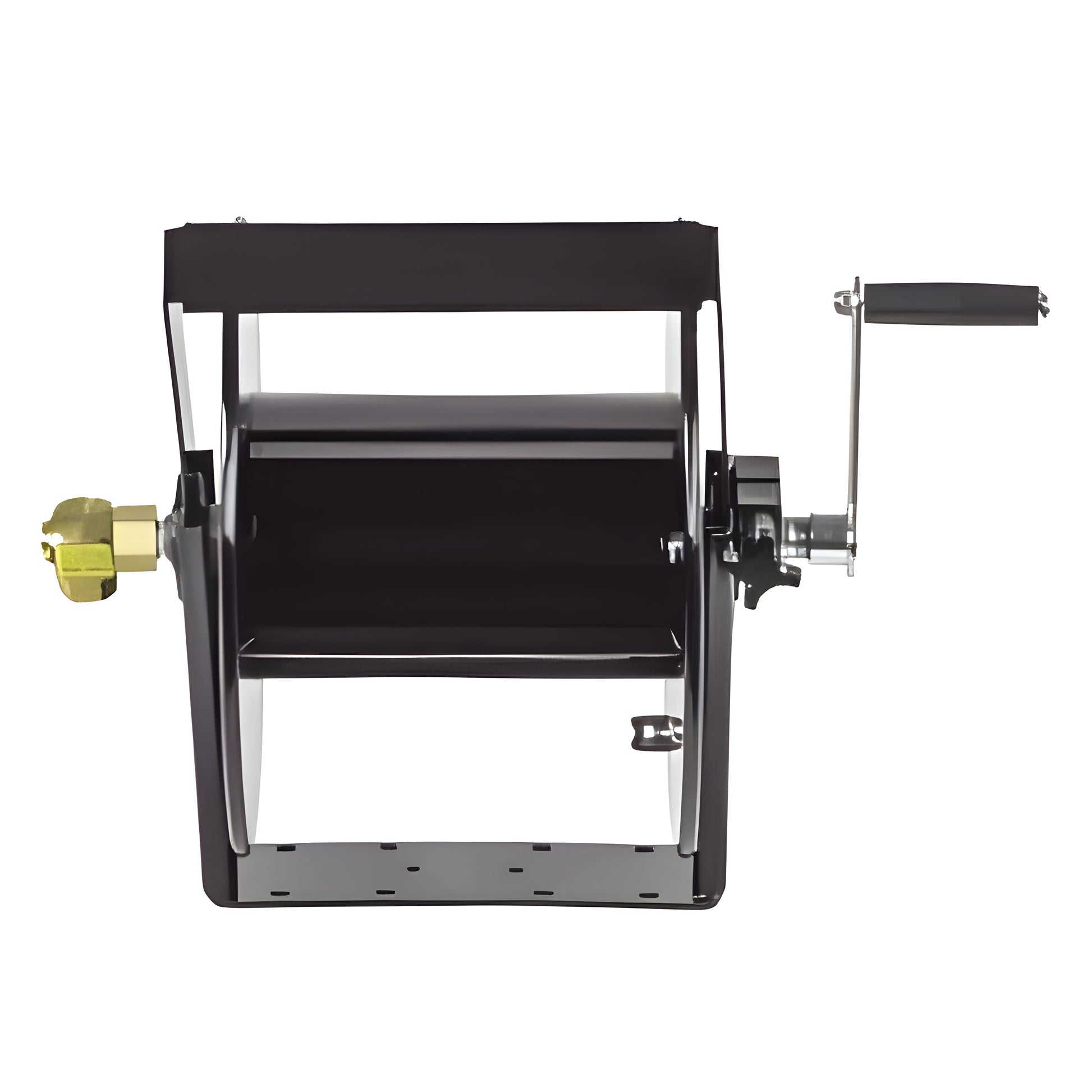

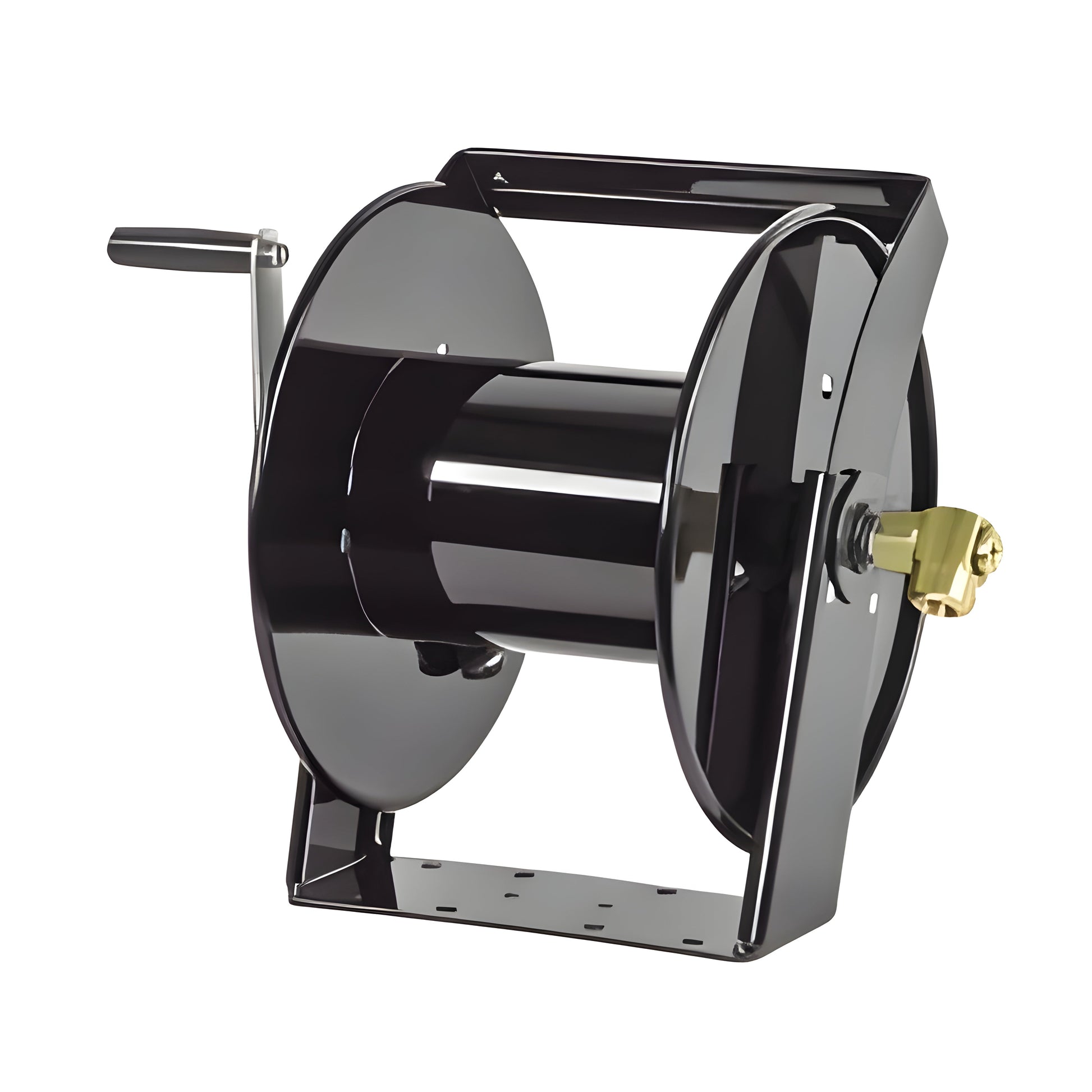

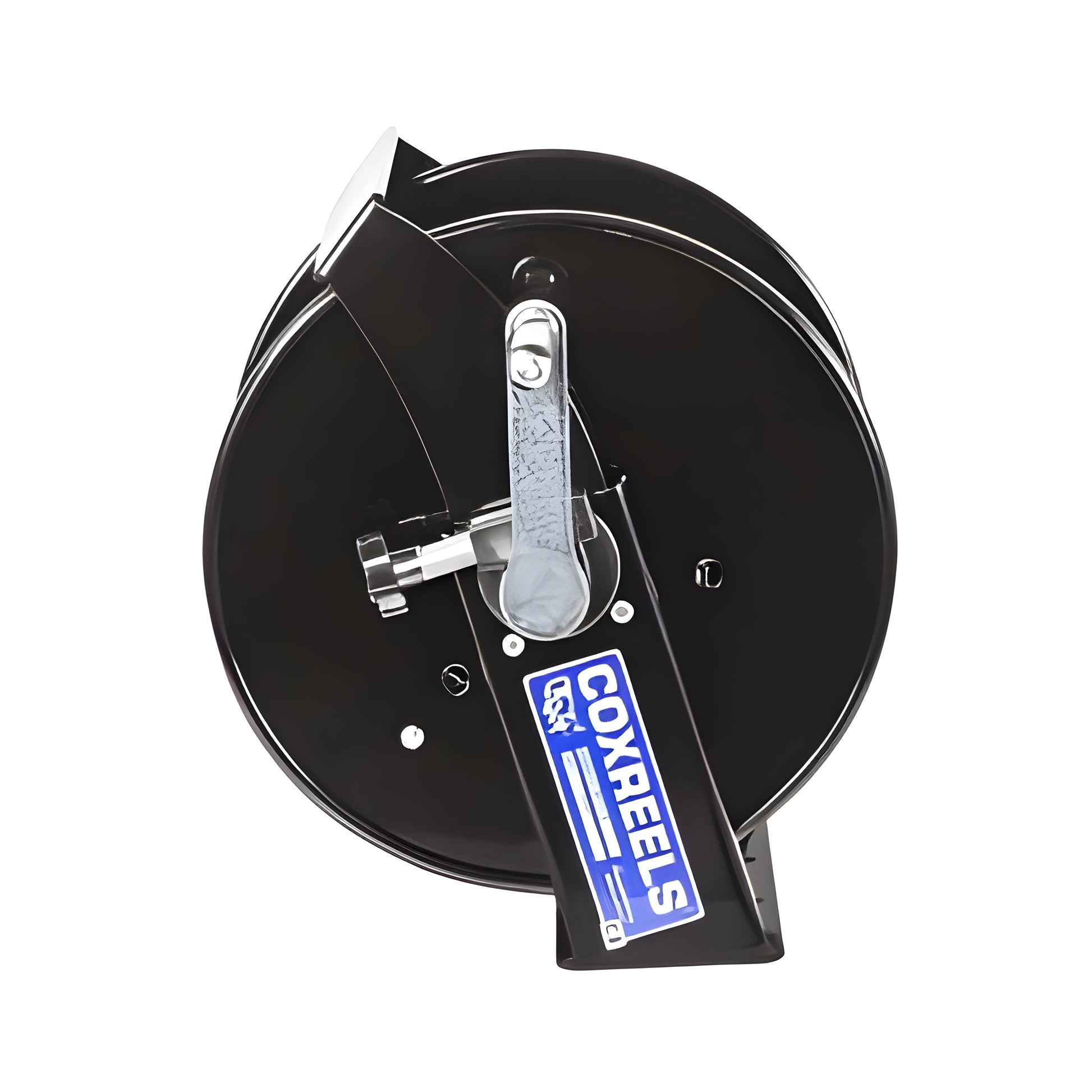

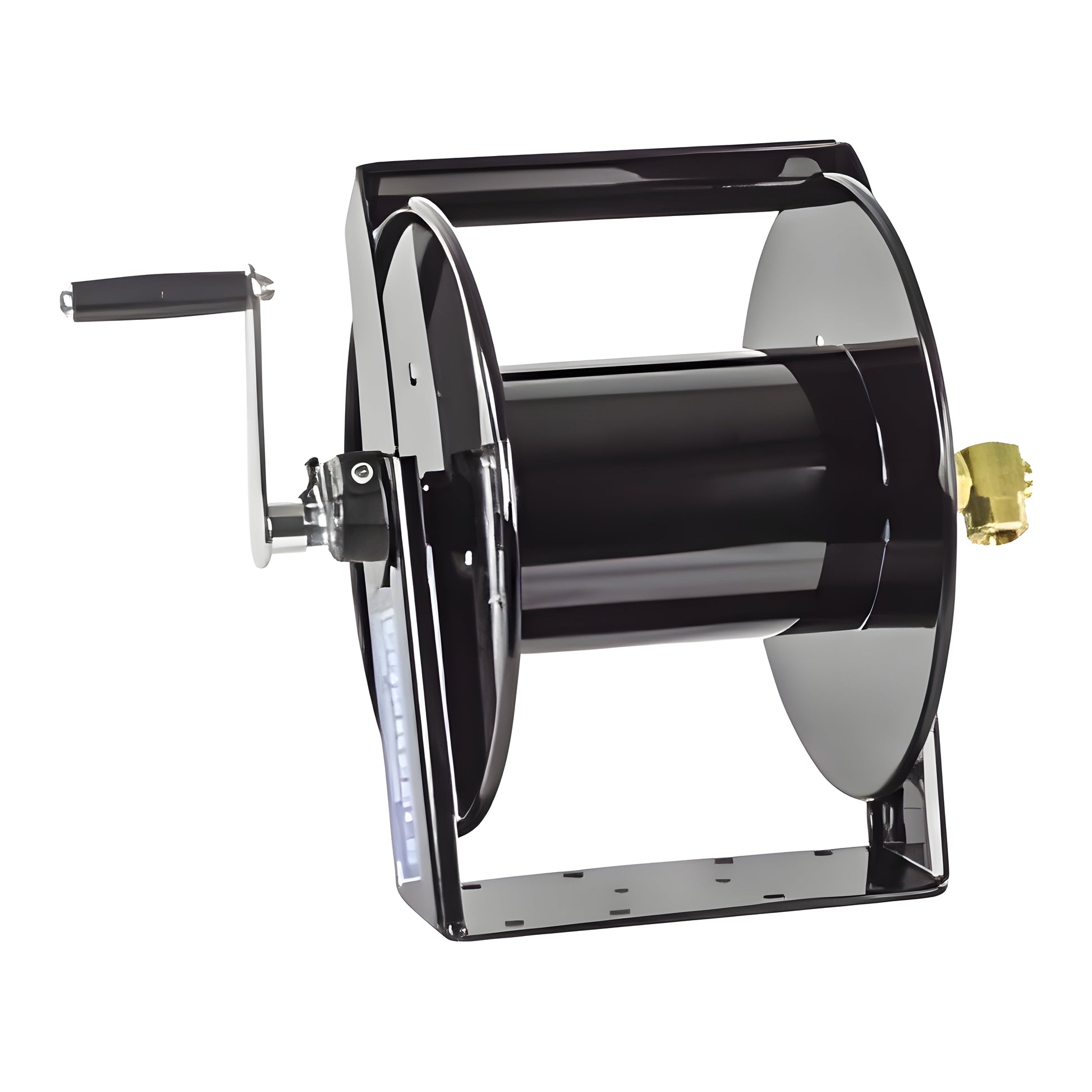

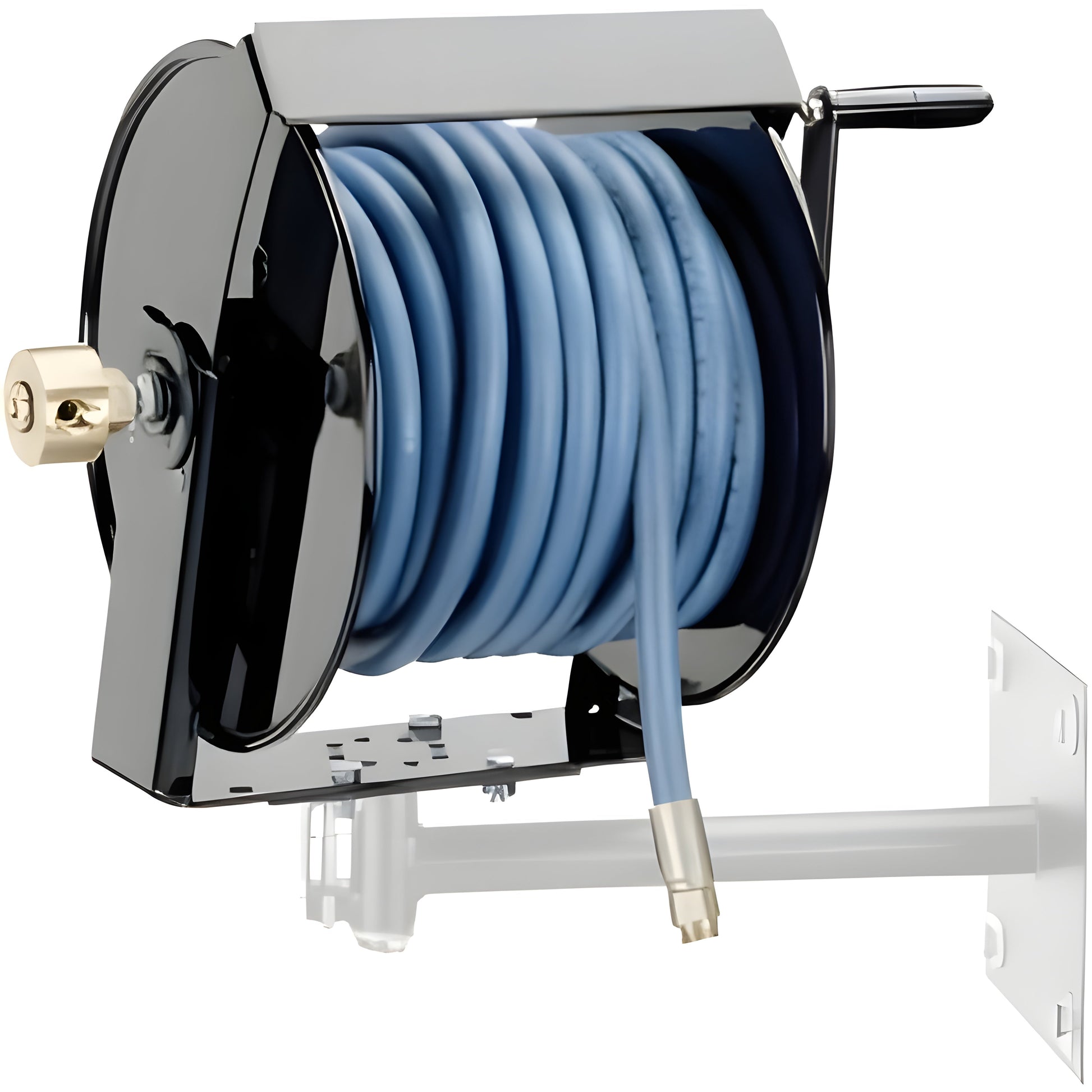

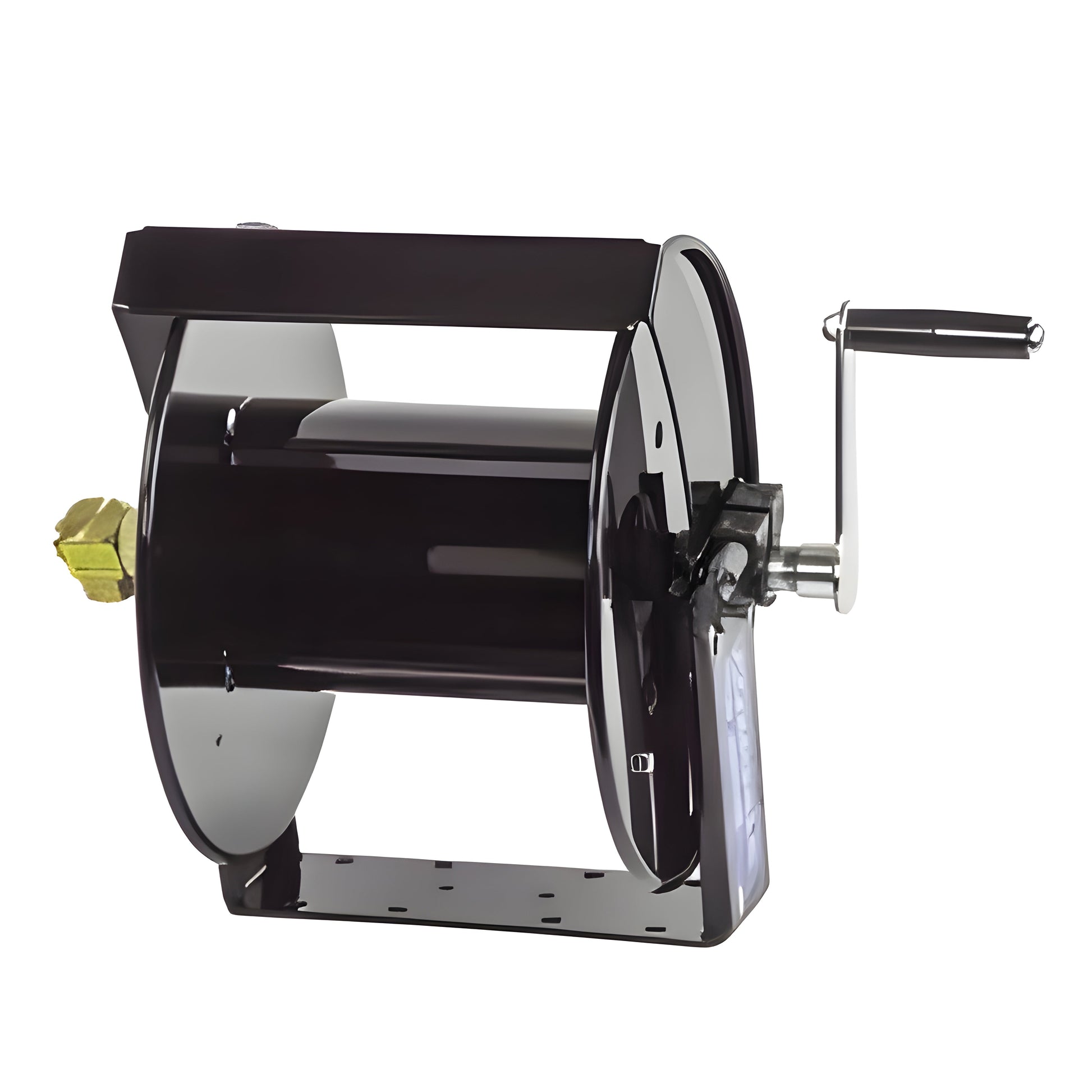

COXREELS® SM Series "Swivel Mount" hand crank hose reels swivel on demand in the direction your work takes you and locks in eight different positions as desired. Like the 100 Series, the SM Series is lightweight, compact and versatile with a working pressure up to 4,000 PSI. The "U" shaped base and hose control bar together add strength and rigidity while keeping the hose from slipping off the side discs. Add the SMK-202 wall mount bracket for swivelling mounted positions.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-

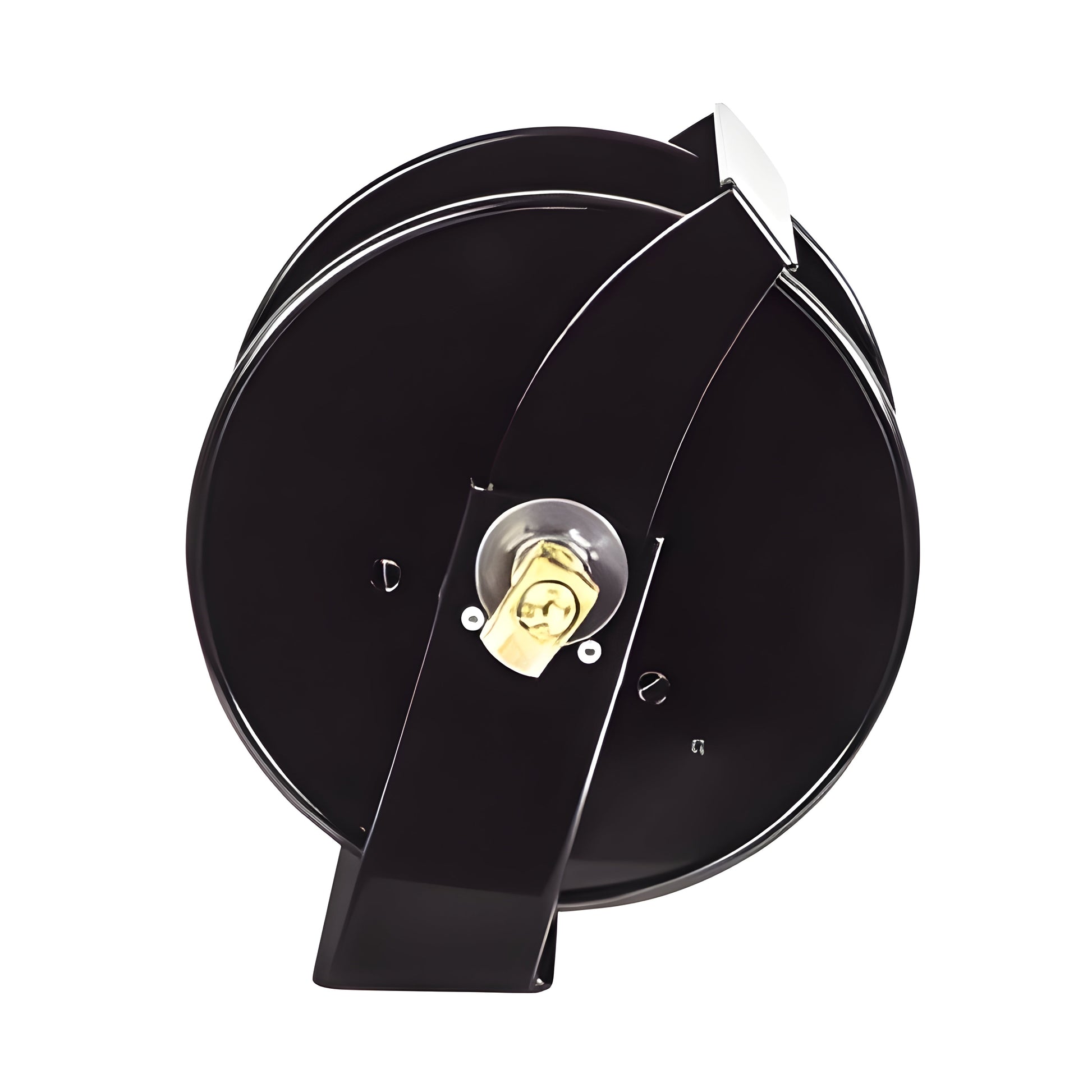

SWIVEL - Machined from solid brass 90º full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
FRAME DESIGN - Forward-weighted solid one piece, heavy gauge steel frame design ensures rotation in direction of use.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
-
CONTROL BAR - Unique hose control bar keeps hose from slipping off the disc from any direction.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, direct hand crank for easy mechanical retraction, and optional 8-position mount bracket.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| SM12-3-100 |
3/8" |
5/8" |
100' |
No |
4000 |
15 |
19"(W) 13.5"(H) 12"(L) |
7"(M) 3"(N) |
10.25"(X) 4"(Y) |
| SM17-3-250 |
3/8" |
5/8" |
250' |
No |
4000 |
19 |
19"(W) 18.5"(H) 17"(L) |
7"(M) 3"(N) |
10.25"(X) 4"(Y) |
| SM17-4-125 |
1/2" |
7/8" |
125' |
No |
4000 |
19 |
19"(W) 18.5"(H) 17"(L) |
7"(M) 3"(N) |
10.25"(X) 4"(Y) |
What Our Experts Think
-
Swivel Mount Design: Offers flexible, 360-degree rotation for easy hose access from any direction, enhancing maneuverability in tight spaces.
-
High-Pressure Capability: Handles up to 3,000 PSI, perfect for demanding fluid transfer applications such as industrial cleaning and pressure washing.
-
Hand Crank Operation: Provides smooth, controlled hose retraction, ideal for environments requiring precision and efficiency.
-
Heavy-Duty Construction: Built for durability and long-term performance, even in rugged, high-use environments.
-
Corrosion-Resistant Coating: Resists rust and wear, making it suitable for both indoor and outdoor applications.
-
Space-Saving Design: Compact and efficient, keeping hoses neatly stored and minimizing clutter in workspaces.
Q&A
Q: What is the Coxreels SM Series "Swivel Mount" High Pressure Hand Crank Hose Reel - SM12-3-100?
A: The SM12-3-100 is a high-pressure, hand crank hose reel with a swivel mount design. It is built to manage high-pressure hoses in industrial or commercial environments and provides flexible, efficient hose storage.
Q: What is the hose capacity of this reel?
A: The reel holds up to 100 feet of high-pressure hose, making it suitable for a range of fluid transfer applications.
Q: What makes the swivel mount design beneficial?
A: The swivel mount allows for flexible hose positioning and easy access, making the reel ideal for tight or rotating spaces, such as service vehicles or mobile units.
Q: How is the hose retracted?
A: The reel uses a manual hand crank system, which ensures controlled and smooth retraction of the hose for easy storage.
Q: Is the reel built for tough environments?
A: Yes, it is constructed with durable materials to withstand high-pressure applications and is designed for long-lasting use in demanding conditions.
Q: How is this reel mounted?
A: The swivel mount allows for versatile installation on walls, workstations, or vehicles, giving you multiple options for space optimization.
Q: What are typical applications for this reel?
A: Perfect for use in high-pressure fluid transfer in industries such as automotive, industrial, maintenance, and car washes.
Maintenance Tips
-
Model: SM12-3-100
-
Hose Capacity: Holds up to 100 feet of 3/8” high-pressure hose
-
Pressure Rating: Designed for high-pressure applications up to 5000 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for enhanced durability
-
Drive Mechanism: Hand crank operation for smooth and manual hose retraction, offering complete control
-
Swivel Inlet: Full-flow brass swivel for efficient and unrestricted fluid or air transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth and consistent hose payout and retraction
-
Mounting Type: Swivel mount design for flexible installation, ideal for workshops, service trucks, and mobile environments
-
Applications: Perfect for high-pressure fluid or air transfer in industrial, automotive, and service truck applications
-
Temperature Range: Operates efficiently across a wide range of temperatures
-
Weight: Varies based on hose configuration and reel setup
