Coxreels SW Series "Side Mount" Low Pressure Spring Driven Hose Reels - SL17W-150
SW Series "Side Mount" Low Pressure Spring Driven Hose Reels
COXREELS SW Series " Side Mount" spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. SW Series is available for oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features

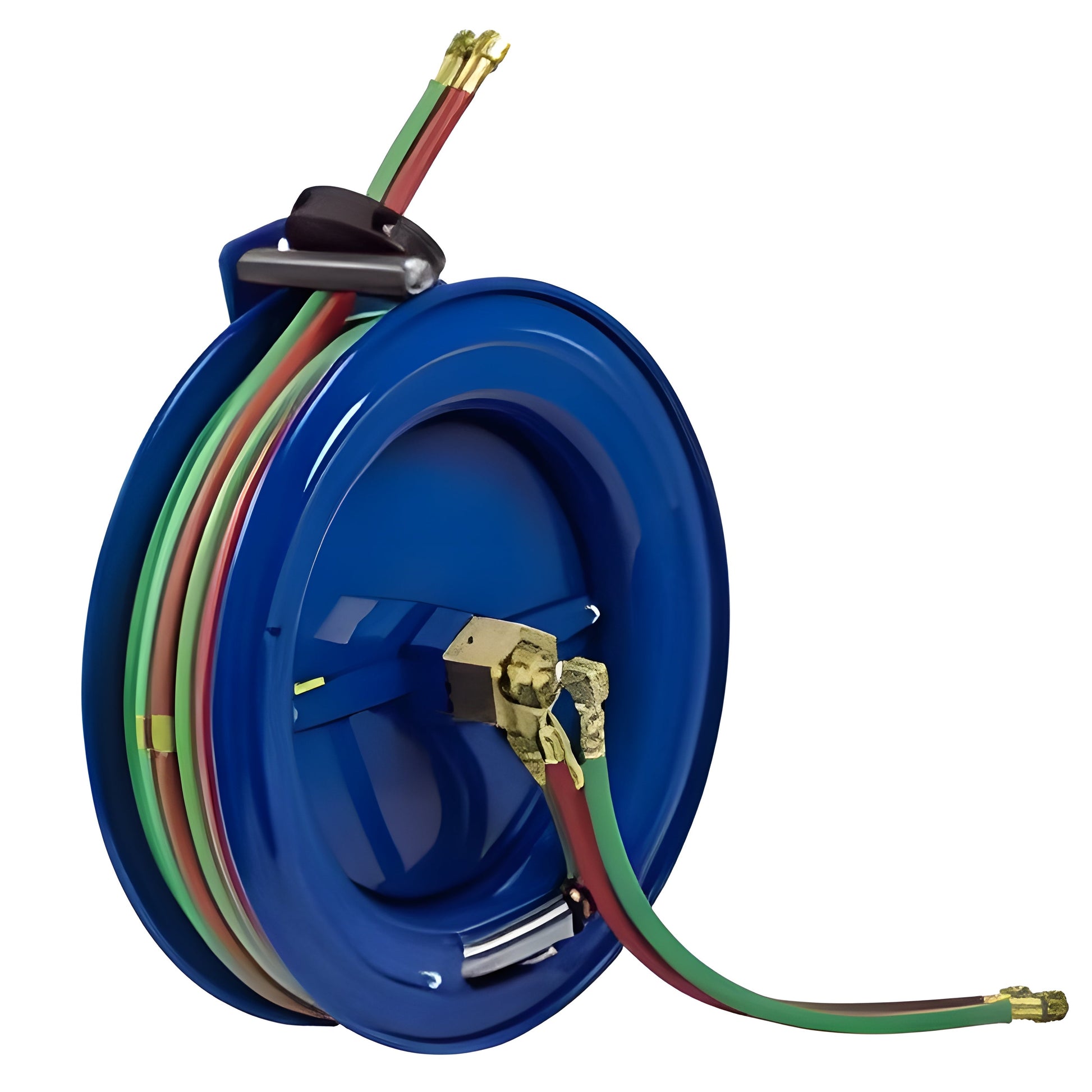

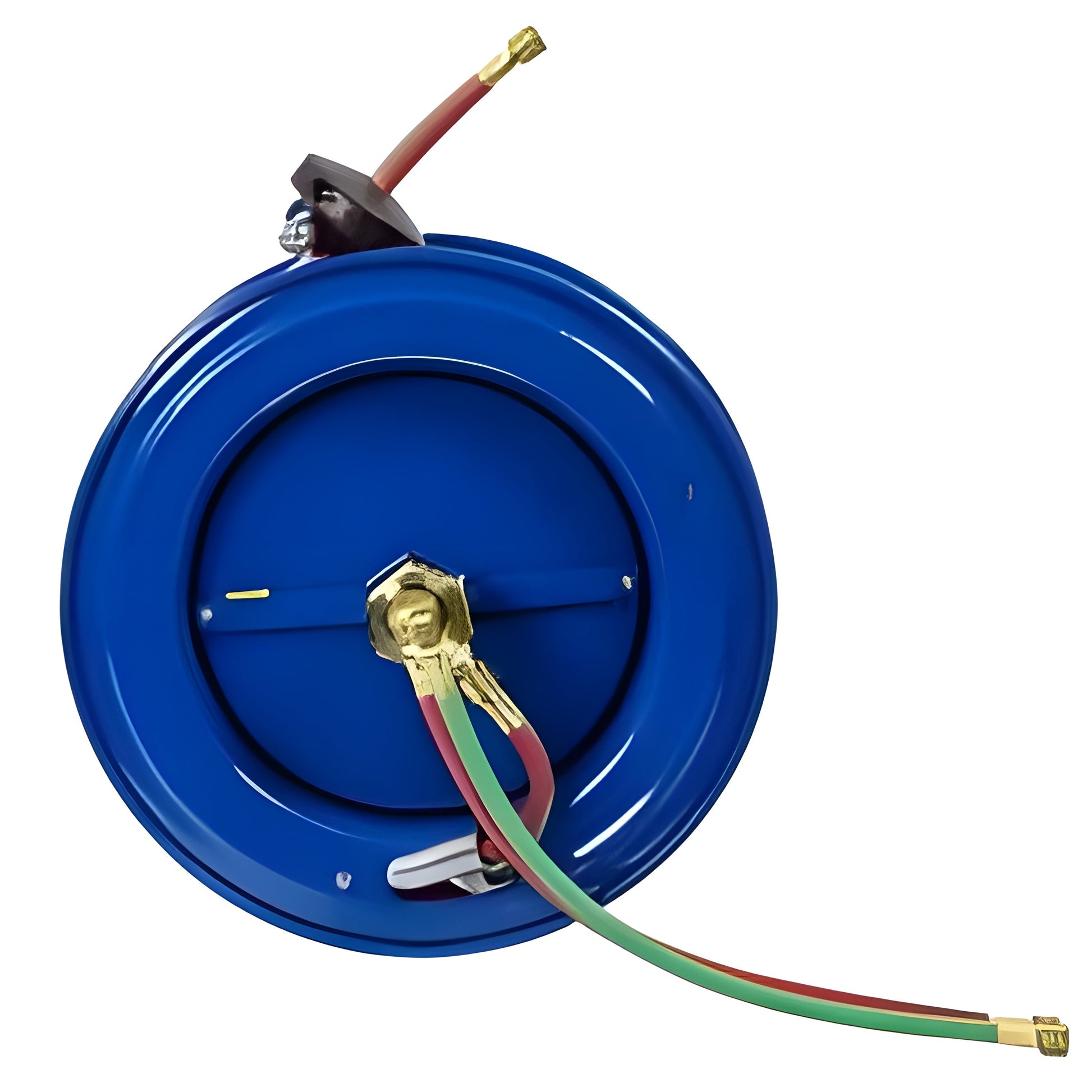

- WELDING GAS SWIVEL - External 90º full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

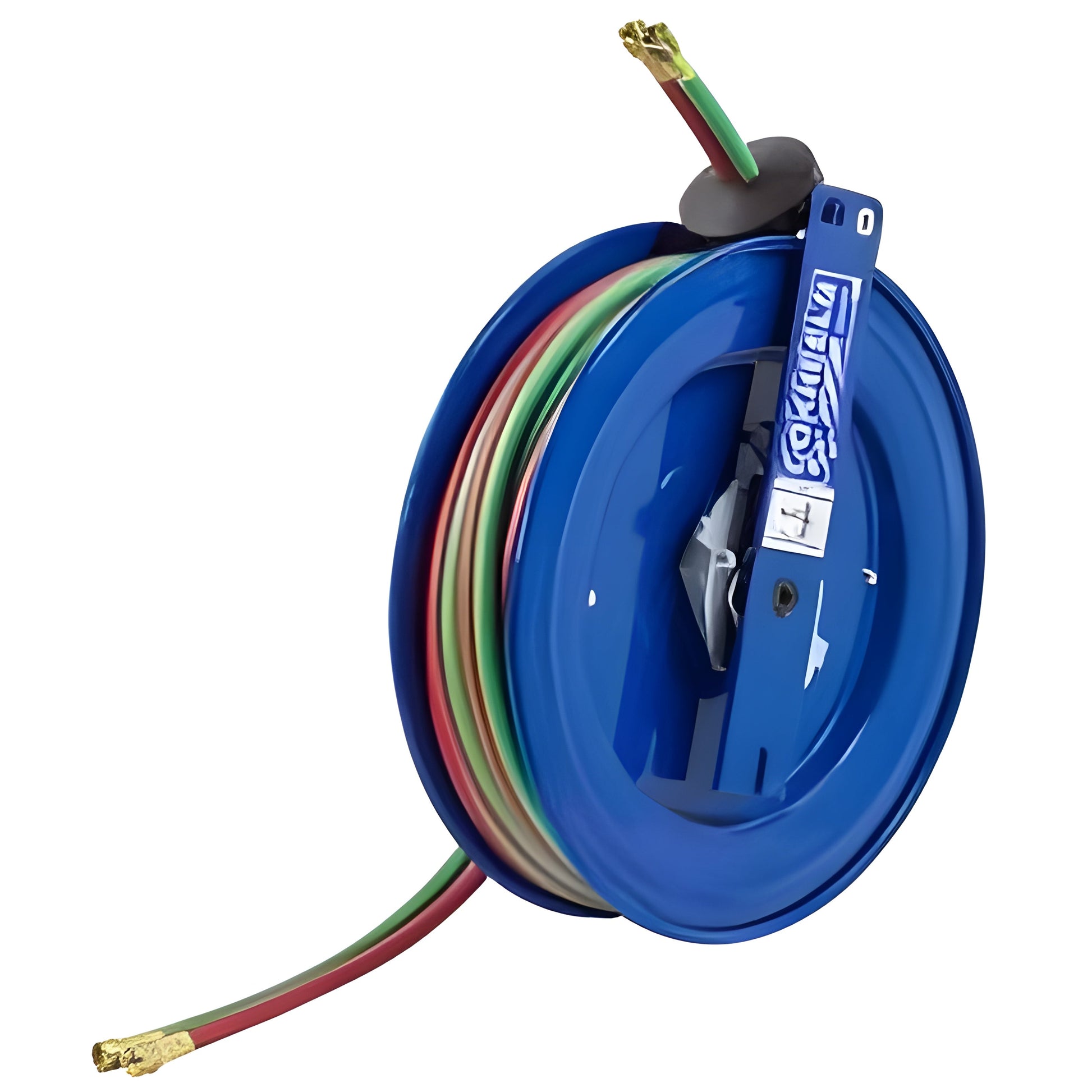

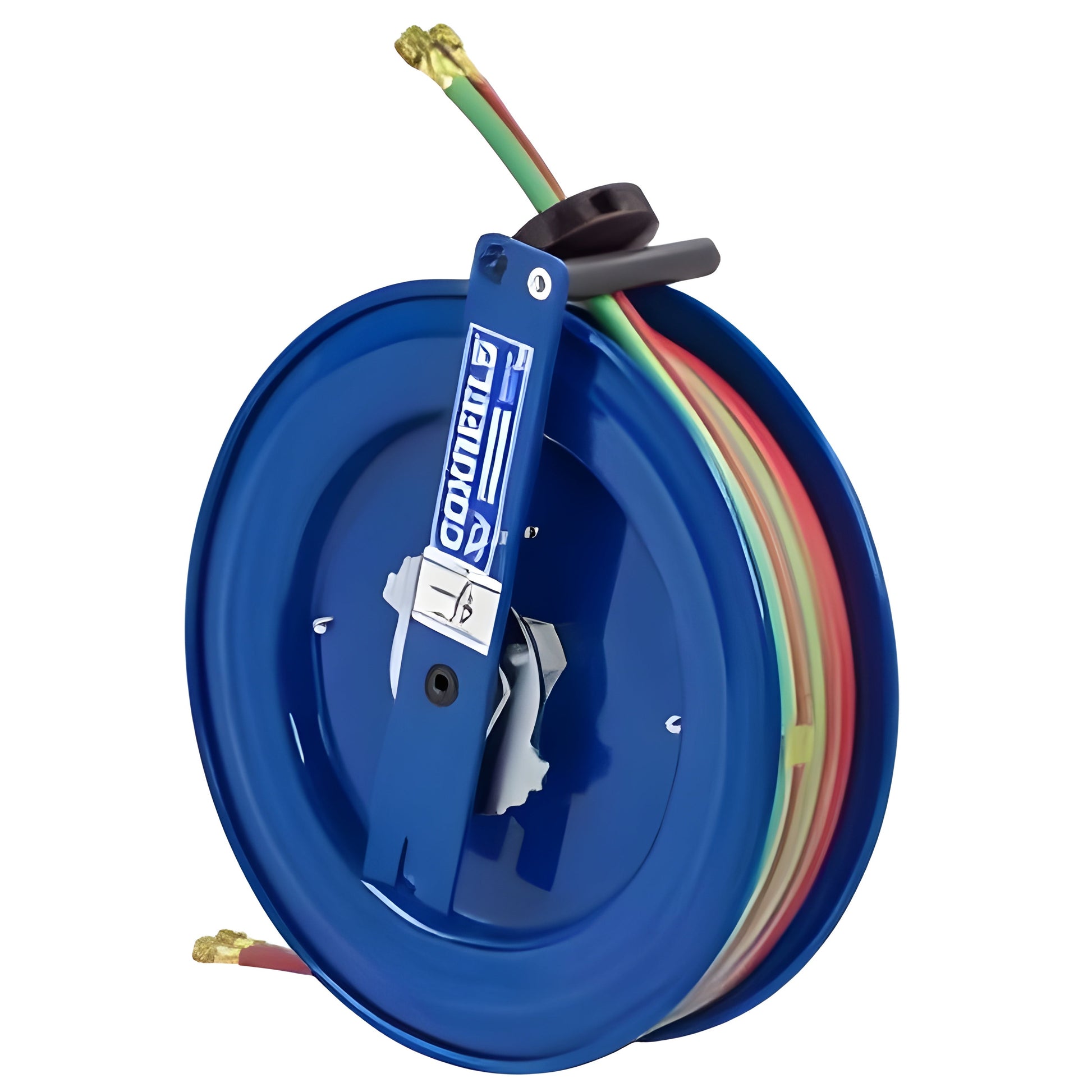

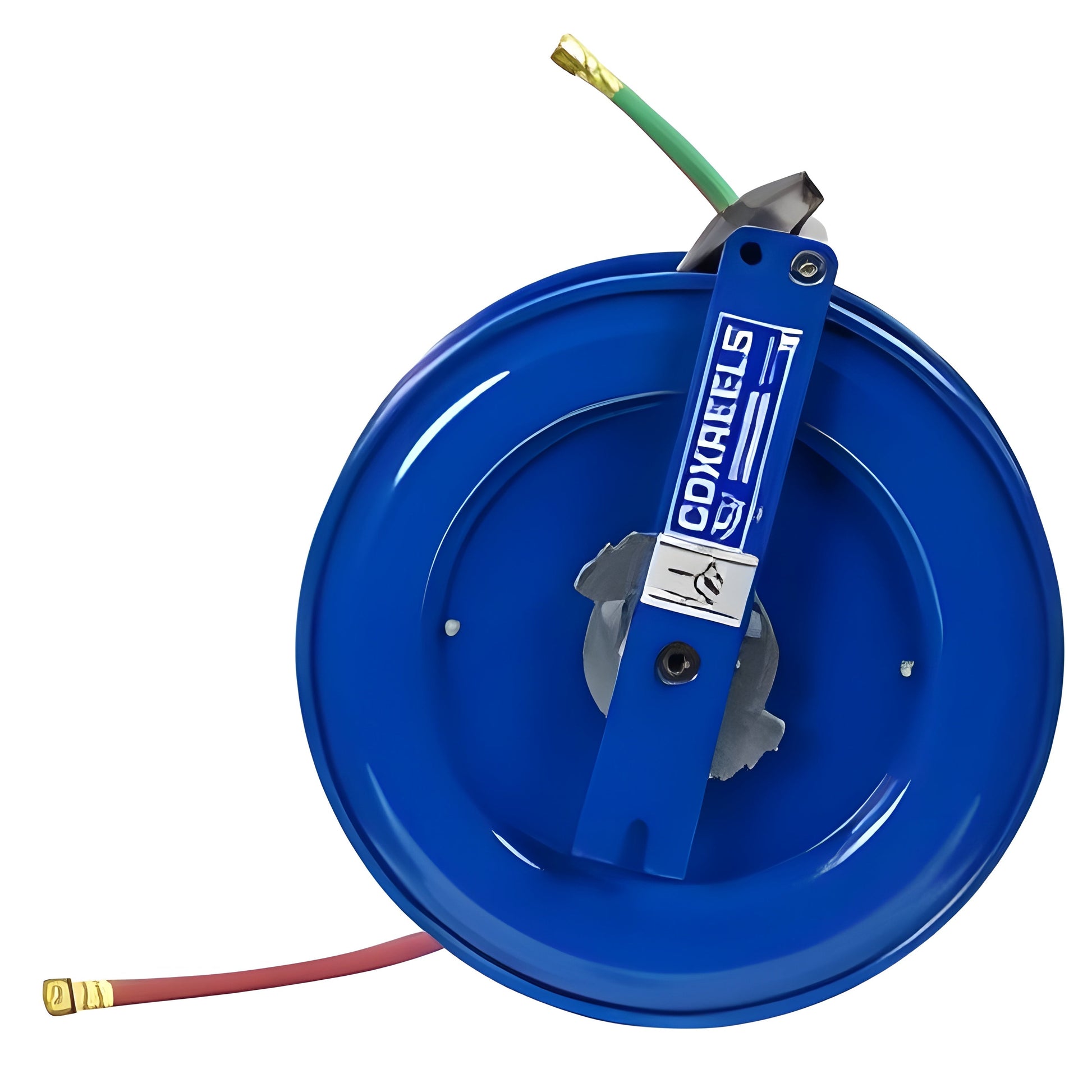

- SIDE MOUNT DESIGN - Mount left for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.

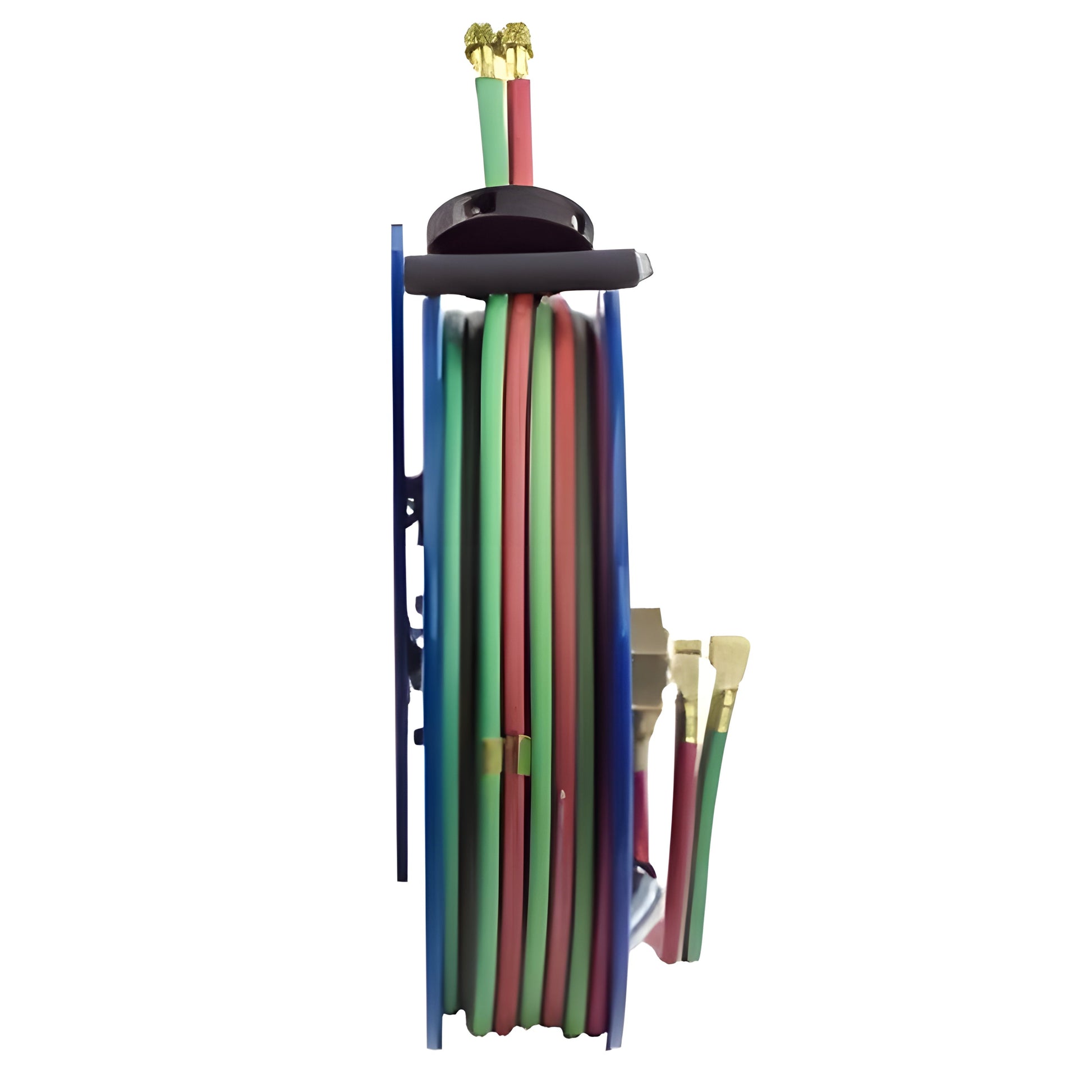

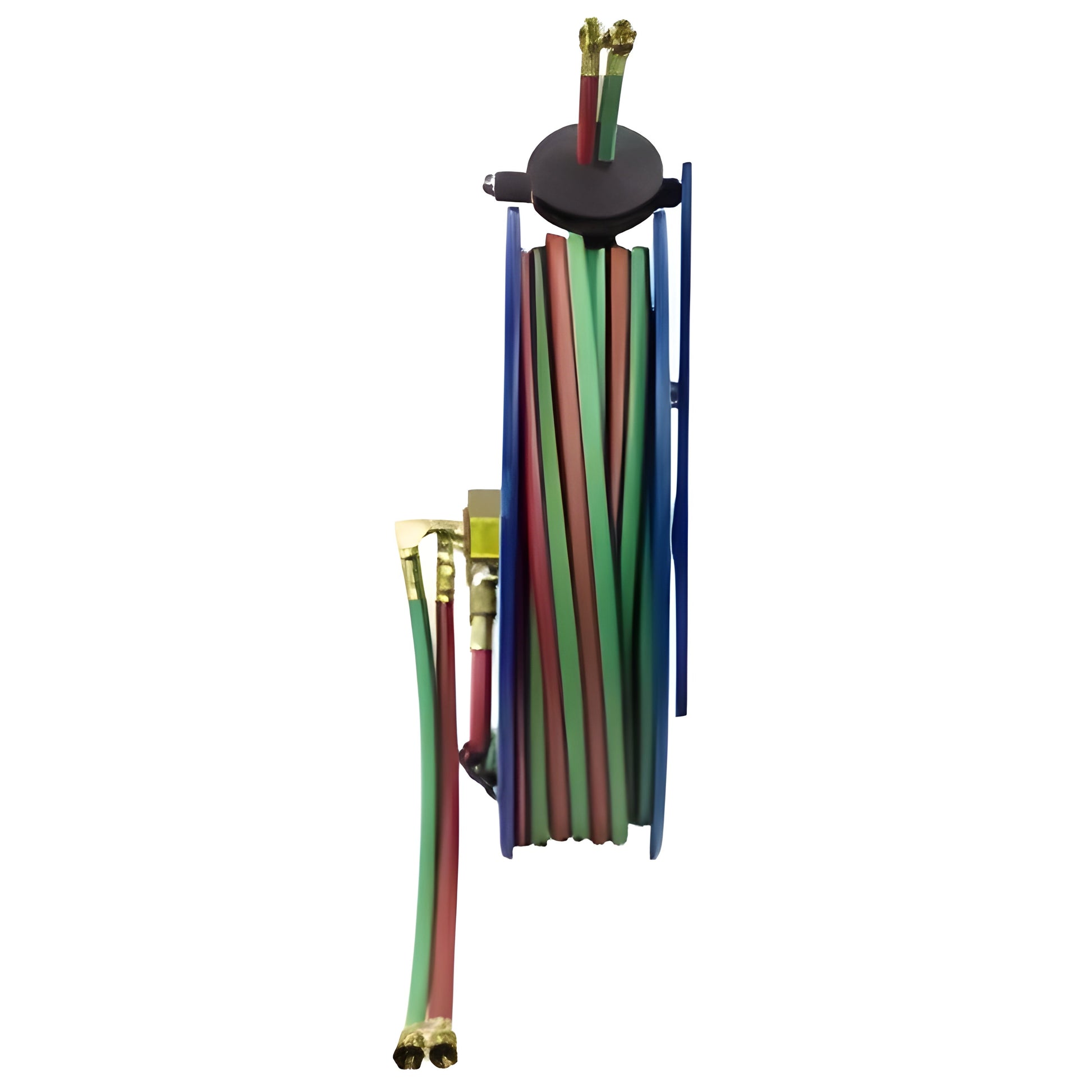

- CONTROL BAR - Hose control bar prevents hose from slipping off the disc.
- OTHER FEATURES INCLUDE - Long lasting, chip resistant and rust inhibiting CPC powder coat finish, oxygen-acetylene or "T" grade welding hose, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| SL17W-150 |
1/4" |
50' |
Yes |
200 |
38 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL17WL-150 |
1/4" |
50' |
No |
200 |
26 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL17WT-150 |
1/4" |
50' |
Yes |
200 |
38 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL17WTL-150 |
1/4" |
50' |
No |
200 |
26 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL19W-175 |
1/4" |
50' |
Yes |
200 |
53 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL19WL-175 |
1/4" |
75' |
No |
200 |
36 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL19WT-175 |
1/4" |
75' |
Yes |
200 |
53 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SL19WTL-175 |
1/4" |
75' |
No |
200 |
36 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR17W-150 |
1/4" |
50' |
Yes |
200 |
38 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR17WL-150 |
1/4" |
50' |
No |
200 |
26 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR17WT-150 |
1/4" |
50' |
Yes |
200 |
38 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR17WTL-150 |
1/4" |
75' |
No |
200 |
26 |
7.88"(W) 18.25"(H) 17"(L) |
13"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR19W-175 |
1/4" |
75' |
Yes |
200 |
53 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR19WL-175 |
1/4" |
75' |
No |
200 |
36 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR19WT-175 |
1/4" |
75' |
Yes |
200 |
53 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
| SR19WTL-175 |
1/4" |
75' |
No |
200 |
36 |
9.5"(W) 20.88"(H) 19.5"(L) |
14.25"(M) -"(N) |
-"(X) 2.5"(Y) |
What Our Experts Think
-
Side-Mount Design: Compact and space-saving, perfect for mounting in tight or limited spaces.
-
Low-Pressure Compatibility: Ideal for air, water, and other light-duty fluid transfer applications.
-
Spring-Driven Retraction: Ensures smooth, automatic hose rewind for easy operation and reduced manual effort.
-
Heavy-Duty Steel Construction: Built for durability and long-term performance in industrial and commercial environments.
-
Corrosion-Resistant Finish: Protects against rust and wear, extending the reel’s lifespan.
-
Efficient Hose Management: Keeps hoses neatly stored and tangle-free, improving workspace safety and organization.
Q&A
Q: What is the Coxreels SW Series "Side Mount" Low Pressure Spring Driven Hose Reel - SL17W-150?
A: A side-mount, low-pressure hose reel with a spring-driven mechanism for automatic hose retraction, designed for efficient hose management in tight spaces.
Q: What is the hose capacity?
A: This reel holds up to 150 feet of low-pressure hose, offering ample storage for various fluid transfer tasks.
Q: How does the spring-driven mechanism work?
A: The spring-driven system automatically rewinds the hose, ensuring quick and easy retraction with minimal effort.
Q: What are the mounting options?
A: It features a side mount design for flexible installation on walls, service vehicles, or equipment.
Q: What materials is the reel made from?
A: Constructed from durable materials for long-lasting performance, with corrosion-resistant components for use in various environments.
Q: Where is this reel typically used?
A: Ideal for automotive, maintenance, and general industrial applications requiring low-pressure hose management.
Maintenance Tips
-
Model: SL17W-150
-
Hose Capacity: Holds up to 150 feet of 1/2” low-pressure hose
-
Pressure Rating: Rated for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth, effortless hose retraction
-
Swivel Inlet: Full-flow brass swivel for efficient and unrestricted fluid transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for consistent hose payout and retraction
-
Mounting Type: Side mount design for space-saving installation and accessibility
-
Applications: Ideal for low-pressure fluid transfer in workshops, service trucks, and industrial applications
-
Temperature Range: Performs effectively in a wide range of temperatures
-
Weight: Varies based on hose configuration
