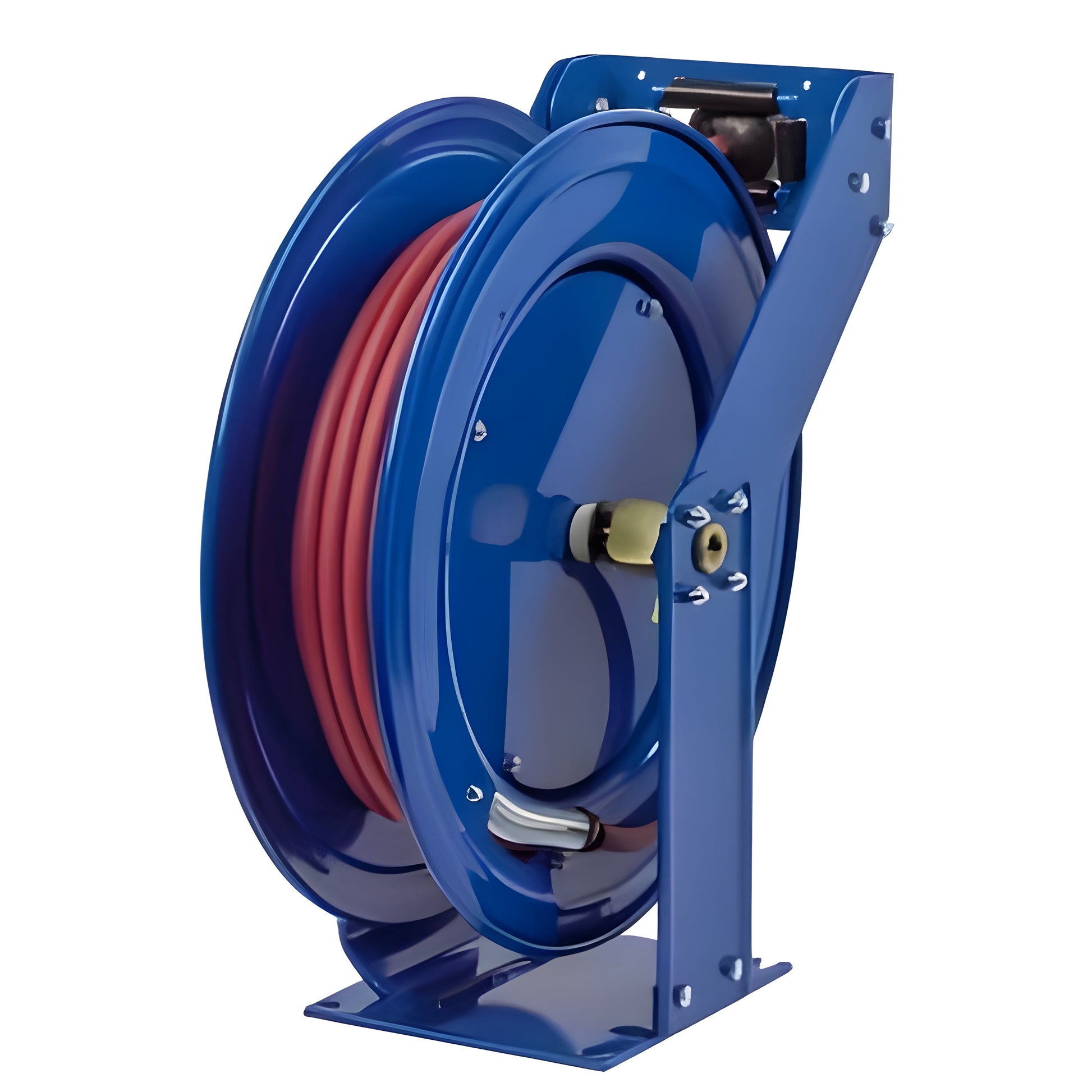

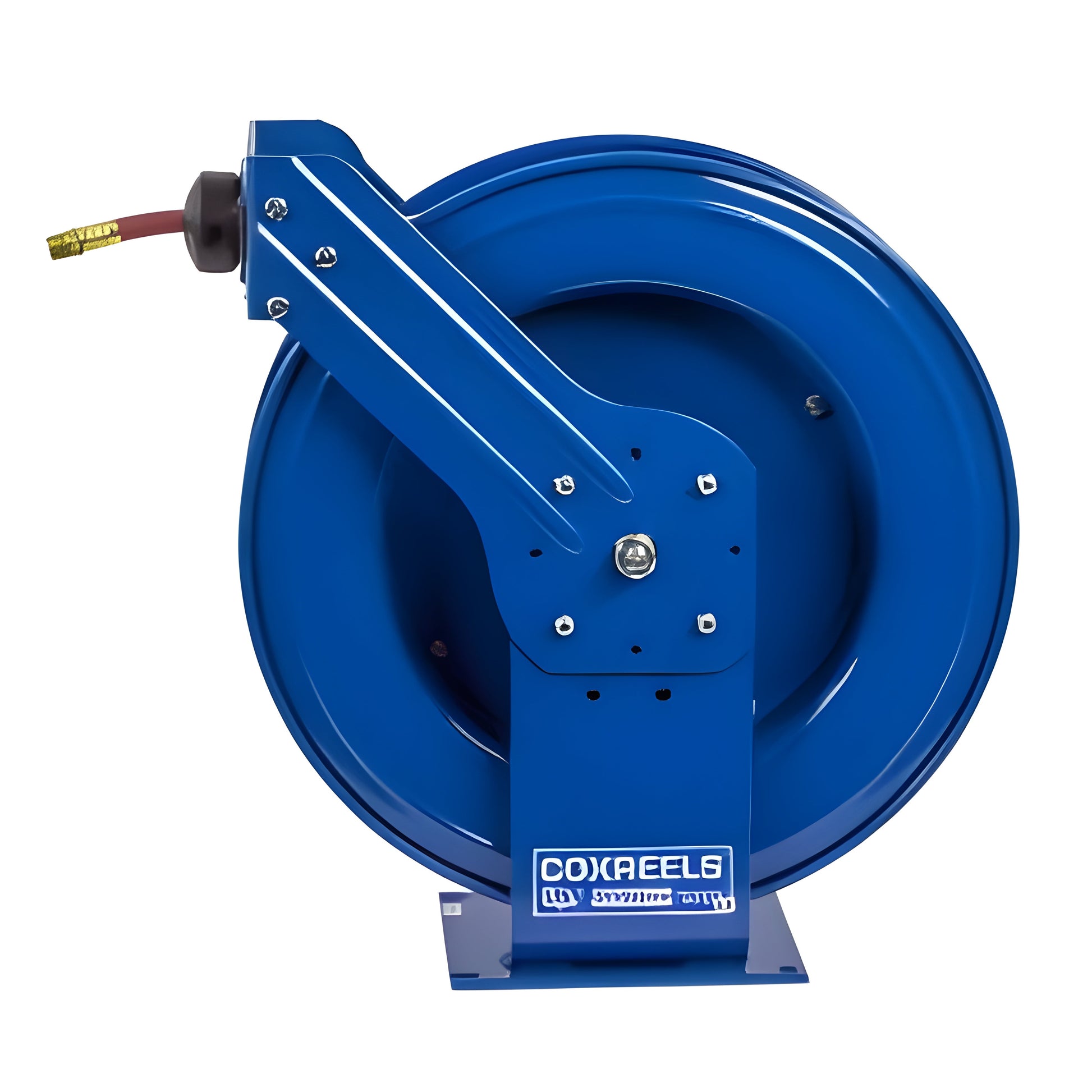

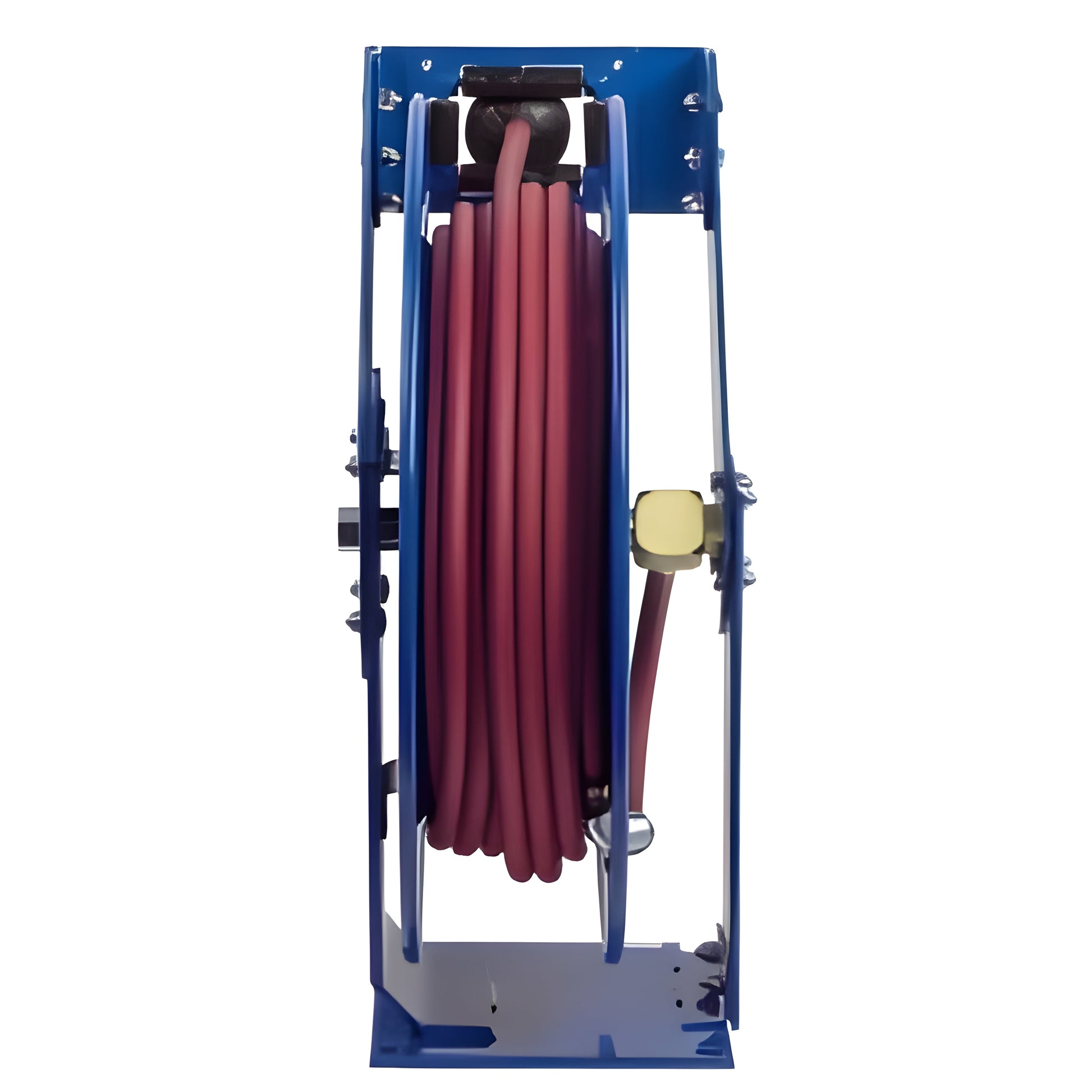

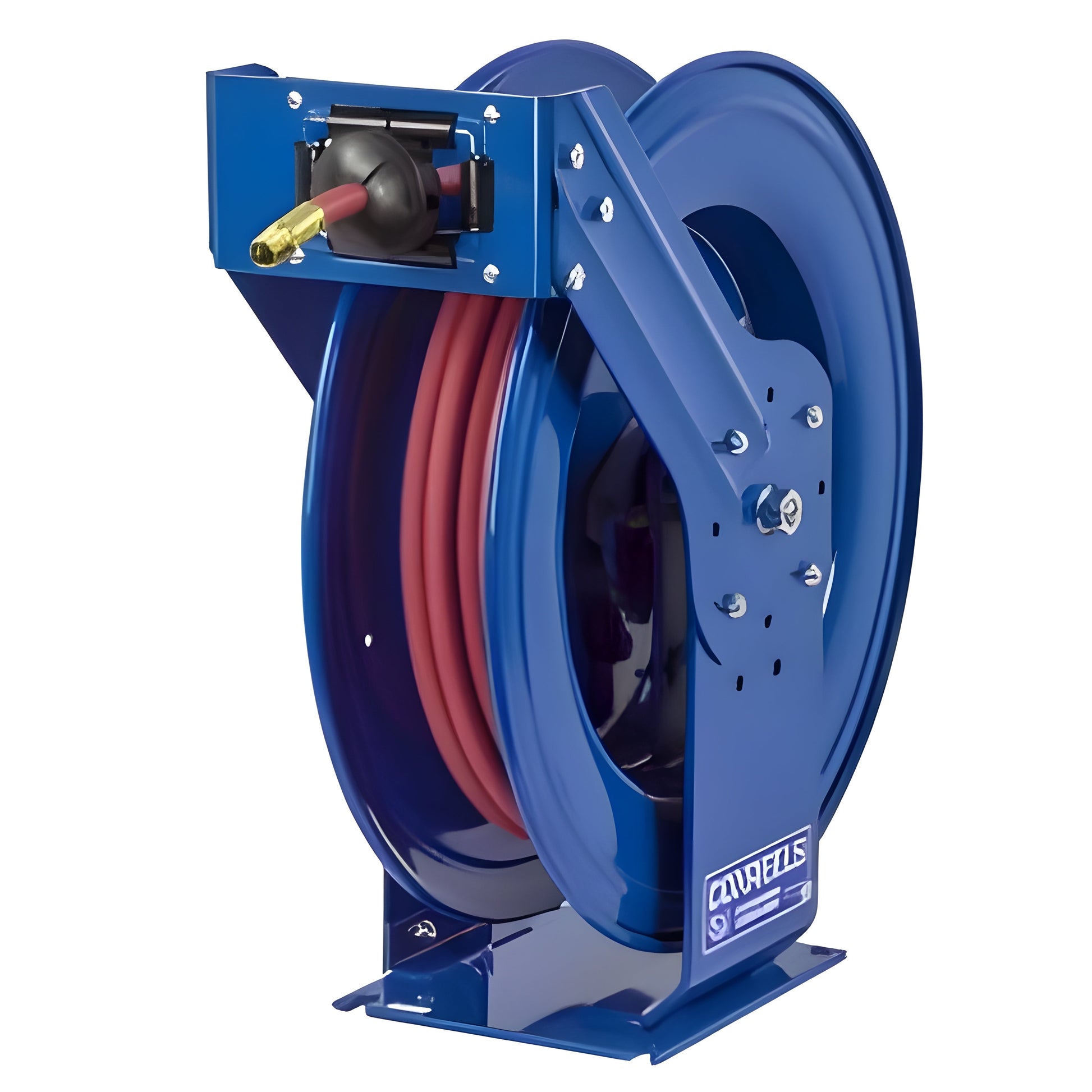

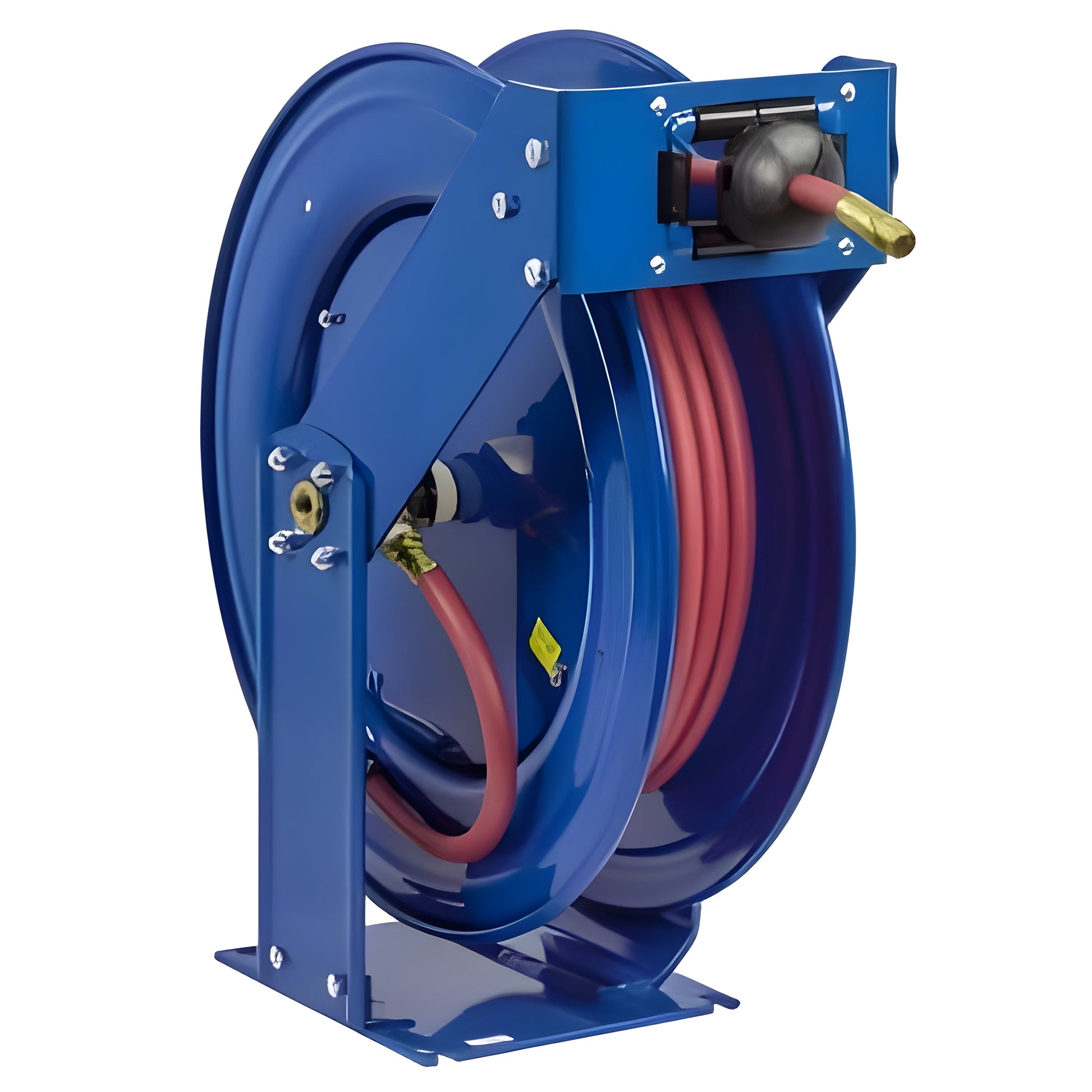

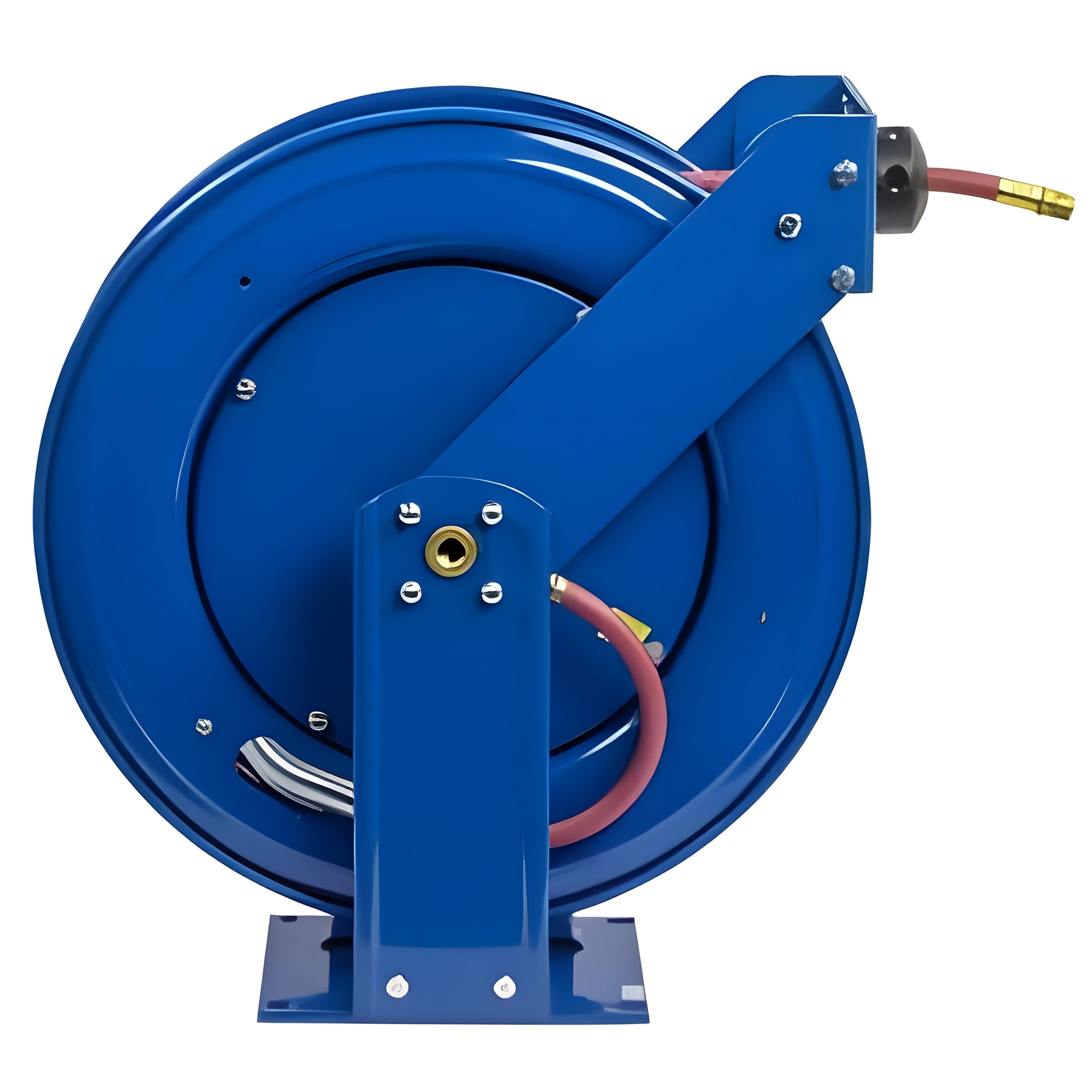

T Series “Truck Mount” Low-Pressure Spring Driven Hose Reels
OXREELS T Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels’ Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| TSH-N-3100 |
3/8" |
5/8" |
100' |
Yes |
300 |
85 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-3125 |
3/8" |
5/8" |
125' |
Yes |
300 |
103 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-350 |
3/8" |
5/8" |
50' |
Yes |
300 |
61 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-375 |
3/8" |
5/8" |
75' |
Yes |
300 |
82 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-4100 |
1/2" |
3/4" |
100' |
Yes |
300 |
95 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-450 |
1/2" |
3/4" |
50' |
Yes |
300 |
63 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-475 |
1/2" |
3/4" |
75' |
Yes |
300 |
82 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-535 |
3/4" |
1 1/16" |
35' |
Yes |
300 |
77 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-550 |
3/4" |
1 1/16" |
50' |
Yes |
300 |
83 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-575 |
3/4" |
1 1/16" |
75' |
Yes |
300 |
93 |
12"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-635 |
1" |
1 1/2" |
35' |
Yes |
300 |
92 |
10"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSH-N-650 |
1" |
1 1/2" |
50' |
Yes |
300 |
98 |
12"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-3100 |
3/8" |
5/8" |
100' |
No |
300 |
74 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-3125 |
3/8" |
5/8" |
125' |
No |
300 |
90 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-350 |
3/8" |
5/8" |
50' |
No |
300 |
55 |
9.38"(W) 25.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-375 |
3/8" |
5/8" |
75' |
No |
300 |
73 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-4100 |
1/2" |
3/4" |
100' |
No |
300 |
80 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-450 |
1/2" |
3/4" |
50' |
No |
300 |
55 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-475 |
1/2" |
3/4" |
75' |
No |
300 |
71 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-535 |
3/4" |
1 1/16" |
50' |
No |
300 |
67 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-550 |
3/4" |
1 1/16" |
50' |
No |
300 |
70 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-575 |
3/4" |
1 1/16" |
75' |
No |
300 |
73 |
12"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-635 |
1" |
1 1/2" |
35' |
No |
300 |
75 |
10"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TSHL-N-650 |
1" |
1 1/2" |
50' |
No |
300 |
77 |
12"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Truck Mount Design: Perfect for mobile applications, easily mounted on trucks for efficient hose deployment and retrieval on the go.
-
Low-Pressure Capability: Ideal for air, water, and light-duty fluid transfer, providing versatility for various industries.
-
Spring-Driven Retraction: Smooth, automatic hose rewind reduces manual effort, ensuring quick and easy operation.
-
Heavy-Duty Construction: Built for rugged environments, ensuring long-lasting performance in tough conditions.
-
Corrosion-Resistant Finish: Protects against rust and wear, making it suitable for both indoor and outdoor use.
-
Space-Saving Design: Keeps hoses organized and out of the way, improving truck storage efficiency and minimizing clutter.
Q&A
Q: What is the Coxreels T Series “Truck Mount” Low-Pressure Spring Driven Hose Reel - TSH-N-3100?
A: A low-pressure, spring-driven hose reel designed for truck mount applications, offering efficient hose management for mobile work environments.
Q: What is the hose capacity?
A: This reel can hold up to 100 feet of low-pressure hose, ideal for mobile fluid transfer tasks.
Q: How does the spring-driven mechanism work?
A: The reel features an automatic spring-driven rewind system, allowing for easy and quick hose retraction.
Q: What makes this reel suitable for truck mount?
A: The reel is designed with a compact, rugged build to withstand the demands of truck-mounted applications, ensuring portability and durability.
Q: What materials is the reel made from?
A: Built with durable, corrosion-resistant materials to provide reliable performance in outdoor and industrial environments.
Q: Where is this reel typically used?
A: Perfect for mobile services like pressure washing, construction, and other truck-mounted applications requiring low-pressure hose management.
Maintenance Tips
-
Model: TSH-N-3100
-
Hose Capacity: Holds up to 100 feet of 1/2” low-pressure hose
-
Pressure Rating: Rated for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for enhanced durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth, effortless hose retraction
-
Swivel Inlet: Full-flow brass swivel for uninterrupted fluid transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth, consistent hose payout and retraction
-
Mounting Type: Truck mount design for easy installation and secure transport on service vehicles
-
Applications: Perfect for low-pressure fluid transfer in service trucks, maintenance vehicles, and mobile workshops
-
Temperature Range: Performs effectively in a wide range of temperatures
-
Weight: Varies based on hose configuration
