Coxreels T Series “Truck Mount” Medium-Pressure Spring Driven Hose Reels - TMP-N-3100
T Series “Truck Mount” Medium-Pressure Spring Driven Hose Reels

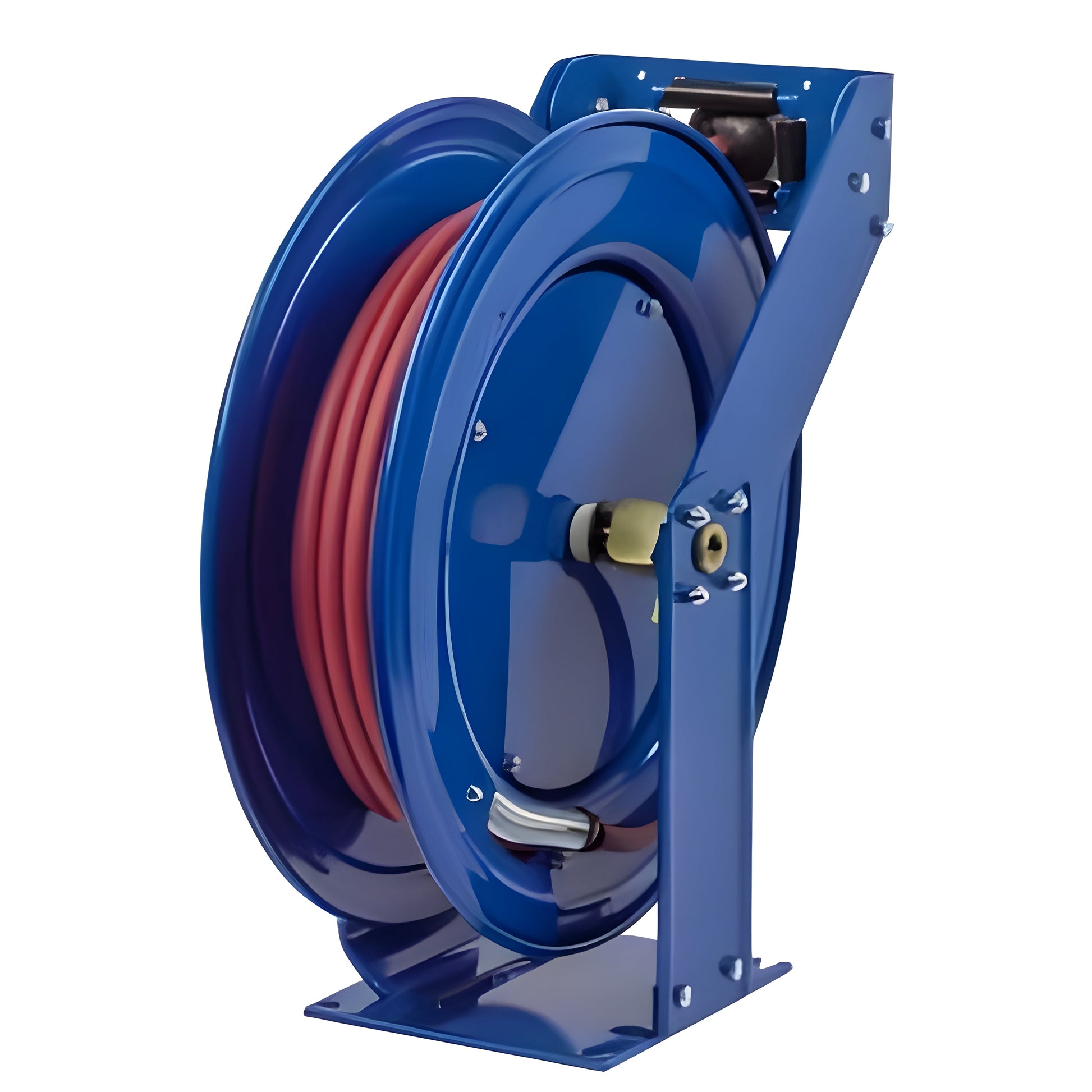

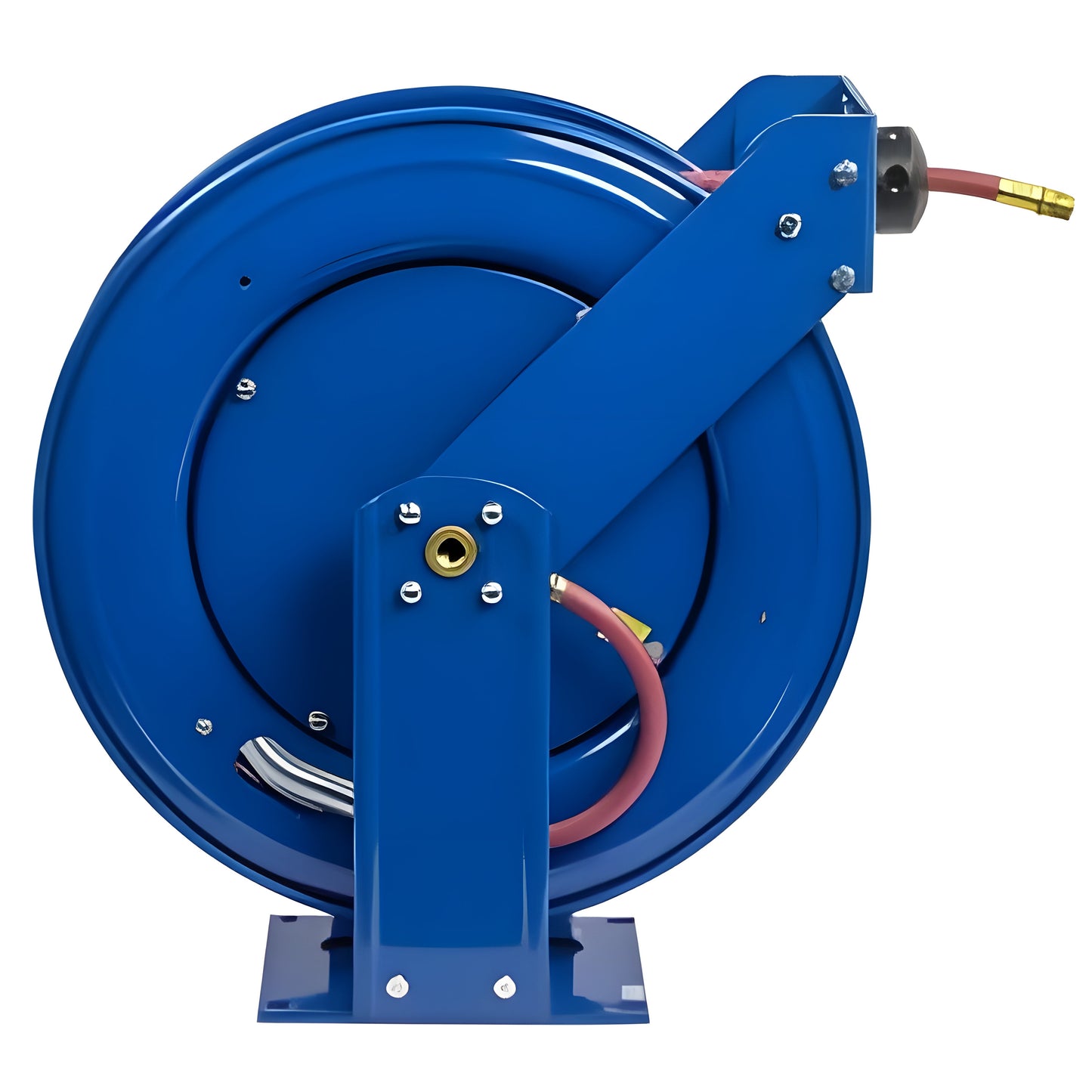

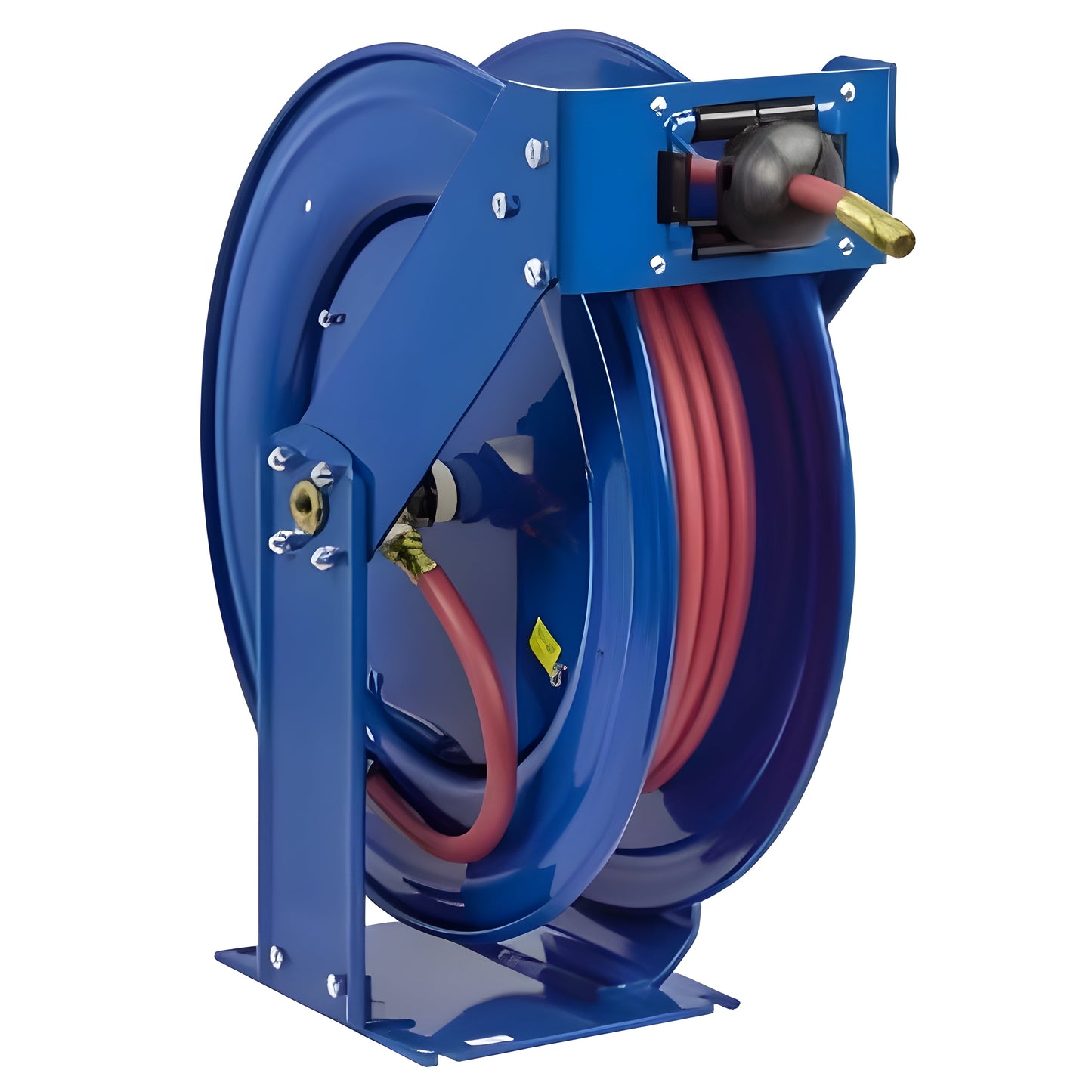

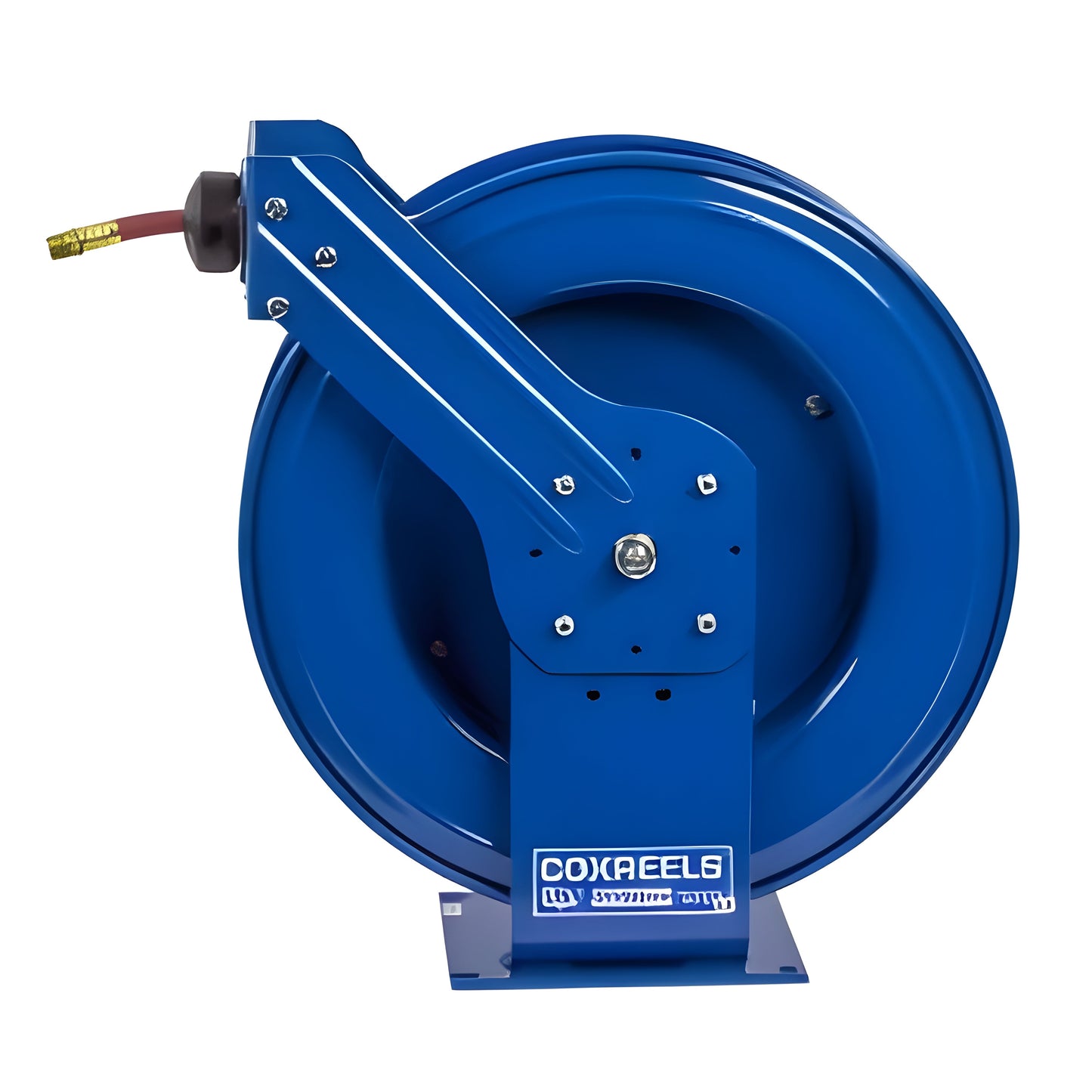

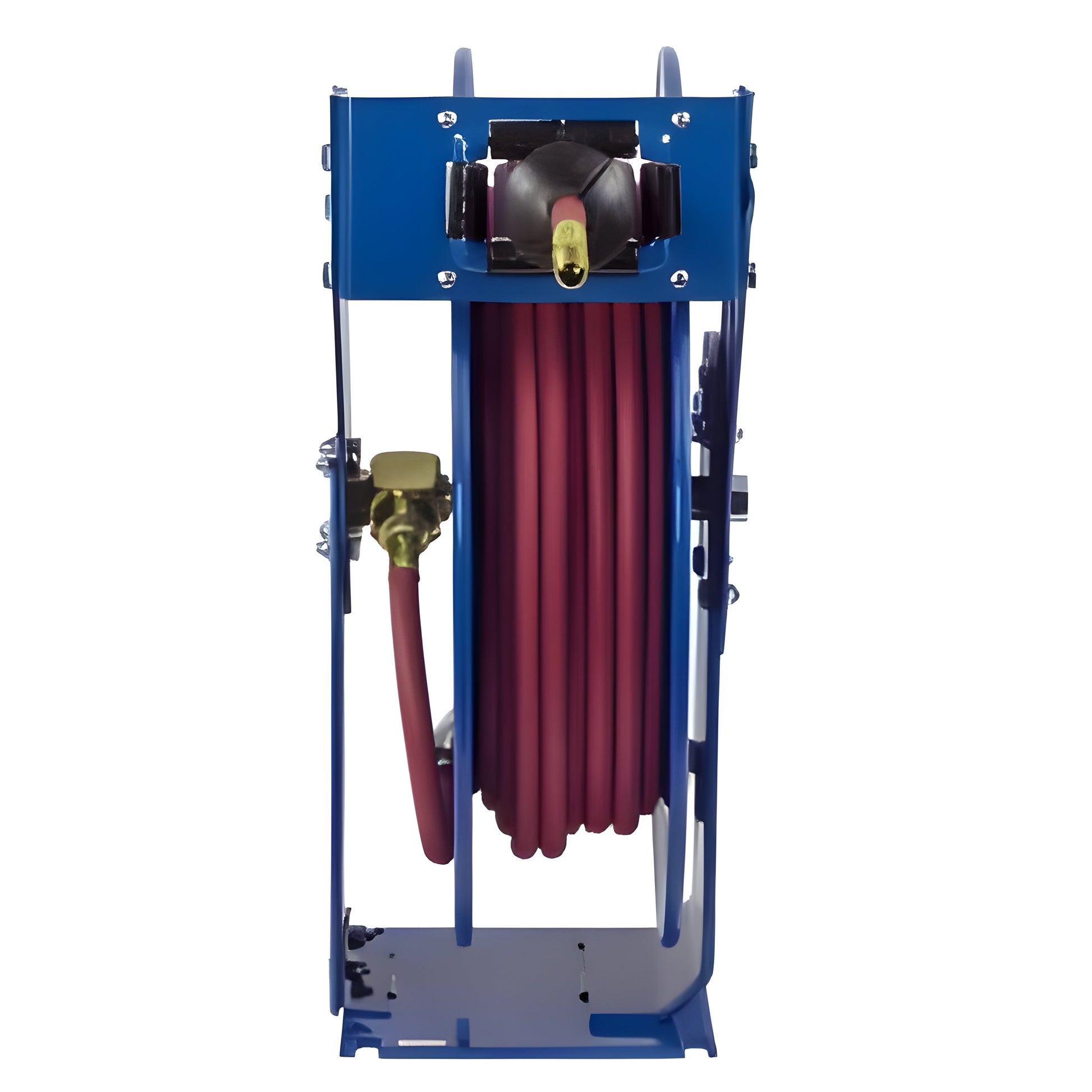

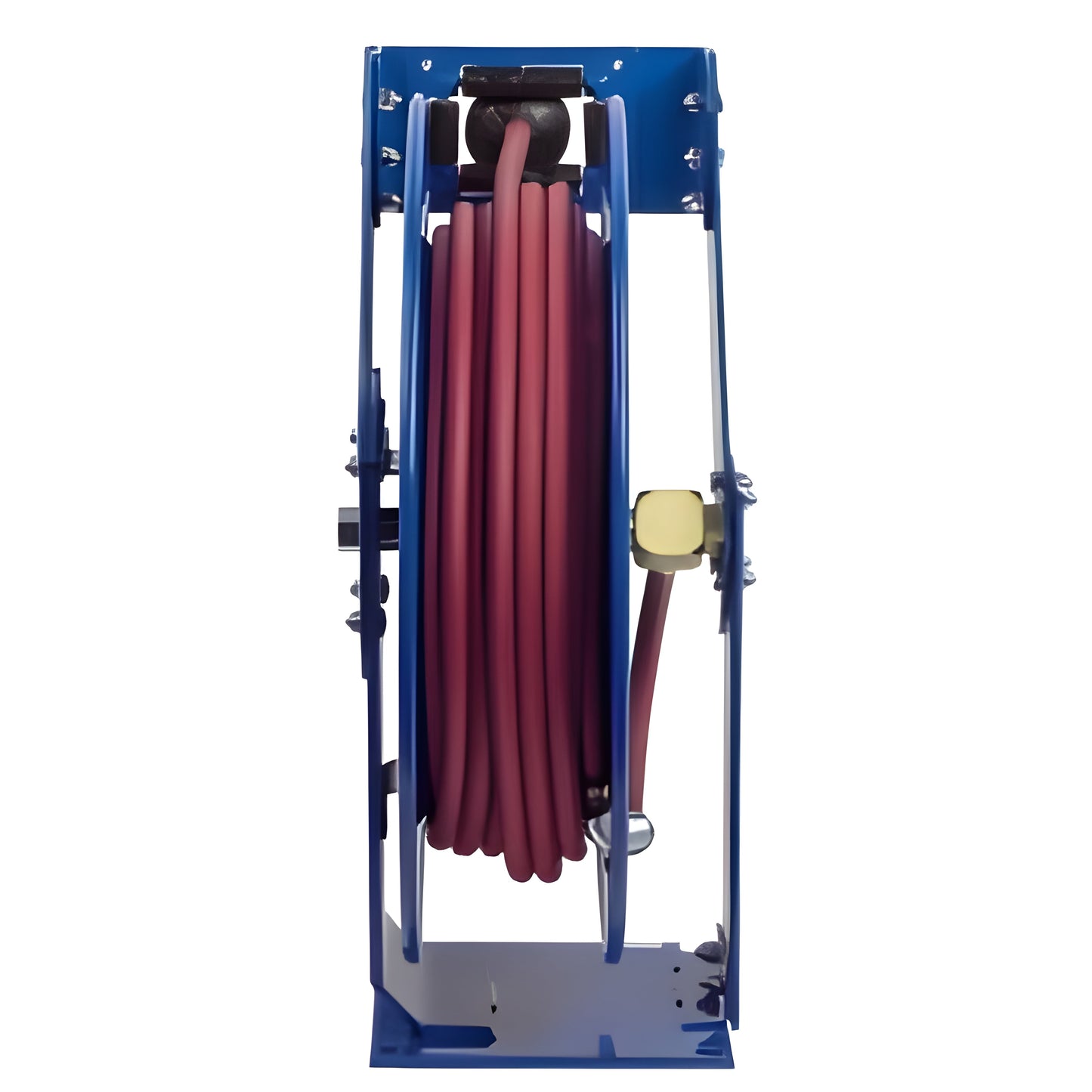

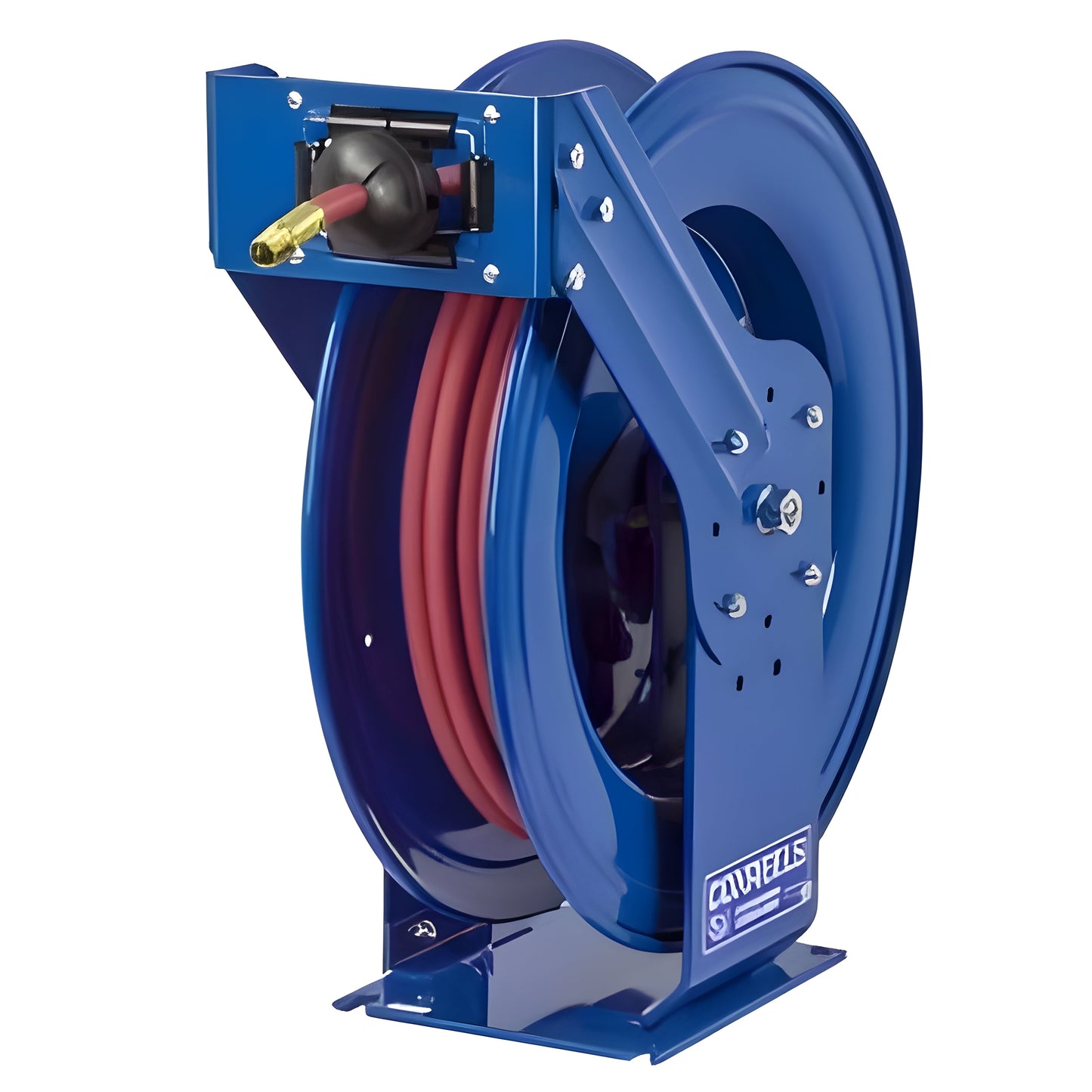

OXREELS T Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels’ Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| TMP-N-3100 |
3/8" |
11/16" |
100' |
Yes |
3000 |
106 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-350 |
3/8" |
11/16" |
50' |
Yes |
3000 |
74 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-375 |
3/8" |
11/16" |
75' |
Yes |
3000 |
99 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-4100 |
1/2" |
13/16" |
100' |
Yes |
2500 |
106 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-450 |
1/2" |
13/16" |
50' |
Yes |
2500 |
77 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-475 |
1/2" |
13/16" |
75' |
Yes |
2500 |
100 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-525 |
3/4" |
1 1/16" |
25' |
Yes |
1500 |
67 |
9.88"(W) 21.88"(H) 20.38"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-535 |
3/4" |
1 1/16" |
35' |
Yes |
1500 |
88 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-550 |
3/4" |
1 1/16" |
50' |
Yes |
1500 |
94 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-575 |
3/4" |
1 1/16" |
75' |
Yes |
1500 |
100 |
12.5"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMP-N-650 |
1" |
1 3/8" |
50' |
Yes |
1250 |
116 |
12.5"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-3100 |
3/8" |
11/16" |
100' |
No |
3000 |
82 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-350 |
3/8" |
11/16" |
50' |
No |
3000 |
61 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-375 |
3/8" |
11/16" |
75' |
No |
3000 |
80 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-4100 |
1/2" |
13/16" |
100' |
No |
2500 |
80 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-450 |
1/2" |
13/16" |
50' |
No |
2500 |
64 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-475 |
1/2" |
13/16" |
75' |
No |
2500 |
80 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-525 |
3/4" |
1 1/16" |
25' |
No |
1500 |
57 |
9.88"(W) 21.88"(H) 20.38"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-535 |
3/4" |
1 1/16" |
35' |
No |
1500 |
74 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-550 |
3/4" |
1 1/16" |
50' |
No |
1500 |
74 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-575 |
3/4" |
1 1/16" |
75' |
No |
1500 |
77 |
12.5"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TMPL-N-650 |
1" |
1 3/8" |
50' |
No |
1250 |
81 |
12.5"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Truck Mount Design: Engineered for easy mounting on trucks, providing mobile hose management that’s perfect for on-the-go applications in fields like construction, maintenance, and service.
-
Medium-Pressure Capability: Handles pressures up to 3,000 PSI, ideal for air, water, and light hydraulic fluid transfer needs in demanding environments.
-
Spring-Driven Retraction: Smooth, automatic retraction allows for quick hose storage, reducing manual effort and minimizing downtime.
-
Heavy-Duty Construction: Built to withstand tough outdoor conditions, ensuring durability and long-lasting performance in rugged environments.
-
Corrosion-Resistant Coating: Designed with protective finishes to resist rust and corrosion, making it reliable for both indoor and outdoor use.
-
Space-Saving Design: Optimizes space in mobile work setups, keeping hoses neatly stored and easily accessible, improving efficiency and safety.
-
Versatile Applications: Ideal for mobile fluid management on trucks in industries like plumbing, landscaping, and construction.
Q&A
Q: What is the Coxreels T Series “Truck Mount” Medium-Pressure Spring Driven Hose Reel - TMP-N-3100?
A: The Coxreels TMP-N-3100 is a medium-pressure, spring-driven hose reel from the T Series, designed for truck mounting. It offers easy hose management in mobile setups, featuring an automatic spring rewind system for smooth and efficient retraction.
Q: What is the hose capacity of this reel?
A: The TMP-N-3100 can hold up to 100 feet of medium-pressure hose, providing ample length for various applications in mobile work environments, such as service trucks and field operations.
Q: How does the spring-driven mechanism work?
A: The reel uses a spring rewind system that automatically retracts the hose after use, reducing the need for manual effort and keeping the hose neatly stored on the reel for efficient use in mobile environments.
Q: Is the reel durable?
A: Yes, the TMP-N-3100 is built with high-quality materials, featuring a rugged construction that withstands the demanding conditions of mobile and truck-mounted applications, ensuring long-lasting performance.
Q: Is this reel easy to install?
A: Yes, the reel is specifically designed for truck mounting, with easy installation options that ensure secure and stable mounting in a variety of truck or vehicle configurations.
Q: What are typical applications for this reel?
A: This reel is ideal for use in service trucks, maintenance vehicles, and other mobile setups where medium-pressure hose management is needed, such as in firefighting, industrial cleaning, and utility work.
Maintenance Tips
-
Model: TMP-N-3100
-
Hose Capacity: Designed for up to 100 feet of 3/8” or 1/2” medium-pressure hose
-
Pressure Rating: Rated for medium-pressure applications up to 3000 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for enhanced durability in harsh environments
-
Drive Mechanism: Spring-driven automatic rewind for easy and smooth hose retraction
-
Swivel Inlet: Full-flow swivel for uninterrupted fluid or air transfer and minimized hose wear
-
Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth hose payout and retraction
-
Mounting Type: Truck mount design for easy and secure installation on trucks, trailers, or mobile units
-
Applications: Ideal for medium-pressure fluid or air transfer in mobile environments such as trucks, trailers, and service vehicles in industries like construction, automotive, and industrial maintenance
-
Temperature Range: Operates effectively in a wide temperature range, suitable for outdoor and mobile use
-
Weight: Varies based on hose configuration and reel setup
