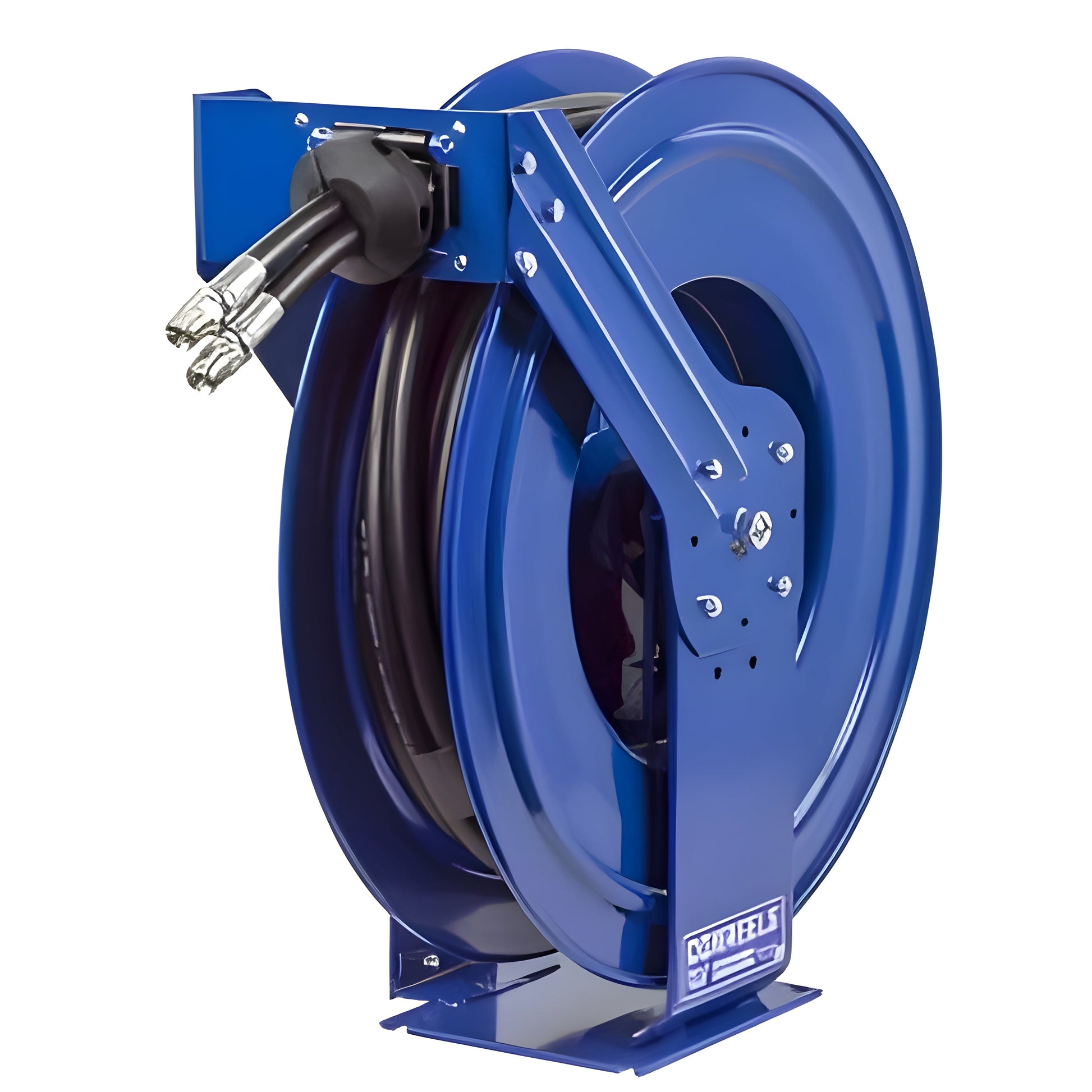

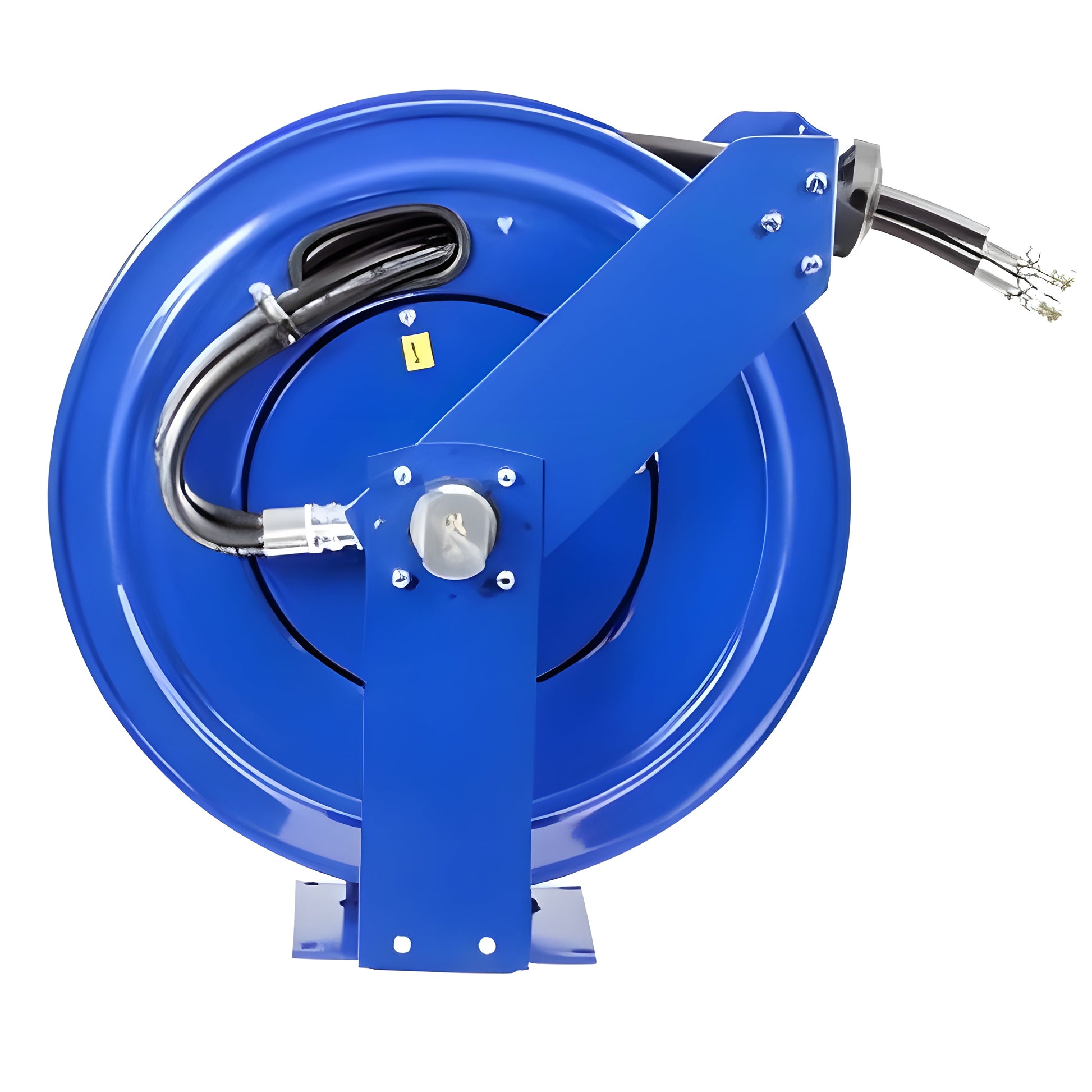

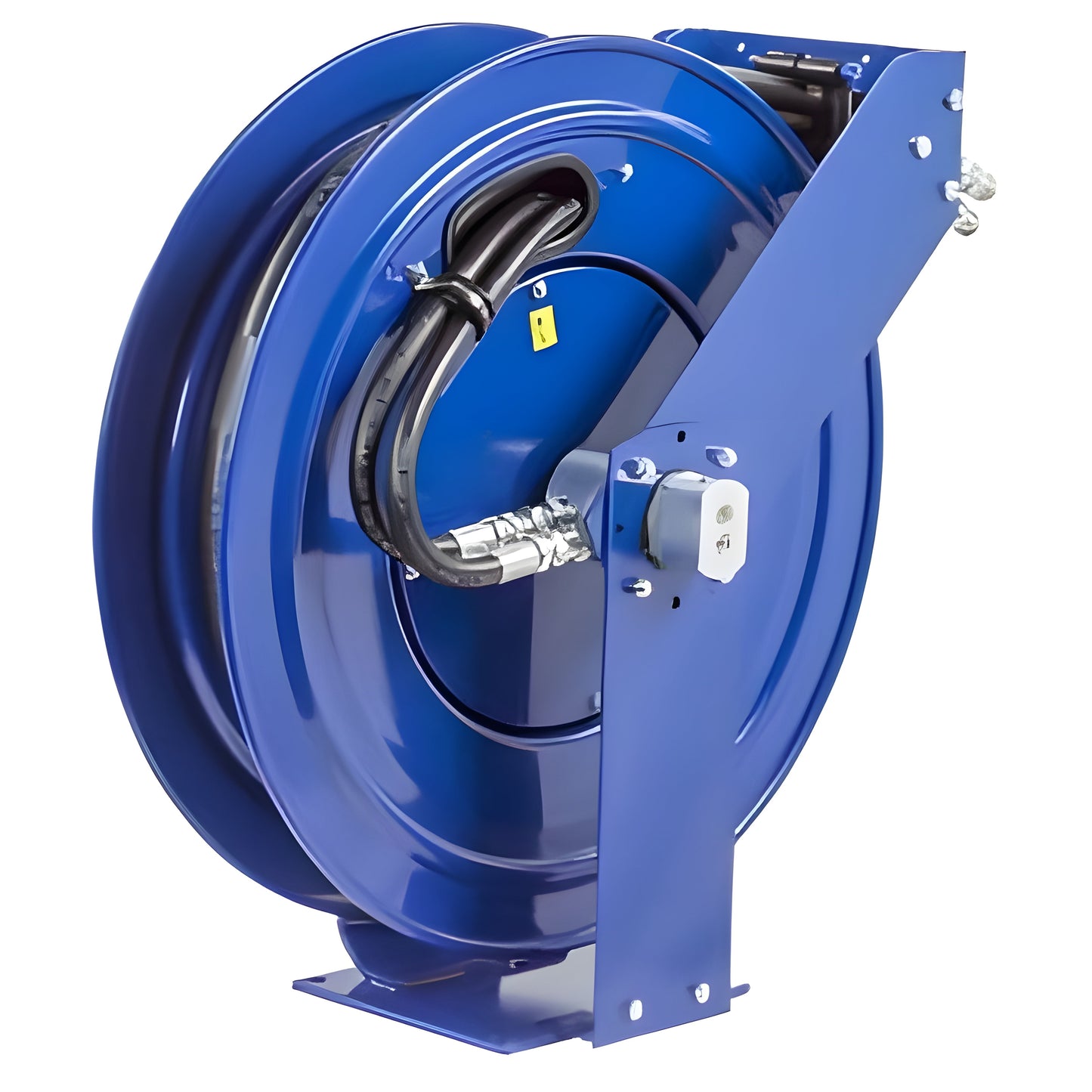

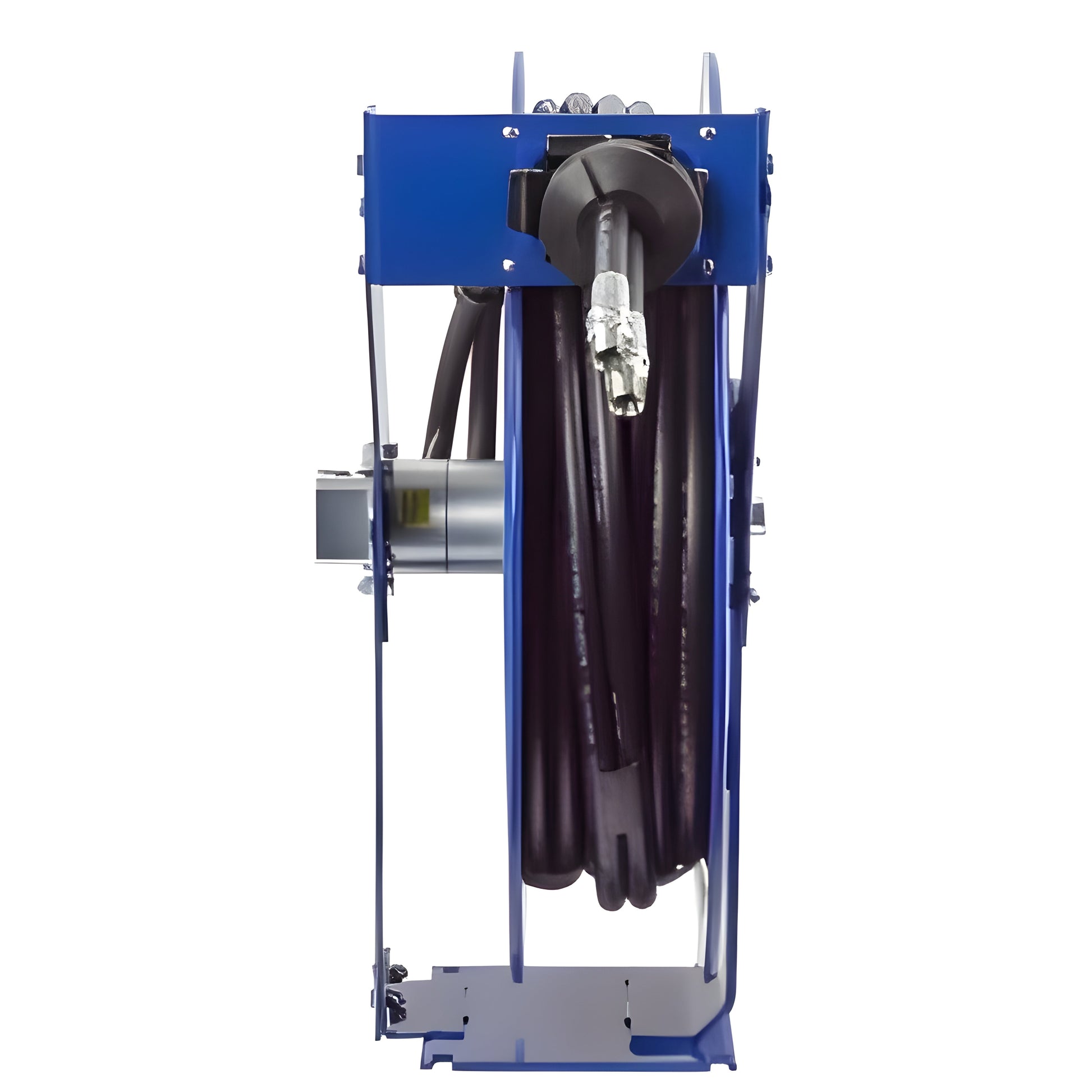

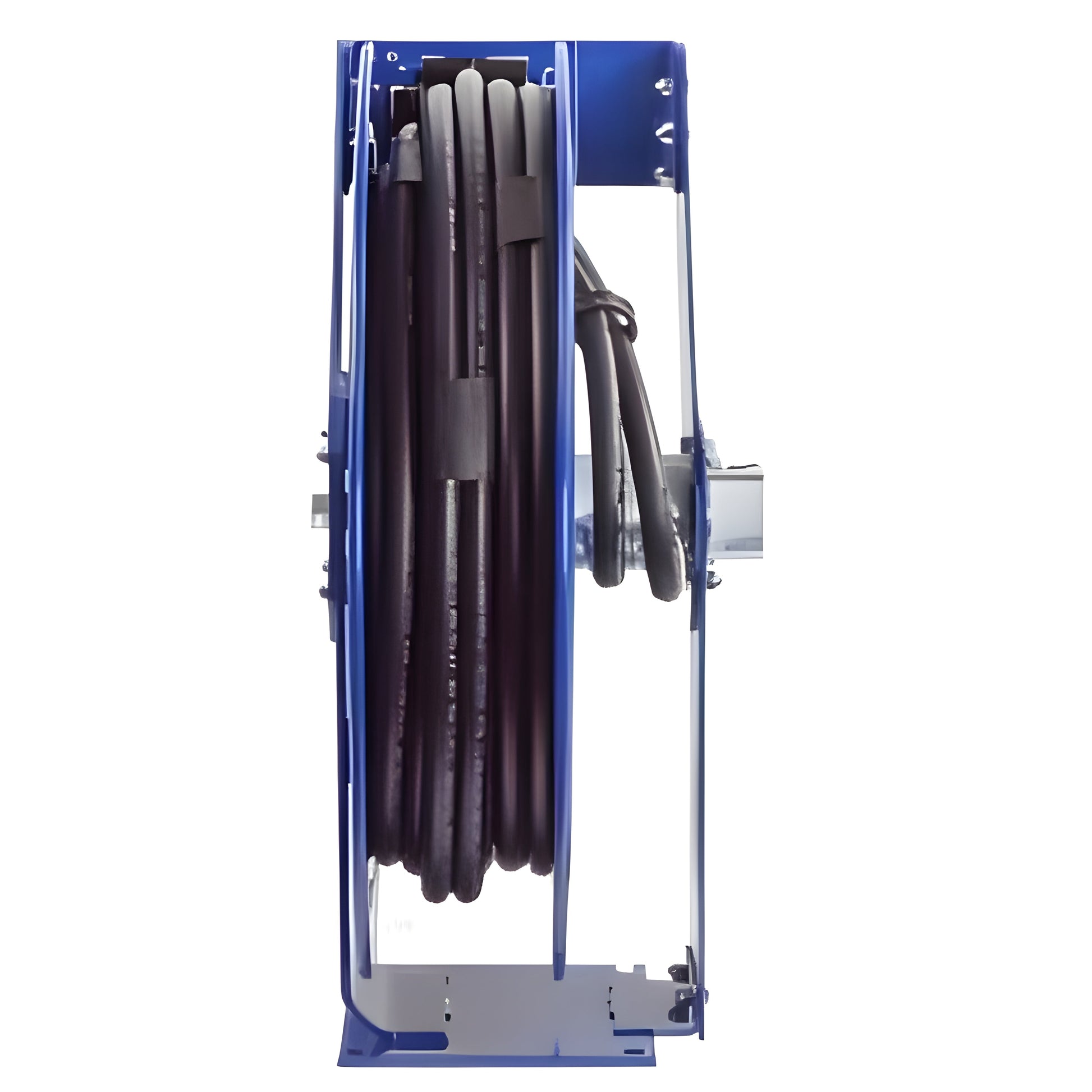

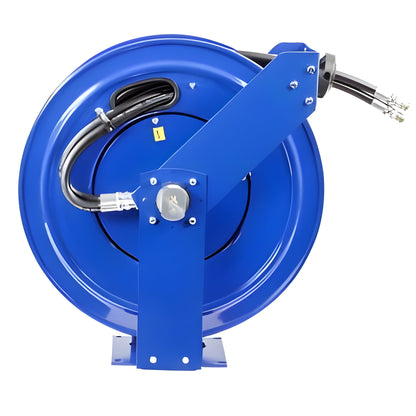

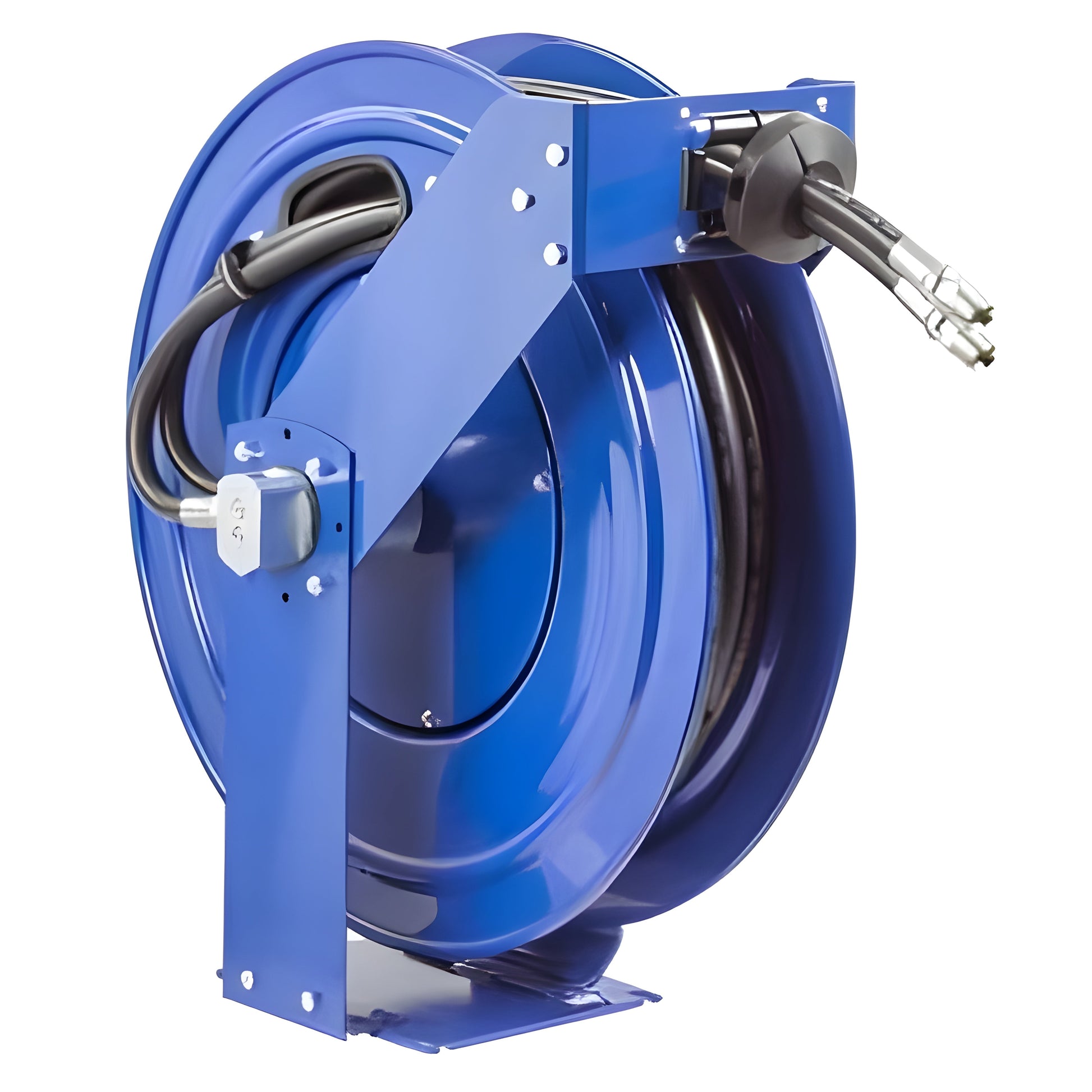

Coxreels TDMP Series "Dual Hydraulic" Medium Pressure Hose Reels - TDMP-N-350
TDMP Series "Dual Hydraulic" Medium Pressure Hose Reels
COXREELS MPD, TDMP and 1275HP Series "Dual Hydraulic" hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. Choose between spring driven retraction at 3,000 PSI to 50 feet and hand crank or motorized models at 10,000 PSI to 200 feet.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
Features
- SWIVEL - External fluid path with dual port melanised 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, one-side supply/return hook-up, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specification
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| TDMP-N-350 |
3/8" |
11/16" |
50' |
Yes |
3000 |
104 |
11.63"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TDMP-N-450 |
1/2" |
13/16" |
50' |
Yes |
2500 |
106 |
11.63"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TDMPL-N-350 |
3/8" |
11/16" |
50' |
No |
3000 |
79 |
11.63"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| TDMPL-N-450 |
1/2" |
13/16" |
50' |
No |
2500 |
78 |
11.63"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Dual Hydraulic Capability: Designed specifically for medium pressure hydraulic hoses, handling up to 3,000 PSI.
-
Heavy-Duty Construction: Built with robust materials for long-lasting performance in demanding industrial environments.
-
Spring-Driven Retraction: Provides smooth and efficient retraction, reducing hose wear and increasing longevity.
-
Corrosion-Resistant Coating: Coated to withstand harsh conditions, ensuring durability in outdoor and industrial settings.
-
Compact & Space-Efficient: Optimized for tight spaces without sacrificing functionality or ease of use.
-
Versatile Applications: Perfect for construction, automotive, and industrial hydraulic systems.
-
Easy Installation & Maintenance: Quick setup and low maintenance for hassle-free operation.
Q&A
Q: What is the Coxreels TDMP Series "Dual Hydraulic" Medium Pressure Hose Reel - TDMP-N-350?
A: The Coxreels TDMP-N-350 is a heavy-duty hose reel designed for dual hydraulic applications, providing efficient hose management for medium pressure hydraulic systems in industrial and commercial environments.
Q: What is the hose capacity of this reel?
A: The TDMP-N-350 supports up to 350 feet of hose, accommodating dual hydraulic hoses with medium pressure for demanding applications.
Q: How does the reel handle dual hydraulic hoses?
A: The dual hydraulic design allows for the simultaneous storage and retraction of two hydraulic hoses, ensuring organized and efficient management for complex systems.
Q: Is the reel durable?
A: Yes, the TDMP-N-350 is built from high-quality steel with a corrosion-resistant finish, ensuring reliable, long-lasting performance even in tough industrial settings.
Q: Is this reel easy to install?
A: Yes, the reel offers flexible mounting options, including wall, floor, or ceiling installation, making it versatile for various industrial setups.
Q: What are typical applications for this reel?
A: This reel is ideal for use in industrial machinery, construction, and other environments that require dual hydraulic hoses for medium pressure systems
Maintenance Tips
-
Regular Cleaning: Wipe down the reel and hydraulic hoses to remove dirt, dust, and debris. Use a damp cloth and avoid abrasive cleaners.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the reel’s moving components, including the axle and spring, to ensure smooth operation.
-
Check Hydraulic Hoses: Inspect the hoses for any signs of wear, cracks, or leaks. Replace damaged hoses to prevent system failures.
-
Inspect Hydraulic Connections: Check all hydraulic fittings and connections for tightness and leakage. Tighten or replace any loose or damaged components.
-
Adjust Tension: Ensure the spring tension is properly adjusted for smooth hose retraction. Adjust as necessary.
-
Secure Mounting: Regularly check the mounting bolts to ensure the reel remains securely in place.
-
Proper Storage: Store in a dry, protected environment to prevent exposure to harsh weather conditions that could cause damage to the reel and hoses.
