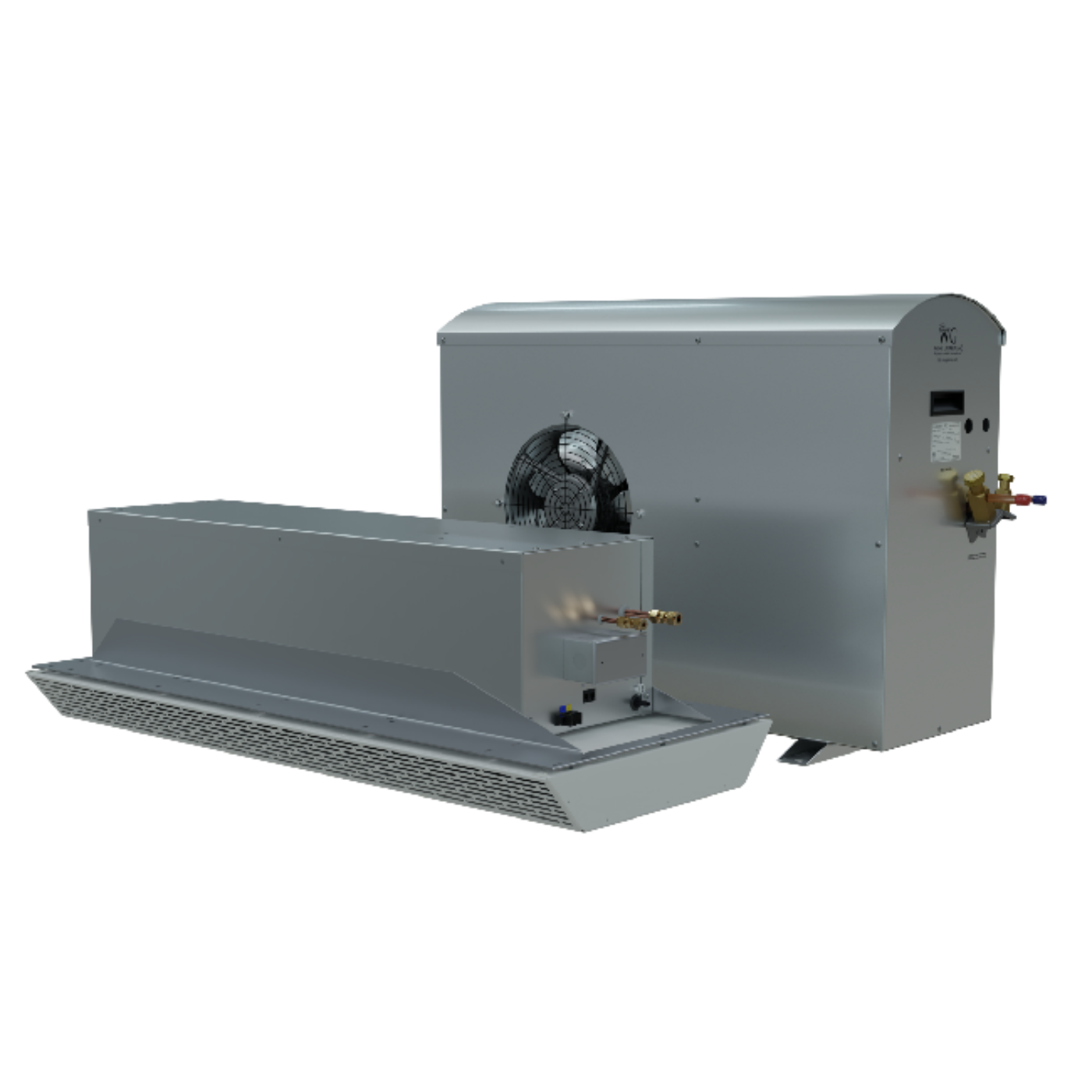

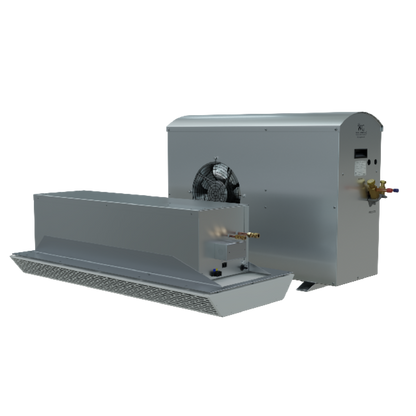

The CS025 ceiling mount wine room cooling unit is a quiet, split wine conditioning system that is ideal for small- to mid-size wine rooms with no space to install a traditional unit. This unit was designed specifically for ceiling-mounting and fits comfortably between standard joist construction— making it ideal for applications such as a wine storage display with living space around it or an all-glass wine room. The maximum capacity for the CS025 ceiling mount wine cooling system is 2,755 BTU/H.

The CS025 is a 60Hz system, which is standard in the most of North America (incl. USA & Canada).

What our Experts Think

• The Wine Guardian Ceiling Mounted Wine Cellar Cooling Unit is a discreet, split-system cooling solution designed to be installed above the wine room ceiling, keeping all mechanical components hidden from view
• Built for small to mid-sized wine rooms and glass wine displays, it is ideal when aesthetics matter and wall-mounted or through-the-wall units are not suitable
• Uses a ducted split configuration, where the evaporator is ceiling-mounted inside or above the cellar and the condenser is located remotely (mechanical room or exterior space), reducing noise and vibration inside the wine room
• Delivers professional-grade cooling performance (up to ~4,000–4,400 BTU/h depending on model), supporting stable long-term wine aging conditions in properly insulated spaces
• Designed to maintain precise cellar conditions (~55°F / 13°C with controlled humidity support), protecting wine from heat spikes and cork drying
• Installation is engineered to fit between standard ceiling joists, making it a preferred solution for high-end residential builds, glass wine rooms, and architect-driven designs
• Offers quiet operation and reduced visual impact, since only a discreet grille or vent is visible inside the cellar
• Works best when paired with proper insulation and vapor sealing, as performance depends heavily on controlled thermal load rather than raw power
• Experts position it as a premium architectural cooling option, not a retrofit solution—best chosen during construction or major renovation


Q&A

Q: What is the Wine Guardian Ceiling Mounted Wine Cellar Cooling Unit?
A: It is a split-system wine cellar cooling solution designed to be installed flush within the ceiling or joist space, keeping all major equipment hidden while maintaining precise temperature and humidity control for small to mid-sized wine rooms.

Q: Which Wine Guardian ceiling-mounted models are available?
A: Common examples include the CS025 and CS050 systems, designed for different room sizes and heat loads, both using a discreet ceiling-mounted evaporator paired with a remote condenser.

Q: How does a ceiling-mounted system differ from a through-the-wall unit?
A: Unlike through-the-wall units that sit partially inside and outside a room, ceiling-mounted systems hide the evaporator above the wine space and place the condenser remotely, reducing visible equipment, noise, and vibration inside the cellar.

Q: What size wine rooms can it support?
A: Depending on the model, it typically supports small to mid-sized cellars, roughly ranging from a few hundred to around 2,000+ cubic feet, with capacity varying by model (e.g., CS025 vs CS050).

Q: Why choose a ceiling-mounted wine cooling system?
A: It is preferred when aesthetics matter—such as glass wine rooms or luxury displays—because it keeps mechanical equipment hidden while still delivering commercial-grade cooling performance.

Q: Does it also control humidity?
A: Yes, it maintains humidity balance when paired with a compatible system or optional humidifier, helping preserve cork integrity and long-term wine storage conditions.

Q: Who is this type of system best suited for?
A: It is ideal for homeowners, restaurants, or designers building high-end wine displays where visible equipment is undesirable but precise climate control is still required.


Maintenance Tips

• Keep return and supply air grilles clean and unobstructed to maintain proper airflow across the ceiling unit
• Clean or replace air filters regularly to prevent dust buildup on evaporator coils and maintain cooling efficiency
• Inspect condensate drain lines and pans to prevent leaks, overflow, or ceiling moisture damage
• Ensure ceiling-mounted evaporator coil is dust-free to maintain strong heat exchange and prevent icing
• Check condenser side airflow (remote unit) and keep vents clear for efficient heat rejection
• Verify duct connections and insulation integrity to prevent cold air loss and warm air infiltration
• Inspect mounting hardware periodically to ensure the unit remains level and vibration-free in ceiling framing
• Maintain stable ambient conditions around condenser to avoid overheating and system stress
• Check fan operation for smooth airflow and unusual vibration or noise (early wear indicator)
• Ensure humidity balance remains in the recommended wine range (~55–65% RH) to protect cork integrity
• Schedule periodic professional servicing to check refrigerant levels and overall system performance
