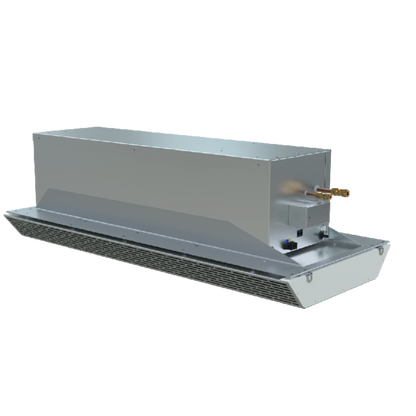

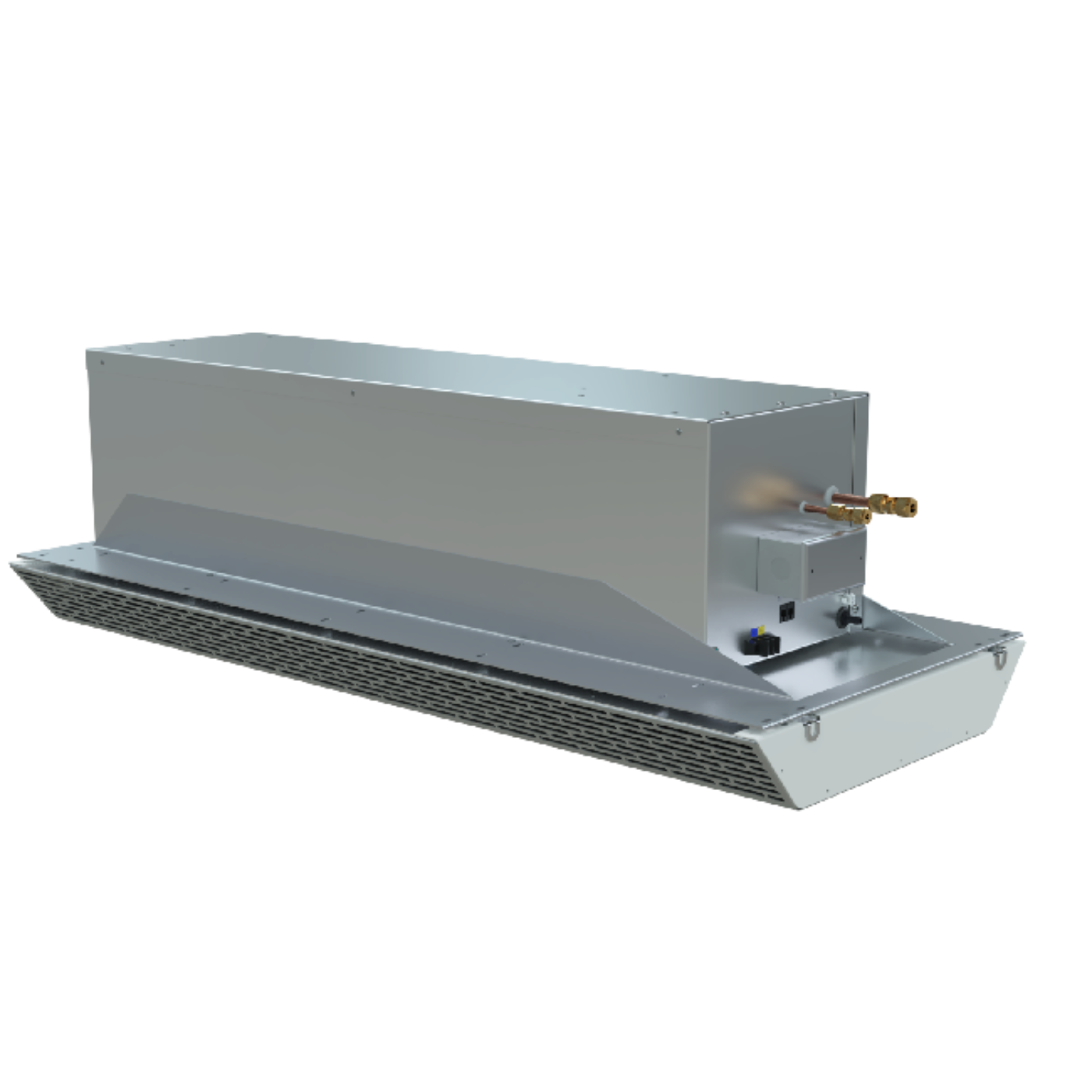

Wine Guardian’s CS050 ceiling mounted wine cooling unit is ideal for small- to mid-size wine rooms which cannot accommodate a traditional unit. This split system is ideal for applications such as all-glass wine storage spaces and fits comfortably between standard joist construction. Maximum capacity is 4,050 BTU/H.

The CS050 is a 60Hz system, which is standard in the most of North America (incl. USA & Canada).

What our Experts Think

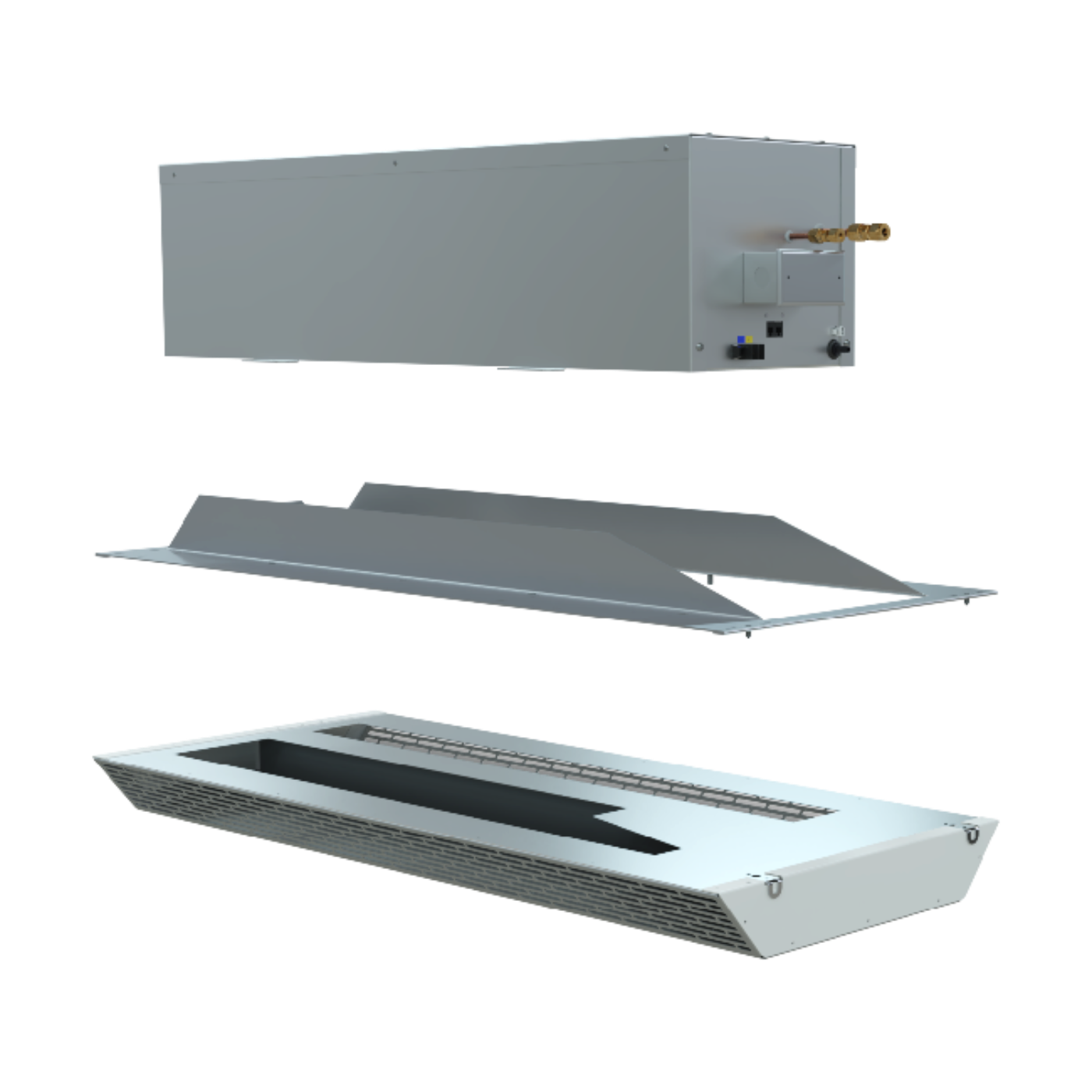

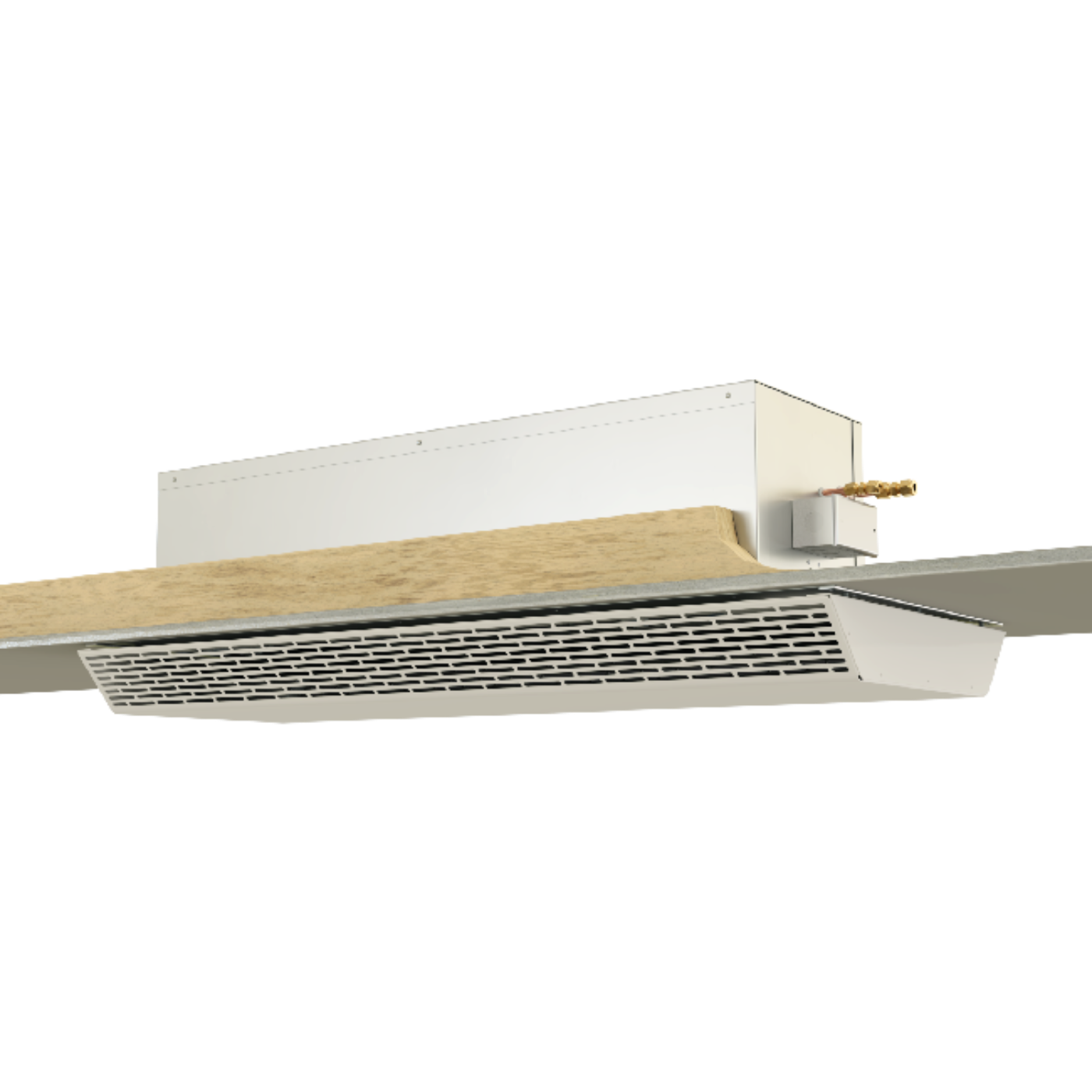

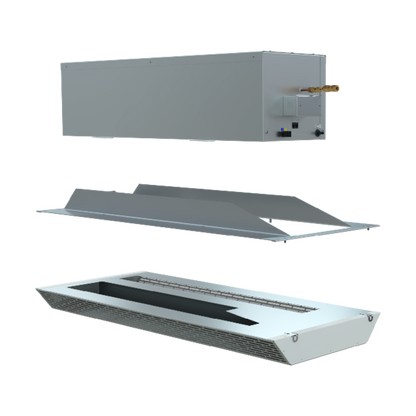

• Ultra-discreet ceiling integration - Designed to install flush between ceiling joists, keeping all mechanical components hidden while maintaining a clean, architectural wine room aesthetic.
• Split-system efficiency advantage - Separates evaporator and condenser units, allowing quieter cellar operation and flexible remote placement of heat and noise outside the wine space.
• Strong small-to-mid cellar capacity - Suitable for compact to mid-size wine rooms, with models like the CS025 and CS050 offering up to ~2,755–4,050 BTU/h depending on configuration.
• Built for hidden luxury installations - Ideal for glass wine rooms, residential display cellars, and premium interiors where visible HVAC equipment is undesirable.
• Stable wine preservation performance - Engineered to maintain consistent temperature and humidity conditions critical for long-term aging and cork protection.
• Flexible installation ecosystem - Supports options like serving temperature control, freestanding humidifiers, and extreme climate protection bundles for demanding environments.
• Expert takeaway - A premium architectural cooling solution for wine collectors who prioritize invisible installation, quiet operation, and precise cellar-grade climate control over simplicity or low upfront cost.


Q&A

Q: What is a Wine Guardian Ceiling Mounted Wine Cellar Cooling Unit?
A: A Wine Guardian ceiling-mounted cooling unit is a ductless split wine cellar system designed to install flush between ceiling joists, keeping all visible mechanical equipment out of the wine room while maintaining precise temperature control for wine storage.

Q: How does a ceiling-mounted Wine Guardian system work?

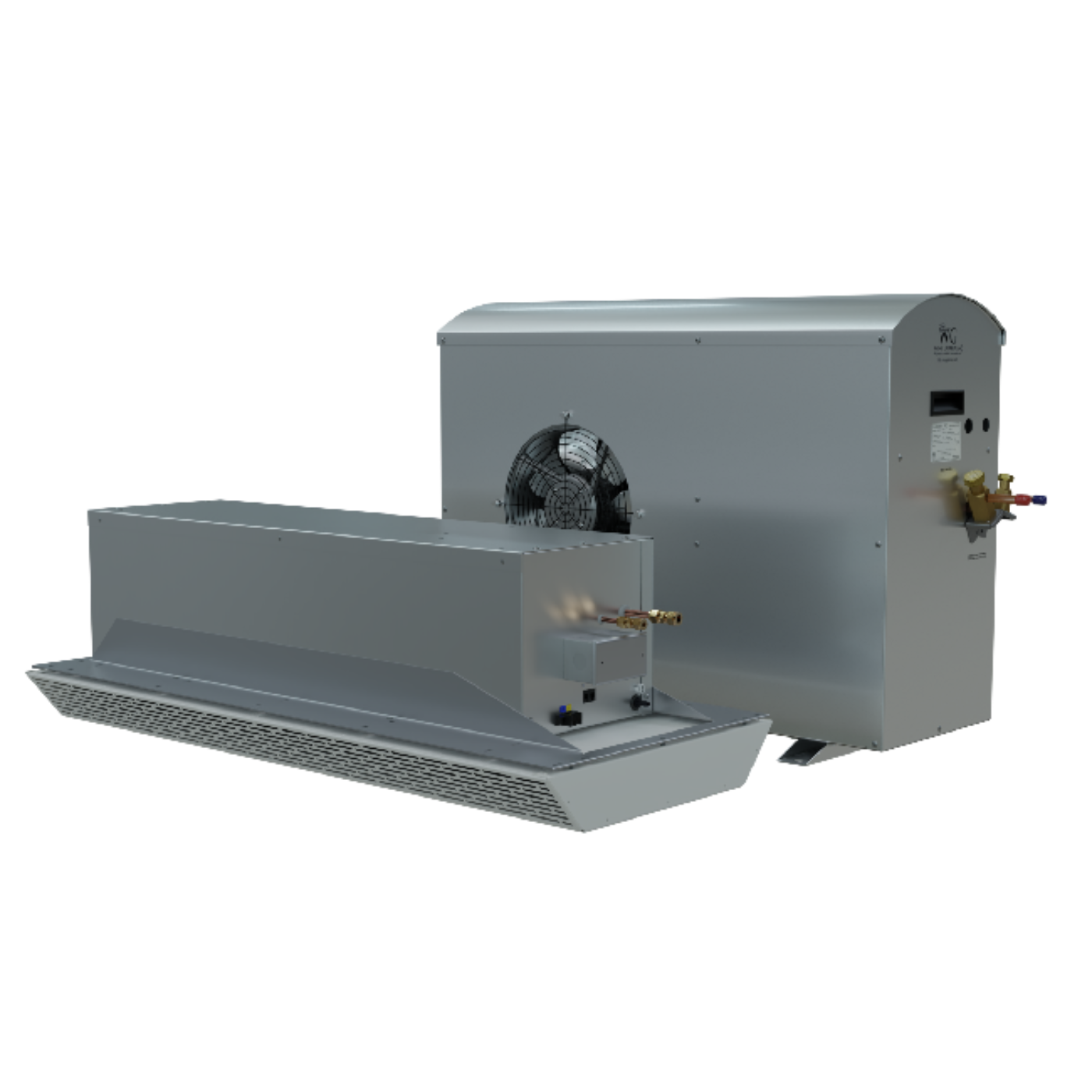

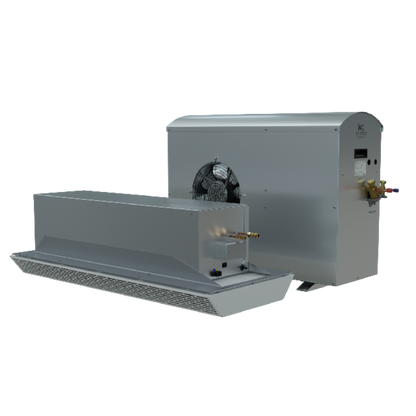

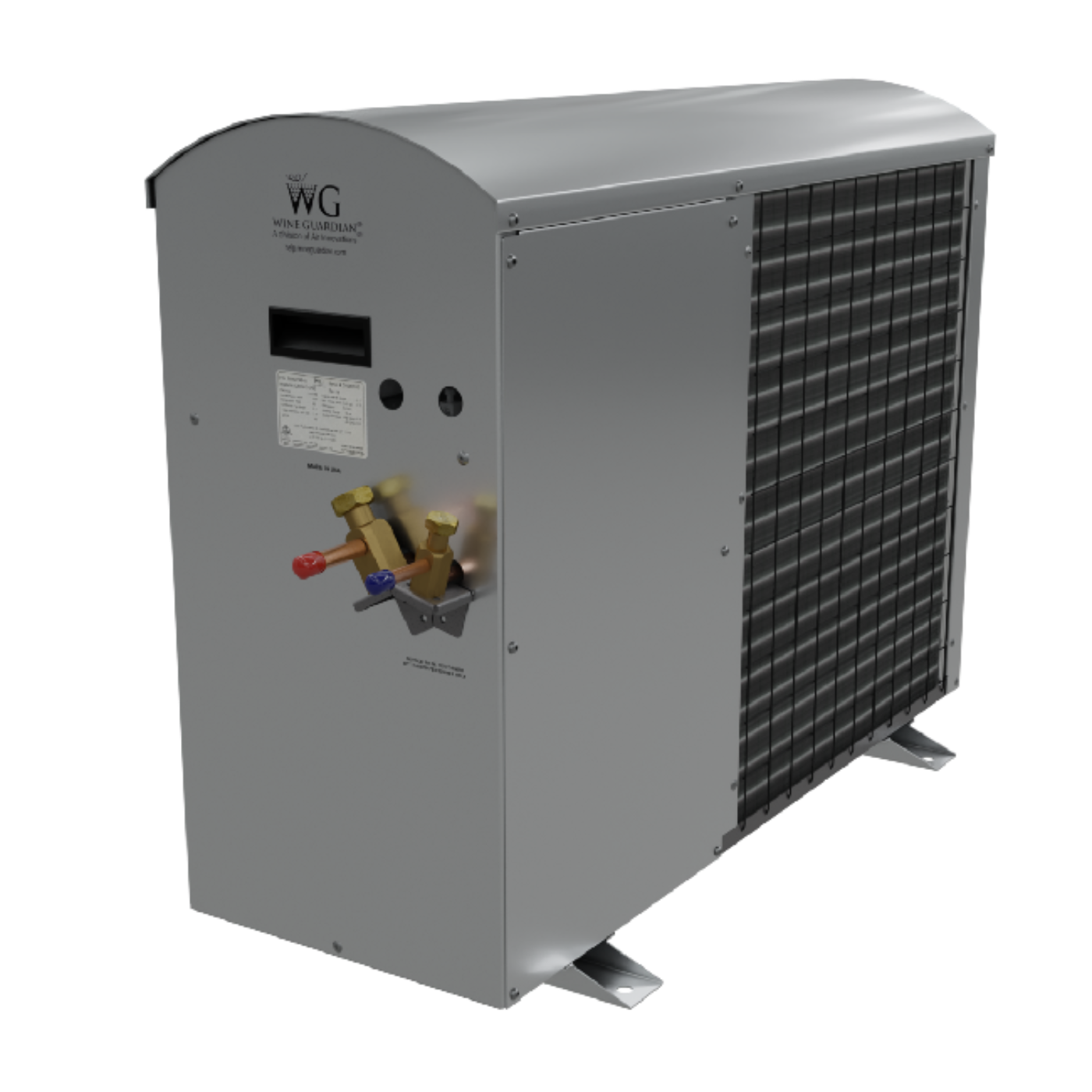

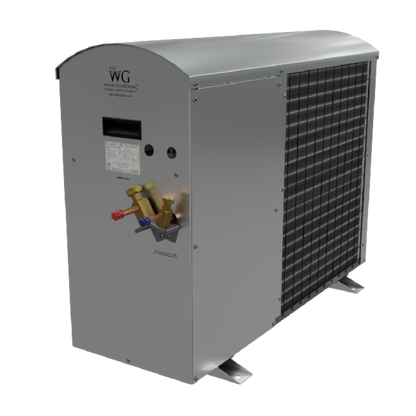

A: It uses a split configuration: the evaporator is mounted in the ceiling of the wine cellar to absorb heat, while the condenser is installed remotely (mechanical room or exterior), where it releases heat outside the space.

Q: What size wine rooms is it suitable for?
A: Depending on model, ceiling-mounted Wine Guardian systems typically support small to mid-size wine rooms (~100 to 2,200+ cubic feet) with cooling capacities up to around 4,000+ BTU/h.

Q: What is the main benefit of this design?
A: The biggest advantage is aesthetic + quiet operation—no visible wall unit inside the cellar and reduced vibration/noise compared to self-contained systems.

Q: Does it control humidity too?
A: Yes. Like most Wine Guardian systems, it supports humidity management (typically ~55–65% RH when paired or configured properly) to protect corks and wine integrity.

Q: Who is it best for?
A: It’s ideal for luxury homes, glass wine rooms, restaurants, and custom cellar builds where visible equipment would disrupt design or where noise needs to be minimized.


Maintenance Tips

• Clean or replace air filters regularly to maintain strong airflow and cooling efficiency
• Keep ceiling intake and discharge vents free from dust and obstructions
• Clean evaporator and condenser coils periodically to prevent reduced cooling performance
• Ensure condensate drain line is clear to avoid leaks inside ceiling cavities
• Maintain proper clearance around ceiling-mounted grille for unrestricted airflow
• Inspect duct connections (if ducted split system) for leaks or insulation damage
• Verify thermostat and humidity sensor calibration for stable cellar conditions (typically 55–65% RH)
• Check electrical connections and control wiring for secure, safe operation
• Prevent airflow blockages from nearby insulation or shelving near ceiling return zones
• Schedule annual professional servicing for refrigerant check, fan inspection, and system calibration
