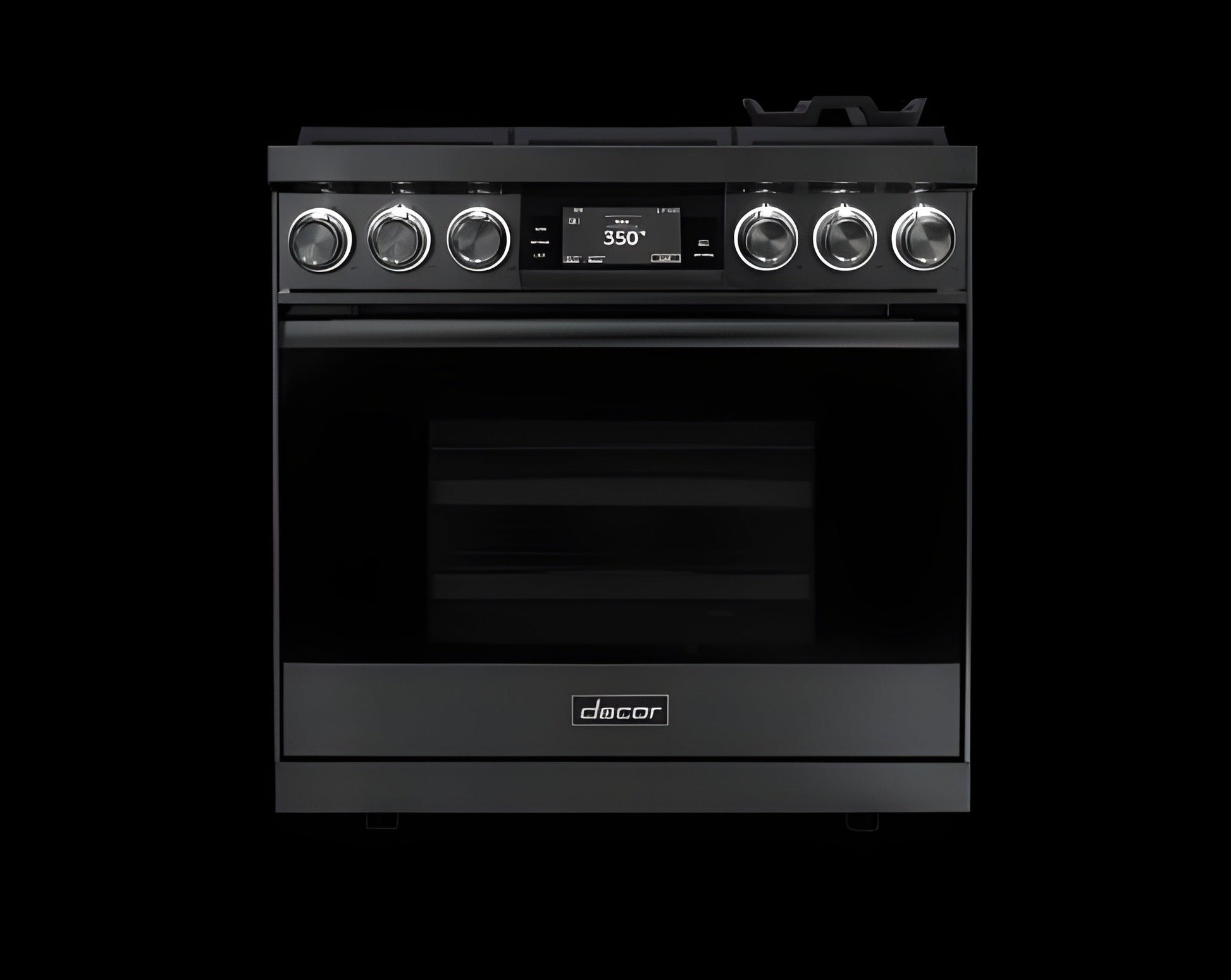

DACOR 36" Range, Graphite Stainless Steel, Natural Gas & Liquid Propane - DOP36C86DLM-KT
Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.
Features
- WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
- STEAM ASSIST OVEN
- CHEF MODE
- DUAL FOUR-PART PURE CONVECTION
- SIMMERSEAR BURNERS
- ILLUMINA KNOBS
- LUXURIOUS FINISHES
- SMARTTHINGS INTEGRATION
Specifications
| OVERALL DIMENSIONS |
Width : 35-7/8"
Height : 36-1/8"
Depth : 27-1/2"
Please refer to the Installation Instructions for more detailed dimensions.
California AB 1200 Disclosure: Product contains substances designated by California as requiring disclosure. Learn More
|
| BURNER CONFIGURATION |
Left Front : 22,000 BTU
Left Rear : 16,000 BTU
Center Front : 16,000 BTU
Center Rear : 16,000 BTU
Right Front : 22,000 BTU
Right Rear : 9,000 BTU
|
| INTERIOR CAPACITY |
Oven : 4.8 ft. |
| REQUIREMENTS |
Electrical: 240V, 60Hz, 50A |
| ACCESSORIES |
ARG36 : Modernist Griddle, 36" 6-Burner Range |
| CONFIGURATIONS |
DOP36C86DLS/DA : 36" Range, Stainless Steel, Natural Gas & Liquid Propane
DOP36C86DLM/DA : 36" Range, Graphite Stainless Steel, Natural Gas & Liquid Propane
|
Manual
What Our Experts Think
-
Sleek Graphite Stainless Steel Design β A contemporary finish that enhances any kitchen with a touch of sophistication.
-
Dual-Fuel Cooking System β Offers the best of both worlds, combining gas cooktop performance with the even heat of an electric oven.
-
High-Performance Burners β Features powerful burners, including a 22K BTU burner for optimal heat control and precision.
-
Extra-Large Oven Capacity β With a 5.7 cu. ft. oven, it easily accommodates large meals and multiple dishes at once.
-
Precise Cooking Controls β The Illuminaβ’ knobs light up for an intuitive cooking experience, ensuring perfect results every time.
-
Infrared Broiler β For even, high-heat broiling, giving you beautifully browned dishes with ease.
-
Efficient and Reliable β A solid choice for those looking for durable, high-performing cooking equipment for any kitchen.
Q&A
Q: What is the DACOR 36" Range in Graphite Stainless Steel?
A: The DACOR DOP36C86DLM-KT is a 36" professional-grade range in graphite stainless steel, designed for both natural gas and liquid propane use, combining high-end cooking features with a modern aesthetic.
Q: What is the BTU output?
A: The range offers burners with up to 22,000 BTU, ideal for intense cooking techniques like searing and stir-frying.
Q: Does it have a convection oven?
A: Yes, the range features a true convection oven, ensuring even heat distribution for consistent baking, roasting, and broiling.
Q: Is this range compatible with both natural gas and liquid propane?
A: Yes, this model can be used with either natural gas or liquid propane, providing flexibility for different fuel types.
Q: What are the dimensions?
A: Approx. 35.9" W x 29.9" D x 36" H.
Maintenance Tips
-
Clean Burners & Grates β Regularly wash burners and grates with warm, soapy water to prevent grease buildup.
-
Wipe Exterior β Clean the graphite stainless steel surface with a microfiber cloth and appropriate cleaner for a streak-free finish.
-
Inspect Gas Connections β Check gas connections for leaks or signs of wear to ensure safety.
-
Check Flame Color β Ensure a blue flame for optimal cooking. If flames are yellow or orange, clean or adjust the burner.
-
Clean Oven Interior β Wipe oven surfaces after each use to prevent grease accumulation. Perform deeper cleans with a non-abrasive cleaner.
-
Inspect Door Seal β Check the door gasket regularly for wear to maintain heat efficiency.
-
Maintain Ventilation β Clean the range hood and vents regularly for proper airflow and effective ventilation.
