Dannmar 12,000-lbs. Capacity Four-Post Lift - 5175317

Dannmar 12,000-lbs. Capacity Four-Post Lift - 5175317

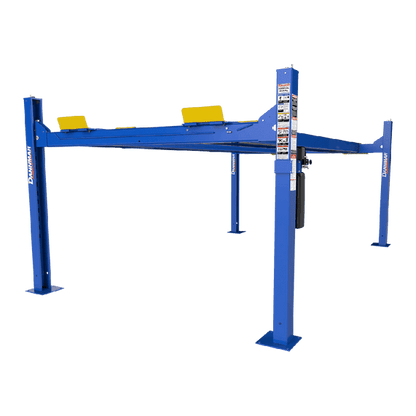

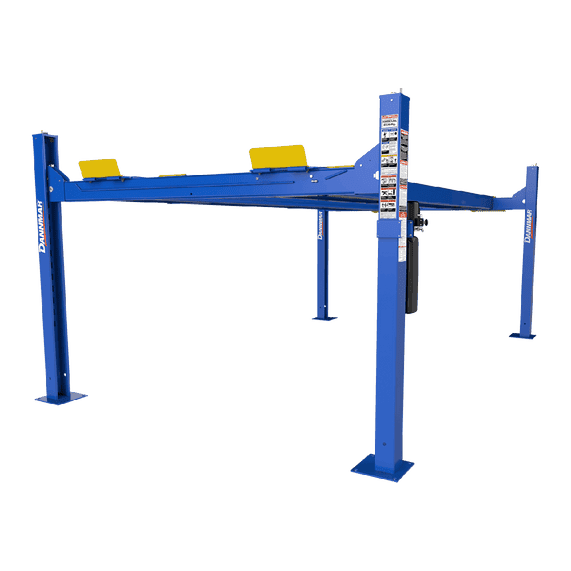

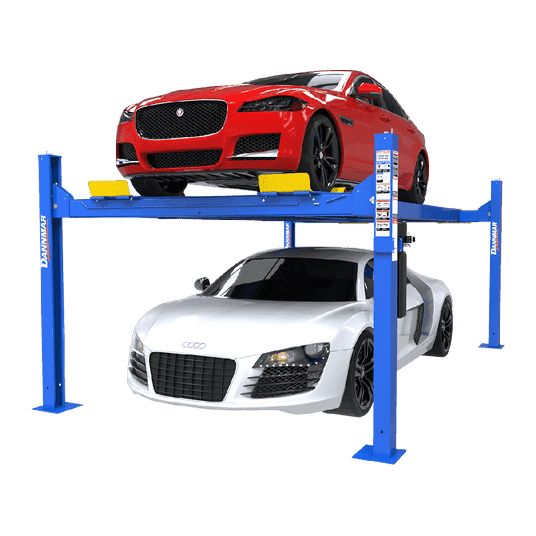

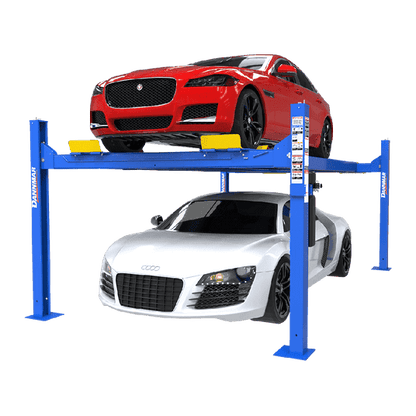

Dannmar’s four-post D4-12 lift is designed to work with most vehicles. With a 12,000 lb. capacity you not only know that it is capable of lifting most anything, but it also has to be built very strong, rugged, and durable. With Dannmar’s extended runways, moving onto the runway is safe and simple for vehicles of all sizes.The quality built into each Dannmar lift is demonstrated by the Dual-hub cable sheaves that reduce stress, fatigue and wear. Huge 10.5” diameter cable sheaves within the runway and cross tubes combine with massive 2.25” diameter sheave axles. These larger components help to share the load, which dramatically decreases cable wear and increases critical component lifespan.To help raise and lower the hefty 12,000 lb. load are a series of heavy-duty aircraft cables. The Dannmar D4-12 incorporates four, 1/2” diameter, stainless-steel lifting cables specifically designed for lifting applications. To keep everything moving freely, the Dannmar D4-12 utilizes built-in lubrication points located on each sheave and sheave axle.

• CE Approved and Certified

• Meets or exceeds the standards prescribed by European Standard EN-1493

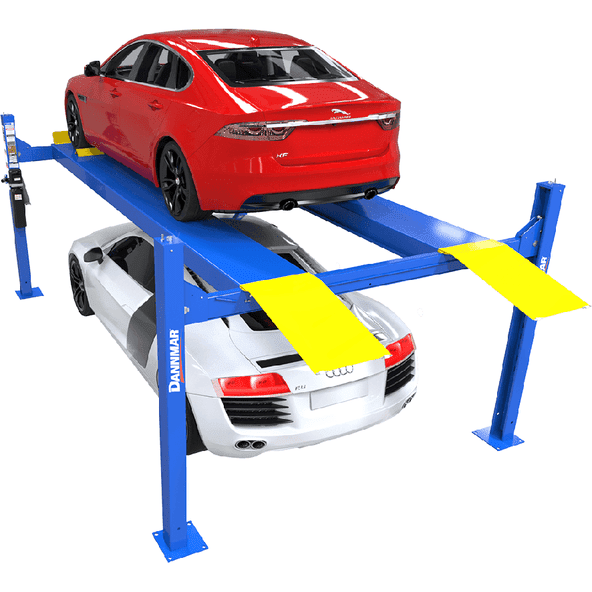

• Mid to long-style approach ramps for low-ground clearance vehicles

• Runways include rail-kit for optional accessories

• Single hydraulic cylinder mounted underneath runway

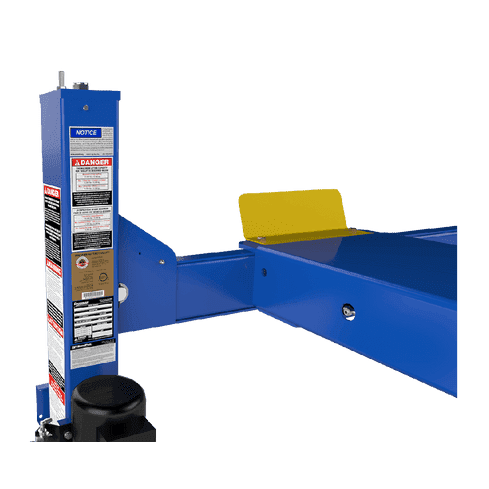

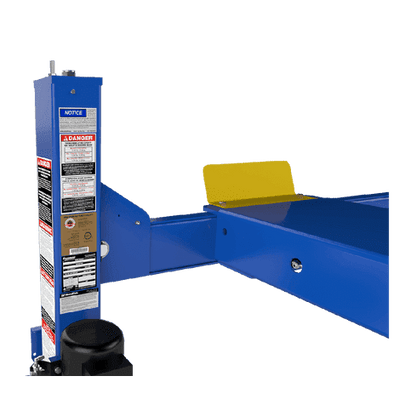

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Pneumatic push-button safety release

• Heavy-duty 1/2” aircraft cable and 1.75” roller axles

• Safety locks enclosed in columns minimize pinch points

• Oversized sheave diameter reduces cable fatigue

• Large self-lubricating cable rollers

• Multi-position safety locks in each column

• Customizable power unit location

• Approach ramps incorporate built-in rear-wheel chocks

• Independent backup slack-cable safety latches

• Runways feature non-skid surface

• ETL approved
