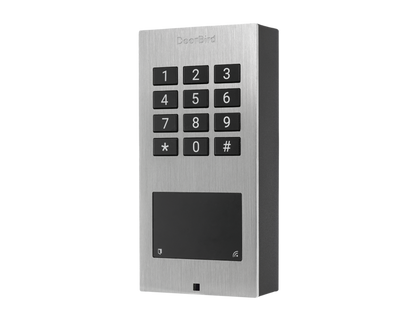

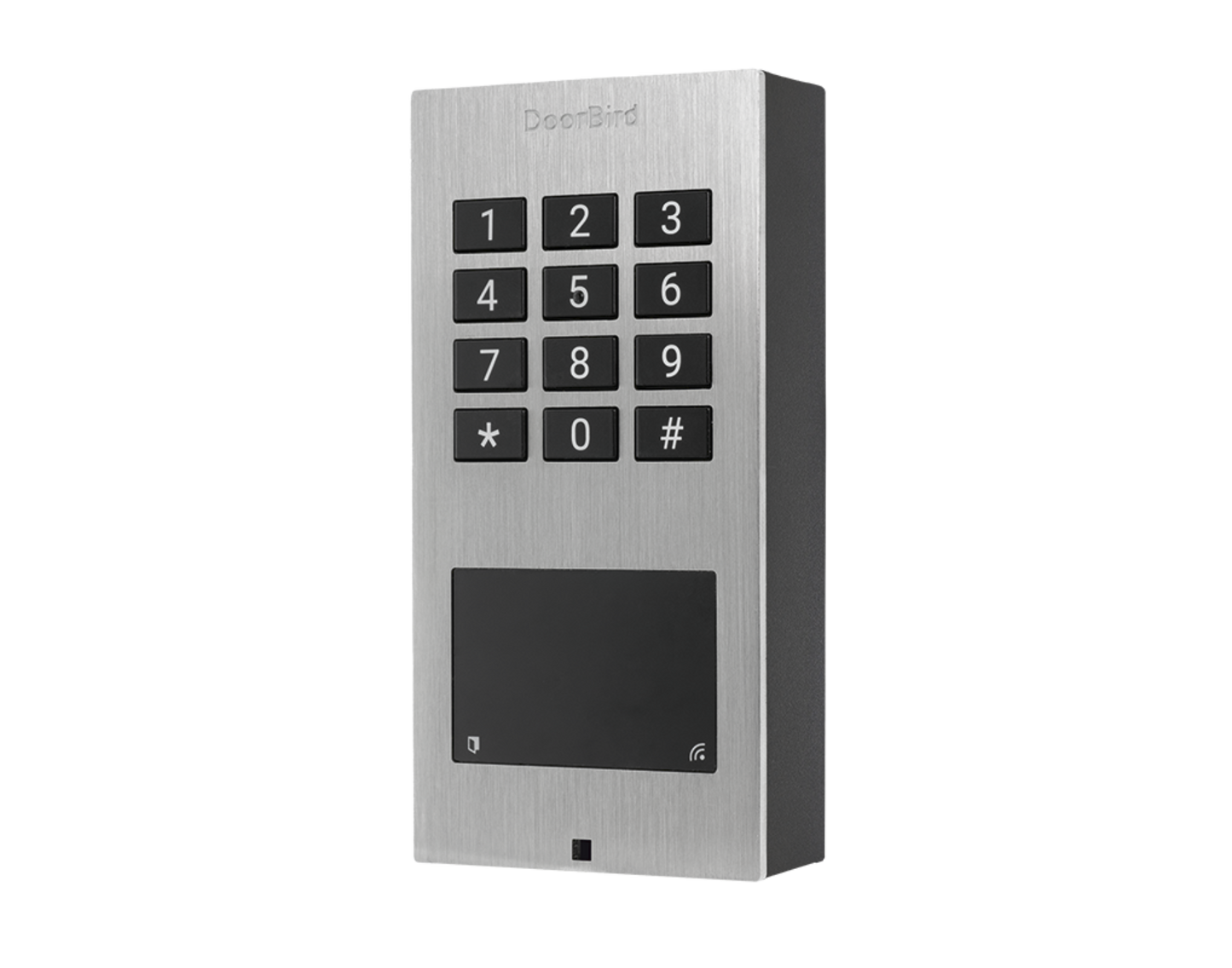

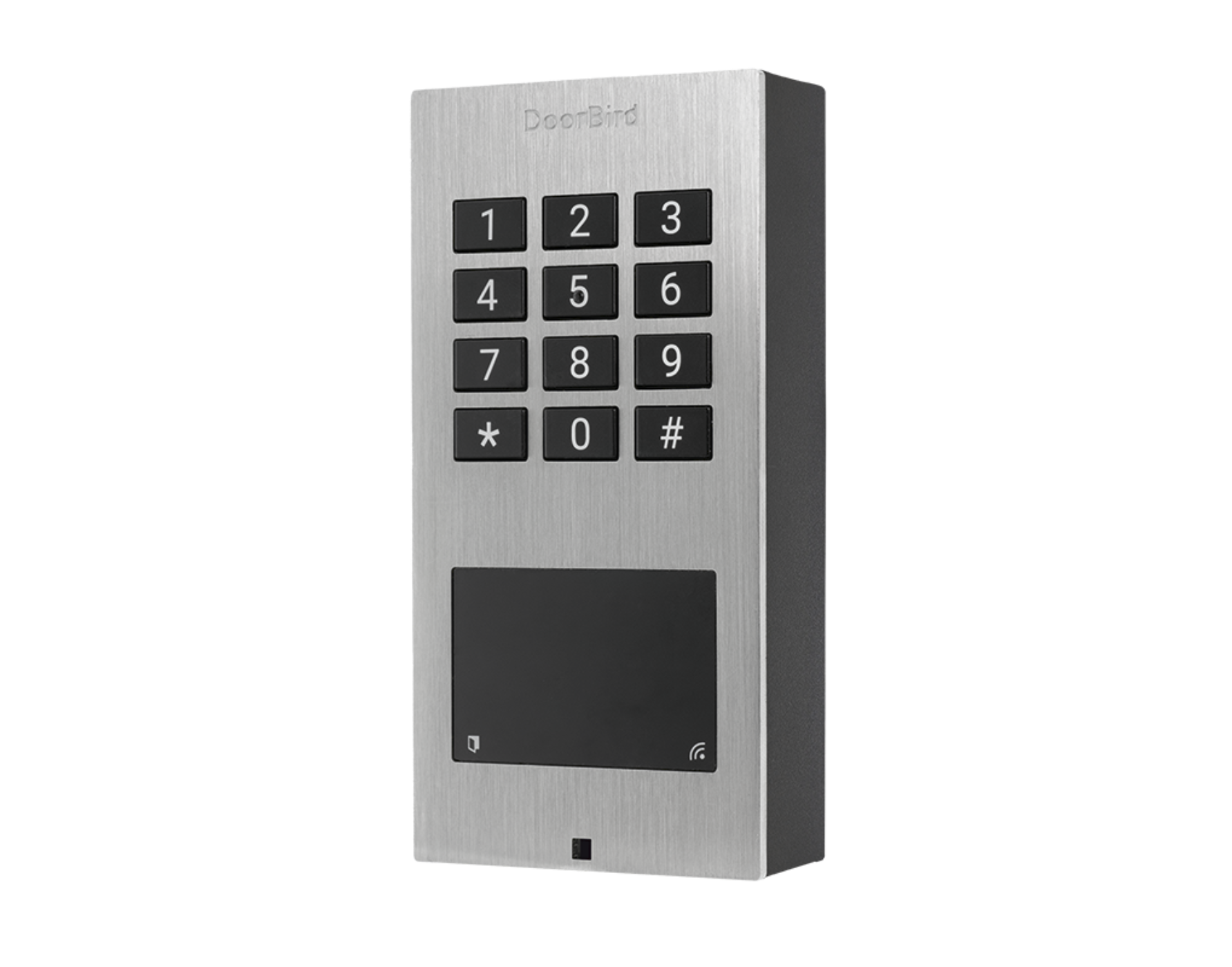

DoorBird A1121 Surface-Mount IP Access Control Device in Stainless Steel V2A - 423872028

DoorBird A1121 Surface-Mount IP Access Control Device in Stainless Steel V2A - 423872028

Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

Stainless steel V2A, brushed
(GTIN/EAN: 4260423872028, P/N: 423872028)

• Surface-mount housing included
• WiFi / LAN connection (PoE capable)
• Keypad
• 125 KHz and 13.56 MHz RFID reader
• Tamper sensor
• Wiegand interface
• 2 freely configurable bistable switching relays

Features

• Three separate access control devices combined:
  Keypad
  RFID Reader
  Bluetooth low Energy (BLE)
• Keypad Module
  Configurable via App
  Up to 500 individual PIN codes
  Individual events (e.g. trigger a relay, HTTP(s) request)
• RFID sensor
  125 KHz
  13.56 MHZ
• Bluetooth low Energy (BLE)
  For access control, compatible external sensors and smart locks
• WiFi-capable
• Two freely configurable bistable switching relay
• Wiegand interface
• Manipulation sensor


What our Experts Think

• Industrial-grade IP access control platform The A1121 V2A is widely regarded as a robust standalone smart access device designed for doors, gates, garages, storage rooms, and service areas without requiring a full intercom system.
• Corrosion-resistant V2A stainless steel build Experts highlight the V2A brushed stainless steel housing for durability in standard outdoor and indoor environments, with a clean architectural finish.
• Multi-credential access in one device Combines keypad PIN entry, RFID (125 kHz + 13.56 MHz), and Bluetooth support, reducing the need for multiple access systems.
• Network-ready smart integration Supports WiFi/LAN (PoE capable) plus Wiegand interface, making it easy to integrate into existing security or building automation systems.
• Strong access control logic & automation Allows individual PIN/RFID scheduling, event triggers, and HTTP(S) actions, giving advanced control over entry permissions and automation workflows.
• High usability for commercial environments Commonly recommended for back doors, side entrances, parking areas, and storage facilities where reliability and flexibility matter more than video intercom features.
• Security-focused hardware design Includes tamper detection and dual relay outputs for controlling multiple doors or external devices from a single unit.
• Best suited for modern retrofit projects Experts value it as a drop-in upgrade for legacy access systems, especially where organizations want smart credentials without a full infrastructure overhaul.

Q&A

Q1: What is the DoorBird A1121 used for?
A: It is an IP-based multi-technology access control device for doors, gates, garages, storage rooms, and secure entry points, combining keypad, RFID, and smart network access in one unit.

Q2: What access methods does it support?
A: It supports PIN codes via keypad, RFID cards/fobs (125 kHz & 13.56 MHz), and network-based control via IP integration (Wiegand supported).

Q3: Is it suitable for outdoor installation?
A: Yes. It is designed for indoor and outdoor surface mounting with weather-resistant stainless steel V2A construction.

Q4: Does it support remote or smart management?
A: Yes. It connects via WiFi or Ethernet (PoE), allowing remote configuration, user management, and system integration.

Q5: How many users can it handle?
A: It supports up to around 500 individual PIN codes with configurable access permissions.

Q6: Does it have relay outputs for door control?
A: Yes. It includes 2 freely configurable relays for controlling doors, gates, or external devices.

Q7: What is the difference between V2A and V4A stainless steel?
A: V2A is standard brushed stainless steel for general outdoor use, while V4A offers higher corrosion resistance for harsher environments like coastal or high-salt areas.

Q8: Does it include audit or logging features?
A: Yes. It can log events such as access attempts and system actions, depending on configuration and integration setup.

Q9: What makes this device “IP access control”?
A: It operates over a network (LAN/WiFi), enabling integration with building systems and remote administration rather than standalone local-only control.

Maintenance Tips

• Clean V2A stainless steel surface regularly with a soft microfiber cloth; avoid abrasive pads and chloride-based cleaners to prevent corrosion marks
• Keep keypad, RFID, and BLE area dry and dust-free for reliable credential reading
• Ensure stable LAN/WiFi (PoE recommended) for uninterrupted access control and remote app operation
• Periodically test PIN codes, RFID tags, and relays to confirm correct door/gate response
• Check tamper sensor alerts and verify housing is securely mounted for outdoor security integrity
• Inspect seals and surface mount edges to maintain IP-rated weather resistance in outdoor environments
• Update firmware via DoorBird app/web interface to improve security and system stability
• Review user permissions and delete unused credentials to maintain secure access control hygiene
• Lightly clean around buttons and reader areas—never use high-pressure water or spray directly
• Reboot device occasionally if network latency or relay delays occur
