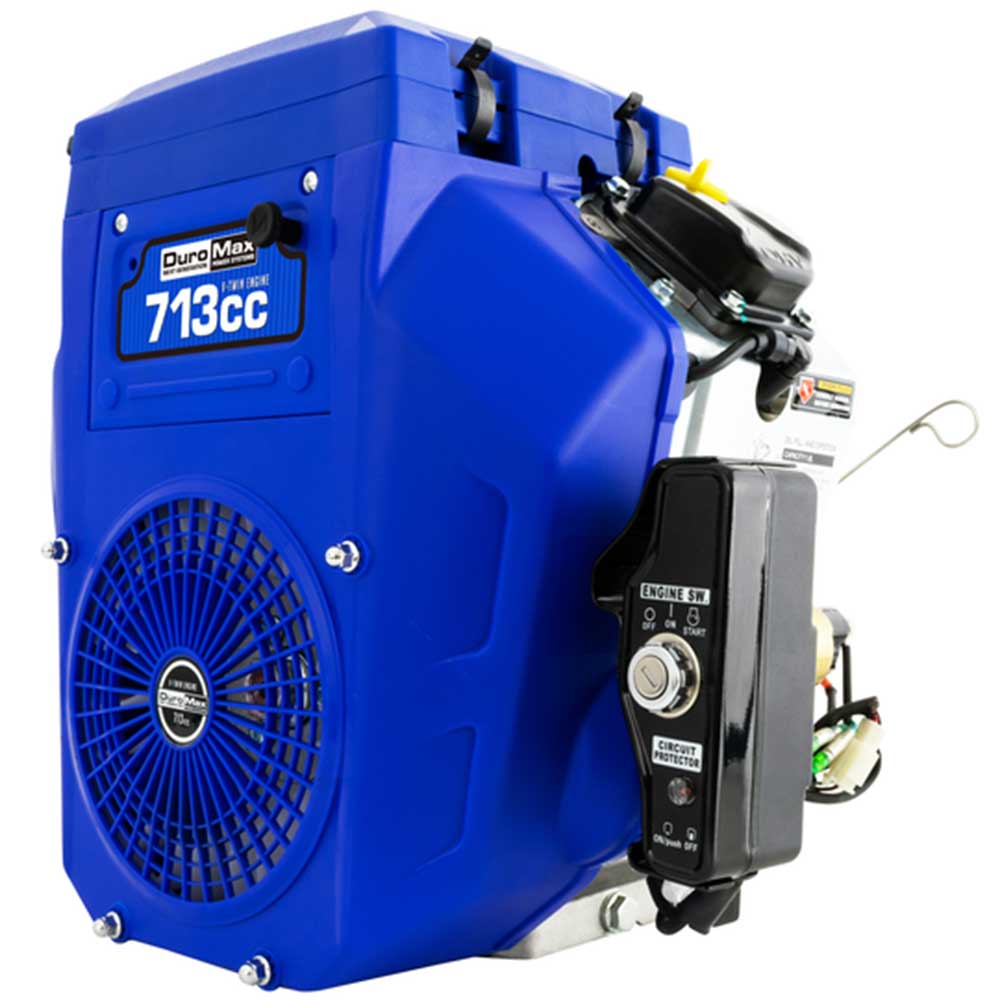

Duromax 713cc V-Twin Engine w/ Electric Start Key Switch Box - XP23HPE

by DuroMax
SKU XP23HPE
Save 5% Save 5%
Original price $999.00
Original price $999.00 - Original price $999.00
Original price $999.00
Current price $949.99
$949.99 - $949.99
Current price $949.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


The DuroMax XP23HPE Is The Original Of Our Most Powerful And Premium V-Twin Engine Line!

This 713cc 4-stroke OHV Powerhouse is suitable for multiple heavy-duty applications including go karts, ATVs, boats, and any project that demands serious POWER! This engine is also equipped with convenient features like an electric start option for easier startups and EPA and CARB approved for safe mandated use.

View the Duromax 713cc V-Twin Engine w/ Electric Start Key Switch Box - XP23HPE features below:

  • 713cc 4 Stroke OHV engine

  • Runs on Standard 87 Octane Gasoline

  • Electric Start Key Switch Box

  • Air Cleaner: Dual, Semi-dry, Oil Bath

  • EPA and CARB Approved for Safe Mandated Use

  • Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump
Brand DuroMax Power Equipment
SKU XP23HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 713cc
Bore 80mm
Stroke 71mm
Compression Ratio 8.5:1
Max Output 4000 RPM
Max Torque 31.72 ft-lbs (43 N.m.)@ 2500RPM
Shaft Orientation Horizontal
Shaft Size 1" Diameter, 3.01" Long, 1/4" x 2" Keyway
Shaft End 3/8" Size 24 UNF - 2B
Shaft Rotation Counter Clockwise
Measurement from Center of Shaft to Base 5.29"
Fuel Types Gasoline
Fuel System Carburetor
Starting Type Key Switch
Electric Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Needle Bearings
Oil Cooling Type Pressure and Splash
Oil Capacity 54.1 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 19.3"-Long x 18.3"-Wide x 14"-High
Product Weight 103.6-lbs
UPC 811640016067
Warranty 3 Year
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
Package Dimensions 21.5"L x 21.1"W x 19.1"H
    1. DuroMax XP23HPE Engine

    2. Owners Manual
