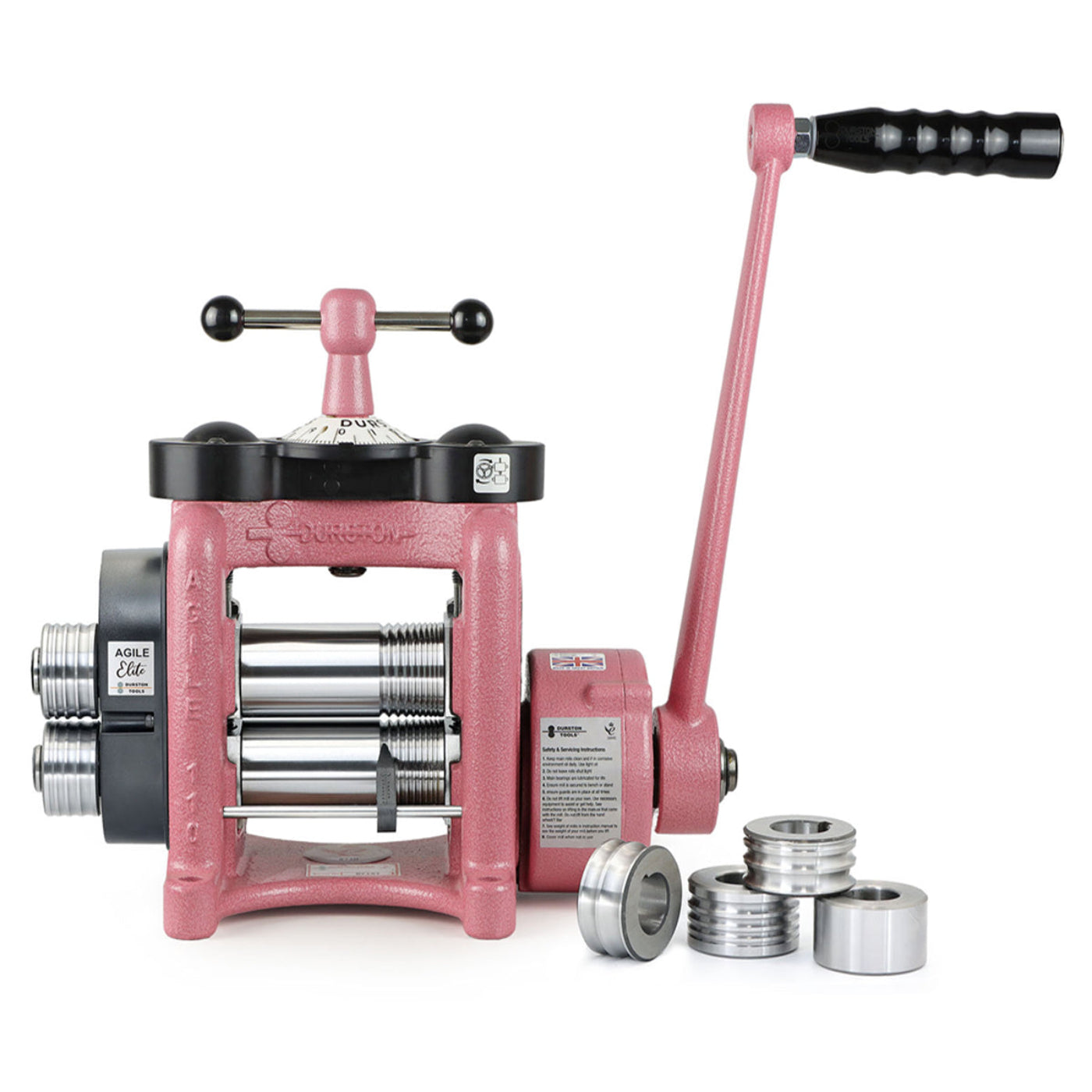

Durston 2560 Agile Elite C110 Pink Edition Combo Rolling Mill with Reduction Gear & Extension Rolls - 128.2560

Durston 2560 Agile Elite C110 Pink Edition Combo Rolling Mill with Reduction Gear & Extension Rolls - 128.2560

PINK FOR A PURPOSE  This limited edition Agile Elite run delivers the Elite-series feature set in a striking pink, powder-coated finish. As announced by Durston, a portion of each wholesale sale for this celebration edition is donated to a cancer research charity in the country of purchase.

The Agile Elite C110 Rolling Mill (Patent Pending)—the newest premium model in the Agile series—adds side extensions and ergonomic updates for smooth, repeatable operation. The expanded flat area streamlines sheet and pattern rolling, while the reduction gearbox and revolving handle reduce effort on heavy passes.

Features

• Limited Edition Pink Finish: Durable powder coat, visually distinctive.
• Expanded Flat Area: 75 mm (2.95 in) working width for sheet and pattern plates.
• Maximum Sheet Rolling: Up to 5.5 mm (0.22 in).
• Square Wire Grooves: 9 grooves from 1–5 mm.
• 4:1 Reduction Gearbox: Smooth power transmission for easier rolling.
• Adjustable T-Bar & Revolving Handle: Faster, comfortable adjustments.
• Rear Catch Tray (white): Easy visibility and retrieval of pieces.
• Groove Pointer Bar: Quick visual alignment for precise passes.

Specifications

Included

• Extension Roll #1: 5 mm, 4 mm, 3 mm, 2 mm D-shape
• Extension Roll #2: 8 mm, 6 mm, 3 mm D-shape
• Extension Roll #3: 10 mm, 7 mm D-shape
• Comfort-Fit Extension Rolls: Range 3–6 mm
• Pattern Plate: Best-selling plate included
• Rolling Mill Cover: Protects from dust and debris
• Gloves & Cloth: Microfiber
• Circlip Pliers: For quick extension roller swaps

What our Experts Think

• Limited Edition Professional Rolling Mill
  The Durston 2560 Agile Elite C110 Pink Edition Combo Rolling Mill combines Durston’s Elite-series engineering with a distinctive powder-coated pink finish, created as a special release supporting charitable donations.
• Effortless Rolling with 4:1 Reduction Gearbox
  Equipped with Durston’s proven reduction system, it significantly reduces hand effort while maintaining smooth, controlled rolling—ideal for consistent sheet and wire reduction.
• Expanded Working Capacity (75mm Flat Area)
  The widened flat section improves usability for sheet metal and pattern plate work, making it easier to process larger designs with fewer passes.
• Full Combo Wire & Sheet Capability
  Includes multiple square wire grooves (1–5mm range) plus extension rollers for D-shape and comfort-fit profiles, supporting a wide range of jewellery fabrication tasks.
• Ergonomic Workshop Design
  Features a T-bar adjustment system, revolving handle, and groove pointer bar for smoother operation, better control, and reduced operator fatigue during extended use.
• Accessory-Rich Production Setup
  Comes with pattern plate, protective cover, gloves, cleaning cloth, and circlip pliers for fast roller changes—enhancing workflow efficiency straight out of the box.
• Heavy-Duty Durston Build Quality
  Built for professional studio use with a rigid frame and precision-engineered rolls designed for long-term accuracy and durability under repeated rolling cycles.

Q&A

Q: What is this rolling mill used for?
A: It is used to reduce metal thickness, roll sheet into precise gauges, and shape wire for jewelry fabrication such as rings, bracelets, and components.

Q: What makes this model different?
A: It features a 4:1 reduction gearbox, making rolling easier and more controlled compared to standard manual mills, especially when working with thicker metals.

Q: What materials can it handle?
A: It is suitable for gold, silver, copper, brass, and other non-ferrous metals commonly used in jewelry production.

Q: Is it manual or powered?
A: It is a manual rolling mill, operated by hand but made easier through its gearbox system.

Q: What is the main benefit of this model?
A: It combines professional Durston build quality with easier operation and multi-function capability, making it a strong all-round choice for jewelry makers who want versatility without switching machines.

Maintenance Tips

• Clean rollers after every use – Wipe the 110mm flat, wire grooves, and extension profiles immediately to prevent metal dust buildup and scoring on the hardened 64 HRC rolls.
• Protect with light oil when idle – Apply a thin rust-preventive oil film for storage; fully clean before use to avoid contaminating metal stock or affecting surface finish.
• Maintain 4:1 reduction gearbox – Periodically apply light lithium-based grease to keep torque smooth and reduce wear during frequent rolling operations.
• Keep grooves and extensions clear – Clean all square wire grooves and half-round extensions regularly to maintain precise wire shaping and avoid uneven rolling pressure.
• Avoid overloading thickness – Stay within recommended sheet capacity (~5.5–6mm) and reduce metal gradually in multiple passes instead of forcing heavy compression.
• Use only clean, annealed metal – Dirty or work-hardened material increases roller wear and reduces finish quality and accuracy.
• Check alignment regularly – Ensure even pressure across the full 110mm width to prevent tapering and long-term bearing stress.
• Secure mounting is essential – Bolt firmly to a rigid bench or stand to eliminate vibration and ensure precise rolling under torque.
• Store in dry conditions – Protect rollers, gears, and cast frame from humidity to prevent corrosion and preserve long-term precision.
• Never touch rollers with bare hands – Skin oils can mark precision-ground steel over time; handle with clean gloves or tools when possible.
