Durston 1017 Agile Elite C110mm Combo Rolling Mill with Reduction Gear - 128.1017

Durston 1017 Agile Elite C110mm Combo Rolling Mill with Reduction Gear - 128.1017

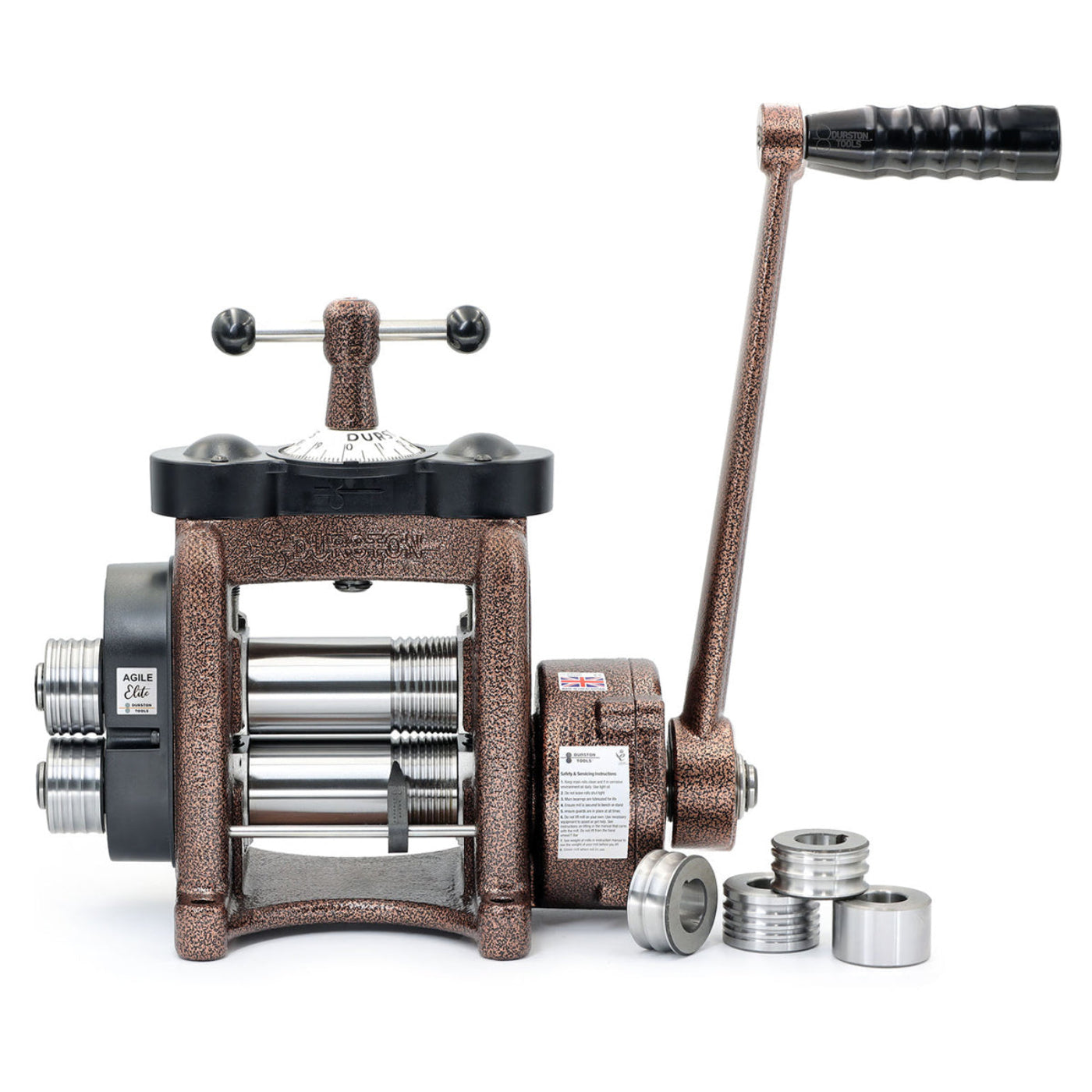

This 1017 Agile Elite C110mm combination rolling mill pairs a robust copper-finished frame with an expanded flat rolling area, wire grooves, and a 4:1 reduction gearbox to support demanding metal forming work. The revolving handle turns smoothly as metal feeds through the rolls, while the rear catch tray and included accessories help keep your workflow organized.

Features

• Combination rolling mill configuration for both sheet and wire work in one compact unit.
• Expanded flat rolling area designed to give more space for pattern plate and flat sheet rolling.
• Integrated square wire rolling grooves on the main roll for forming a range of wire sizes.
• Adjustable T-bar on the top of the mill for quick, controlled roll gap adjustments.
• Ergonomic revolving handle designed to reduce effort and fatigue during longer rolling sessions.
• Rear catch tray finished in white to improve visibility and make it easier to retrieve rolled pieces.
• Groove pointer bar to help align metal accurately with the wire grooves.
• 4:1 reduction gearbox that multiplies leverage for smoother, more controlled rolling.
• Includes a suite of extension rolls, pattern plate, and rolling mill cover to expand forming options and protect the mill when not in use.

Specifications

What our Experts Think

Q&A

Maintenance Tips

• Clean rollers after every use: Remove metal dust from flat and wire grooves to prevent scoring and preserve precision rolling performance.
• Light lubrication on gears: Regularly apply grease to the 4:1 reduction gearbox and oil adjustment points to maintain smooth, low-effort operation.
• Protect extension rolls: Keep D-shape, comfort-fit, and square wire extensions free from debris to ensure accurate wire and profile forming.
• Use gradual reductions: Avoid heavy single-pass compression to reduce stress on rollers, gearbox, and frame alignment.
• Check roller alignment: Ensure rollers remain parallel for consistent sheet thickness and clean wire output.
• Avoid contaminated metal: Only use clean, annealed material to prevent surface marking and groove damage.
• Protect from corrosion: Store in a dry environment and apply a light anti-rust coating when idle.
• Keep catch tray clean: Regularly clear the rear tray to prevent buildup that can interfere with workflow and cleanliness.
