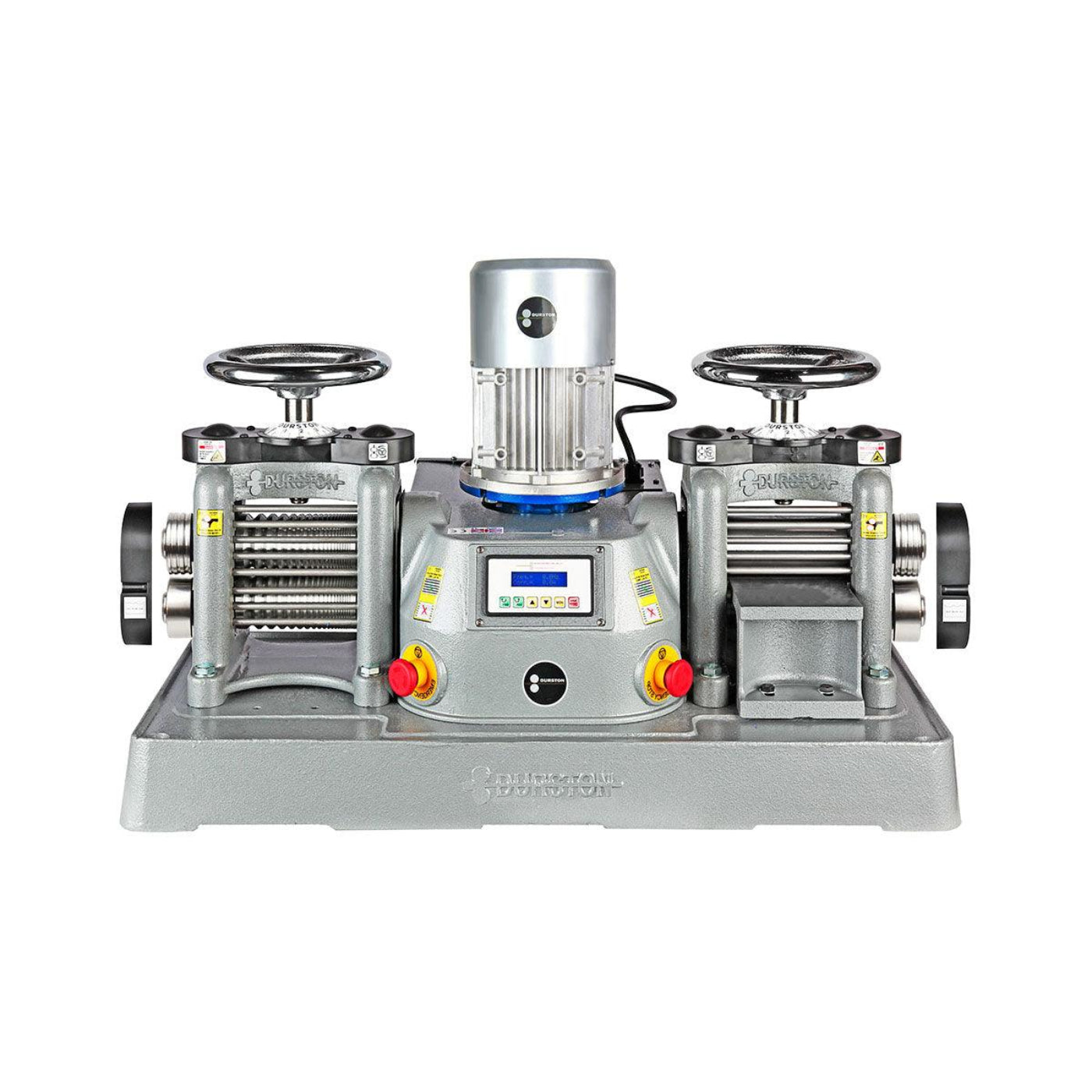

Durston 1074 Power Mill-DRM-130 Double Sided-1-1/2HP-110V - 128.139
Double-sided versatility in a compact power mill. The Durston DRM-130 powered rolling mill provides a full 130 mm flat roll on one side and a dedicated 130 mm wire roll on the other. Built on a one-piece cast iron frame with cast iron base and gearbox cover, the DRM series delivers strength, rigidity, and long service life for production shops and schools.
DRM power mills use cast iron bases and gearbox covers for maximum rigidity and pair high-quality steel rolls running in heavy-duty roller bearings with a powerful, near-silent motor and variable-speed epi-cyclic drive.
Features
-
Full 130 mm flat roll plus 130 mm wire roll on a single machine
-
Swedish roll steel hardened to RC 63/64
- Powerful 1.5 HP (1.1 kW) 110 V motor rated for continuous operation
- Digitally controlled variable speed: 5–30 rpm, forward and reverse
- Forward & reverse buttons with incremental speed up/down control
- Emergency stop button, front/rear safety bars, and guarded extension rollers
- Easy-read calibrated roll-gap disc for exact gap measurement
- Maximum operating thickness: 6 mm
- One-piece cast iron frame with cast iron base and gearbox cover
Specifications
| Motor |
1.1 kW (1.5 HP), 110 V |
| Speed Range |
5–30 rpm, forward & reverse |
| Roller Length |
130 mm |
| Roller Diameter |
65 mm |
| Roller Type |
Combination — full 130 mm flat + 130 mm wire |
| Sheet Thickness Capacity |
6 mm |
| Wire Grooves |
19 square sizes, 1 mm – 10 mm |
| Max Wire Capacity |
10 mm |
| Side Extensions |
Right: 4, 3, 2, 1.5 mm "D" grooves; Left: 8, 6, 3.5 mm "D" grooves |
| Overall Dimensions |
32-5/8" × 15-3/8" × 21-1/4" H (830 × 390 × 540 mm) |
| Net Weight |
396 lb (180 kg) |
What our Experts Think
-
High-Power 1.5HP Industrial Performance
The Durston DRM-130 Double Sided Power Mill delivers strong continuous-duty power with a 1.1 kW (1.5 HP) motor, built for demanding workshop production and heavy rolling tasks.
-
True Double-Sided Efficiency
Features a full 130mm flat rolling barrel on one side and a dedicated wire rolling barrel with multiple grooves on the other—eliminating the need for separate machines.
-
Precision Variable Speed Control
Smooth adjustable speed (forward & reverse) allows fine control over rolling pressure and consistency, ideal for both delicate and heavy-gauge metals.
-
Heavy-Duty Cast Iron Construction
Built on a rigid cast iron frame for maximum stability, vibration reduction, and long-term industrial durability under continuous use.
-
Professional Wire & Sheet Versatility
Includes 19 square wire grooves (10mm to 1mm) plus extension rollers for half-round profiles—supporting a wide range of jewellery fabrication needs.
-
Workshop Safety & Control Features
Integrated emergency stops, safety bars, and guarded rollers ensure safer operation in high-output studio environments.
-
Designed for Production Studios
Best suited for professional goldsmiths, manufacturing workshops, and educational institutes needing consistent, high-volume rolling performance.
Q&A
Q: What is the Durston 1074 DRM-130 Double Sided Power Rolling Mill (128.139)?
A: It is a heavy-duty professional powered double-sided rolling mill designed for jewelry manufacturing, featuring a 130mm flat + wire combination system with industrial-grade performance for continuous workshop use.
Q: What makes this rolling mill powerful?
A: It runs on a 1.1kW motor (110V) built for continuous operation, delivering strong, consistent rolling force with variable speed and forward/reverse control.
Q: What can it be used for?
A: It handles sheet metal reduction and wire forming, making it suitable for goldsmiths, silversmiths, and production workshops working with precious and non-ferrous metals.
Q: What materials can it process?
A: It is designed for gold, silver, copper, brass, and other non-ferrous metals, commonly used in jewelry fabrication.
Q: How durable is it?
A: It features a cast iron frame and induction-hardened rollers (up to 64 RC) for long-term precision and resistance to wear in heavy-duty use.
Q: What safety features does it include?
A: It comes with emergency stop buttons, protective guards, and safety bars, ensuring safer operation in workshop environments.
Q: Is it suitable for professional production?
A: Yes, it is built for continuous industrial-level jewelry production, offering high torque, stability, and reliable long-term performance.
Q: What is the main advantage of this model?
A: It combines industrial motor power + dual flat/wire functionality + wide 130mm capacity, making it a full-scale production rolling mill for serious workshops.
Maintenance Tips
-
Clean rollers after every use – Wipe both the 130mm flat and wire grooves to remove metal particles and prevent scoring of the induction-hardened steel (~64 HRC).
-
Apply rust-preventive oil regularly – Use a thin coat (e.g., 3-in-1 oil) on rollers when idle; always clean fully before use to avoid contaminating metal stock.
-
Lubricate gearbox & bearings – Apply lithium-based gear grease periodically to maintain smooth operation of the 1.1 kW continuous-duty motor system.
-
Check safety systems often – Test emergency stops, safety bars, and roller guards to ensure safe high-torque powered operation.
-
Avoid overload stress – Stay within ~6mm maximum sheet thickness and do not force reductions in a single pass to protect rollers and drivetrain.
-
Use only clean, annealed metal – Dirty or hardened material increases roller wear and reduces precision output quality.
-
Keep wire grooves & extensions clean – Remove debris from 19 grooves and side extensions to maintain consistent wire forming accuracy.
-
Ensure rigid mounting – Bolt securely to a heavy-duty stand or bench to handle ~180kg machine weight and eliminate vibration.
-
Store in dry environment – Prevent humidity exposure to avoid corrosion on rollers, gearbox, and cast iron frame.
-
Never touch roller surfaces with bare hands – Skin oils can cause long-term staining and micro-corrosion on precision rolls.
