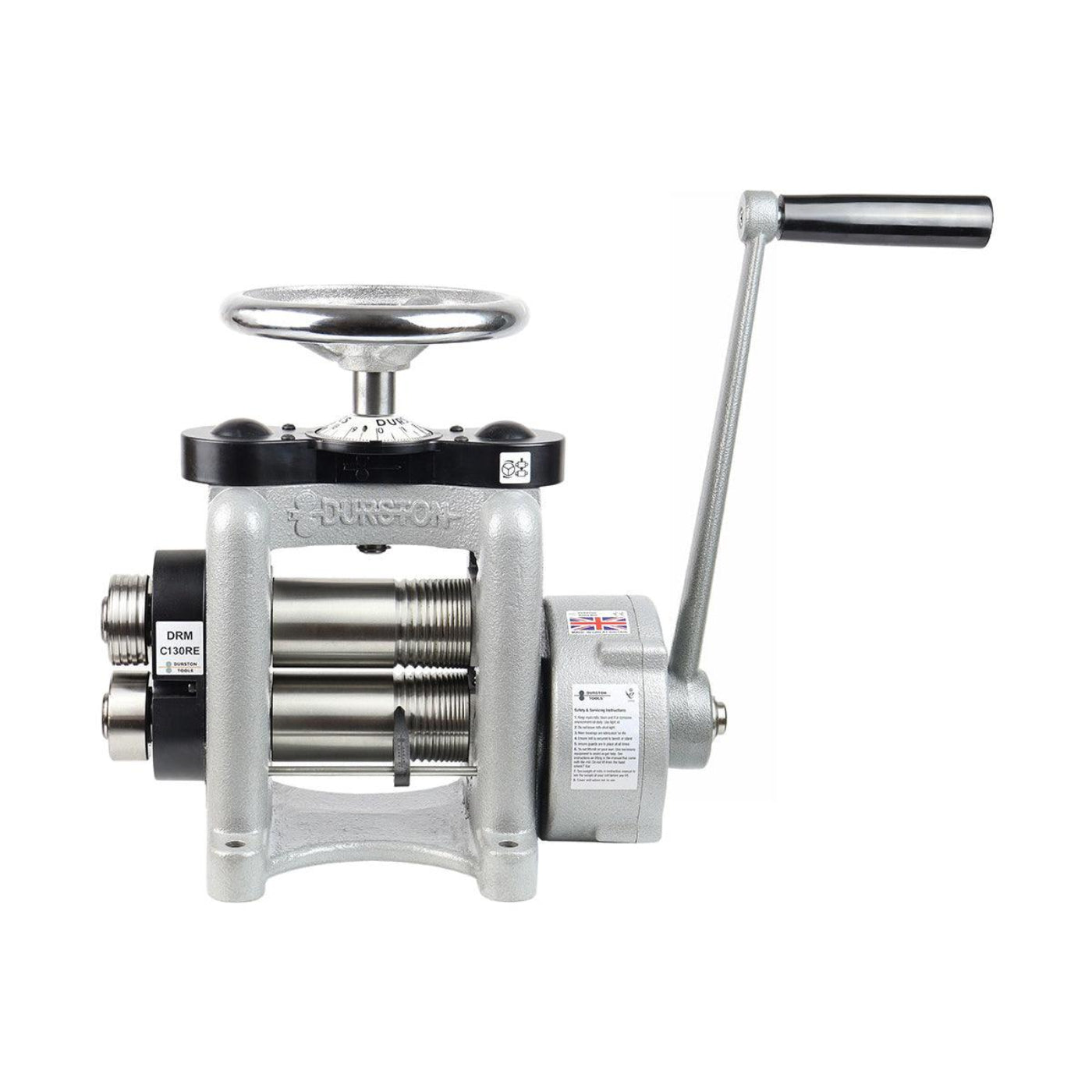

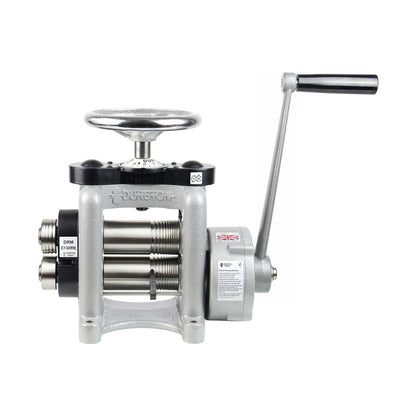

Durston 1021 DRM C130RE Combo 130mm Rolling Mill with Reduction Gear & Extension Rolls - 128.130

Durston 1021 DRM C130RE Combo 130mm Rolling Mill with Reduction Gear & Extension Rolls - 128.130

The Durston DRM C130RE is a professional-grade combination rolling mill engineered for serious jewelers and metalsmiths who demand precision, durability, and long-term value. Part of Durston's acclaimed DRM (Durston Rolling Mill) line — widely recognized as the finest rolling mills ever made — this 130mm combination flat and wire mill is built to exacting standards in Great Britain and delivers exceptional performance across a full range of metalworking applications.

The C130RE features a 5-to-1 reduction gear that makes large passes significantly easier, reducing operator fatigue and improving control over thick stock. Eleven wire grooves ranging from 1mm to 8mm accommodate a broad spectrum of wire gauges, while four half-round side extension rolls (4mm, 3mm, 2mm, and 1.5mm) enable efficient rolling of half-round shanks without additional tooling. Self-lubricating, maintenance-free bearings and hardened helical drive gears with a special drive form ensure smooth, reliable operation over years of heavy use. Calibrated dials on both top wheels with pointer indicators provide precise, easy-to-read gap measurement for consistent, repeatable results.

Features

• Combination flat and wire rolling mill in a single unit
• 5-to-1 reduction gearbox for easier large-pass rolling
• 11 wire grooves ranging from 1mm to 8mm
• Four half-round side extension rolls: 4mm, 3mm, 2mm, and 1.5mm
• Self-lubricating, maintenance-free bearings
• Hardened helical drive gears with special form for maximum drive
• Calibrated dials on both top wheels with pointer for precise gap measurement
• Made in Great Britain

Specifications

What our Experts Think

• Professional 130mm Combination Rolling Power
  The Durston DRM C130RE delivers a 130mm wide rolling surface with both flat and wire capability, making it a complete solution for sheet reduction, wire forming, and profile work in one machine.
• 5:1 Reduction Gear Advantage
  Built-in reduction gearbox significantly reduces hand effort while improving control and precision—especially useful when working with thicker or harder metals.
• Full Combo Wire + Sheet Functionality
  Includes 11 square wire grooves (approx. 8mm–1mm range) plus a 75mm flat rolling zone, allowing seamless transition between sheet and wire production.
• Extension Roll System for Advanced Profiles
  “E” configuration adds 4 half-round extension grooves (4mm to 1.5mm), expanding forming options without needing additional tools.
• Heavy-Duty Durston Engineering
  Cast iron body with induction-hardened rolls ensures long-term durability, stability, and consistent pressure distribution under professional use.
• Workshop-Ready Versatility
  Designed for jewellers who need one machine to handle multiple tasks—reducing dependency on separate mills and improving workflow efficiency.
• Production-Focused Efficiency Upgrade
  Ideal for studios aiming to increase output while maintaining precision, repeatability, and consistent metal thickness across batches.

Q&A

Q: What is the Durston 1021 DRM C130RE Combo Rolling Mill (128.130)?
A: It is a professional 130mm combination rolling mill used for jewelry making, designed for sheet rolling, wire rolling, and half-round forming in one machine.

Q: What is it used for?
A: It is used to reduce metal thickness, shape wire, and create consistent metal profiles for goldsmithing, silversmithing, and jewelry production.

Q: What materials can it handle?
A: It works with gold, silver, copper, brass, and other non-ferrous metals commonly used in jewelry fabrication.

Q: Is it manual or powered?
A: It is a manual rolling mill with a reduction gearbox, meaning it reduces effort but is still hand-operated.

Q: What is the main benefit of this model?
A: It combines flat rolling, wire rolling, and side profile forming in one durable cast-iron machine, making it a versatile all-in-one workshop tool for professional jewelers.

Maintenance Tips

• Clean rollers after every use – Wipe the 130mm hardened rolls (flat + 11 wire grooves + extension grooves) to remove metal dust and prevent scoring on the RC64 induction-hardened surface.
• Protect with light oil film – Apply a thin layer of 3-in-1 oil when idle; always clean thoroughly before rolling to avoid contaminating metal stock or grooves.
• Lubricate gearbox regularly – The 5:1 reduction gearbox is self-lubricating but still benefits from periodic lithium grease to maintain smooth torque transfer and reduce wear.
• Keep wire grooves & side extensions clean – Clear debris from 11 square grooves and 4 half-round extension profiles to maintain precise wire shaping and avoid uneven rolling.
• Avoid overloading capacity – Stay within ~6mm sheet and ~8mm wire limits; reduce thickness gradually instead of forcing heavy single-pass reductions.
• Use only clean, annealed metal – Dirty or work-hardened material increases roller wear and reduces surface quality.
• Check roller alignment periodically – Ensure even pressure across the full 130mm width to prevent tapering and long-term bearing stress.
• Secure mounting is essential – Bolt firmly to a heavy, stable bench or stand; the cast iron body relies on rigidity for precision rolling.
• Store in dry conditions – Prevent humidity exposure to avoid corrosion on rollers, gears, and cast frame surfaces.
• Never touch rollers with bare hands – Skin oils can cause long-term spotting and micro-corrosion on precision steel surfaces.
