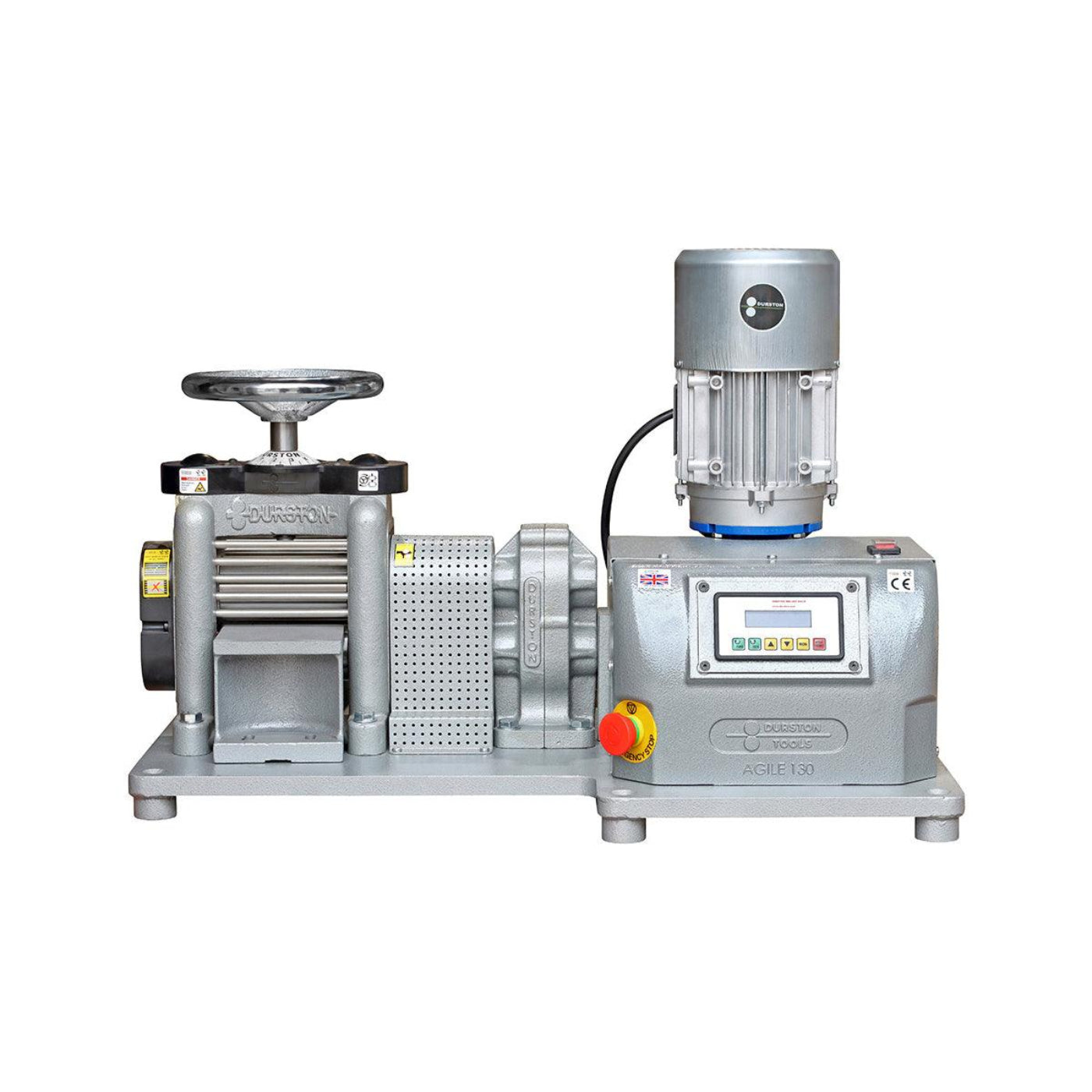

The Durston TUI C130 is a powered combination rolling mill engineered for professional jewelers and metalsmiths who need controlled, consistent reduction of thicker sheet stock. Built with the same mills, rolls, and casting gears found in Durston's Core DRM range, the TUI series achieves cost efficiencies through steel main guard and plate construction and a single central emergency stop — without sacrificing output quality or long-term durability. The result is a production-capable mill that delivers precision and repeatability at every pass.

Features

• 10 mm roll gap accommodates thicker flat material up to 130 mm (5.12") wide
• Powered drive with digitally controlled variable speed: 5–20 RPM
• Forward & reverse operation for precise approach passes and finish control
• Two sets of side extension rolls (behind guards) for half-round profiles: 4, 3, 2, and 1.5 mm
• 1.1 kW motor delivers consistent power throughout the mill's service life
• Steel guarding with central emergency stop — the defining safety and cost-efficiency feature of the TUI range

Specifications

What our Experts Think

Q&A

Maintenance Tips

• Clean rollers daily: Remove metal dust and particles from flat and wire grooves to prevent scoring and maintain precision rolling.
• Lubricate drive system: Regularly oil gears, bearings, and adjustment points for smooth, consistent powered operation.
• Protect roll surfaces: Only use clean, annealed metal to avoid damaging the 130mm rolls and extension grooves.
• Use gradual reductions: Take light, staged passes to reduce stress on the 1.1kW motor and gear system.
• Check alignment: Ensure rollers remain parallel for even sheet thickness and accurate wire profiling.
• Keep extension grooves clear: Clean half-round channels (4, 3, 2, 1.5mm) to avoid deformation and uneven wire shaping.
• Monitor motor ventilation: Keep cooling areas free from dust buildup for stable variable-speed performance.
• Store in dry conditions: Apply light anti-corrosion oil if idle for long periods to prevent rust on rolls and gears.
