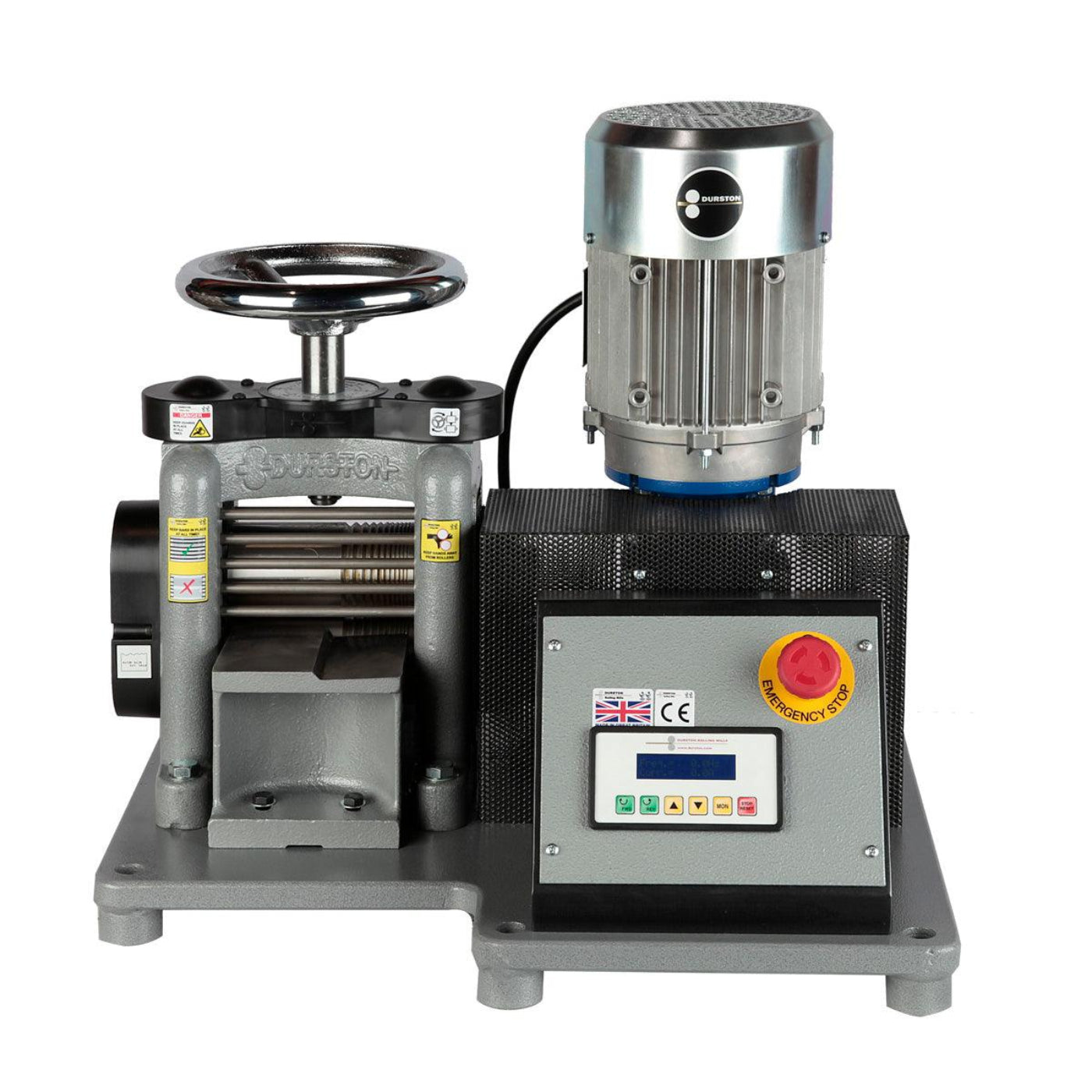

Durston 1087 Power TUI C130 Single Sided 130mm Combo Flat & Wire Rolling Mill 110V - 128.141

Durston 1087 Power TUI C130 Single Sided 130mm Combo Flat & Wire Rolling Mill 110V - 128.141

The Durston TUI C130 Power Rolling Mill delivers Durston's proven rolling performance at a lower cost by using a steel base and perforated aluminum gearbox cover in place of the DRM line's cast iron base and cover. All other core components are identical to the DRM series — motor, gearbox, and one-piece cast iron mill frame with high-quality steel rolls seated in heavy-duty roller bearings — making the TUI an excellent choice for busy production shops and school environments alike.

This single-sided combination mill handles both flat sheet rolling and wire rolling in one unit, with side extension rolls for half-round profiles. Forward/reverse variable speed control, an emergency stop button, and front and rear safety bars provide confident, controlled operation.

Features

• Single-sided combination design — 130 mm flat rolling surface plus wire grooves on the same roll set
• Side extension rolls with protective guards for half-round profiles in 4, 3, 2, and 1.5 mm sizes
• Forward and reverse variable speed control for precise material handling
• Emergency stop button plus front and rear safety bars for operator protection
• Metric and inch adjustable flywheels for accurate gap setting
• Steel base and aluminum gearbox cover reduce cost while retaining full DRM-grade rolling components
• 1.1 kW (1.5 HP) motor and shared DRM gearbox deliver consistent, repeatable results

Specifications

What our Experts Think

Q&A

Q: What is the Durston 1087 Power TUI C130 Single Sided Rolling Mill (128.141)?
A: It is a professional powered combination rolling mill designed for jewelry production, featuring a 130mm roller width with both flat rolling and wire rolling capability in a single-sided powered system.

Q: What can it be used for?
A: It is built for sheet metal reduction, wire shaping, and light forming work, making it ideal for goldsmiths, silversmiths, and workshop production environments.

Q: Is it powered or manual?
A: It is a powered rolling mill with a variable-speed motor (typically 1.1kW, 110V), allowing controlled and consistent rolling without manual cranking.

Q: What materials can it handle?
A: Suitable for gold, silver, copper, brass, and other non-ferrous metals commonly used in jewelry manufacturing.

Q: What is the advantage of the TUI C130 design?
A: The TUI series provides Durston-grade performance at a lower cost, using a steel-based structure while retaining key DRM components like rolls and gearing.

Q: Is it suitable for professional use?
A: Yes, it is designed for continuous workshop operation, offering strong torque, variable speed control, and reliable precision for production work.

Q: What is the main benefit of this model?
A: It combines flat + wire rolling in one powered unit, giving efficiency, speed, and consistency for jewelry makers who want a compact production solution.

Maintenance Tips

• Clean rollers after every use – Wipe the 130mm combination rolls (flat + wire grooves + side extensions) to remove metal dust and prevent scoring on the 64 HRC hardened surface.
• Protect with light rust oil – Apply a thin layer of 3-in-1 oil when not in use; always clean fully before rolling to avoid contaminating metal stock.
• Keep wire grooves & extensions clear – Regularly clean the 11 wire grooves (1–8mm range) and half-round side extensions (4–1.5mm) to maintain accuracy and smooth feeding.
• Lubricate gearbox & drive system – Use standard lithium-based grease on gears to ensure smooth variable-speed operation (5–20 RPM) and reduce motor strain.
• Avoid overloading – Stay within ~6mm sheet thickness; reduce in gradual passes to protect rollers, gears, and motor longevity.
• Use clean, annealed metal only – Dirty or hardened stock increases roller wear and reduces finish quality.
• Check alignment regularly – Ensure even pressure across the full 130mm width to prevent uneven wear and maintain precision rolling.
• Secure mounting is essential – Bolt firmly to a stable bench to handle heavy operating torque and prevent vibration issues.
• Store in dry conditions – Prevent humidity exposure to avoid corrosion on rollers and internal components.
• Never touch rollers with bare hands – Skin oils can leave marks on precision steel over time; handle with clean gloves or tools.
