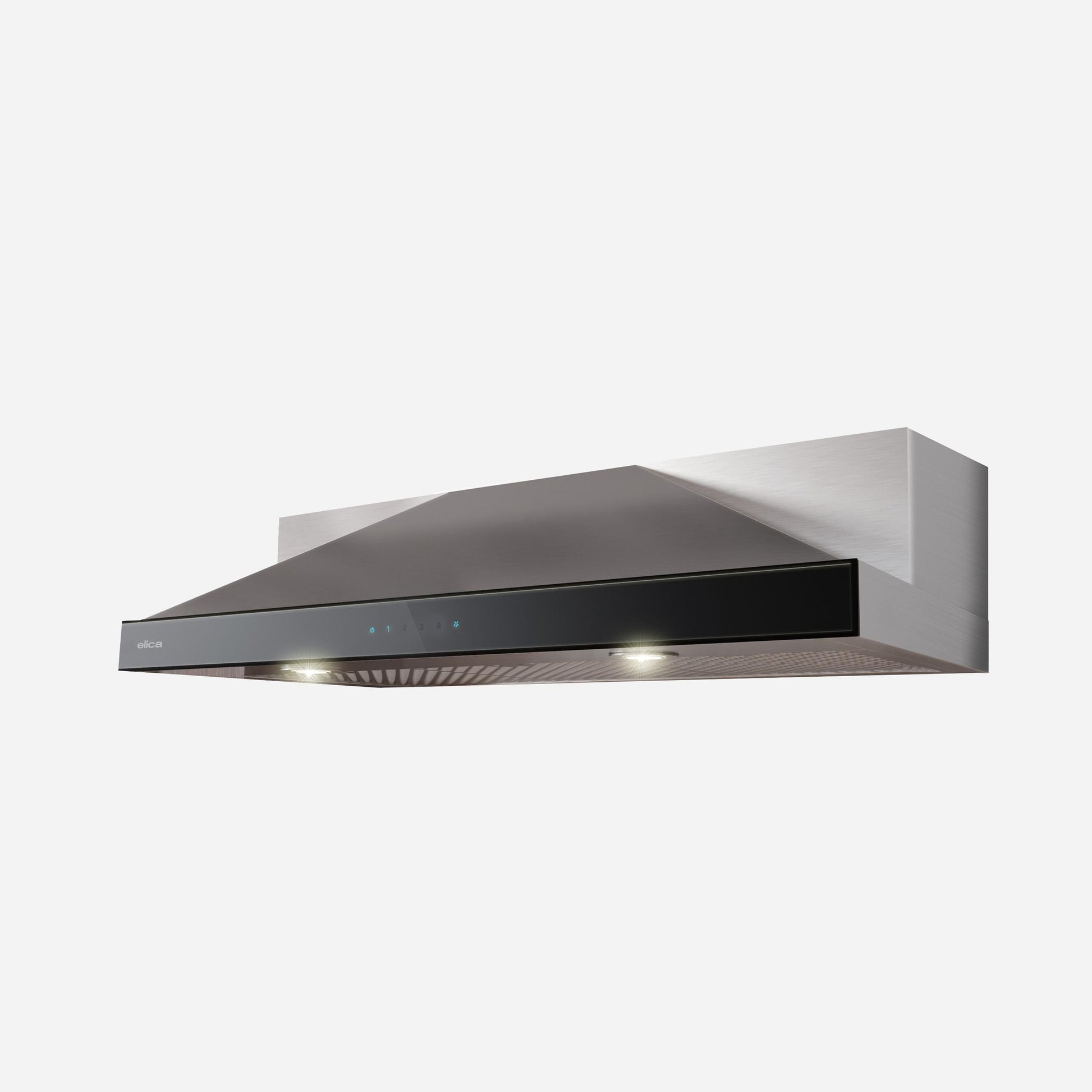

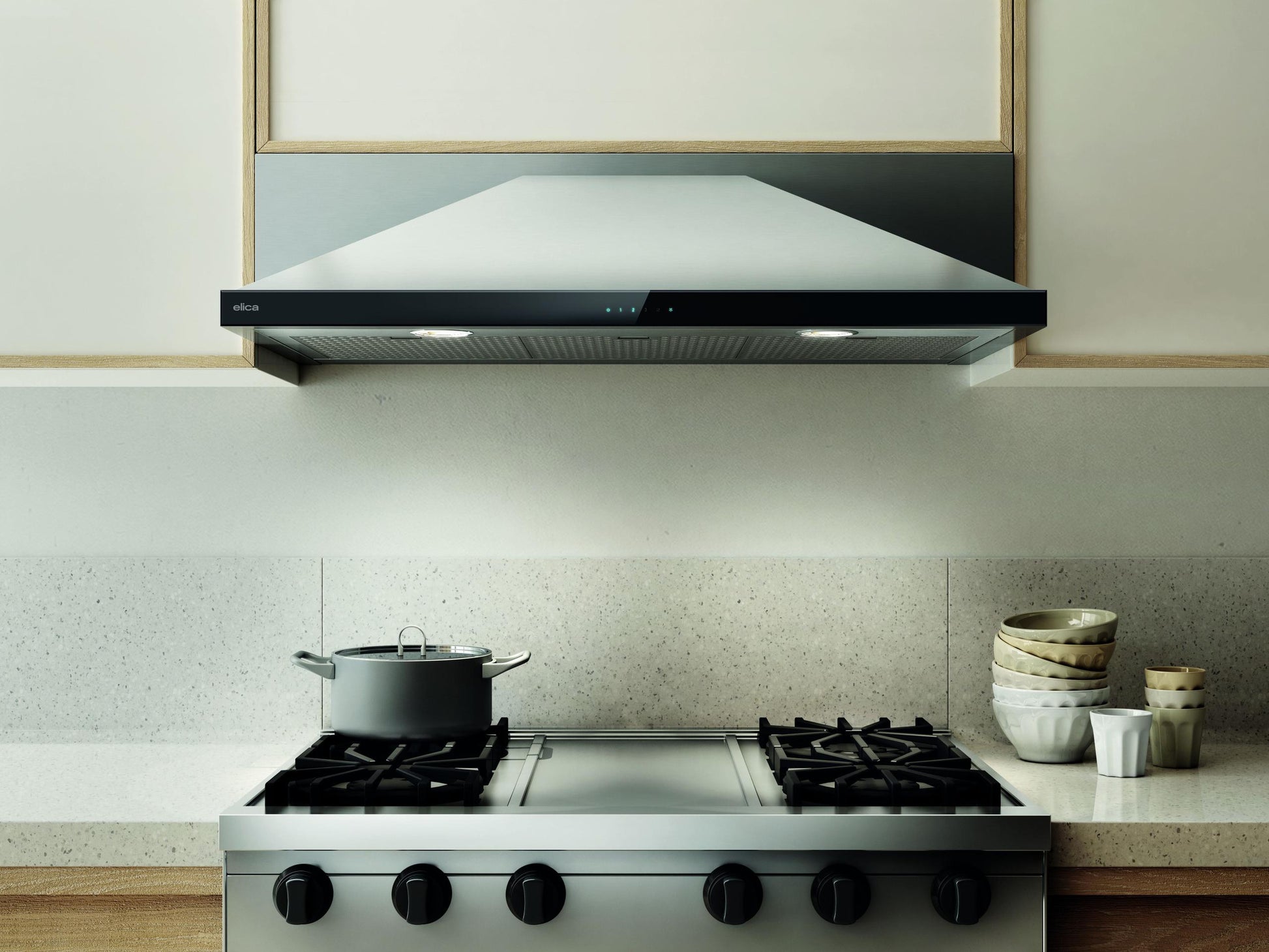

ELICA EMD536S3 MODENA Undercabinet Range Hood 36" wide - 600CFM in Stainless Steel On Black - EMD536S3
Modena off ers a classic designer chimney appearance for under-cabinet installations, with a striking 9" high pyramid shape. Modena also provides high-end features not commonly found in under-cabinet hoods, including a 600 CFM blower, dimmable LED lighting, stainless steel micro hole filters, and easy-to-use glass capacitive touch controls for convenience and safety. Available in 30" and 36" widths, and designed for standard ducted installation, Modena can also be installed as a recirculating system using the optional kit. Its design versatility suits almost any kitchen.
What our Experts Think
-
Strong Yet Quiet Ventilation
-
Delivers up to 600 CFM with 3-speed internal + boost blower for flexible airflow.
-
Noise ranges from 1.7 to 6.8 sones, thanks to Elica’s Hush System for quiet operation.
-
Stylish & Functional Design
-
Stainless steel combined with black tempered glass for a sleek, modern look.
-
9″-high pyramid shape adds a designer touch in an undercabinet format.
-
Precise & Smart Controls
-
Capacitive glass touch controls glow softly when activated.
-
CFM Reduction System (CRS) allows limiting blower output to comply with local codes.
-
High-Quality Illumination
-
Two dimmable premium LED lights (4000 K) provide bright or ambient lighting.
-
Adjustable brightness via touch controls for both cooking and relaxing ambiance.
-
Grease Filtration & Maintenance
-
Stainless-steel micro-hole filters are dishwasher-safe for easy cleaning.
-
Designed for efficient grease capture without reducing airflow.
-
Flexible Installation Options
-
Convertible for ducted (3¼″ × 10″ or 6″ round) or recirculating setups (recirculation kit sold separately).
-
Fits standard under-cabinet heights of 9¾″.
-
Safety Feature
-
Heat Guard automatically adjusts blower speed when detecting high heat, protecting cabinetry.
-
Reliability
-
Comes with a 2-year parts & in-home labor warranty, extendable to 3 years with registration.
-
Things to Consider
-
Recirculation requires a separate kit if ducting is unavailable.
-
High CFM and boost mode may require make-up air in tightly sealed homes.
Q&A
Q: What is the Elica EMD536S3 Modena Range Hood?
A: A 36″ under-cabinet hood with stainless steel and black-glass design, offering strong ventilation and modern style.
Q: How powerful is it?
A: Delivers up to 600 CFM across 3 speeds plus booster mode.
Q: How is it controlled?
A: Glass capacitive touch controls with a sleek LCD interface.
Q: What lighting does it have?
A: Two dimmable 4000 K LED lights.
Q: What filters are included?
A: Dishwasher-safe stainless-steel micro-hole filters.
Q: How loud is it?
A: Noise ranges from approximately 1.3 to 6.8 sones, featuring a Hush System for quieter operation.
Q: Can it be installed ducted or ductless?
A: Yes, it supports both ducted (top or rear) and recirculating installation with an optional kit.
Q: Does it have safety features?
A: Heat Guard automatically increases blower speed when temperatures exceed ~158°F.
Q: What are the installation dimensions?
A: 36″ wide × ~19‑5/8″ deep × ~9‑3/4″ high.
Q: What are the electrical specifications?
A: 120 V / 60 Hz, draws ~3.8 A, and consumes up to ~445 W.
Q: What warranty is included?
A: 2 years parts and in-home labor, with a 3rd year available upon registration.
Q: Why choose this model?
A: Combines strong airflow, quiet operation, elegant black-glass and stainless design, and flexible installation for modern kitchens.
Maintenance Tips
-
Clean the Filters Monthly: Remove and wash the baffle or mesh filters in warm, soapy water (or run through dishwasher) to preserve strong airflow.
-
Wipe Exterior Regularly: Use a soft microfiber cloth with a mild stainless-steel cleaner; always follow the grain to avoid scratches.
-
Inspect the Fan Housing: Every 3–6 months, open the hood and check for grease buildup inside the blower compartment; clean as needed to maintain quiet, efficient operation.
-
Check Vent Ducting: Ensure the ductwork behind the hood is free from grease, dust, or obstructions so the full 600 CFM capacity isn’t compromised.
-
Maintain Lighting: Wipe down light covers to remove grease, and replace bulbs promptly to keep optimal visibility.
-
Tighten Fasteners: Periodically check and tighten mounting screws or brackets to reduce vibration and noise.
