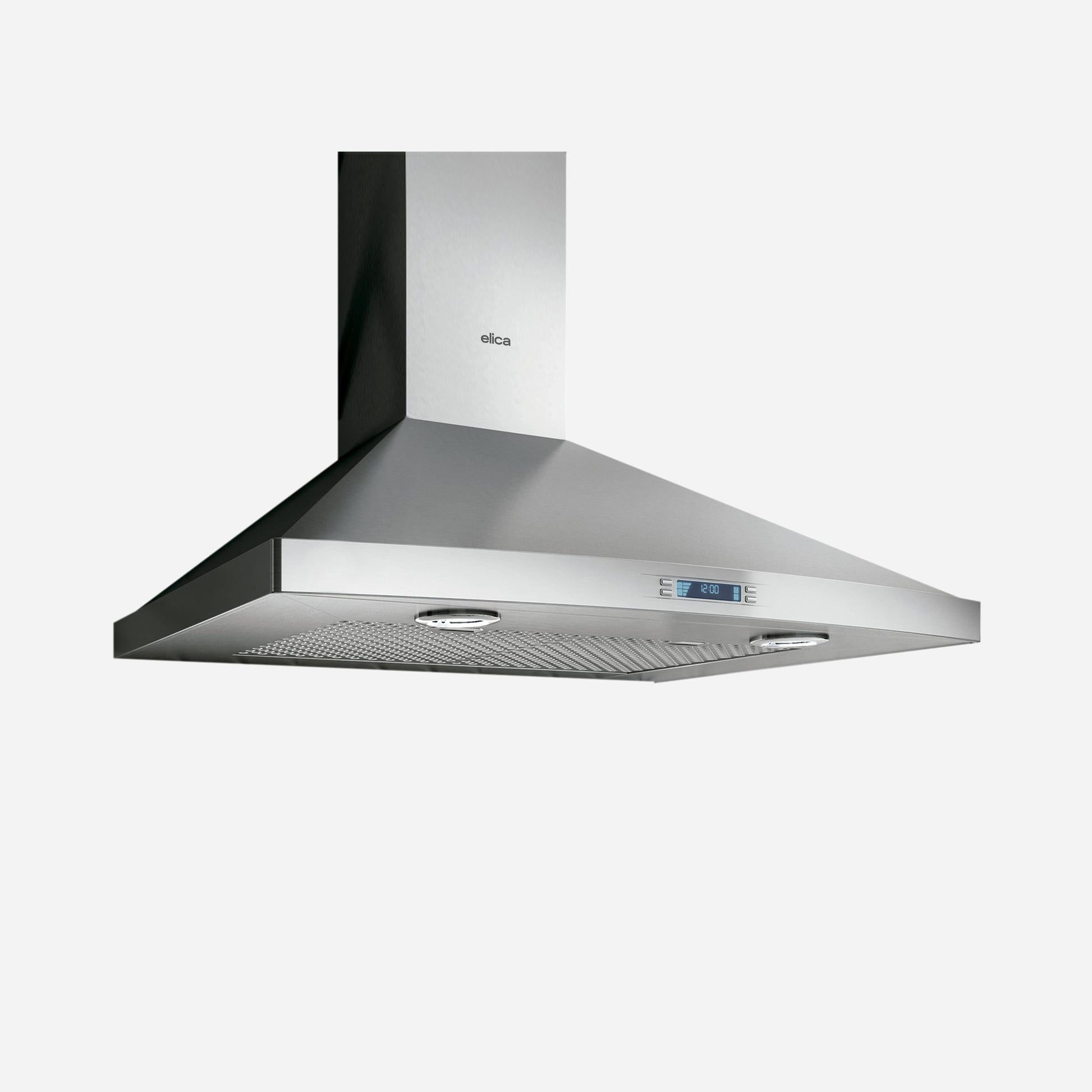

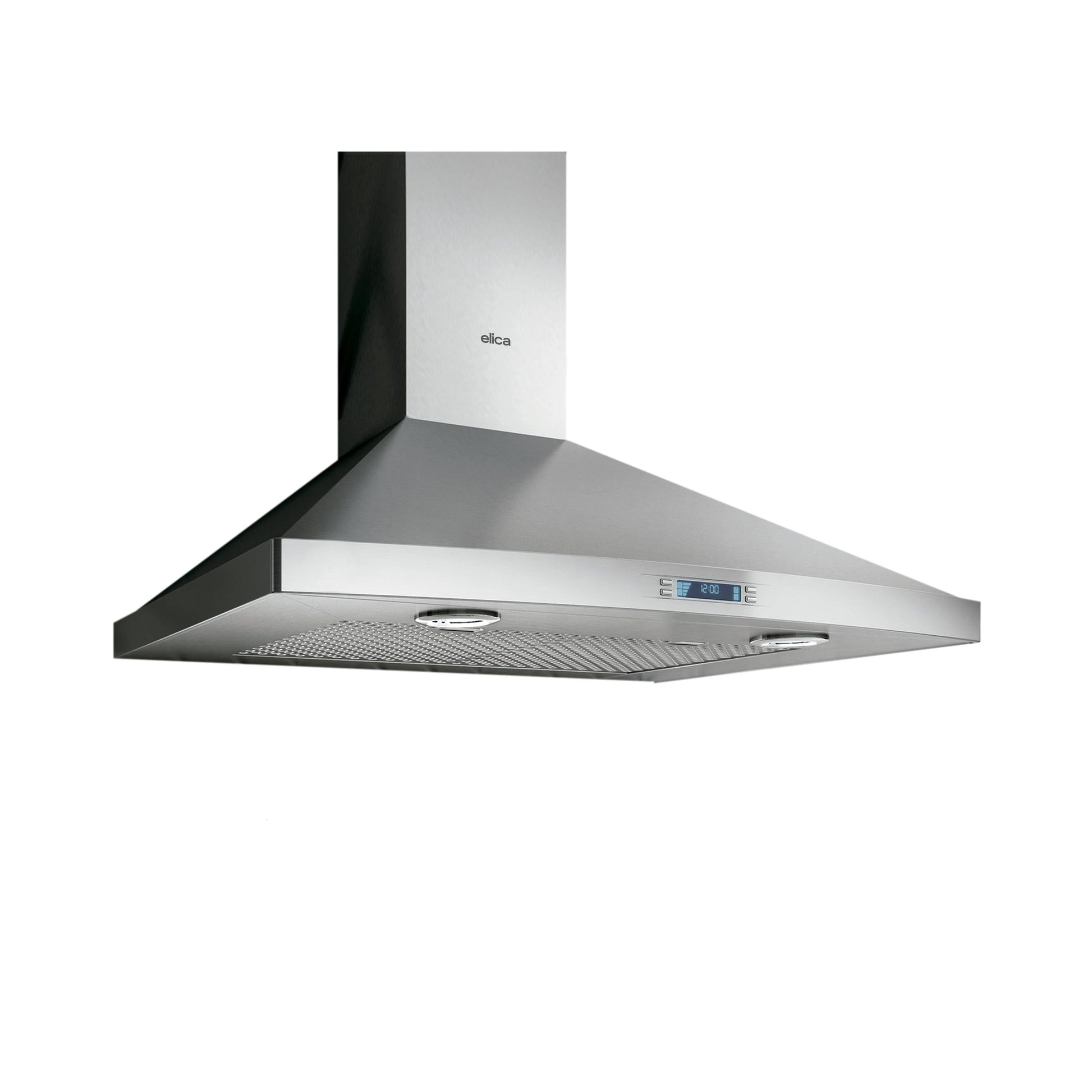

ELICA EPL630S2 PILATO Wall Mount Range Hood 30" wide - 600CFM in Stainless Steel - EPL630S2
The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement.
Available in 30 or 36 widths, Pilato features include a powerful 600 CFM blower, LED lighting with 2 light intensities, dishwasher-safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety.
Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
What our Experts Think
-
Powerful 600 CFM Ventilation
Handles heavy cooking with three-speed + booster settings while maintaining quiet operation.
-
Flexible Installation
Supports both ducted and recirculating setups, adaptable to a variety of kitchen layouts.
-
Easy-to-Maintain Filters
Dishwasher-safe stainless steel microhole filters reduce grease buildup and simplify cleaning.
-
Smart Airflow Control
Adjustable CFM reduction lets you fine-tune airflow to meet kitchen needs or local code requirements.
-
Energy-Efficient LED Lighting
Two dimmable LEDs provide bright, long-lasting illumination over the cooktop.
-
Stylish Stainless Steel Design
Rounded front and sloping lines deliver a sleek, modern look that complements any kitchen.
-
Intuitive Controls
Electronic control panel allows easy adjustment of fan speed, lighting, and booster mode.
Q&A
Q: What is the ELICA EPL630S2 Pilato?
A: A 30" wall-mount range hood in stainless steel with a 600 CFM internal blower, designed for modern kitchens.
Q: How strong is the ventilation?
A: Up to 600 CFM across 3 speeds plus boost, efficiently removing smoke, grease, and odors.
Q: How loud is it?
A: Noise ranges from approximately 1.7 to 6.8 sones, featuring a Hush system to reduce sound.
Q: What lighting does it provide?
A: Two dimmable LED lights (6.5 W each, 3000 K) for bright, energy-efficient task lighting.
Q: What type of filters does it use?
A: Removable stainless-steel micro-hole grease filters, dishwasher-safe for easy cleaning.
Q: Can it be installed ductless?
A: Yes. Supports both ducted (6" round top discharge) and recirculating installation with a carbon filter kit.
Q: What are the dimensions and installation range?
A: 30" W × 21.5" D. Telescopic chimney supports ceiling heights from approximately 7'5" to 9'2" (ducted) or 9'5" (recirculating).
Q: What are the electrical requirements?
A: 120 V, 60 Hz, 450 W.
Q: Any special features?
A: Hush system for quieter operation and CFM Reduction System (CRS) to limit airflow for local building codes.
Maintenance Tips
-
Clean filters bi‑weekly: Remove and wash grease filters with warm, soapy water (or dishwasher top rack if allowed) to sustain airflow.
-
Wipe down the stainless steel: Use a soft microfiber cloth and a gentle stainless cleaner weekly; follow the grain to avoid streaks.
-
Keep vents dust‑free: Lightly vacuum or dust the external vent areas to prevent airflow restriction.
-
Maintain lighting: Replace bulbs with only compatible LEDs; always power off before swapping.
-
Avoid harsh cleaning agents: Skip bleach, ammonia, or abrasive pads—they damage the finish.
-
Use smart ventilation habits: Turn the hood on a couple of minutes before cooking, and keep it running for 10–15 minutes after to clear smoke and odors.
