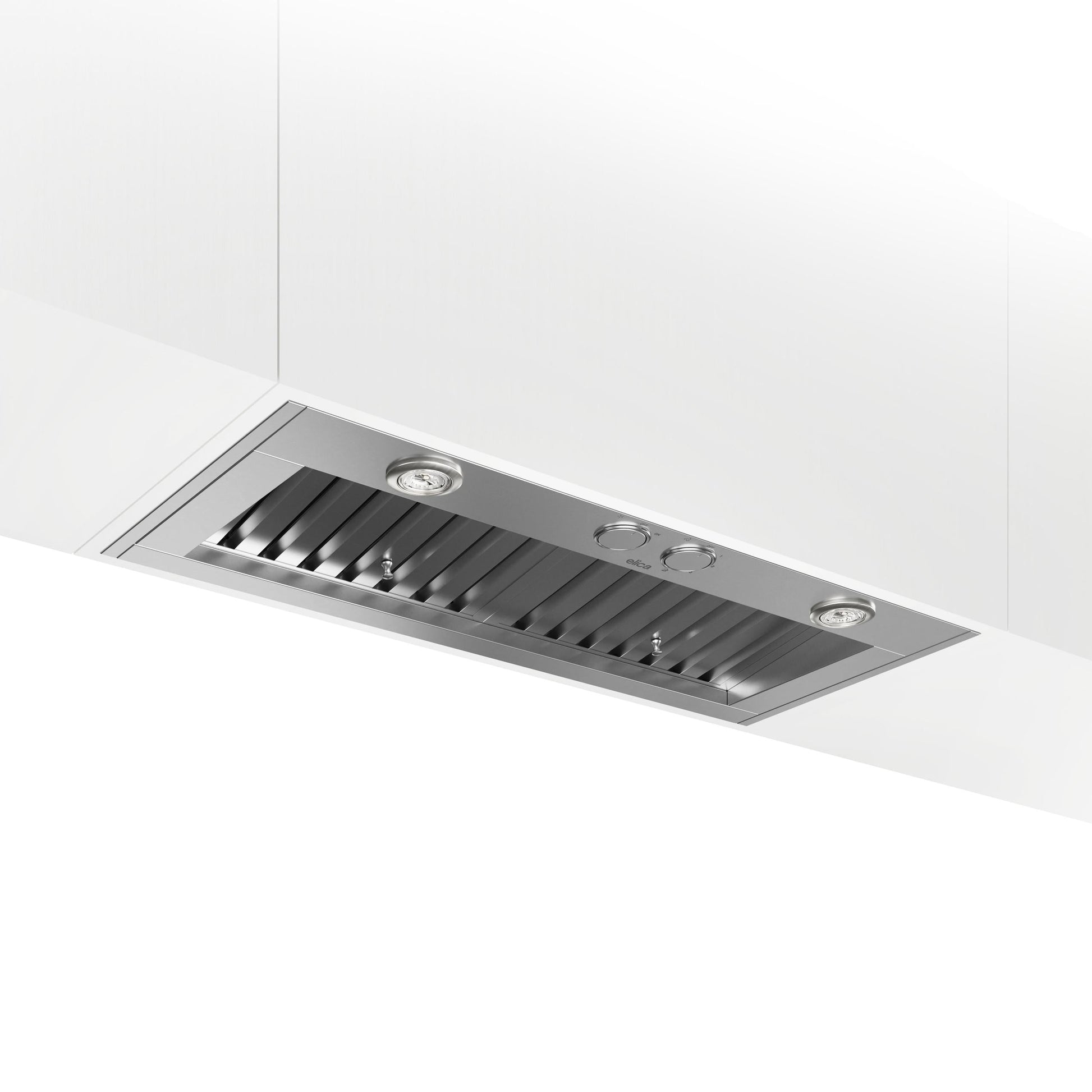

ELICA ESC128SS SCANNO Insert Range Hood 28 1/2" wide - 1200CFM in Stainless Steel - ESC128SS
Scanno available in 28 , 34 & 46 width and only 15 5/ depth to support shallower cabinetry, and offer 4 speed, 600 and 1200 CFM blowers for extraordinary ventilating power. The All-In-One design avoids the need to purchase a stainless-steel liner. Scanno comes equipped with ergonomic rotating knob controls which discreetly recess out of sight when not in use and long-life LED lighting illuminates the cooking surface. *Damp-location approved
What our Experts Think
-
Extreme 1,200 CFM Extraction
Four-speed internal blower handles professional-grade or heavy-duty cooking with ease.
-
Quiet Operation with Hush System
Sound-deadening technology reduces noise by over 35% without sacrificing airflow.
-
Heat-Guard Safety
Automatically ramps up fan speed when internal temperature exceeds ~158°F, protecting cabinetry.
-
Efficient Grease Management
Two stainless-steel baffle filters trap grease effectively and are dishwasher-safe.
-
Sleek, Low-Profile Design
Heavy-gauge stainless steel with flush, retractable rotating knobs delivers a refined, modern look.
-
Bright, Long-Lasting LED Lighting
Two 3000 K LEDs provide warm, efficient illumination over the cooktop.
-
Flexible Installation
Supports both ducted and recirculating modes to fit various kitchen layouts.
-
Slim Insert Profile
Only 15⅝″ deep, making it ideal for standard cabinetry without deep hood space.
Q&A
Q: What is the ELICA ESC128SS Scanno?
A: A 28½″ stainless-steel insert range hood with a high-performance 1,200 CFM internal blower.
Q: How powerful is the fan?
A: Four-speed internal blower with a maximum capacity of 1,200 CFM.
Q: What is the noise level?
A: Noise ranges from approximately 1.7 to 8.5 sones depending on fan speed.
Q: What kind of controls does it use?
A: Fully retractable rotating knobs with blue backlighting.
Q: What lighting is included?
A: Two 7.5 W LED lights at 3000 K for bright, energy-efficient cooktop illumination.
Q: What type of grease filters does it use?
A: Two professional-grade stainless-steel baffle filters with grease collectors; dishwasher-safe.
Q: Does it have any special protective features?
A: Heat Guard automatically increases blower speed if temperature exceeds ~158°F to protect the hood and cabinetry.
Q: How does it manage noise?
A: Hush System reduces sound by up to ~35%.
Q: What are the dimensions?
A: 28½″ W × 15¾″ D × 11⅞″ H.
Q: What ducting options are supported?
A: 10″ round duct for top discharge; supports both ducted and recirculating installation (recirculating kit required).
Q: What are the electrical requirements?
A: 120 V, 60 Hz, draws up to ~913 W.
Q: What construction features does it have?
A: Heavy-gauge, seamless stainless-steel construction for a professional-grade look.
Maintenance Tips
-
Deep clean filters regularly: Because of high airflow, wash the grease baffle filters every 4–6 weeks in hot, soapy water, and rinse thoroughly.
-
Wipe down interior & exterior weekly: Use a soft microfiber cloth with mild detergent; follow the grain of the stainless steel and dry immediately.
-
Avoid abrasive or corrosive cleaners: Do not use steel wool, bleach, ammonia, or acid-based cleaners — they can dull or damage the finish.
-
Maintain motor & ductwork: Periodically inspect and lightly vacuum any accessible motor housing or duct inlet to prevent grease buildup that can reduce CFM.
-
Change lighting safely: Turn off power before replacing lamps, and use only manufacturer‑approved bulbs; handle new lamps with a cloth to avoid fingerprints.
-
Use smart ventilation habits: Run the hood 2–3 minutes before cooking and 10–15 minutes after to clear heavy grease, heat, and odors effectively.
-
Check for performance drops: If airflow seems reduced, inspect filters and ducting for clogging and clean as needed to restore full 1200 CFM efficiency.
