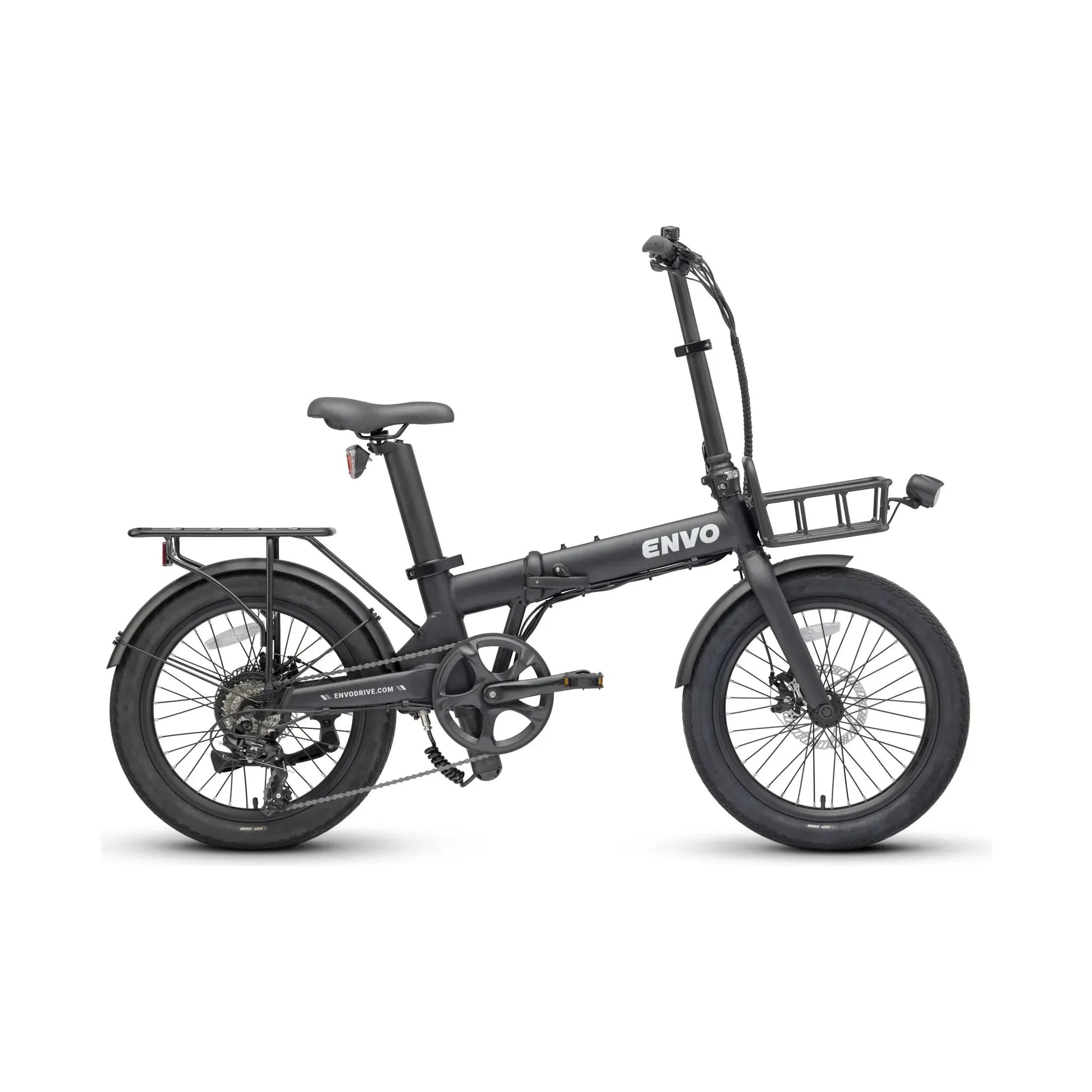

ENVO Lynx 20" Folding

One of the few UL 2849 Certified EBike and UL 2271 Certified Battery in US Market. (see UL Certification Tab below)

ENVO is the first Canadian Company to be awarded UL 2849 Certification (Effective Date: 04 March 2022).

ENVO Lynx is a compact, reliable and powerful foldable electric bike that is perfect for any lifestyle.

Capable of supporting up to 287 lb / 6’4” riders, the Lynx 20 is an excellent choice for anyone who needs a bike that is foldable, lightweight and easy to transport.

Well suited for combined transportation in conjunction with cars, buses, trains, RV's, boats or planes.

• Total Weight – 22.5 kg (48.5 lbs)
• Max Power – 500W
• Max Torque – 60 Nm
• Range – 70 km
• Max Speed – 32 km/h (20MPH)

Store Pickup Only: Please contact us to confirm availability. Once ordered, it will take 4 to 7 days for delivery and ready for pickup at The Bicycle Store-Florham Park, NJ

SPECIFICATIONS

• Weight: 22.5KG
• Battery: 36V 12.8Ah LG/
• Panasonic Motor: Geared Hub Motor, 500W, 60Nm Torque
• Controller: 5 Levels of Assist + Thumb Throttle
• Frame: Custom Drawn T6-Aluminum Foldable e-bike
• Tires: City 20″ x2.35″
• Cassette/Freewheel: 11-28, 7-Speed Freewheel
• Seat post: Adjustable Telescopic 50mm Alloy Battery Container
• Stem: QR Folding, with telescopic height adjustment
• Brakes: Mechanical Disc Brake
• Brake Levers: 3-Finger with cut-off switch
• Color: Black, Red, Blue
• Unfolded Dimensions: 168*59*112 CM (66″ x 23″ x 44″)
• Folded Dimensions: 93*48*70 CM (37″ x 19″ x 28″)
• Charger: CC-CV 42V 2A

Features:

• Folding electric bike 500W geared motor with battery in the seat tube
• 500W Max Power
• Max Speed 32km/h
• Range per single charge (Average): 70km
• Max Torque 60Nm

Suitable For:

• Short commutes and pleasure rides mostly on paved roads
• Riders below 130kg weight and up to 190cm (6’4”ft) tall
• Compact, light-weight foldable frame to carry on boat, car, train and or plane
• Continuous up-hills with 10-15% road grade

DESIGN

VIDEO

SIZING CHART

Seat Tube Length
The seat tube height should be adjusted as such that while pedaling your leg should not be fully extended at the bottom of the pedal, and your leg should not push against your body on the upswing

Top tube of the bicycle and the ground plane: 22″ (55.84 cm)
Note: This is a non-traditional bike so minimum leg length does not necessarily guide the bike sizing. We suggest minimum height of the rider to be 5 feet and maximum height to be 6’2’’

UL Certification

UL 2849 Certification for ENVO Lynx 20" Folding E-Bike (Click to View or Download)

UL 2271 Certification for ENVO Lynx 20" Battery (Click to View or Download)

USER MANUAL

ENVO Lynx 20" Folding E-Bike User Manual (Click to View or Download)
