Epson BrightLink Pro 1410Wi 3LCD Projector V11H480525 - V11H480525

Epson BrightLink Pro 1410Wi 3LCD Projector V11H480525 - V11H480525

With Epson's new meeting room series, one piece of equipment does the job of three or four. This 3,100-lumen model combines the roles of ultra-short-throw projectors, interdraft whiteboards and paper flipcharts in one multi-purpose, integrated system. Simple and straightforward to use, the BrightLink Pro 1410Wi has an intuitive user-friendly on-screen toolbar, and advanced features for flexible presenting.

Connecting the 1410Wi to a computer, users can operate computer software with the interdraft pens in the same way as a mouse, and can also digitally annotate the projection. With up to a 100-inch screen-size, a multi-source video conference and presentation can be displayed in split-screen, without compromising on image size.

Advanced features including Wi-Fi interactivity and dual pen operation, help boost the meeting creativity. The same image can be annotated remotely, with the multi-location function enabling up to four networked projection systems to be connected at the same time.

PC-free interactivity lets users annotate projections from a range of devices, such as an Epson visualiser or a USB memory stick, without connecting to a PC. Smart devices and tablets are also easily connected using the iProjection application.

In whiteboard mode, previous meeting notes can be loaded and revised, or new notes taken. The BrightLink 1410Wi has capacity for up to 50 pages per meeting and user-friendly tools such as 'undo' help rectify mistakes instantly. Notes can be saved or shared via office networks, USB, or email. Compatibility with office printers1, such as the Epson WorkForce Pro series, means notes are easily printed too.

The 1410Wi comes with high security protocols2 for wireless and USB access can be disabled to comply with corporate information security policies.

• 3100 ANSI LUMENS
• 1600 X 1200

What our Experts Think

• Ultra‑Short‑Throw & Interdraft
  Projects a 60″–100″ image from just inches away, minimizing shadows and glare — perfect for small to mid‑size rooms.

• All‑in‑One Collaboration Hub
  Functions as a digital whiteboard with annotation, image insertion, note capture, and the ability to save or share content — ideal for classrooms and meetings.

• Flexible Connectivity
  Supports HDMI, DisplayPort, VGA, USB, LAN, and wireless projection from laptops or mobile devices.

• Sufficient Brightness for Interdraft Spaces
  3,100 lumens (color and white) provides clear images in dim to moderately lit rooms.

• Designed for Multi‑User Collaboration
  Features like split-screen, network projection, multi-PC connection, and dual interdraft-pen support make it suitable for workshops, training sessions, and team meetings.

Q&A

Q: What type of projector is the BrightLink Pro 1410Wi?
A: It’s a WXGA 3LCD ultra‑short‑throw interdraft projector with built‑in interdraft whiteboard functionality, ideal for classrooms, meeting rooms, and collaborative workspaces.

Q: What is its resolution and brightness?
A: Native WXGA resolution (1280 × 800) with 3,100 lumens of both color and white brightness for clear, vivid images in ambient-lit environments.

Q: What image size and throw distance does it support?
A: Projects screen sizes from 60" to 100" diagonal, with an ultra-short throw ratio of approximately 0.27–0.37:1, allowing large images from close placement.

Q: What interactivity and collaboration features does it include?
A: Supports interdraft annotation and whiteboard functions, dual‑pen input for two users simultaneously, split-screen projection from two sources, and saving/sharing of notes and presentations.

Q: What connectivity and input options are offered?

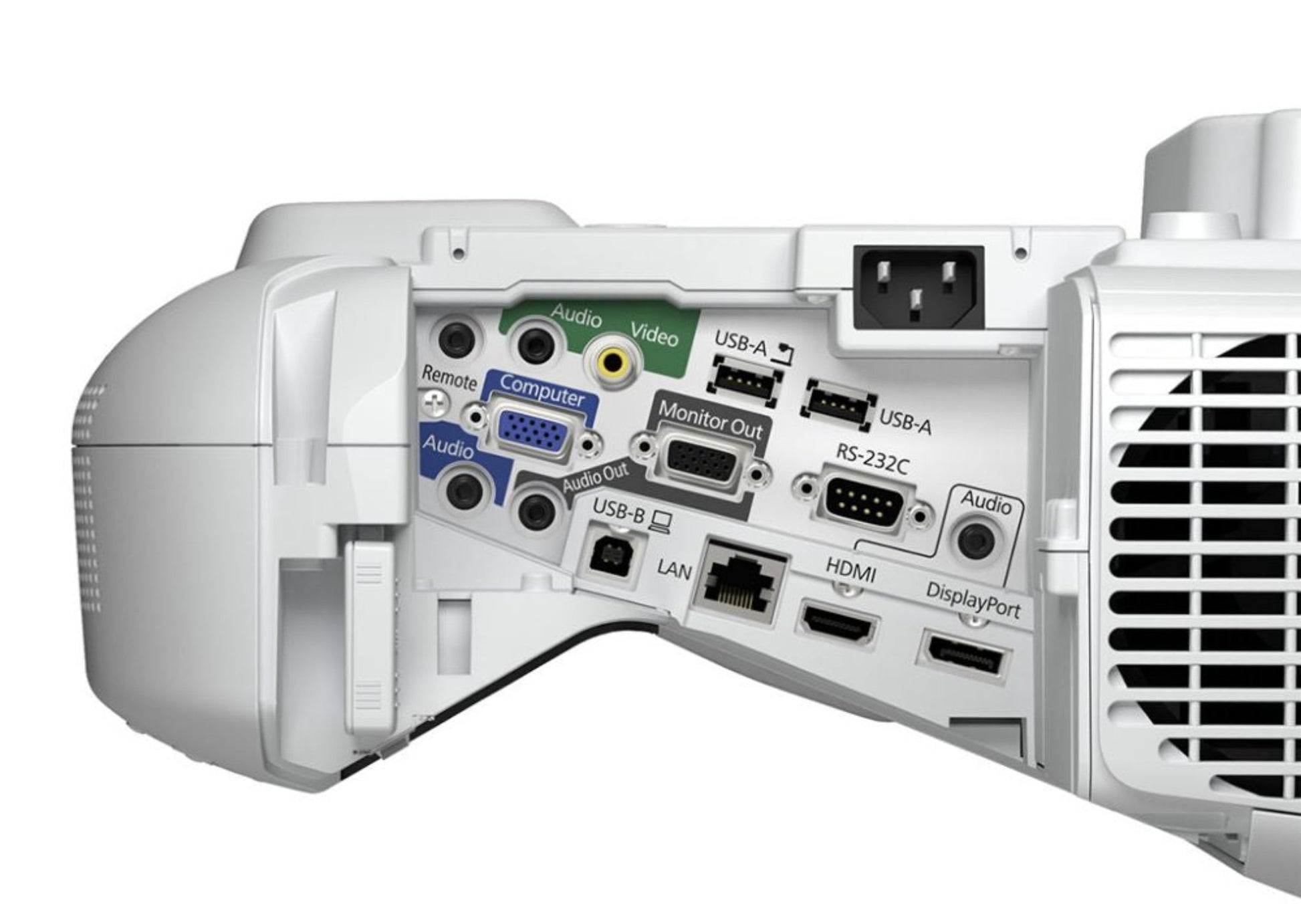

A: Includes wireless LAN, HDMI, DisplayPort, VGA, USB, LAN, and audio I/O, supporting computers, mobile devices, and document cameras.

Q: What kind of installation flexibility does it provide?
A: Can be mounted on a wall, ceiling, or table; ultra-short throw reduces shadows and glare, making it suitable for small rooms and collaborative spaces.

Q: What is the lamp life and maintenance?
A: Uses a 215 W UHE lamp with up to 3,500 hours in normal mode or 5,000 hours in eco mode, minimizing maintenance.

Q: Where is this projector best suited?
A: Ideal for classrooms, training rooms, offices, meeting rooms, and collaborative workspaces that need interdraft projection with easy annotation and sharing.

Maintenance Tips

• Clean the lens gently with a microfiber cloth to maintain crisp, clear images.

• Check and clean air filters regularly to ensure proper airflow and prevent overheating.

• Keep the projector environment dust-free and avoid blocking ventilation openings.

• Allow proper cool-down before powering off to protect internal components and extend lamp life.

• Use genuine Epson lamps and accessories for optimal brightness, color accuracy, and longevity.
