Exact PipeCut & Bevel 360 Pro Series Pipe Cutter & Beveler - 7010418
Cutting & beveling water & sewer pipelines in one process is easily done with the Exact PipeCut + Bevel 360 Pro. Easily choose the bevel length and depth with the machine’s adjustments.
Features
- Cuts Cast iron, Ductile (nodular cast iron), Plastic, Stainless/Inox steel, Steel

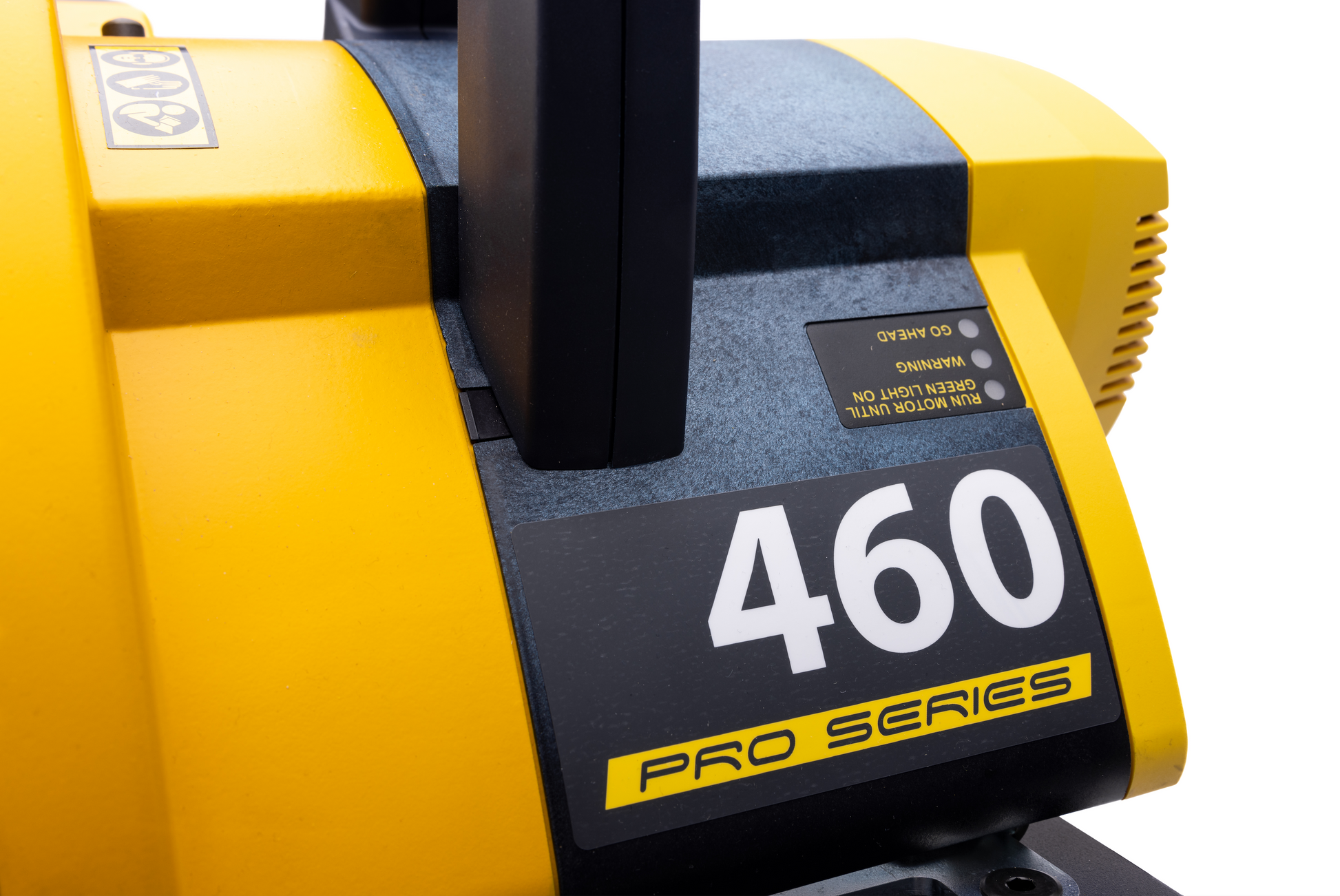

- Electronics protecting the motor from overload with indicator lights
- Laser indicator for precise cutting
- Improved adjustment mechanism for straight cutting
Specifications
| SKU |
7010418 |
| Pipe Cutting Capacity |
3” to 14” (75mm – 360mm) |
| Max Wall Thickness |
0.5" (12mm) Steel / 110V, 0.8” (20mm) Steel / 230V |
| Pipe Material |
Cast iron, Ductile (nodular cast iron), Plastic, Stainless/Inox steel, Steel |
| Blade Diameter |
140mm (5.51”), 165mm (6.5"), 180mm (7.2"), 190mm (7.6") |
| Mounting Bore |
2.44” (62mm) |
| No Load Speed |
I = 1900 r/min, II = 2885 r/min |
| Cutting Point Laser |
Yes |
| Overheat Indicator |
Yes |
| Speed Preselection |
I = Stainless steel, II = Cut+Bevel function and all other materials |
| Weight |
40 lbs |
| Support Load Capacity |
1025 lbs (465 kg) (3 supports) |
Includes
- PipeCut Bag PS
- Exact PipeCut+Bevel 360 Pro Series pipe saw
- Pipe Support Double and 2x Single and tool for changing blade in the bag
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 165 blade and specific blade guard for it
- Diamond Cut Bevel disc 165 mm and specific blade guard for it
What our Experts Think
-
Cut & Bevel in One Step – Saves time by performing both functions simultaneously.
-
Wide Cutting Range – Handles pipes from 4" to 14" in diameter with precision.
-
Clean, Accurate Results – Produces smooth, burr-free cuts and bevels for easy welding prep.
-
Heavy-Duty Performance – Built for industrial use with durable, high-quality construction.
-
Portable & Efficient – Lightweight design for easy transport and on-site operation.
Q&A
Q: What is the Exact PipeCut & Bevel 360 Pro Series?
A: It is a professional-grade electric pipe cutter and beveler designed for simultaneous cutting and beveling of pipes, reducing work time and improving efficiency.
Q: What pipe sizes can it handle?
A: It is suitable for pipes with an outer diameter range of 4.3" to 14" (110mm to 360mm).
Q: What materials can it cut and bevel?
A: It works on steel, stainless steel, cast iron, and plastic pipes.
Q: What are the benefits of cutting and beveling at the same time?
A: It ensures precise, clean edges for easy welding, saving time and reducing the need for additional tools.
Q: Is it easy to operate?
A: Yes, it features an ergonomic design and simple controls for single-person operation.
Q: What industries benefit from this tool?
A: Ideal for welding, plumbing, construction, and industrial maintenance applications.
Q: Does it come with a blade and beveling attachment?
A: Yes, it includes a high-quality cutting blade and beveling attachment for immediate use.
Maintenance Tips
-
Clean After Use – Remove metal shavings and dust to prevent buildup.
-
Inspect Blades & Discs – Replace worn cutting blades and beveling discs for precise results.
-
Lubricate Moving Parts – Apply lubricant to ensure smooth cutting and beveling.
-
Check Power Supply – Ensure proper voltage and inspect cords for damage.
-
Store Properly – Keep in a dry, dust-free area to maintain longevity.
