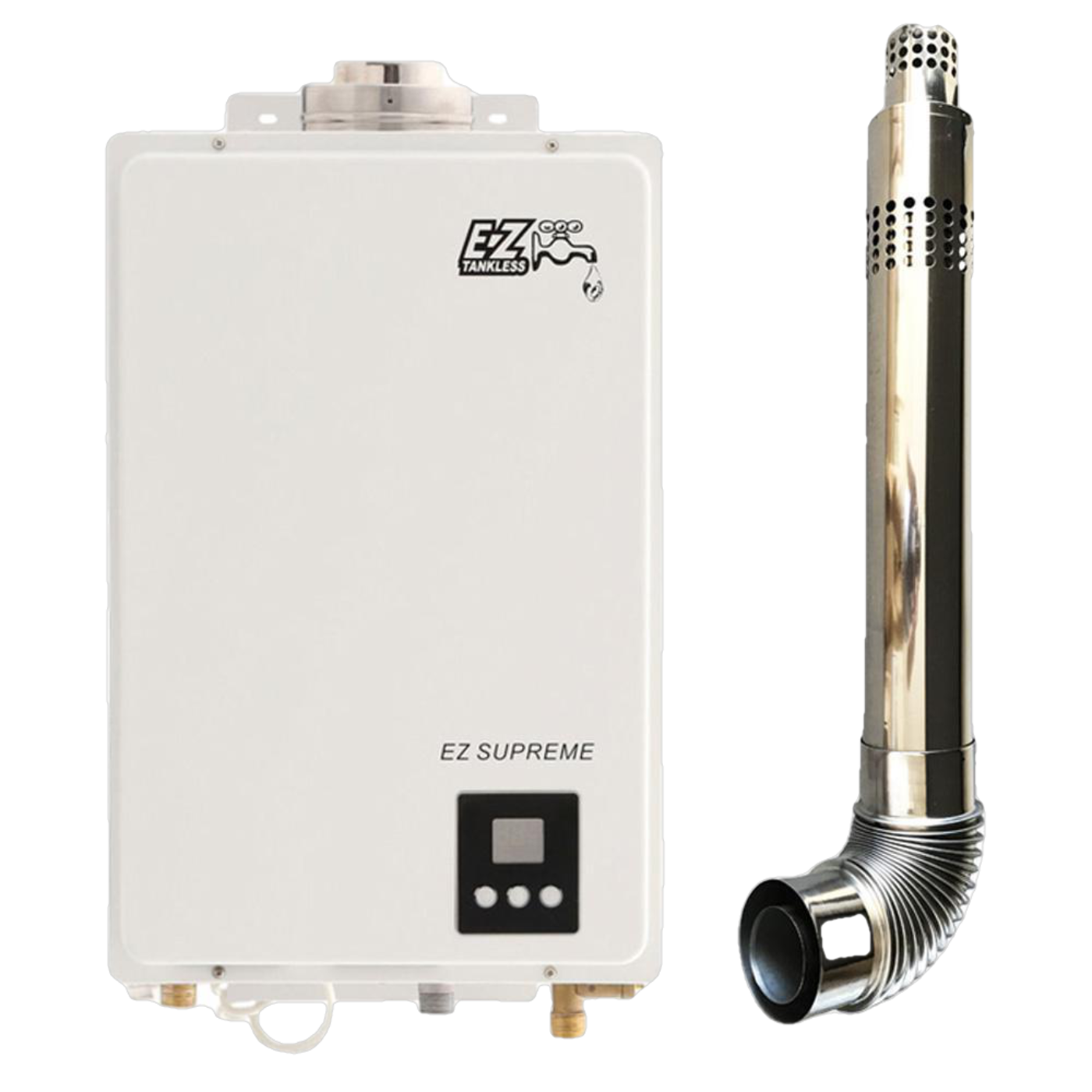

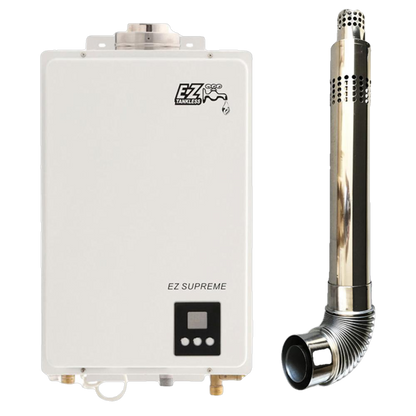

EZ Tankless Indoor Supreme on Demand 8.2 GPM 165000 BTU Natural Gas Tankless Water Heater with Direct Vent Flue Pipe Kit New EZSUPNG
CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.
CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.
The EZ Supreme is a whole home water heater designed for households of 1-3 bathrooms, averaging between 5 -7 GPM. The EZ Supreme is also a self regulating water heater, meaning the heater automatically adjusts the burners according to the water flow to ensure the desired temperature is reached at your tap. Simply set the temperature on the screen and the heater does the rest of the work for you! For instance, the average sink tap runs about 1 gallon per minute while the average shower head runs about 1.7 - 2 gallons per minute. With this in mind, the EZ Supreme can easily handle any two hot water taps running simultaneously and in some cases three!
A 8.2 GPM tankless water heater at a 35° F temperature rise can provide enough hot water for up to a 4 bath home
Propane tankless water heaters offer the less expensive operating cost versus electric water heaters
No stand-by energy loss or recovery time necessary; a tankless water heater heats water as it passes through a heat exchanger eliminating the need to continuously reheat a tank of water
5 year warranty on heat exchanger and 1 year limited warranty on parts
Energy factor is 0.88
Standard concentric vent system (collar, elbow, and 31 in. termination) is free of charge; additional components may be purchased at minimal cost
Due to intake air flowing through the outer chamber, the exterior surfaces of the flue are cooled by the incoming combustion airflow; in addition to a much cooler flue pipe exterior, the intake air is taken from outside the home
Please note: this heater must vent horizontally (typically through an exterior wall); with this simple system, there is no need for a roof rain cap, complicated condensation drain, anti-freeze/back-draft trap door, or room air cubic feet calculations
Low water pressure ignition; the heater can function at water pressure as low as 8 psi; making this unit suitable for users living at high altitude or those using well water with older or less powerful pumping systems
Key-touch water temperature settings and on-off switch with easy to understand advanced technology display
Electronic control system via computer chip is advanced and extremely reliable; this "no pilot light" design is safe and convenient, using automatic ignition to further your energy savings
Aesthetically pleasing and simple-small design features make this unit easy to use and install as well as unobtrusive if located within view of working or living spaces
Electronic freeze protection down to 5F
GAS INLET | G3/4" USA |
---|---|
WATER INLET | G3/4 USA PIPE THREAD |
WATER OUTLET | G3/4 USA PIPE THREAD |
EXHAUST DUCT | Φ120MM (EXTERNAL) ,Φ80MM (INTERNAL |
MODEL | EZSUPNG |
RATED HEAT INPUT | 164,000 BTU |
CAPACITY | 6.4 GPM @ 45 DEGREE RISE (F) |
GAS TYPE | NG |
WATER PRESSURE | 20 - 100 PSI |
MIN. START WATER PRESSURE | 20 PSI |
POWER SUPPLY | 115 V ~ 60HZ |
IGNITION TYPE | WATER CONTROLLED AUTOMATIC PULSE IGNITION |
GAS PRESSURE | 8" WC |
WEIGHT | 49 LBS |
DIMENSIONS | 26.5" x 14.5" x 7.5" |
OVER CURRENT PROTECTION FUSE | 125V, 2A |
1. TANKLESS WATER HEATER
2. VENT KIT
3. USER MANUAL
The EZ Supreme is a whole home water heater designed for households of 1-3 bathrooms, averaging between 5 -7 GPM. The EZ Supreme is also a self regulating water heater, meaning the heater automatically adjusts the burners according to the water flow to ensure the desired temperature is reached at your tap. Simply set the temperature on the screen and the heater does the rest of the work for you! For instance, the average sink tap runs about 1 gallon per minute while the average shower head runs about 1.7 - 2 gallons per minute. With this in mind, the EZ Supreme can easily handle any two hot water taps running simultaneously and in some cases three!
A 8.2 GPM tankless water heater at a 35° F temperature rise can provide enough hot water for up to a 4 bath home
Propane tankless water heaters offer the less expensive operating cost versus electric water heaters
No stand-by energy loss or recovery time necessary; a tankless water heater heats water as it passes through a heat exchanger eliminating the need to continuously reheat a tank of water
5 year warranty on heat exchanger and 1 year limited warranty on parts
Energy factor is 0.88
Standard concentric vent system (collar, elbow, and 31 in. termination) is free of charge; additional components may be purchased at minimal cost
Due to intake air flowing through the outer chamber, the exterior surfaces of the flue are cooled by the incoming combustion airflow; in addition to a much cooler flue pipe exterior, the intake air is taken from outside the home
Please note: this heater must vent horizontally (typically through an exterior wall); with this simple system, there is no need for a roof rain cap, complicated condensation drain, anti-freeze/back-draft trap door, or room air cubic feet calculations
Low water pressure ignition; the heater can function at water pressure as low as 8 psi; making this unit suitable for users living at high altitude or those using well water with older or less powerful pumping systems
Key-touch water temperature settings and on-off switch with easy to understand advanced technology display
Electronic control system via computer chip is advanced and extremely reliable; this "no pilot light" design is safe and convenient, using automatic ignition to further your energy savings
Aesthetically pleasing and simple-small design features make this unit easy to use and install as well as unobtrusive if located within view of working or living spaces
Electronic freeze protection down to 5F
GAS INLET | G3/4" USA |
---|---|
WATER INLET | G3/4 USA PIPE THREAD |
WATER OUTLET | G3/4 USA PIPE THREAD |
EXHAUST DUCT | Φ120MM (EXTERNAL) ,Φ80MM (INTERNAL |
MODEL | EZSUPNG |
RATED HEAT INPUT | 164,000 BTU |
CAPACITY | 6.4 GPM @ 45 DEGREE RISE (F) |
GAS TYPE | NG |
WATER PRESSURE | 20 - 100 PSI |
MIN. START WATER PRESSURE | 20 PSI |
POWER SUPPLY | 115 V ~ 60HZ |
IGNITION TYPE | WATER CONTROLLED AUTOMATIC PULSE IGNITION |
GAS PRESSURE | 8" WC |
WEIGHT | 49 LBS |
DIMENSIONS | 26.5" x 14.5" x 7.5" |
OVER CURRENT PROTECTION FUSE | 125V, 2A |
1. TANKLESS WATER HEATER
2. VENT KIT
3. USER MANUAL
