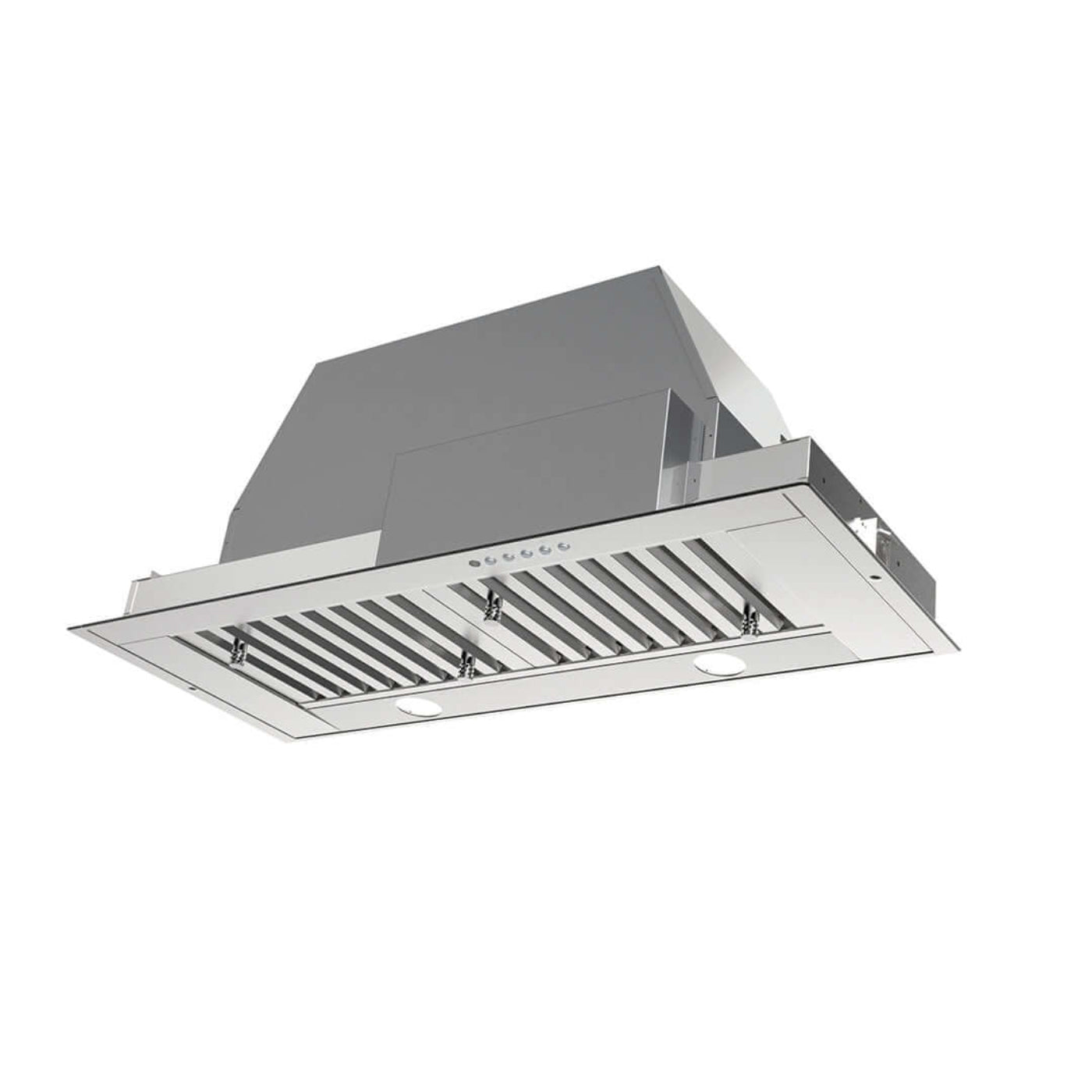

Faber Inca SD Range Hood Insert with Size Options in Stainless Steel - INSD29SSV

Faber Inca SD Range Hood Insert with Size Options in Stainless Steel - INSD29SSV

This timeless, discreet insert hood is made of stainless steel with two modern LED lights to sufficiently light up the cooking surface below. The Inca SD features intensive speed and a powerful pro-motor with restaurant-style baffle filters that eliminate any cooking aroma. With the Easy Snap clip system, this insert hood installs effortlessly.

Features

• 600, 395, 295 CFM PRO motor, all metal housing and impellers


• 4-speed electronic push control with Variable Air Management technology


• LED lights


• Optional ADA-compliant Remote Control


• Vari-duct top or back venting options


• Restaurant Baffle-style grease filters


• Convertible to recirculating

What our Experts Think

• Discreet built-in integration: The Faber INSD29SSV is a 29" insert range hood designed to be hidden inside custom cabinetry, delivering a clean, seamless kitchen look while still providing strong ventilation performance.
• Powerful PRO motor system: Equipped with a variable 295 / 395 / 600 CFM motor, it allows installation-based airflow tuning to match cooking style, kitchen size, and local ventilation requirements.
• Flexible airflow control (VAM): Variable Air Management lets installers cap or adjust CFM output, helping ensure code compliance without sacrificing core performance.
• Restaurant-style filtration: Uses stainless steel baffle filters, designed for high grease capture efficiency and long-term durability, with dishwasher-safe convenience.
• Easy Snap installation system: Spring-clip mounting design simplifies cabinet installation and helps secure a tight, professional fit inside custom millwork.
• Smart timed ventilation: Includes intensive boost mode plus 15-minute delay shut-off, ensuring lingering smoke and odors are fully cleared after cooking.
• LED task lighting: Integrated energy-efficient LED lights provide clear illumination over the cooktop while keeping heat and energy use low.
• Convertible ducting options: Supports both vertical and horizontal venting with 6" round duct compatibility, offering flexibility for different kitchen layouts.
• Real-world takeaway: A serious performance insert hood for custom kitchens, best for users who want hidden design + adjustable high-end airflow control, rather than a visible statement-style hood.

Q&A

Q: What is the Faber INSD29SSV used for?
A: It is a 29-inch built-in range hood insert designed to fit inside custom cabinetry and remove smoke, grease, and odors from cooking surfaces.

Q: What type of hood is it?
A: It is an insert (built-in liner style) hood, meaning it is hidden inside a cabinet while only the underside is visible for a clean, custom kitchen look.

Q: How powerful is it?
A: It delivers Variable Air Management airflow: 295 / 395 / 600 CFM, letting you adjust ventilation based on cooking intensity.

Q: What does Variable Air Management (VAM) do?
A: It allows you to set the maximum airflow level to match cooking needs or local building code limits, improving efficiency and control.

Q: What are its key features?
A:

• 4-speed electronic controls
• LED lighting for cooktop visibility
• Stainless steel baffle filters (dishwasher-safe)
• 15-minute delay shut-off
• “Intensive speed” boost mode for heavy smoke removal

Q: What size duct does it use?
A: It uses a 6-inch round duct, with vertical or horizontal venting options.

Q: Does it include a blower motor?
A: Yes, it includes a PRO motor with metal impellers and housing for higher durability and airflow performance.

Q: Is it ducted or ductless?
A: It is ducted by default but can be converted to recirculating with optional filters.

Q: Does it have smart features?
A: No, this model focuses on core ventilation performance rather than WiFi/smart controls.

Q: Who is it best for?
A: It’s ideal for custom kitchens, cabinet-integrated designs, and users who want strong hidden ventilation without a visible range hood canopy.

Maintenance Tips

• Clean baffle filters regularly: Remove and wash stainless steel baffle filters every 1–2 months (more often with heavy cooking) to maintain strong airflow and prevent grease buildup.
• Wipe stainless interior & trim: Use a soft microfiber cloth with mild soap to remove grease film; always dry immediately to avoid streaks.
• Follow grain direction: Wipe stainless steel in one direction to preserve the brushed finish and prevent micro-scratches.
• Check blower & fan area: Periodically inspect the internal motor housing for grease accumulation and clean carefully to avoid performance loss.
• Inspect ductwork (6" vent): Ensure the vent path is clear and sealed so the 600 CFM PRO motor performs efficiently.
• Use intensive speed wisely: High boost mode is for heavy smoke only; use normal speeds for everyday cooking to reduce wear.
• Clean LED lights gently: Wipe light covers with a damp cloth—avoid moisture entering electrical components.
• Avoid harsh chemicals: No bleach, ammonia, or abrasive pads—these damage stainless steel and internal coatings.
• Check Easy Snap installation clips: Ensure the insert remains securely mounted inside cabinetry to prevent vibration or noise.
• Keep grease buildup minimal: Regular cleaning prevents motor strain and extends lifespan of the PRO ventilation system.
