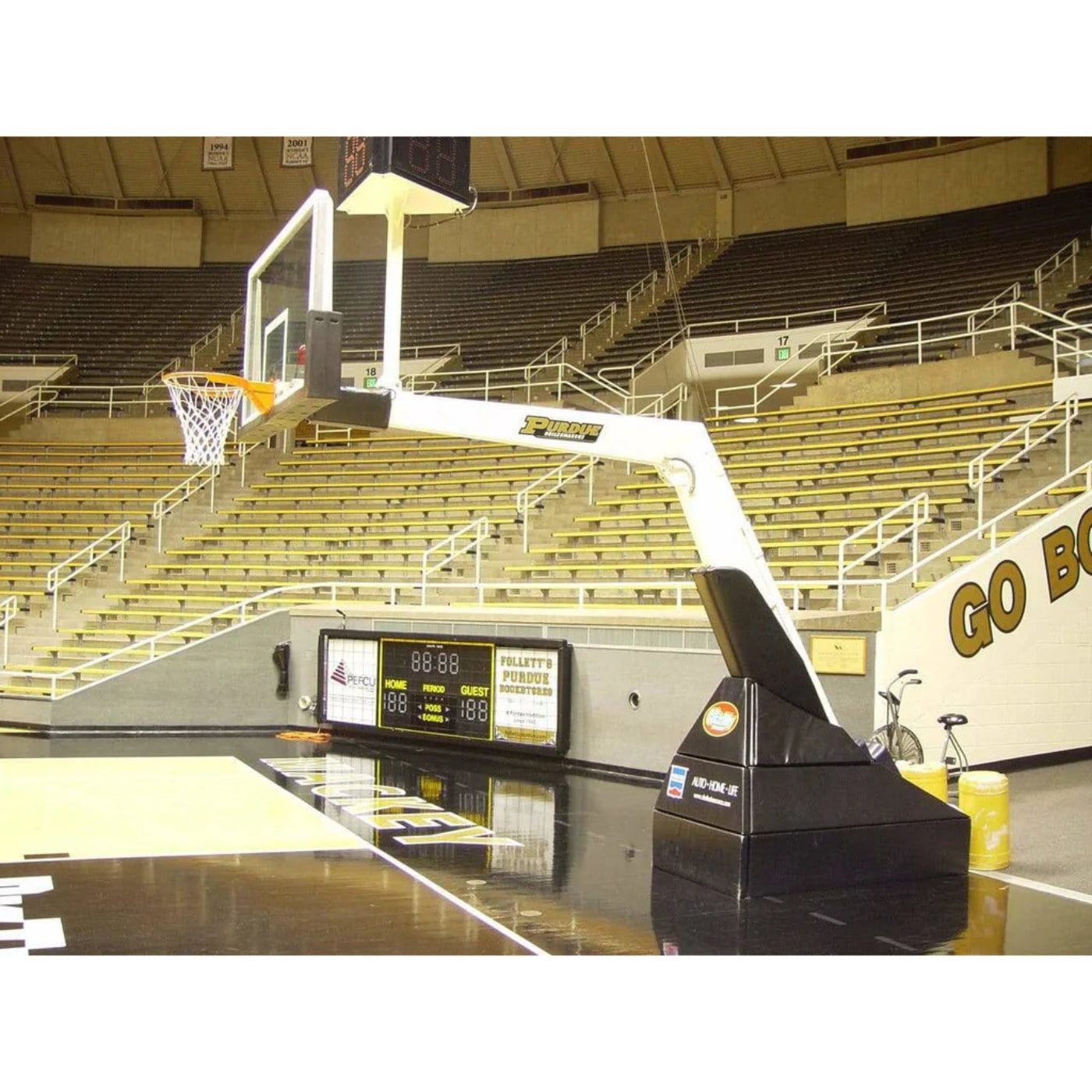

Gared Sports Pro H Professional Hydraulic Indoor Portable Basketball Hoop - 5018

Gared Sports Pro H Professional Hydraulic Indoor Portable Basketball Hoop - 5018

The GARED PRO H is the flagship portable of the GARED family of portable basketball Hoops and is by far the best competition basketball backstop in the industry. Uniquely engineered, it has been the portable choice of many professional teams and colleges throughout the world. Tapered laser-cut trapezoidal extension arm and mast provide ultimate backboard stability, meeting the most demanding requirements for professional competitive play. The unit is raised and lowered with a state-of-art electric-hydraulic system designed to be totally reliable and trouble-free.

Available in 8’ and 10’ 8” boom extensions, the GARED PRO H comes equipped with an official size (42” x 72”) shatter proof glass backboard, our original PRO-MOLD backboard padding, and a positive lock breakaway goal. The base is fully padded on three sides with vinyl covered 2” thick high density polyurethane foam. The front upright is similarly padded to a height of 7’ with 2” thick foam.

Meets NCAA, NAIA, NFHS, and NBA main court specifications and is approved by FIBA for high level international competition. The boom pad and floor anchoring system are included with the unit. Shot clock supports are sold separately.
Full weight with ballast is 3100 lbs (1406 kgs). 10 year Limited Warranty on all parts, Lifetime Limited Warranty on backboard included with the unit, 5 year Limited Warranty on PRO-MOLD pads, and 4 year on a breakaway goal.

Features

• BACKBOARD: Model LXP4200 - Official size 42” x 72” shatter-proof rectangular glass backboard with a welded and reinforced steel frame. 1/2” tempered glass with fired in target and border for maximum durability. #2137 LED perimeter lights are sold separately.
• GOAL: Models 3500 and 3500I Master positive lock breakaway goals come standard with these units for the domestic and international markets respectively. Model 3500I Master meets all FIBA standards. Other breakaway goals are optional and available upon request.
• PADDING: Durable GARED PRO-MOLD® backboard edge padding comes in a wide variety of colors. The standard color for system padding is royal blue; other standard colors are available at no additional cost. Custom logos for the front and side pads are available at an additional cost.
• BALLAST: 1000 lbs (455 kgs) of enclosed ballast concealed in the base of the unit, welded closed.
• ELECTRIC-HYDRAULIC SYSTEM: Automatically controls folding and lifting of the unit with the turn of a key. Available for domestic and international power supply.
• FLOOR ANCHORING SYSTEM: Floor anchors and locater pins are included as standard. Specify floor type.
• FINISH: The unit is powder-coated white. Other colors are available at an additional cost.
• SHOT CLOCK & CAMERA SUPPORTS: Available at a nominal cost. Specify the shot clock type.
• TRANSPORT & STORAGE: Folds easily for compact storage with two 6” front and two 10” rear wide non-marking polyurethane casters for easy transport.

Resources

• Specifications
• Assembly & Install Instructions

What our Experts Think

• Flagship professional portable system: The Gared Sports Pro H 5018 is widely regarded as a top-tier competition basketball backstop, used by professional teams and elite training facilities.
• Electric-hydraulic lift system: Allows smooth, key-operated height adjustment with minimal effort, improving safety and operational efficiency in high-use gyms.
• Regulation glass performance: Equipped with a 42” × 72” tempered glass backboard for true game-level rebound consistency and durability.
• Extreme stability design: Heavy-duty base with approximately 1000 lbs of internal ballast ensures strong anchoring during aggressive play.
• Extended boom safety spacing: Available in long 8’–10’+ boom extensions, keeping the structure well clear of the court for safer play zones.
• Full institutional protection: High-density padding, reinforced frame, and professional-grade build make it suitable for NCAA, NFHS, NBA, and FIBA-level use.

Q&A

Q: What is the Gared Sports Pro H Professional Hydraulic Indoor Portable Basketball Hoop (5018)?
A: It is a premium, professional-grade indoor portable basketball system designed for elite competition, featuring a hydraulic lift system, tempered glass backboard, and heavy-duty stability for gymnasium use.

Q: What makes the Pro H system special?
A: It uses an electric-hydraulic mechanism that allows smooth, key-controlled raising and lowering of the entire unit for easy setup and storage in professional gyms.

Q: What are its main specifications?
A: It includes a regulation 42” x 72” tempered glass backboard, a breakaway rim, and an 8’ or 10’8” boom extension for maximum court clearance and stability.

Q: Is it suitable for competitive play?
A: Yes, it meets NCAA, NAIA, NFHS, NBA, and FIBA standards, making it suitable for high-level competitive and professional use.

Q: How stable is the system?
A: It has a very heavy ballast base (around 3,100 lbs total system weight) with reinforced padding and anchoring for maximum safety during aggressive play.

Q: Is it portable?
A: Yes, despite its size, it is a wheeled portable system designed for indoor gyms, allowing movement and storage when needed.

Q: What makes it stand out?
A: Its hydraulic automation, professional glass backboard, and elite-level stability make it one of the top-tier portable basketball systems used in high-performance arenas.

Maintenance Tips

• Inspect Before Each Use: Check frame, boom arm, backboard, rim, base ballast, and caster wheels for looseness or damage.
• Hydraulic System Care: Ensure smooth operation of the electric-hydraulic lift; check for leaks, unusual noise, or uneven movement and service if needed.
• Lubricate Moving Parts: Apply light lubricant to pivot points, height-adjust mechanisms, and wheel assemblies to reduce wear and corrosion.
• Tighten Hardware Regularly: Re-secure bolts, anchors, and structural joints to maintain stability under heavy play.
• Clean Backboard & Frame: Use mild soap and a soft cloth on glass backboard and steel components; avoid abrasives or harsh chemicals.
• Check Padding Condition: Inspect PRO-MOLD pads for tears or compression and replace if protective cushioning is reduced.
• Caster Maintenance: Keep wheels clean and ensure locking casters engage properly for safe positioning.
• Electrical Safety: Inspect power cords and controls for damage; keep system dry and unplug during servicing.
• Proper Storage Position: When folded, store in a dry indoor space to prevent corrosion and hydraulic strain.
• Avoid Abuse: Do not hang on rim or boom arm to prevent structural and hydraulic damage.
