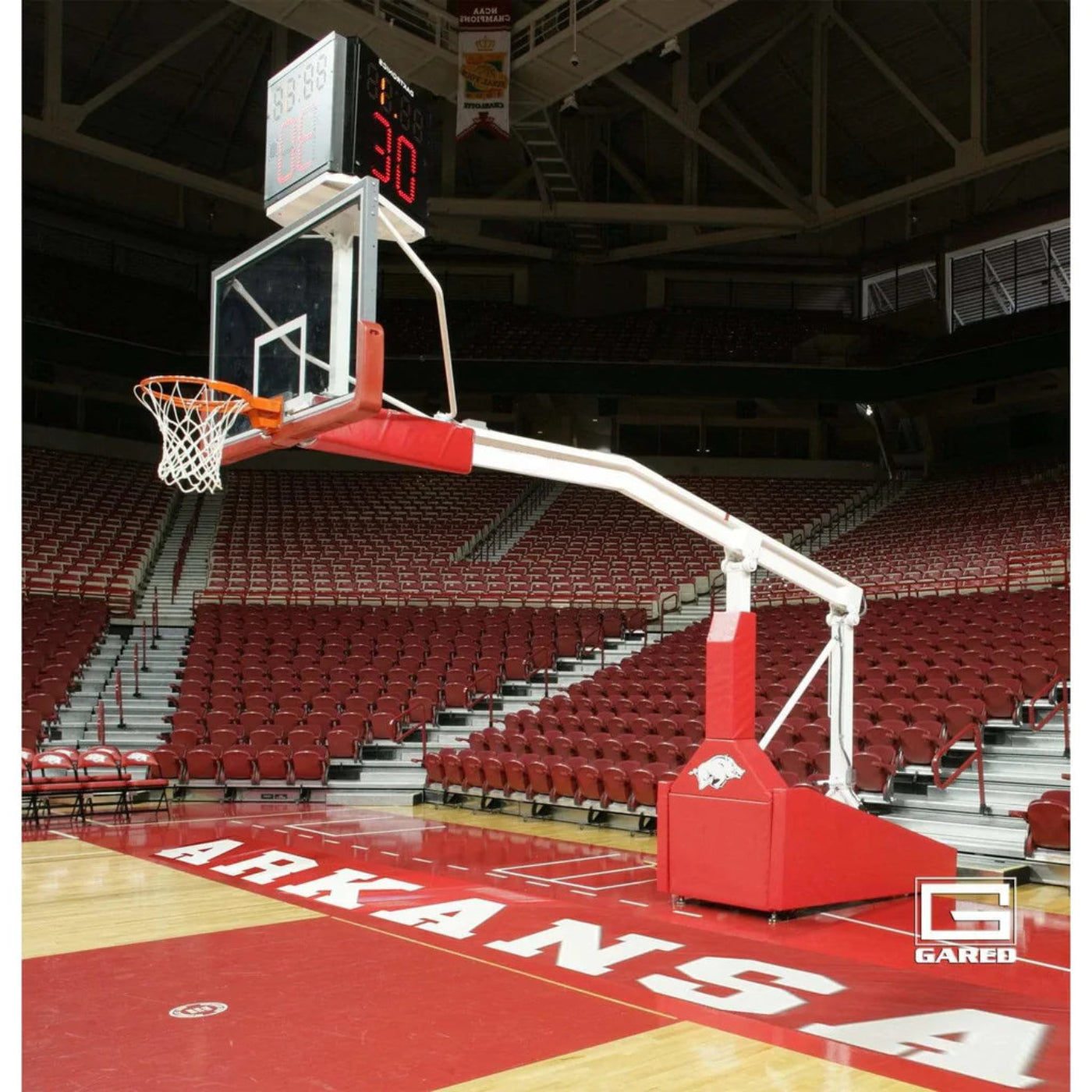

Gared Sports Pro S Spring-Lift Portable Basketball Hoop w/ 10’ 8’’ Boom - 9618

Gared Sports Pro S Spring-Lift Portable Basketball Hoop w/ 10’ 8’’ Boom - 9618

The 9618 GARED Pro S provides facilities with a non-electric portable basketball backstop designed for collegiate and professional play. The spring-lift system can be easily lifted to competitive levels of play for athletes of all ages. The 9618 sports a 10' 8" regulation boom directly attaching to the breakaway rim for upmost glass backboard stability. The base is fully covered in vinyl padding and can be decorated to promote team and sponsor marketing.
9618WL: AUTOMATIC FRONT WHEEL LIFT SYSTEM This optional system is designed to make the basic installation and set up of the GARED PRO S effortless. It eliminates the need to adjust the leveling pads by automatically lifting the front wheels off the ground when the boom is raised to the play position and lower them when the boom is lowered to the folded or stored position. As the portable is raised, a cam operated mechanism raises the front wheels off the floor causing the boom to lock in the play position and the base to rest evenly on the supporting frame. Conversely, when the wheels are in the down position the portable can be moved around.

The GARED PRO S is the finest engineered competition portable in the world utilizing the GARED tension spring technology. The maintenance-free tension spring mechanism is designed for balanced and effortless lifting/lowering of the unit and is concealed inside the base for safety and appearance. A superbly designed t-shape extension arm made of fully welded, heavy wall rectangular tubing is patterned after our original GARED Pro H , which is universally considered the most structurally stable competition portable on the market. The t-shape extension arm and heavy duty uprights eliminate the need for unsightly bridge supports, giving the fans a clear view of the court. Available in 8’ and 10’ 8” boom extensions for all levels of play and adjustable to 8’, 9’, and 10’ heights. The GARED Pro S comes equipped with an official size (42” x 72”) shatter proof glass backboard, our original PRO-MOLD backboard padding, and a positive lock breakaway goal. The base is fully padded on three sides with vinyl covered 2” thick high density polyurethane foam. The front upright is similarly padded to a height of 7’ with 5” thick foam. Meets NCAA, NAIA, NFHS, and NBA main court specifications and is approved by FIBA for high level international competition. The boom pad and floor anchoring system are included with the unit. Shot clock supports are sold separately. 10 year Limited Warranty on all parts, Lifetime Limited Warranty on backboard included with the unit, 5 year Limited Warranty on PRO-MOLD pads and 4 year on a breakaway goal.

Features

• Recommended Play Level: NBA, IBL, FIBA, NCAA, IOC
• 9618WL - Additional option same features as the 9618, but includes automatic wheel lift for effortless setup.
• Tensioned spring mechanism designed for effortless lifting and lowering of unit
• 10' 8" boom extension provides maximum clearance between the base of the unit and the rim
• A complete system includes regulation LXP4200 board, 3500 rim, and PMCE bolt-on board padding
• Includes floor anchors and 1200 lbs ballast weight concealed in the base

Pro S Spring-Lift Portable Basketball System Options

• Gared Pro S Portable Basketball System W/10'8" Boom
• Gared Pro S Portable Basketball System W/10'8" Boom & Automatic Wheel Lift

BACKBOARD: Official size 42” x 72” shatter proof rectangular glass backboard (Model LXP4200) with a welded and reinforced steel frame. 1/2” tempered glass with fired in target and border for maximum durability. LED perimeter lights, #2137, are sold separately.
GOAL: Models 3500 and 3500I Master positive lock breakaway goals come standard with these units for the domestic and international markets respectively. Model 3500I Master meets all FIBA standards. Other breakaway goals are optional and available upon request.
PADDING: Durable GARED PRO-MOLD backboard edge padding comes in a wide variety of colors. Standard color for system padding is royal blue; other standard colors are available at no additional cost. Custom logos for the front and side pads are available at an additional cost.
BALLAST: 1200 lbs (544 kgs) of enclosed ballast concealed in the base of the unit, welded closed.
HEIGHT ADJUSTABLE: Unique telescoping brace allows for preset heights of 8’, 9’ and 10’. Custom heights are available upon request.
ADJUSTABLE FLOOR PADS: Two floor pads are encased in steel supports for added stability, and are controlled by a screw-type mechanism that raises the unit off the wheels and adjusts the unit to exactly 10’ height.
FLOOR ANCHORING SYSTEM: Floor anchors and locater pins are included as standard. Specify floor type.
FINISH: The unit is powder-coated white. Other colors are available at additional cost.
SHOT CLOCK & CAMERA SUPPORTS: Available at a nominal cost. Specify the shot clock type.
TRANSPORT & STORAGE: Folds easily for compact storage with non-marking polyurethane casters for easy transport.

Resources

• Specifications
• Warranties

What Our Experts Think

• Spring-Lift Mechanism – The Pro S Spring-Lift offers smooth, effortless height adjustment, allowing for quick setup and precise net height control.
• Long Reach – The 10’ 8’’ boom provides an extended reach, making it ideal for both high-level competitive play and practice sessions.
• Durable Construction – Built with heavy-duty materials to withstand intense gameplay and frequent use in both indoor and outdoor environments.
• Portable Design – Easy to move and store, the portable design makes it perfect for schools, gyms, or recreational facilities where space is a concern.
• Stable and Secure – Features a robust base and design that ensures the hoop remains stable during high-intensity games and practices.

Q&A

Q: What is the Gared Sports Pro S Spring-Lift Portable Basketball Hoop w/ 10’ 8’’ Boom (9618)?
A: The 9618 is a portable basketball hoop designed with a spring-lift system for easy height adjustments and a 10’ 8” boom for extended reach, making it ideal for both practice and competitive play.

Q: How does the spring-lift system work on the 9618 hoop?
A: The spring-lift system provides smooth, effortless height adjustments, allowing you to quickly set the hoop to your preferred height with minimal effort.

Q: Is the Gared Sports Pro S hoop suitable for both indoor and outdoor use?
A: Yes, the 9618 is designed for use in both indoor and outdoor environments, offering versatility for various basketball courts.

Q: Can the 9618 hoop be easily moved?
A: Yes, the 9618 features a portable design with wheels, allowing you to easily relocate the hoop as needed.

Q: Is the 9618 hoop durable?
A: Yes, the Pro S hoop is constructed with high-quality materials to ensure long-lasting durability and stability, even during intensive use.

Maintenance Tips

• Regular Inspections: Check the hoop, spring-lift mechanism, and all connections for wear, damage, or loose components. Tighten any loose bolts and replace worn-out parts as needed.
• Lubrication: Apply lubricant to the spring-lift mechanism and other moving parts to ensure smooth operation and prevent rust.
• Cleaning: Clean the backboard, rim, and frame regularly with a mild soap solution and a soft cloth. Avoid abrasive materials that could damage the surface.
• Spring Care: Inspect the springs for any signs of wear or overstretching. Replace them if necessary to maintain proper tension and functionality.
• Storage: When not in use, store the hoop in a dry, cool location to protect it from moisture, extreme temperatures, or harsh weather conditions.
