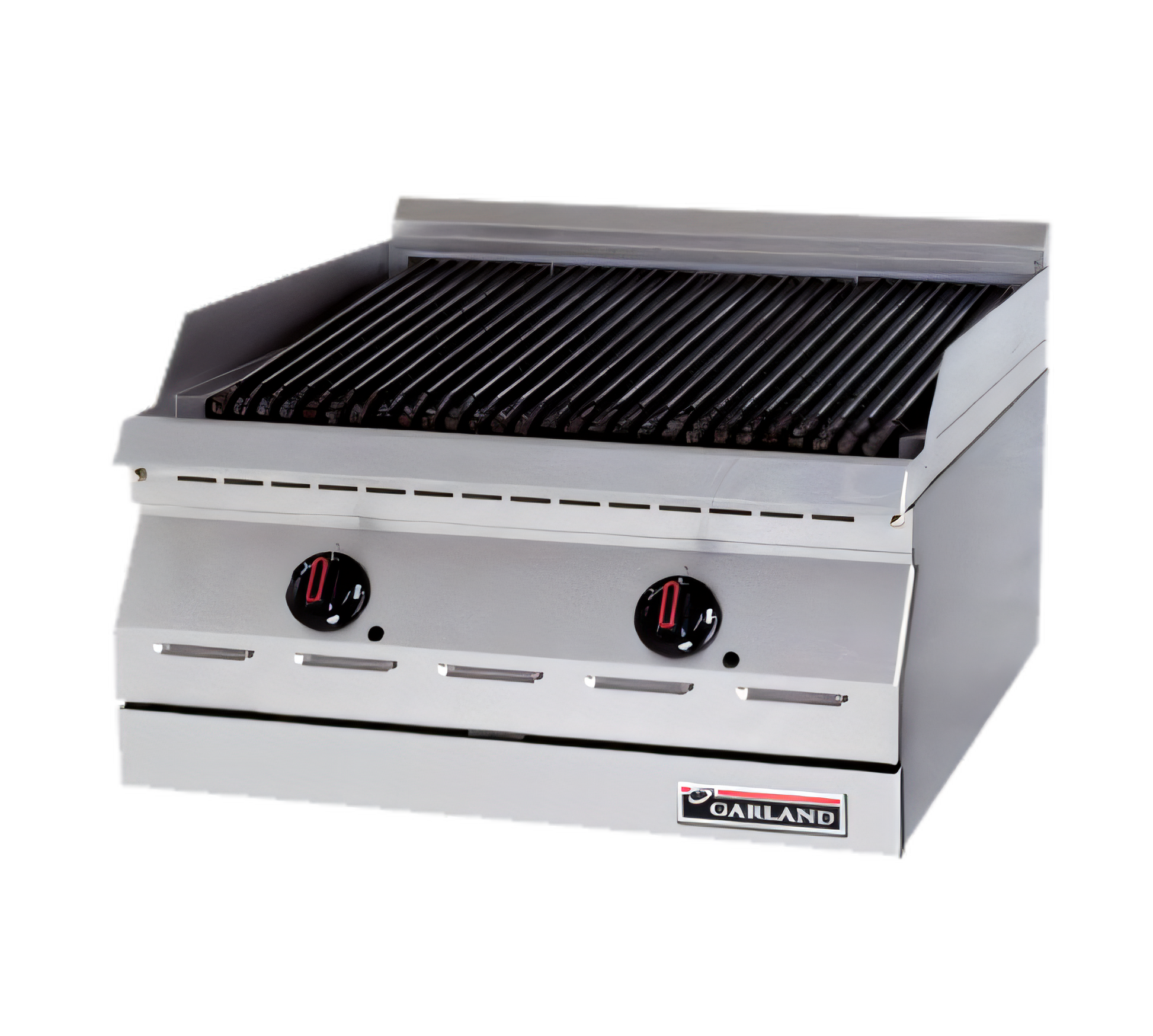

Garland Designer Series 24" Gas Charbroiler – 60,000 BTU
Model GD-24RB | Countertop | Cast-Iron Radiants
Deliver steak-house sear and smoky flavor in a compact 24-inch footprint.
Garland’s Designer Series GD-24RB couples rugged cast-iron radiants with 60,000 BTU of fire-power, giving chefs the intense, even heat they need for perfectly char-marked steaks, burgers, vegetables and more—all day, every day.
Why you’ll love it
- 17-1/4" (436 mm) deep cast-iron cooking grates for superior heat retention and clean grill marks.
- Reliable piezo spark ignition—no electrical hook-up required.
- Hi/Lo valve control lets operators dial in the perfect flame in seconds.
- Internal front grease drawer with magnetic door keeps the work surface tidy and removes for fast cleanup.
- Durable stainless-steel front & sides stand up to daily commercial abuse.
- 4" (102 mm) adjustable stainless sanitary legs for a rock-solid, level installation.
- Rear ¾" NPT gas connection supplied with factory pressure regulator.
- Certified to CSA & NSF standards for safety and sanitation.
Technical specifications
| Model |
GD-24RB |
| Total input |
60,000 BTU/h • 17.6 kW |
| Gas type |
Natural or Propane |
| Manifold connection |
¾" NPT (rear) with pressure regulator |
| Operating pressure |
Natural 4" WC (10 mbar) | Propane 10" WC (24.9 mbar) |
| Overall dimensions (W×D×H) |
24" × 24" × 15" (610 × 610 × 381 mm) |
| Usable cooking surface |
24" W × 17-1/4" D (610 × 436 mm) |
| Construction |
Stainless-steel front & sides, cast-iron radiants & grates |
| Certifications |
CSA, NSF |
| Shipping weight |
≈150 lb (68 kg) |
| Warranty |
1-year limited parts & labor (USA & Canada) |
Optional accessories
- Stainless-steel back & bottom panels
- Three-piece stainless broiler splatter guard (adds 10" height)
- Designer Series equipment stands (fixed-leg or caster models)
Gas ratings are for installations up to 2,000 ft (610 m) above sea level.
Specify altitude when ordering higher-elevation units.
Installation note: For commercial use only.
Unit must be placed on a non-combustible surface with 0" clearance to non-combustible walls and connected in accordance with local codes and Garland’s installation manual.
