Star Industries Grapple Bucket Attachment

Star Industries Grapple Bucket Attachment

by Star Industries
SKU 175-66
Save up to 6% Save 6%
$5,384.00
$5,384.00 - $6,731.00
$5,384.00
$5,060.99
$5,060.99 - $6,327.99
$5,060.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Move bulky, hard-to-handle materials easily and securely with a Star Industries Grapple Bucket

The grapple bucket opens extra wide for a full load and the optional end plates help contain loose materials.
  • Rugged heavy-duty construction for dependability and long life

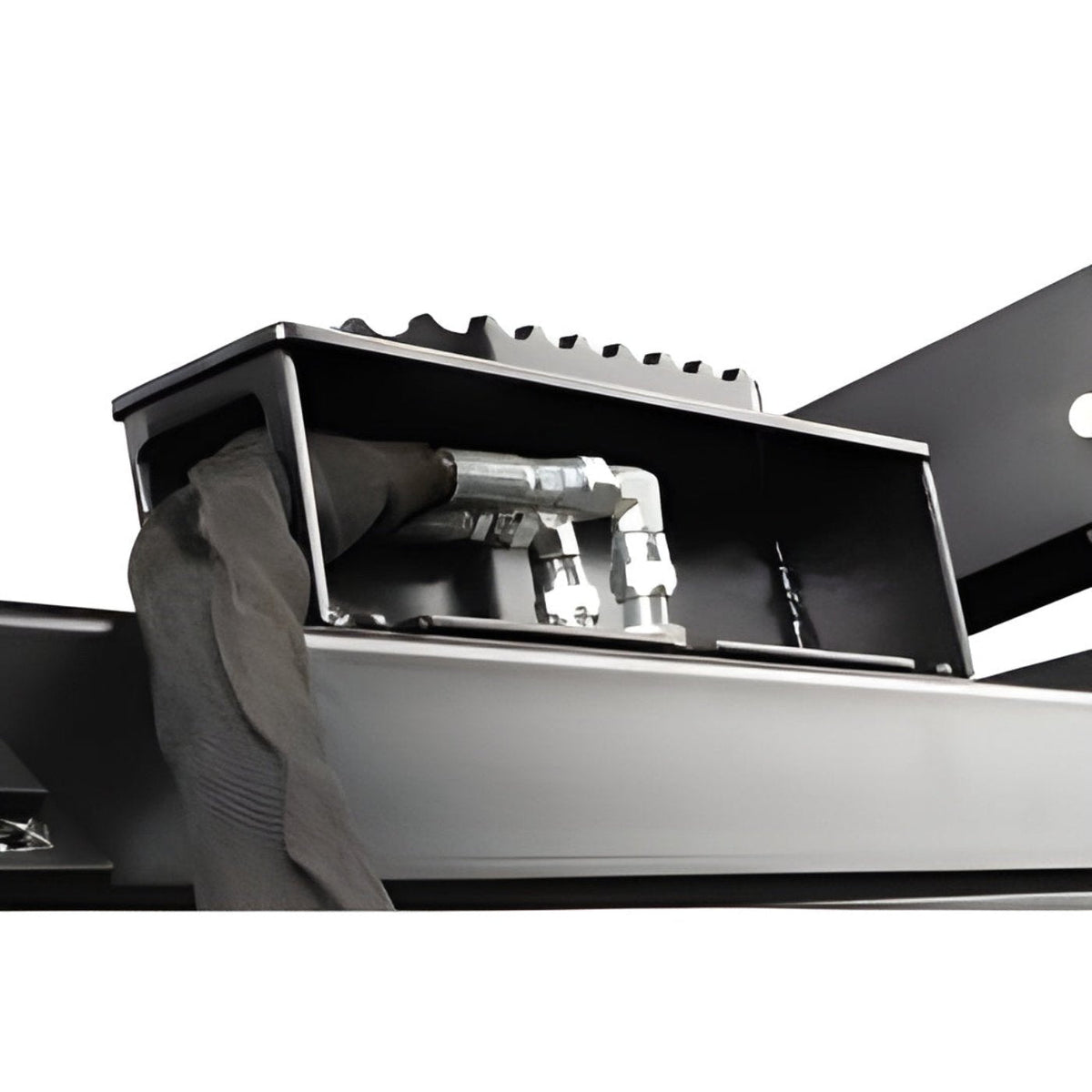

  • Built-in covers protect fittings
  • Cutting edges are punched for optional bolt-on-blade
  • Optional end plates help contain loose materials
  • Hydraulic cylinders operate independently to adjust for uneven loads
  • Steel covers and shields protect hydraulic lines and cylinders from accidental damage
Grapple Heavy Duty 66” Heavy Duty 72” Demolition Grade 72” Demolition Grade 78” Demolition Grade 84”
Model 175-66 175-72 175DG-72 175DG-78 175DG-84
Width I.D. 66” 72” 72” 78” 84”
Grapple Opening 38 ½” 38 ½” 45” 45” 45”
Grapple Capacity 16.5 cuft 18 cuft 24 cuft 26 cuft 28 cuft
Depth 34” 34” 39” 39” 39”
Back Height 19” 19” 21” 21” 21”
Bucket Bottom ¼” Plate ¼” Plate ¼” Plate ¼” Plate ¼” Plate
Bucket Back 3/16” Plate 3/16” Plate 3/16” Plate 3/16” Plate 3/16” Plate
Sides ½” Plate ½” Plate ½” Plate ½” Plate ½” Plate
Bottom Wear Protection ½” Ribs ½” Ribs ½” Ribs ½” Ribs ½” Ribs
Grapple Thickness ½” ½” ½” ½” ½”
Cutting Edge ¾” x 6” ¾” x 6” 1” x 8” 1” x 8” 1” x 8”
HD Welded Hyd Cylinders 2” x 10” x 1 ¼” 2” x 10” x 1 ¼” 2” x 10” x 1 ¼” 2” x 10” x 1 ¼” 2” x 10” x 1 ¼”
Hyd Hoses & Flat faced Couplers Included Included Included Included Included
Empty Weight 775 lbs 865 lbs 1,090 lbs 1140 lbs. 1200 lbs.
