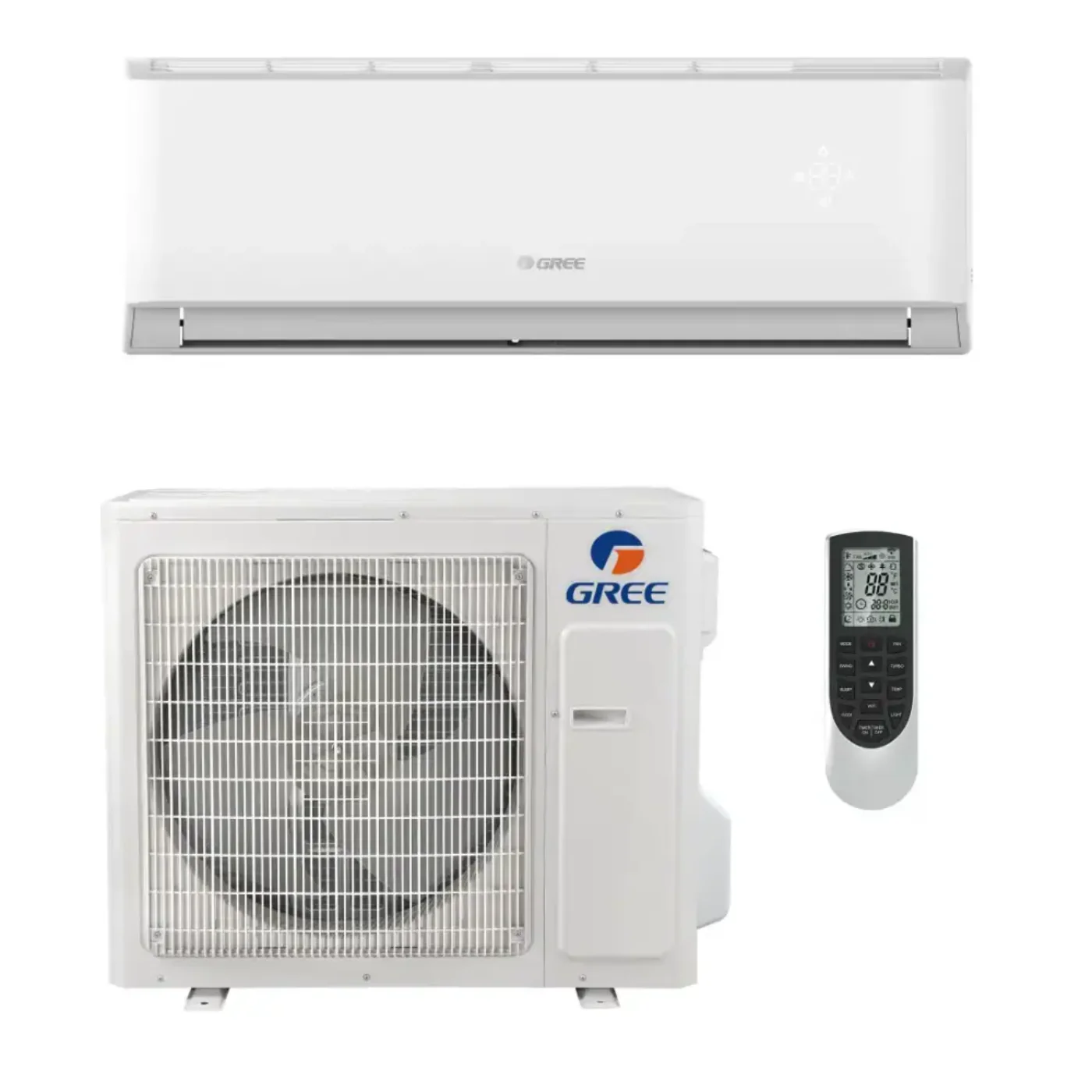

GREE Livo Gen4 30K BTU 20 SEER2 Wall Mount Mini-Split Single Zone Heat Pump - 4LIV30HP230V1A
The 4LIV30HP230V1AH / 4LIV30HP230V1AO single-zone system is one of Gree’s new 3rd generation of Livo mini splits designed to provide a convenient, efficient method to cool and heat a room.
30,000 BTU, 20 SEER2
The Gree Livo Gen4 system provides high efficiency and quiet comfort. It is both quieter and simultaneously delivers more air than the previous Livo and Lio+ generations. The compressor features Gree's G10 Inverter and variable compressor technology, which enables the unit to reach the desired temperature faster and more consistently. Maintenance is easy thanks to the self-diagnostics tool.
The Livo Gen4 features multiple fan speeds for your comfort. The indoor unit's sleep mode ensures that temperature fluctuations don't disturb your sleep. It also features a hidden backlight display on the unit which will inform you of the temperature and different modes running. A handheld remote control is included with this unit and features a programmable timer and I Feel mode, which senses temperature around the remote to adjust airflow and indoor temperature.
The 4LIV30HP230V1AH / 4LIV30HP230V1AO comes with Gree’s standard 5 year parts and 5 year compressor warranty when registered and installed in a residential application. The warranty is reduced to 1 year parts and 5 year compressor when installed in a commercial application. Controls are warrantied for 90 days from the purchase date.
If installed by a Gree Select Dealer, the residential warranty may be extended to 10 years on parts and 10 years on the compressor when registered within 60 days of installation.
Durability and Reliability
The Livo Gen4 condenser has a basepan heater to keep the unit ice free, even down to -4°F. This prevents harmful ice buildup that can damage a coil. It also has an acrylic-resin anti-corrosion coating to prevent damage over time.
If the system encounters abnormalities while operating, the display on the indoor unit will show an error code for easy diagnosis.
Smart Features
The Livo Gen4 system includes intelligent pre-heating and defrosting to prevent cold air from blowing inside while the unit is in heating mode. The system includes power failure recovery to resume function automatically after a power outage. A wireless adapter (sold separately) can be added to the indoor unit to provide control over the system from anywhere via the Gree app for mobile phones.
Features
- Designed to heat and cool a very large room
- 30,000 BTU, 20 SEER2
- 230v electrical compatible
- Heating, Cooling, Auto, Dry, and Fan modes
Specifications
| SKU |
4LIV30HP230V1AH / 4LIV30HP230V1AO |
| Brand / Manufacturer |
Gree |
| System Type |
Wall-Mounted Mini-Split Heat Pump |
| Zone Compatibility |
Single Zone |
| Cooling Capacity |
30,000 BTU |
| Heating Capacity |
30,000 BTU |
| BTU / Tonnage |
30,000 BTU / 2.5 Ton |
| AHRI Certificate Number |
210278969 |
| Energy Star Certified |
No |
| SEER2 |
20 |
| HSPF2 |
8.5 |
| Dehumidification Rate |
0.79 gal/hr |
| Maximum Airflow |
471 – 912 CFM |
| Refrigerant |
R410A |
| Refrigerant Charge |
Pre-Charged for 25 ft |
| Compressor Type |
Rotary |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Minimum Breaker Size |
24 Amps |
| Maximum Breaker Size |
35 Amps |
| Amperage Requirement |
35 Amps |
| Liquid Line Size |
1/4" |
| Suction Line Size |
5/8" |
| Minimum Line Set Length |
10 ft |
| Maximum Line Set Length |
82 ft |
| Heating Operating Range (Outdoor) |
-13°F – 75°F |
| Cooling Operating Range (Outdoor) |
-4°F – 115°F |
| Indoor Sound Level |
37 – 56 dB(A) |
| Outdoor Sound Level |
62 dB(A) |
| Controller |
Wireless Included |
| Drain Size |
5/8" |
| Total Weight |
202.8 lbs (Indoor: 43 lbs, Outdoor: 138.9 lbs) |
| Indoor Dimensions (H × W × D) |
12-3/4" × 53-1/8" × 10" |
| Outdoor Dimensions (H × W × D) |
31-1/8" × 36-1/4" × 14-9/16" |
| Mini-Split Type |
Wall Mounted |
What our Experts Think
-
High Efficiency: 20 SEER2 rating delivers powerful cooling and heating while reducing energy costs.
-
Single-Zone Comfort: Provides consistent, precise temperature control for medium to large rooms.
-
Quiet & Smart: Advanced technology ensures low-noise operation and easy, intuitive controls.
-
Eco-Friendly Refrigerant: Uses R-32 refrigerant for environmentally conscious performance.
-
Easy Installation: Wall-mounted design allows straightforward setup and replacement.
-
Reliable Brand: GREE is known for durability, quality, and dependable long-term performance.
Q&A
Q: What is the GREE Livo Gen4 30K BTU Mini-Split?
A: A single-zone, wall-mounted heat pump for efficient heating and cooling of large rooms.
Q: How energy-efficient is it?
A: 20 SEER2 rating ensures excellent energy savings.
Q: Can it heat and cool?
A: Yes, it provides year-round comfort with both heating and cooling modes.
Q: What size space can it serve?
A: Ideal for large rooms or open spaces up to 1,000 sq. ft.
Q: What voltage does it require?
A: Designed for 230V residential use.
Q: Why choose it?
A: Powerful performance, quiet operation, energy efficiency, and easy wall-mounted installation.
Maintenance Tips
-
Clean indoor filters every 2–4 weeks to maintain airflow and efficiency.
-
Keep the outdoor unit free of leaves, dust, and debris.
-
Check and clear the condensate drain to prevent water buildup.
-
Monitor refrigerant levels; contact a certified technician if low.
-
Schedule annual professional servicing for peak performance and longevity.
-
Use recommended temperature settings and modes to maximize energy efficiency.
