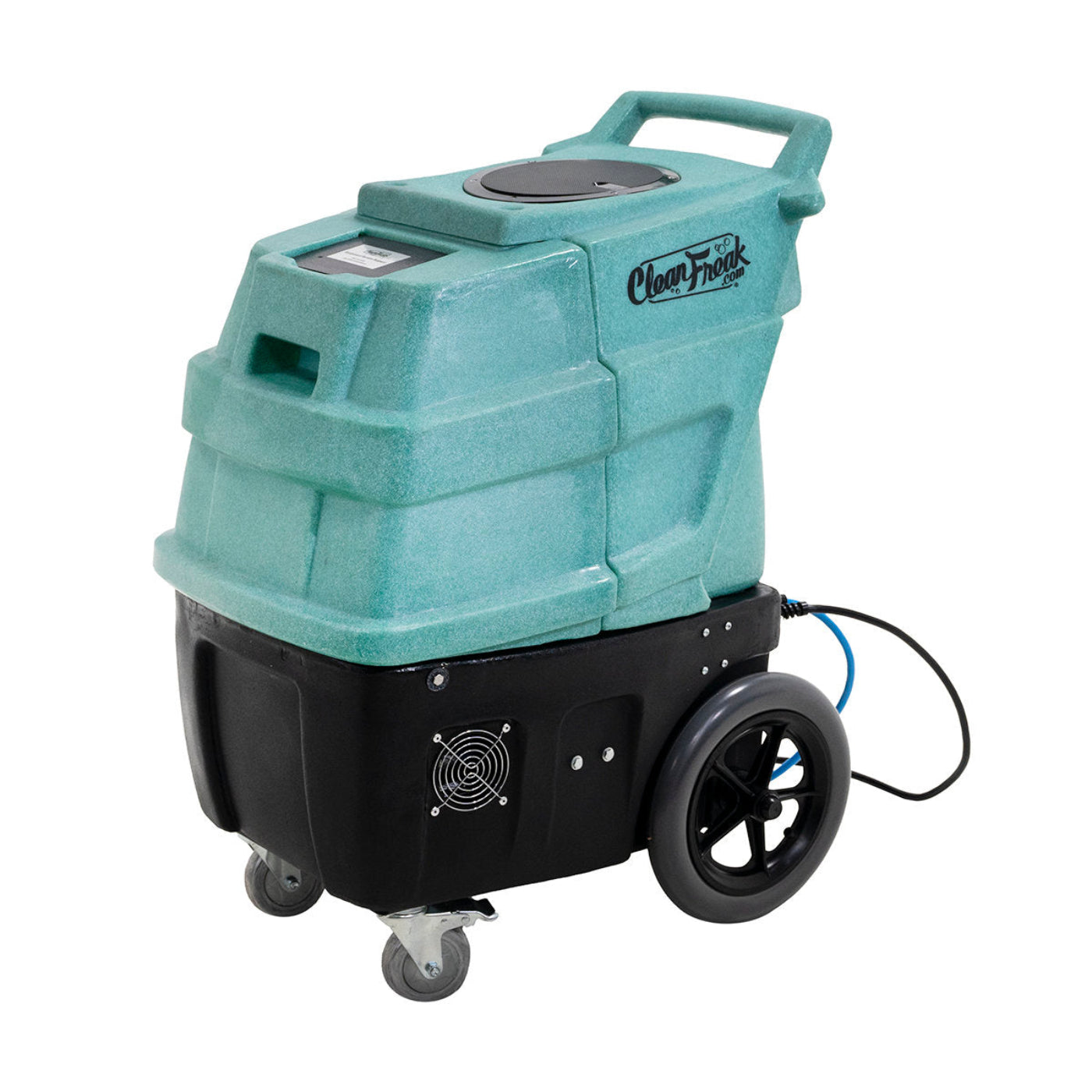

CleanFreak Heated 500 PSI Portable Carpet Extractor w/ 12" Wand & 25' Hose - CPL-CF-25XG-HEAT-2PW

CleanFreak Heated 500 PSI Portable Carpet Extractor w/ 12" Wand & 25' Hose - CPL-CF-25XG-HEAT-2PW

This CleanFreak heated carpet extractor has an adjustable pressure pump (0 - 500 PSI), and serves as the 'big brother' to the 120 PSI heated model that is also available. Using heated water in your carpet cleaning process will help to remove even more dirt than with an unheated machine. Hot water helps loosen the bond between the dirt and carpet fibers, making it easier to remove.

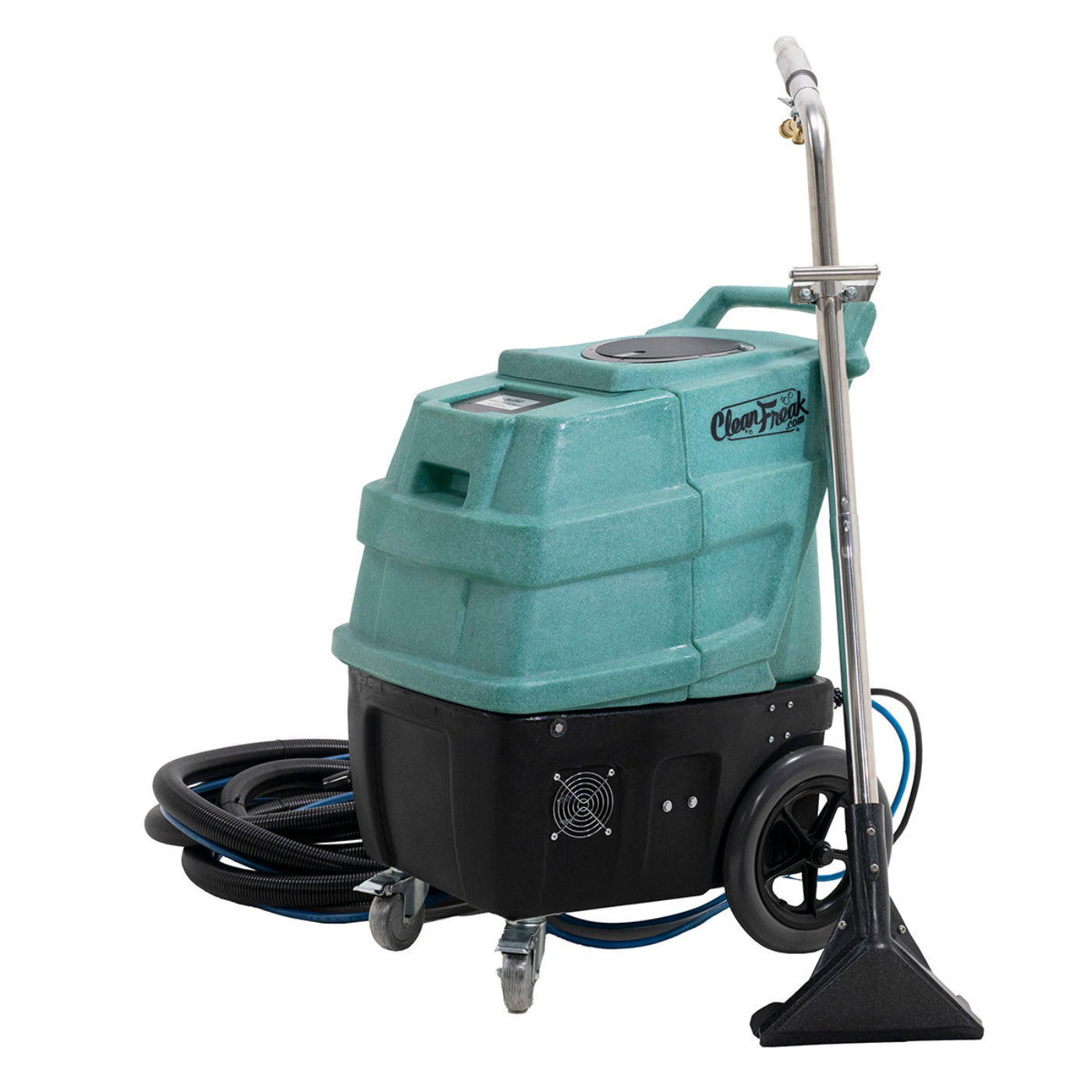

The machine itself comes with a 25' vac hose / solution line combo and a 12" adjustable glide drag wand with a single #02 spray jet. We also sell it in a package with a hand tool. The adjustable glide head on the drag wand can easily remove up to 30% more water from carpeting over a standard drag wand. Less water left behind means faster dry times. To speed things up even further, we recommend using several air movers during and after your cleaning job is complete. Leaving fans running to dry the carpets will not only speed up the dry time, but will also ensure no musty odors will be left behind.

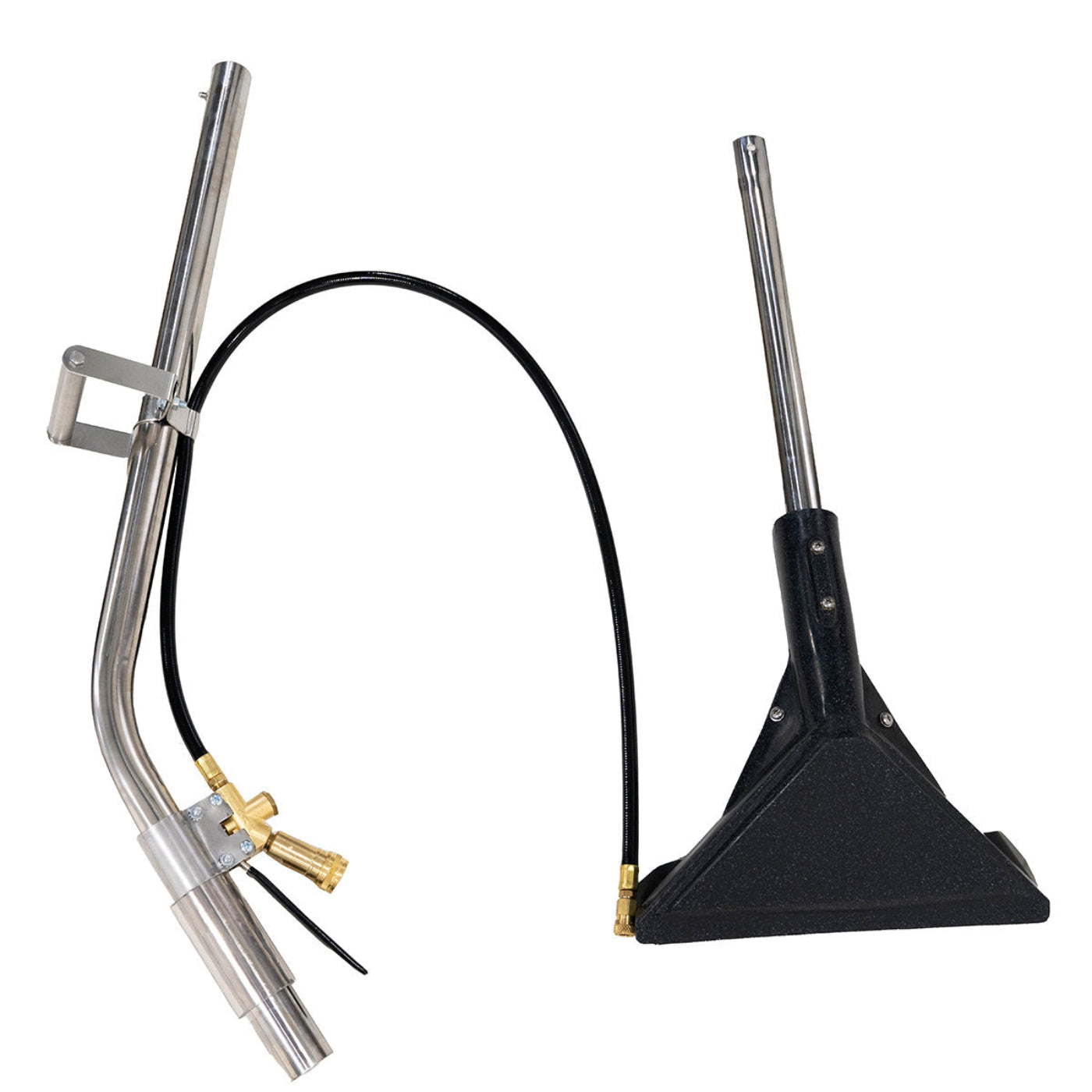

A great additional feature that comes with the machine is the 2-piece adjustable glide drag wand. It is the perfect tool for professional carpet extractors on the move. A button lock snaps the two pieces into place for use, and comes apart for transporting and storage. The solution line has a 1/8" quick disconnect fitting on it, so the wand does truly come fully apart into two separate pieces.

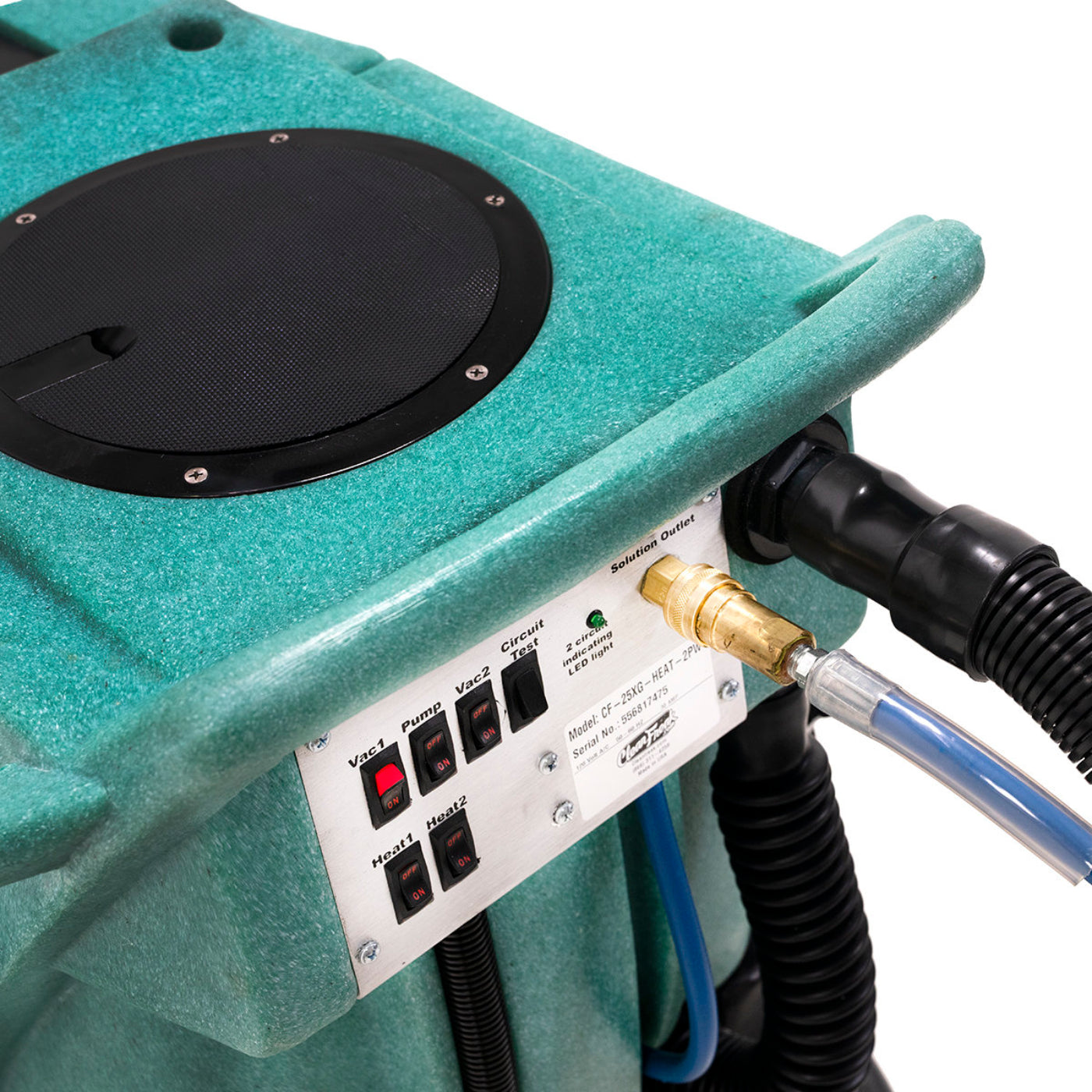

There are 2 separate 750 watt heaters located within the bowels of the machine that will provide a maximum water temperature of 210° F. Between the heater, pump, and vacuum, you'll need to power the unit with electrical outlets on 2 separate circuit breakers. The machine itself has a built-in circuit locator that will tell you if you're on 2 separate circuits or not. Simply press the circuit locator button when plugged into 2 outlets, and if the light turns on, you know you're good to start extracting. If not, you'll need to search for another outlet within reach.

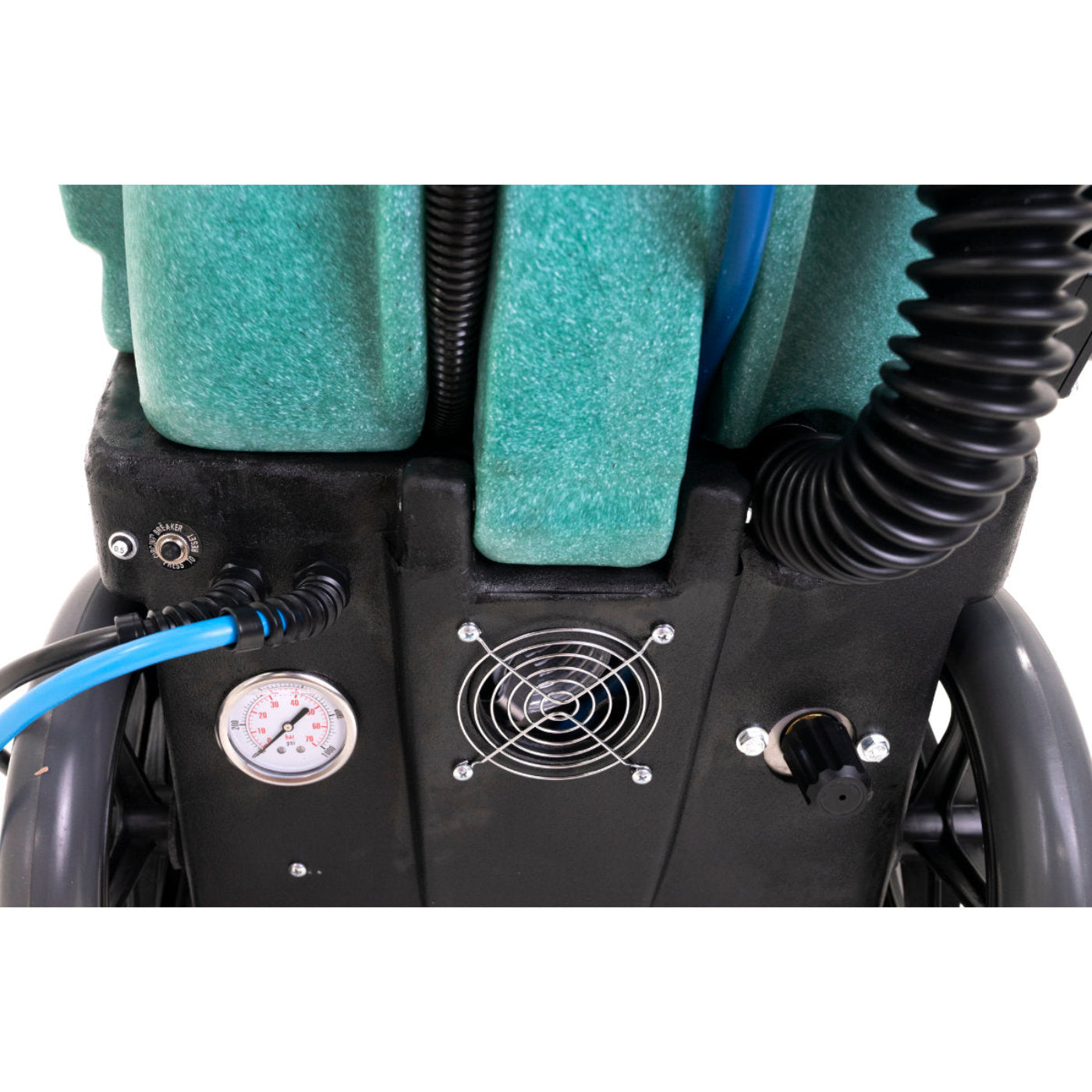

This CleanFreak 500 PSI heated extractor can be dialed in for your specific needs for each job. When you dial the pump in (turn it clockwise), you are turning the pump up to its max power. When screwing it out (turning in a counter-clockwise direction), you are actually dialing the PSI down. With this versatility, you can use this extractor in a number of different environments and still get the most out of your unit.

There are cleaning attachments, such as external scrubbing power brushes and upholstery tools that can make this machine even more powerful. The only other thing you'll need to get your machine up and running, is the proper carpet cleaning chemicals.

For other brands and models of carpet cleaning machines, please feel free to take a look at our full line of our box style carpet extractors.

 You cannot use normal extension cords with this machine unless they are a heavier gauge than the ones attached to the unit. Using a "regular" extension cord could cause the unit to overheat and be a fire risk.

Caring for Your Carpet Extractor

Your carpet extractor should be winterized between uses if it is to be exposed to freezing temperatures. To winterize your machine, pour 1/2 gallon of windshield wiper fluid into the empty solution tank. Run the pump until fluid flows through the tank. Then run 1 gallon of water through the extractor before the next use.

Features

• Adjustable pressure pump (0 - 500 PSI) allows you to dial in the exact pressure needed for each job.
• Dual 750 watt heaters provide outstanding heating power for the ultimate in hot water extracting.
• 12" adjustable glide drag wand recovers 30% more solution than standard wands.

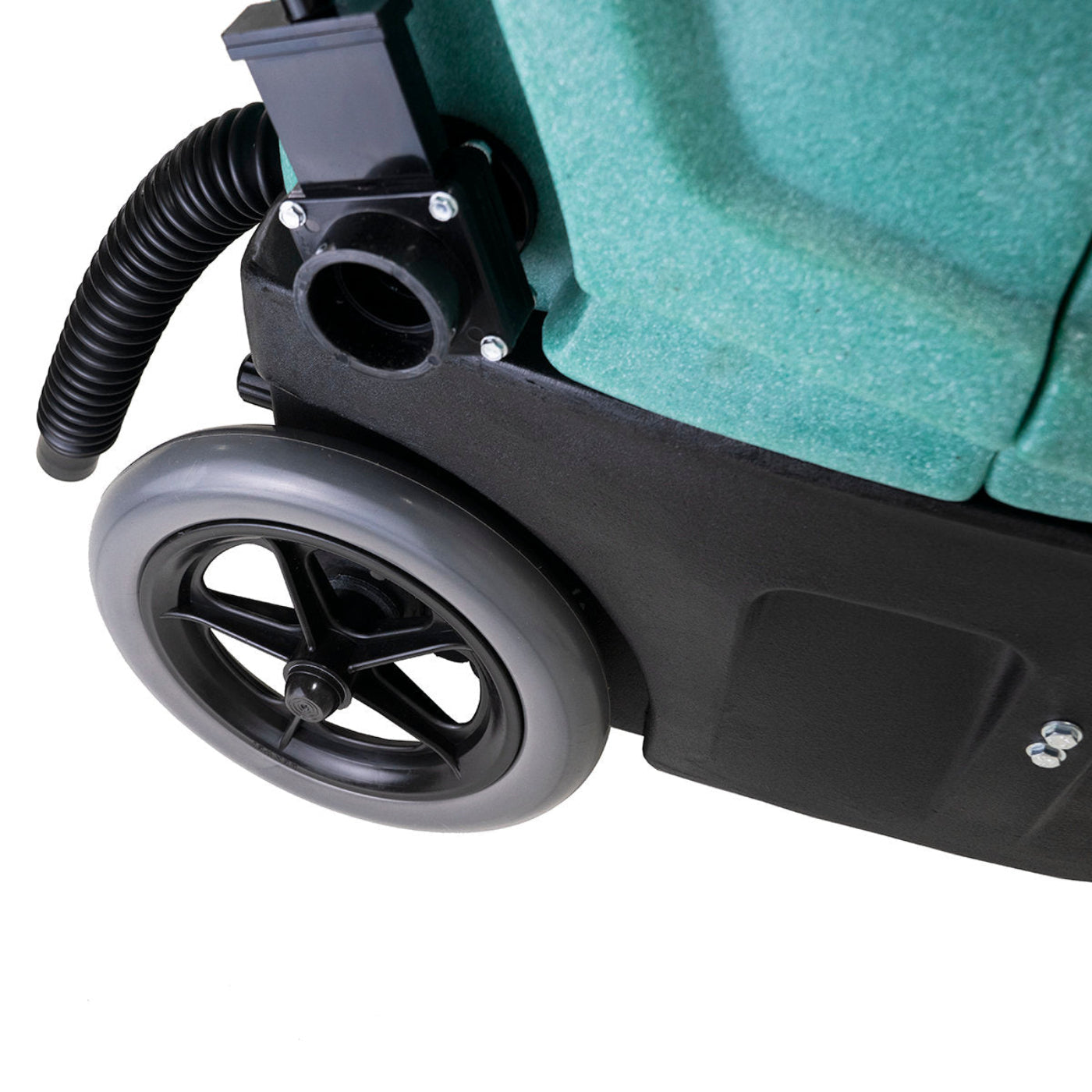

• Side dump valve and back dump hose allows you to dump your solution in the most convenient place.
• Remove 2 bolts and tilt the tanks back to quickly access the interior cavity, where the pump, motors and heaters are located.

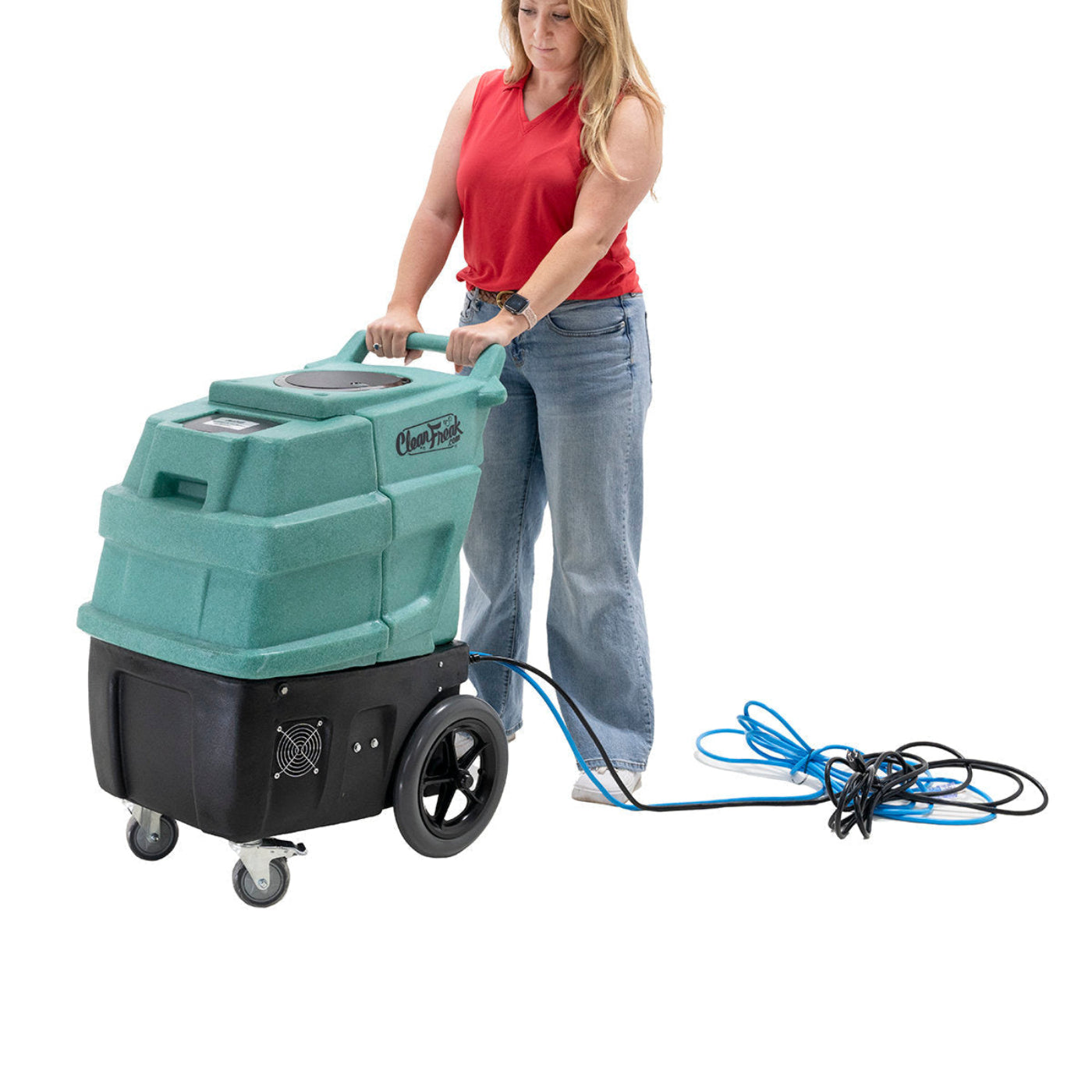

• Highly portable, weighing only 95 pounds, this hot water extractor allows the user to access stairways & upper levels with minimal effort.


What our Experts Think

• Professional 500 PSI adjustable pump system delivers strong deep-cleaning power for both residential and commercial carpet extraction
• Built-in dual heater system (up to ~210°F water temperature) helps break down heavy soil, grease, and embedded stains faster
• High 150" water lift with dual vacuum motors ensures strong moisture recovery for faster drying times

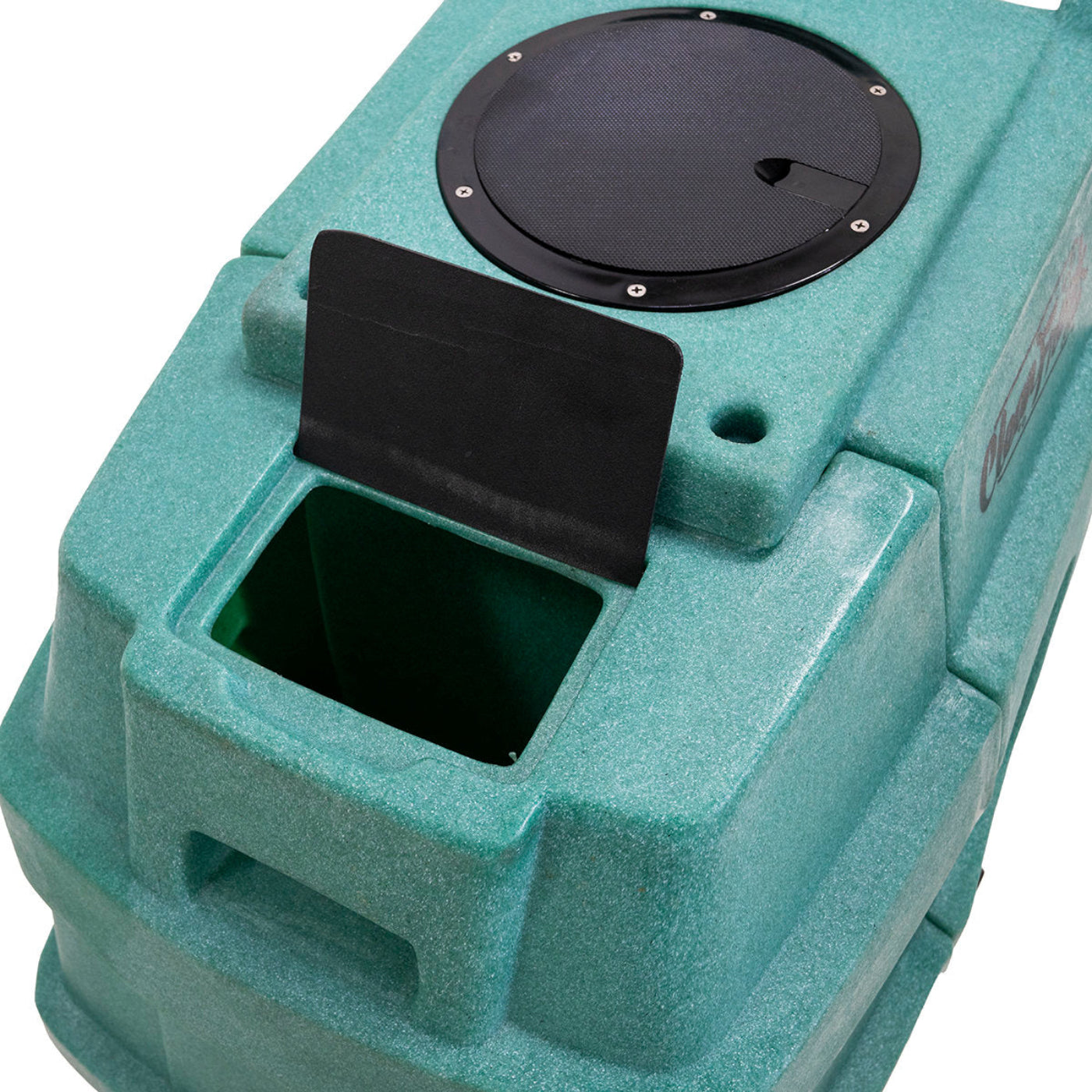

• Balanced tank design (11-gallon solution / 13-gallon recovery) supports longer cleaning runs with fewer interruptions
• Includes a 12" adjustable glide wand that improves water recovery and reduces drying time by up to ~30% per pass
• Heavy-duty 95 lb portable chassis offers a strong mix of mobility and stability for multi-location or mobile cleaning work
• Adjustable PSI control (0–500) allows operators to tune pressure for delicate upholstery or aggressive carpet restoration
• Dual-cord power setup separates heating and vacuum/pump load for consistent performance under heavy electrical demand
• Ideal for carpet cleaning contractors, auto detailers, hotels, offices, and restoration professionals
• Side dump and back dump system improves workflow efficiency during large cleaning jobs
• Designed for professional use with serviceable internal components and long-term maintenance access
• Strong choice for users needing a heated extractor that bridges portability and high-output commercial performance


Q&A

Q: What is the CleanFreak Heated 500 PSI Portable Carpet Extractor used for?
A: The CleanFreak Heated 500 PSI extractor is a professional hot-water extraction machine designed for deep cleaning carpets, upholstery, and auto interiors by injecting heated solution and extracting embedded dirt.

Q: How does the heated system improve cleaning results?
A: Dual 750W heaters heat water up to 210°F, helping break down grease, stains, and soil faster for more effective extraction and faster drying times.

Q: What makes the 500 PSI pump important?
A: The adjustable 0–500 PSI pump lets you control pressure based on the surface—low for upholstery, higher for heavily soiled commercial carpets.

Q: What comes included with this extractor?
A: It includes an 11-gallon solution tank, 13-gallon recovery tank, 25’ hose set, and a 12” adjustable glide drag wand for efficient large-area cleaning.

Q: Is this machine suitable for commercial use?
A: Yes. With dual vacuum motors, strong suction (150” water lift), and heavy-duty build quality, it’s designed for professional carpet cleaners, janitorial services, and auto detailing businesses.

Q: Does it require special power setup?
A: Yes. It runs on two 120V circuits (approx. 29 amps total)—one for heaters and one for vacuum/pump—so proper outlet separation is required.

Q: Is it portable?
A: Yes. Despite its commercial power, it weighs about 95 lbs and is designed with wheels and a compact frame for transport between jobs.
