Heliatos RV Freeze Protected Solar Water Heater Kit with External Heat Exchanger

Heliatos RV Freeze Protected Solar Water Heater Kit with External Heat Exchanger

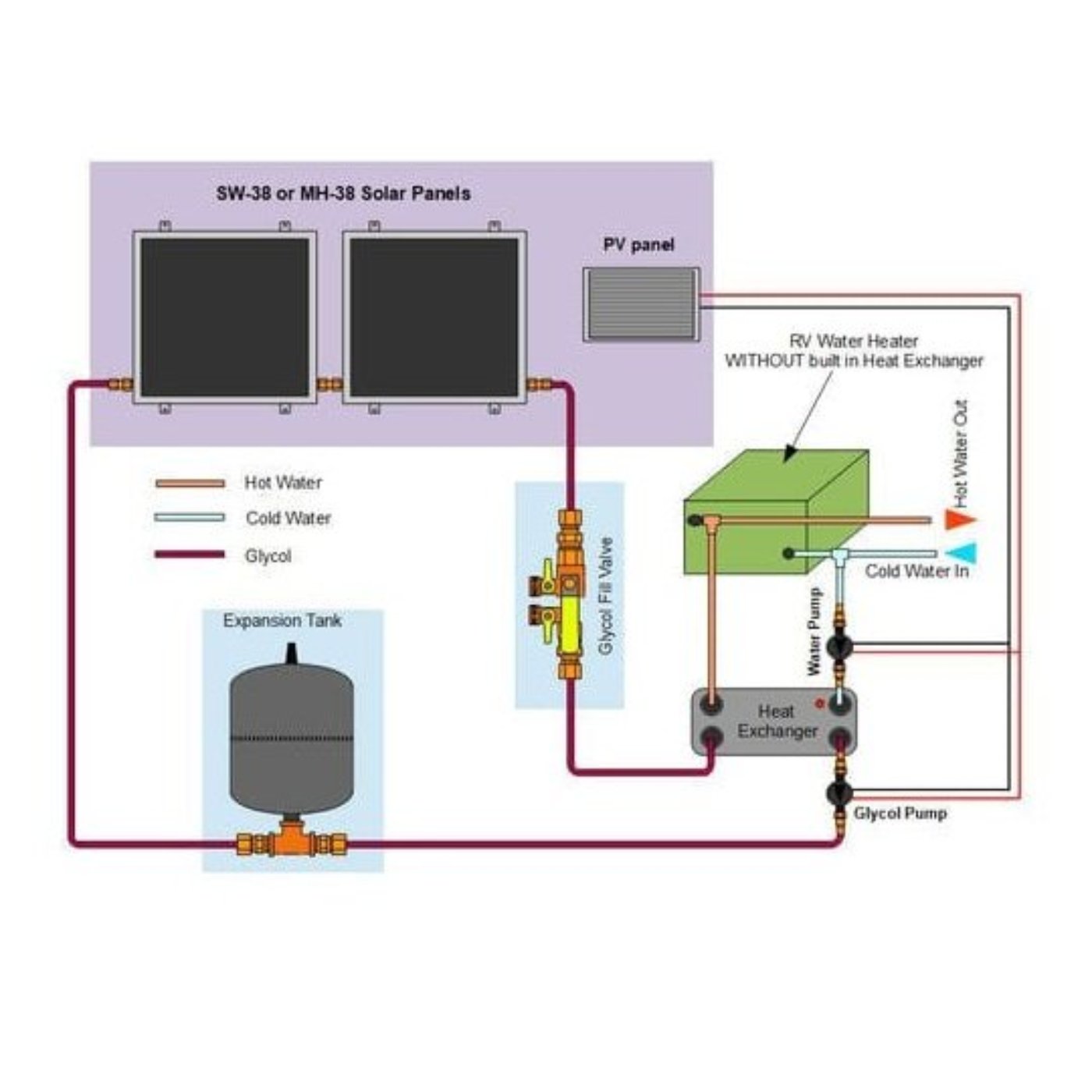

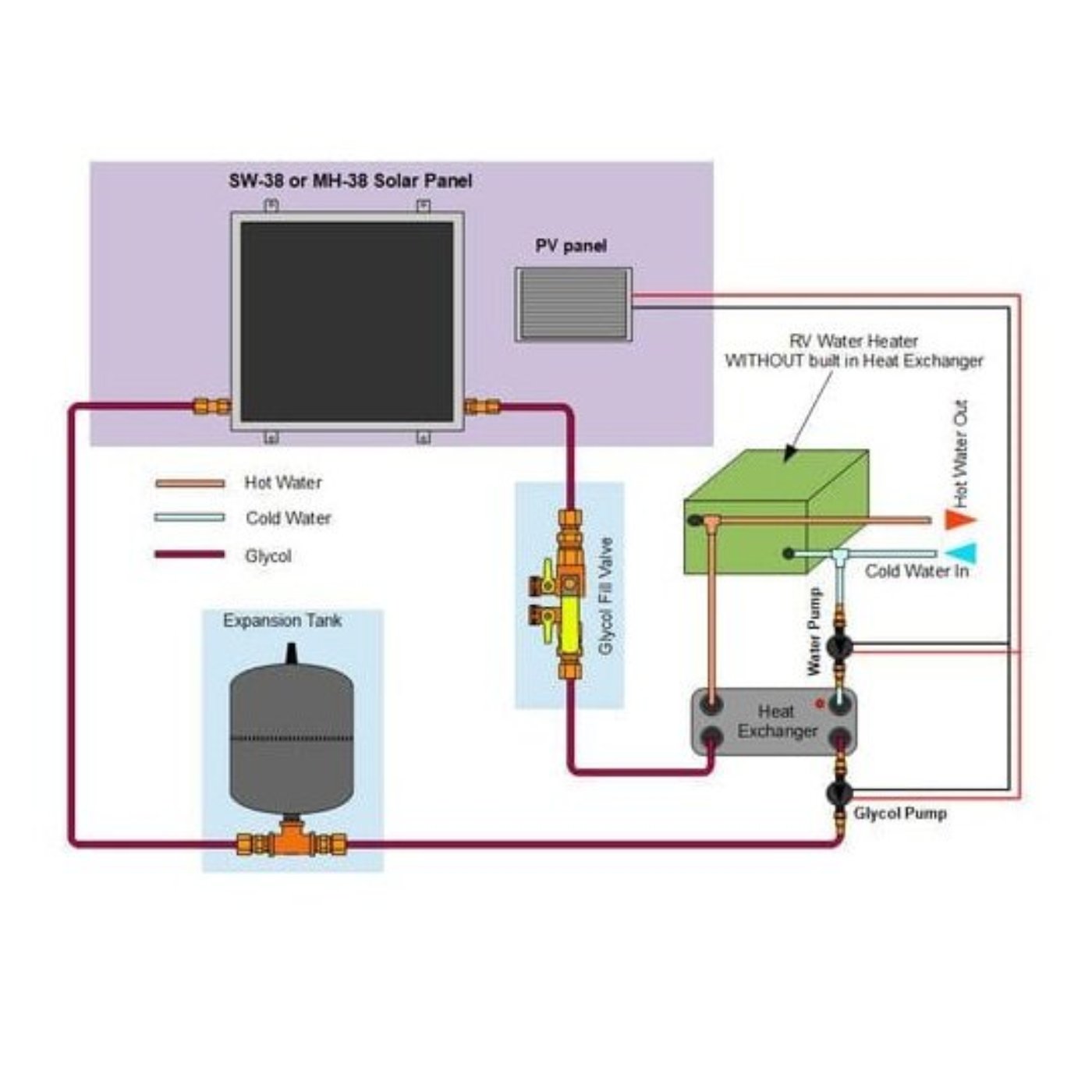

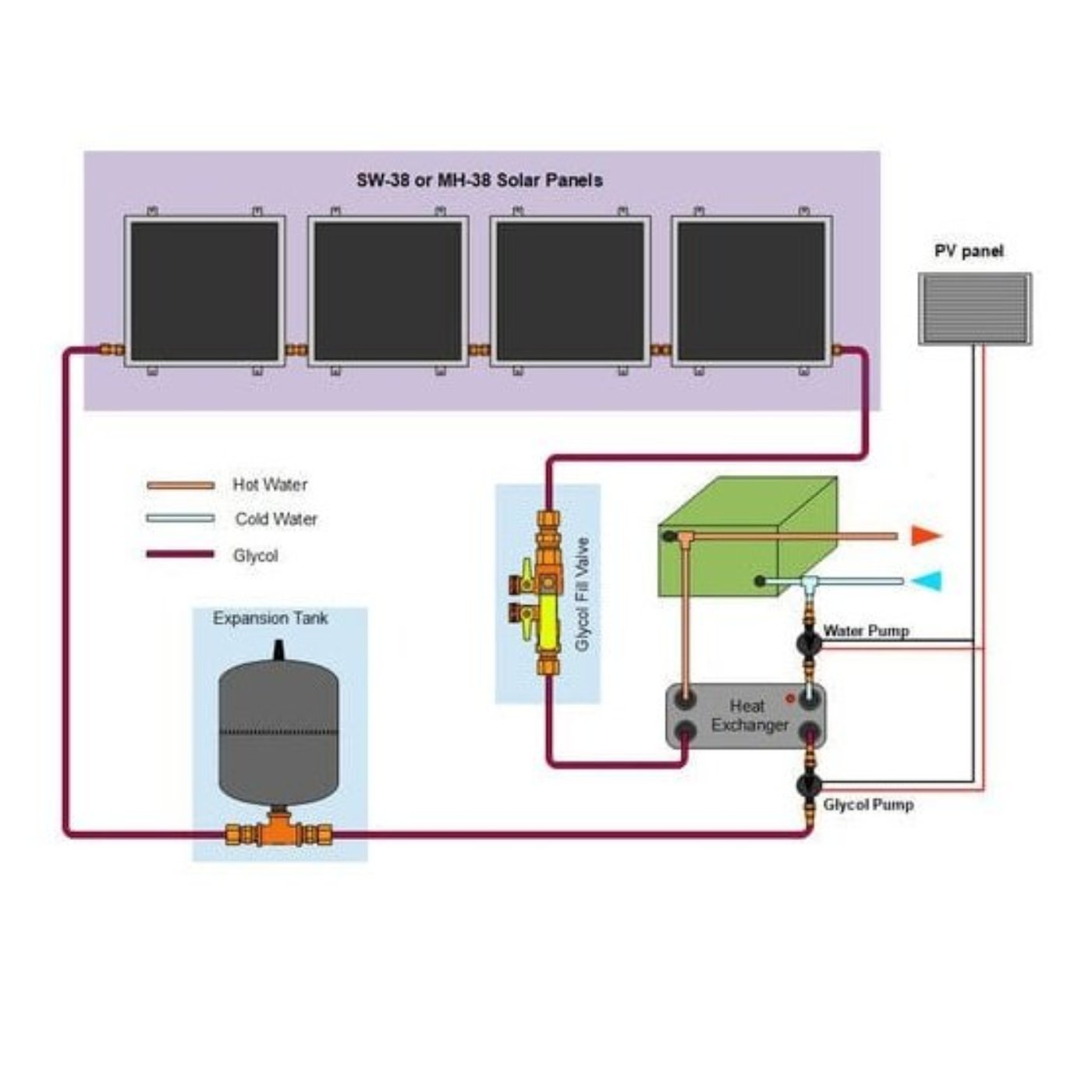

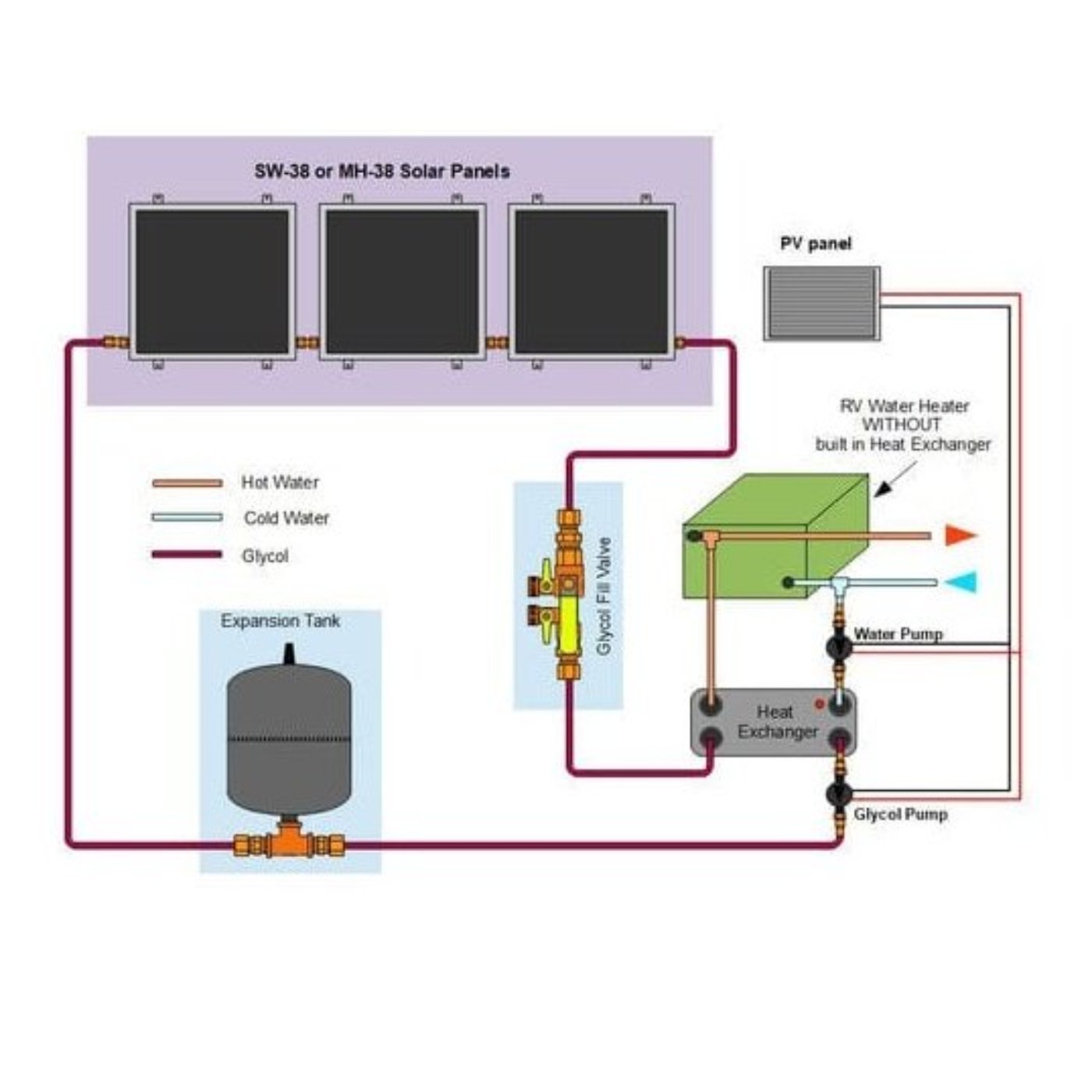

If your RV water heater does not have a built-in heat exchanger but you still want to install a freeze protected (closed loop) system this kit is for you. It contains everything you need to add a high quality freeze protected solar water heater to your RV. Included is a compact stainless steel heat exchanger (316 alloy) and all other parts required for a closed loop system. The antifreeze in the solar loop is heated by Heliatos SW-38 solar water heating panel. This panel is robust enough to be mounted on a vehicle at highway speeds, has unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.

SW-38 Solar Panel

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

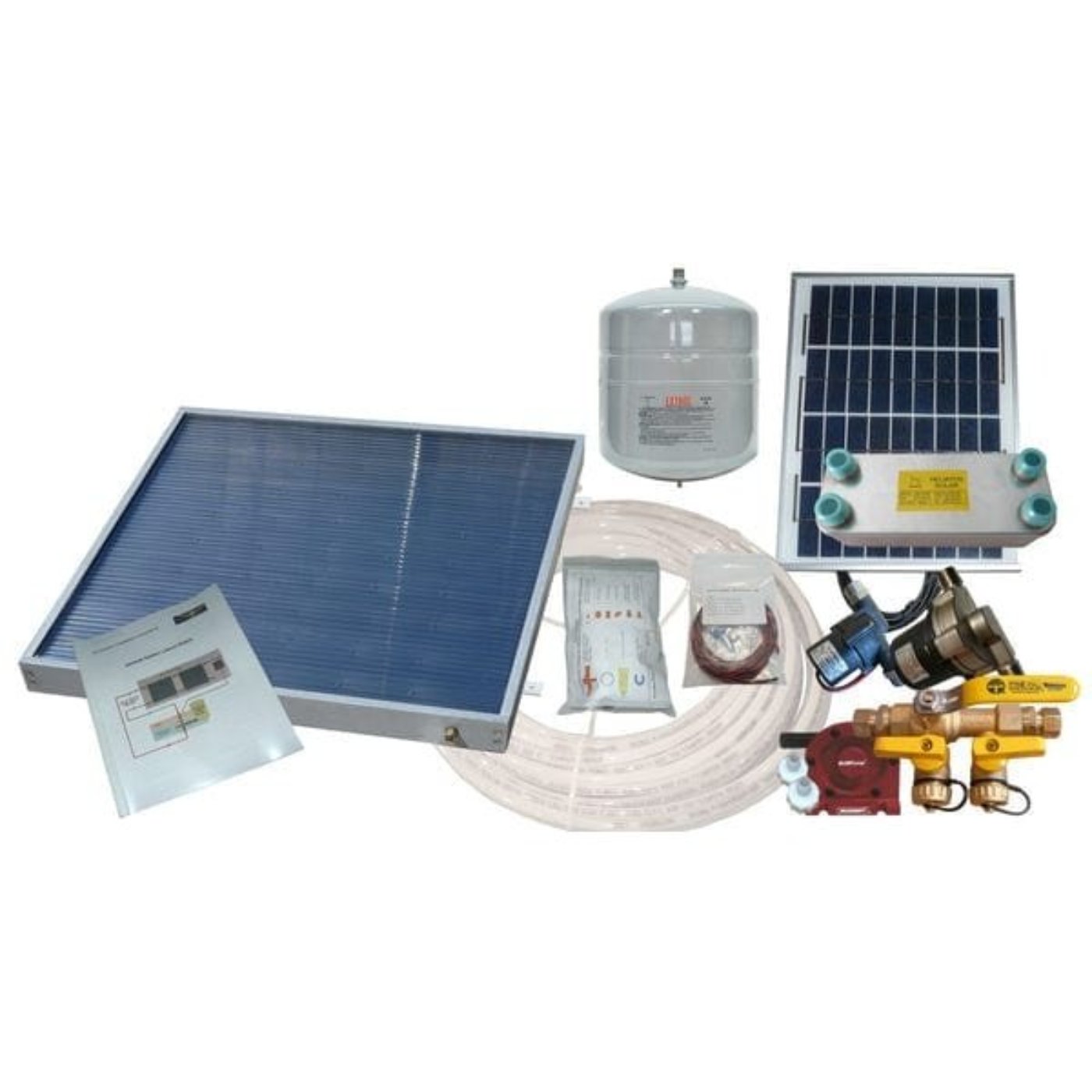

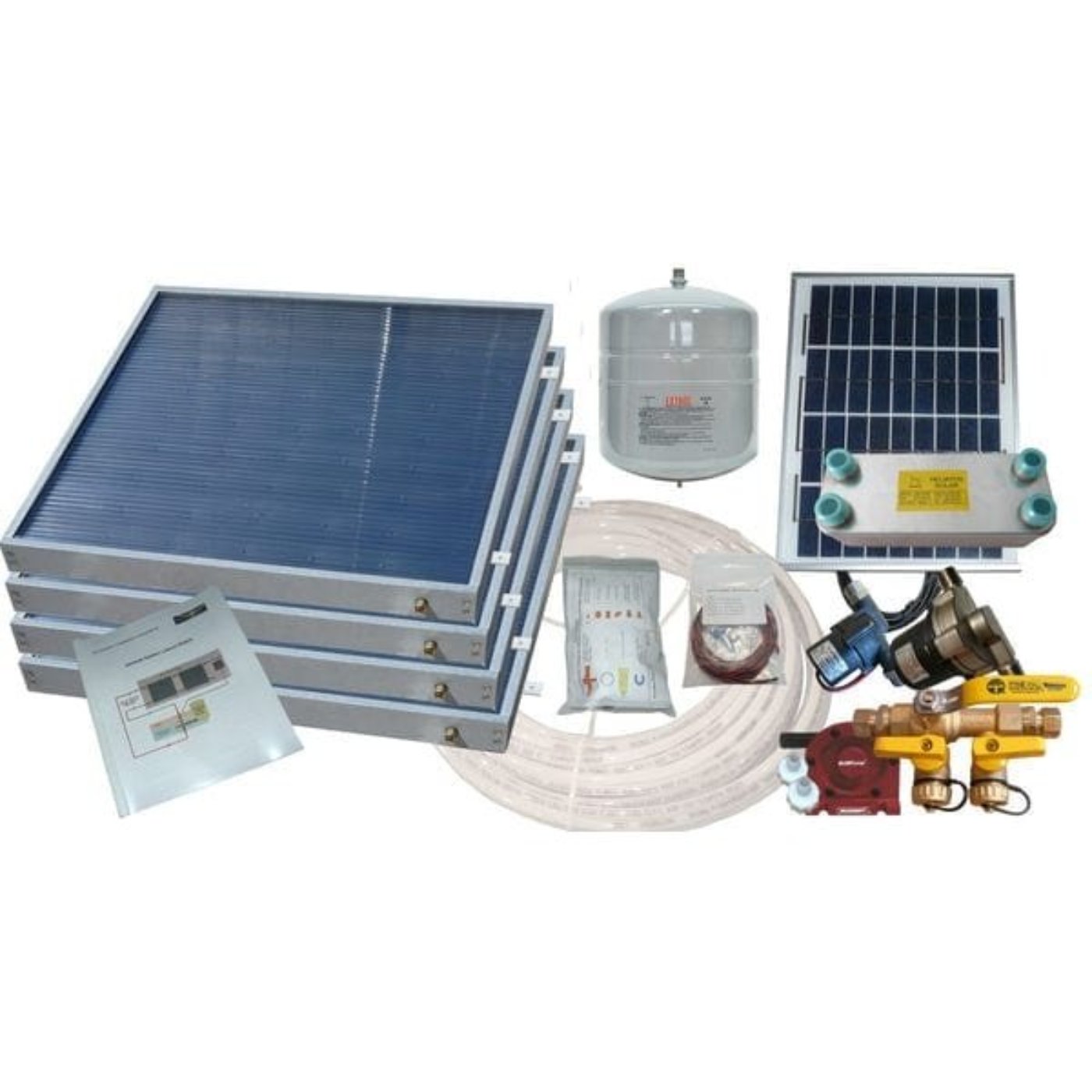

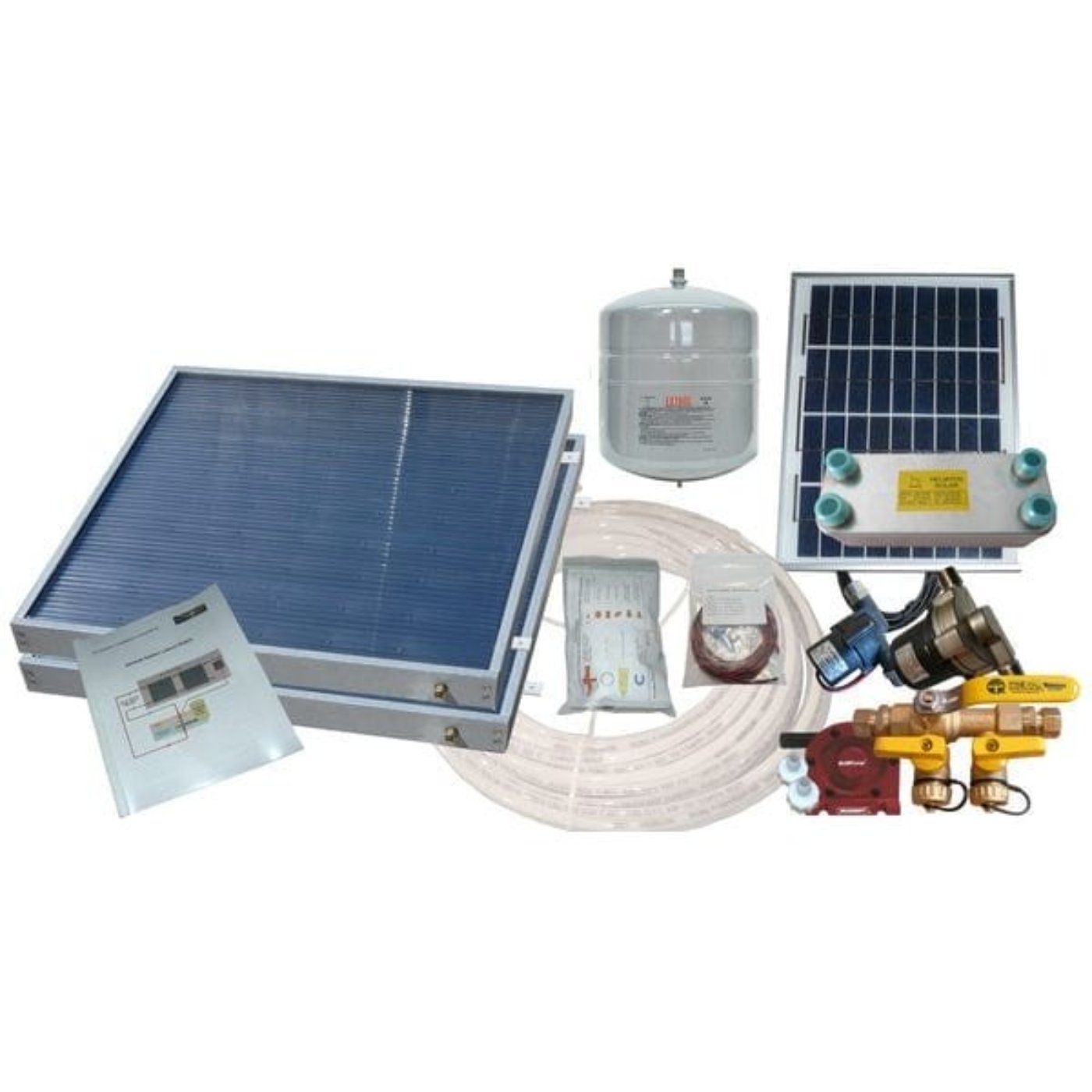

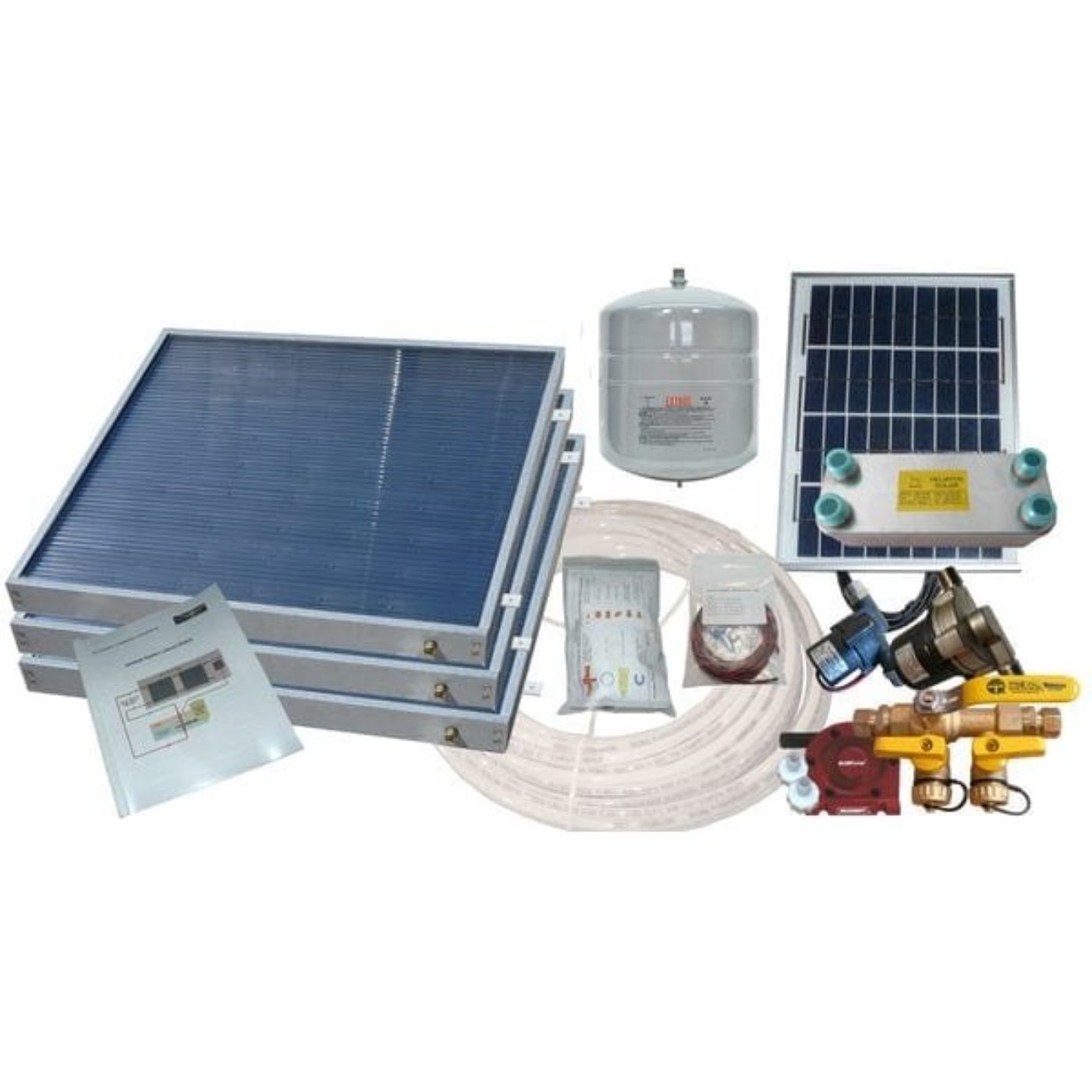

• Your selected quantity of Heliatos SW-38 Solar Water Heating Panel

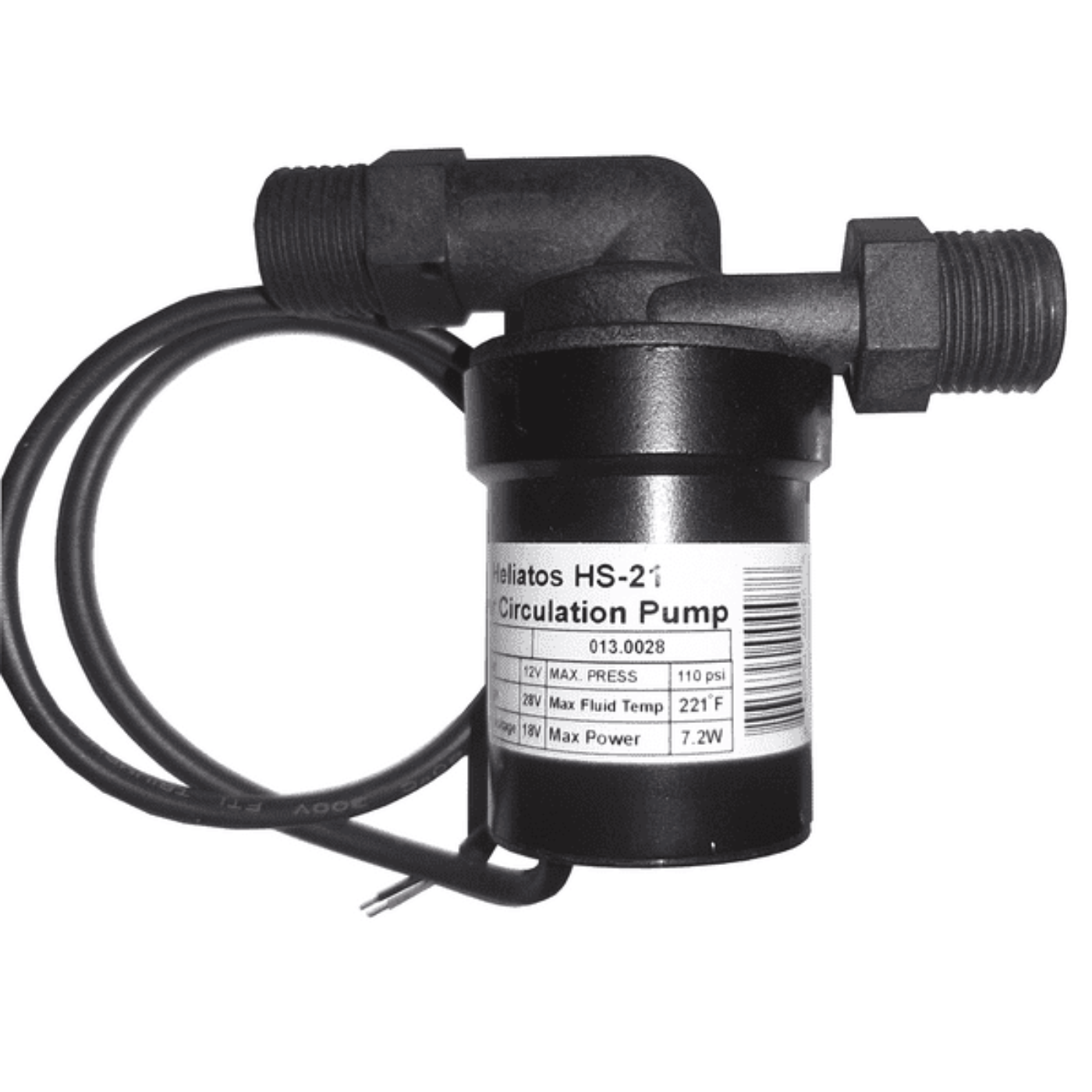

• 1 Heliatos HS-21 solar circulation pump

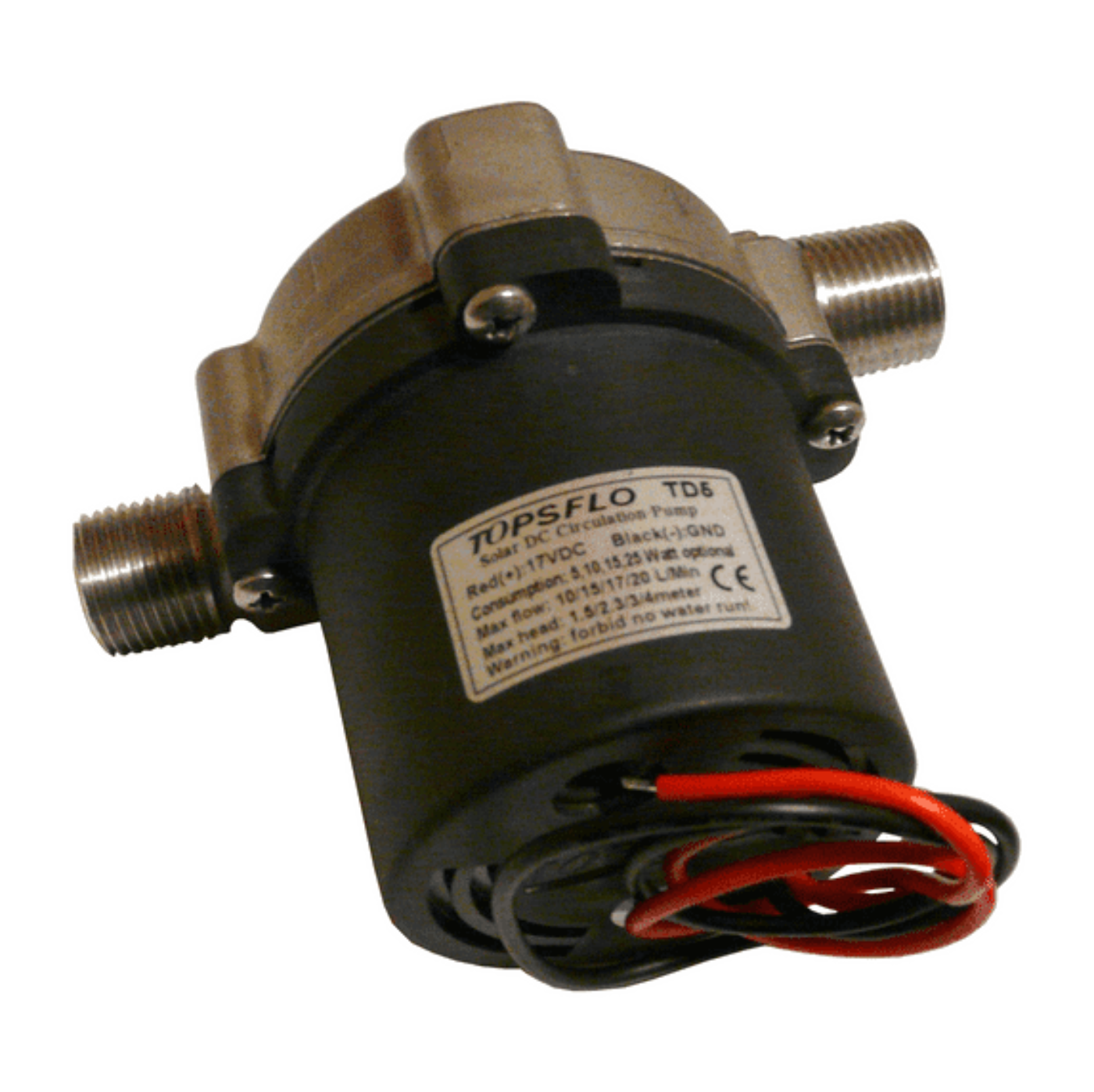

• 1 TopsFlo TD5 Stainless Steel Circulation Pump
• 1 25 Watt PV Solar panel to power the pump
• Wire and PV panel mounting tabs
• 25 ft of 1/4' PEX tubing
• Amtrol #15 Expansion Tank
• RV Glycol Fill and Purge Valve with Drill Pump and Instructions
• Compact Stainless Steel (Alloy 316) Heat Exchanger
• 1 Complete Set of Fittings and Adapters
• Assumes RV water heater with 1/2' NPT ports (most common)
• Contact us for non-standard Water Heaters or Connections
• Clear and easy to follow installation instructions

• Installation Instructions
