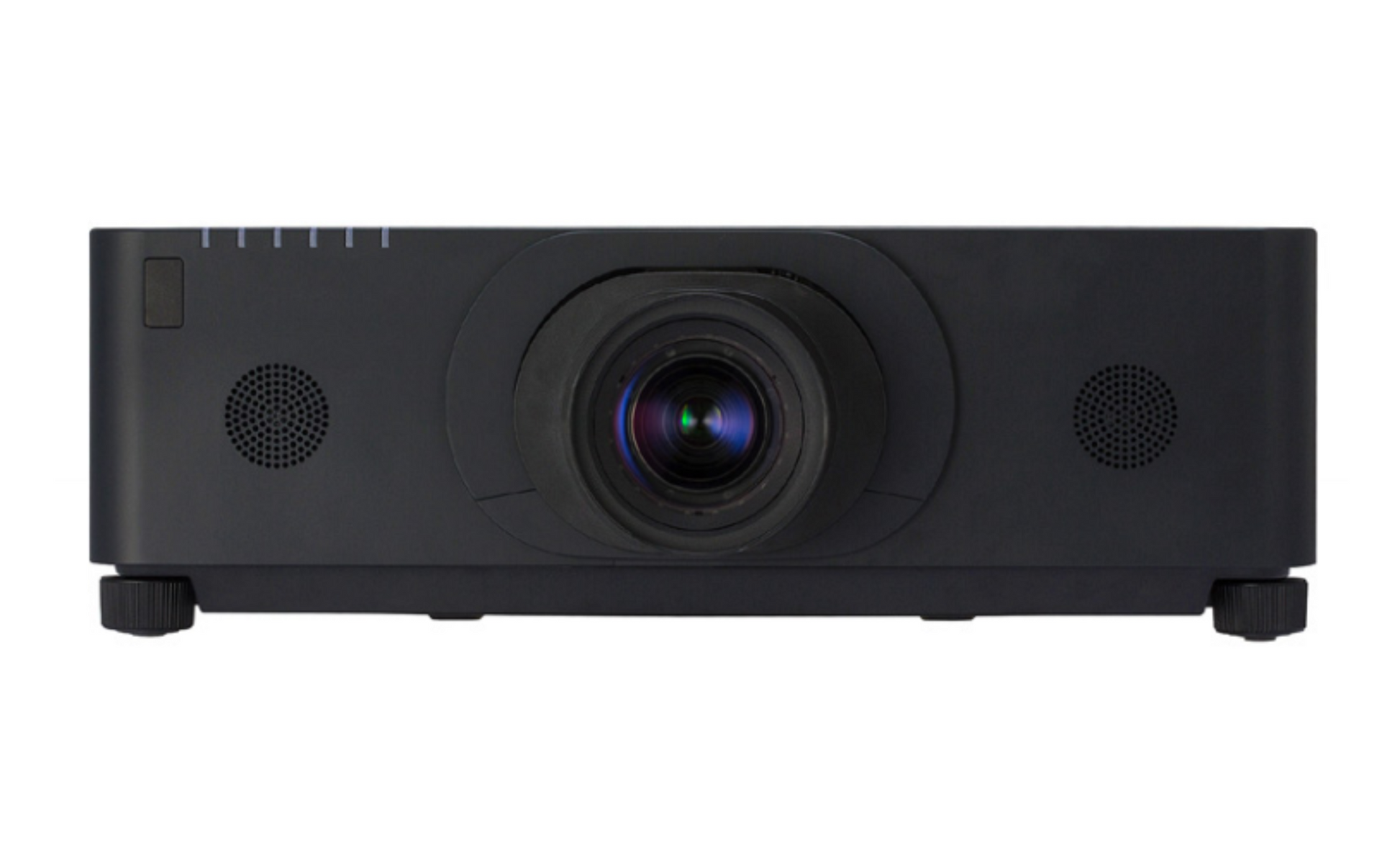

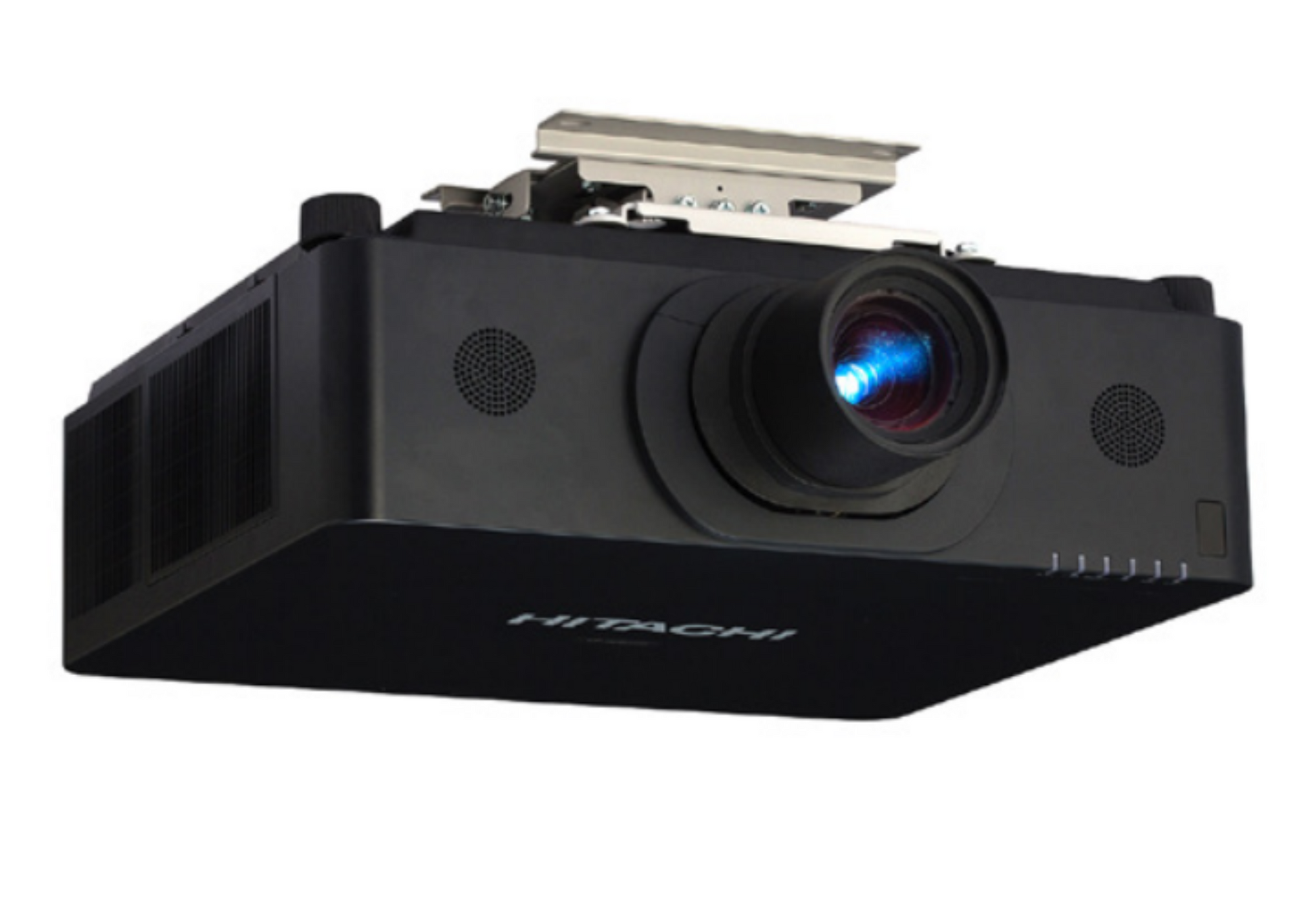

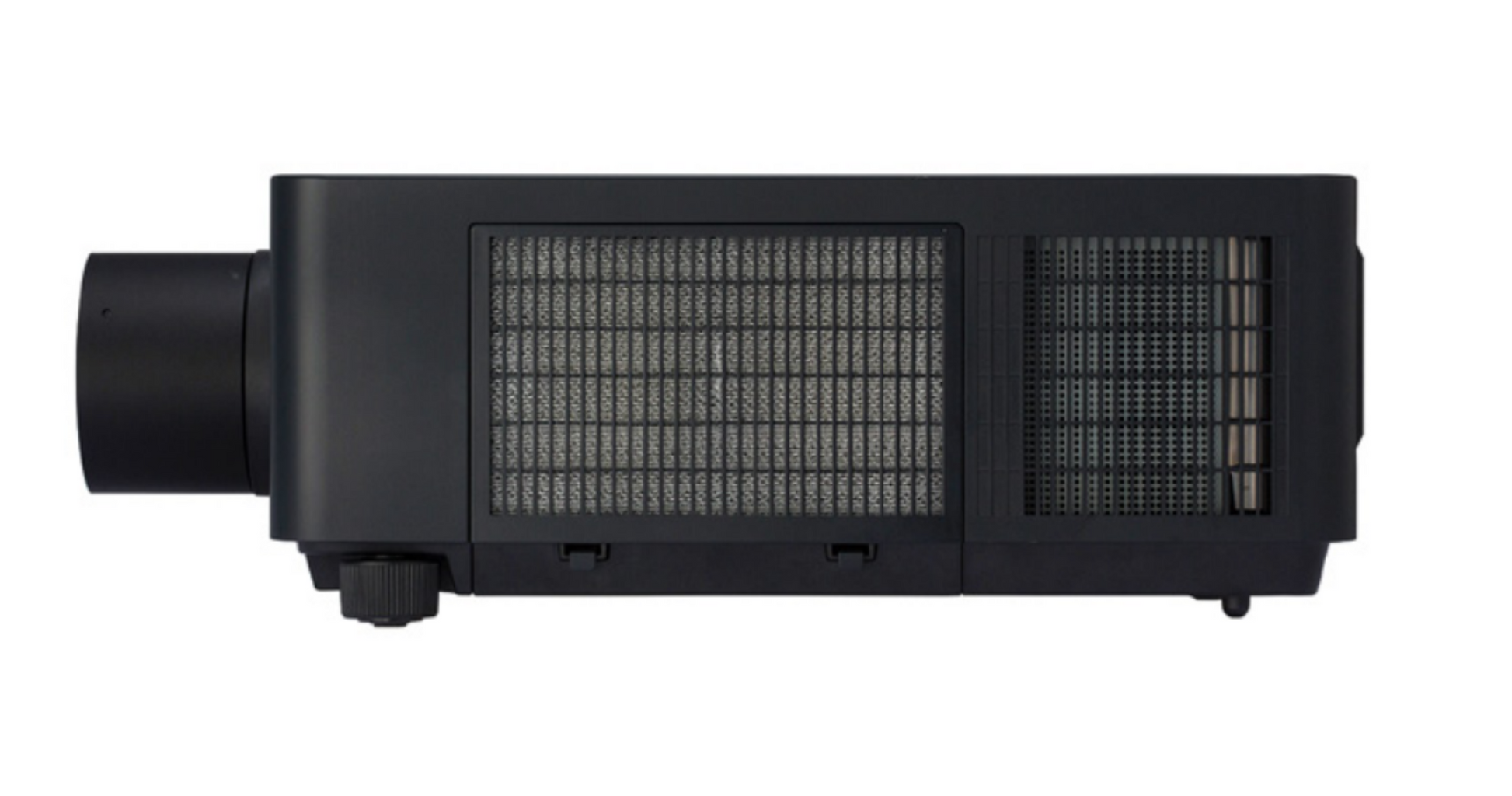

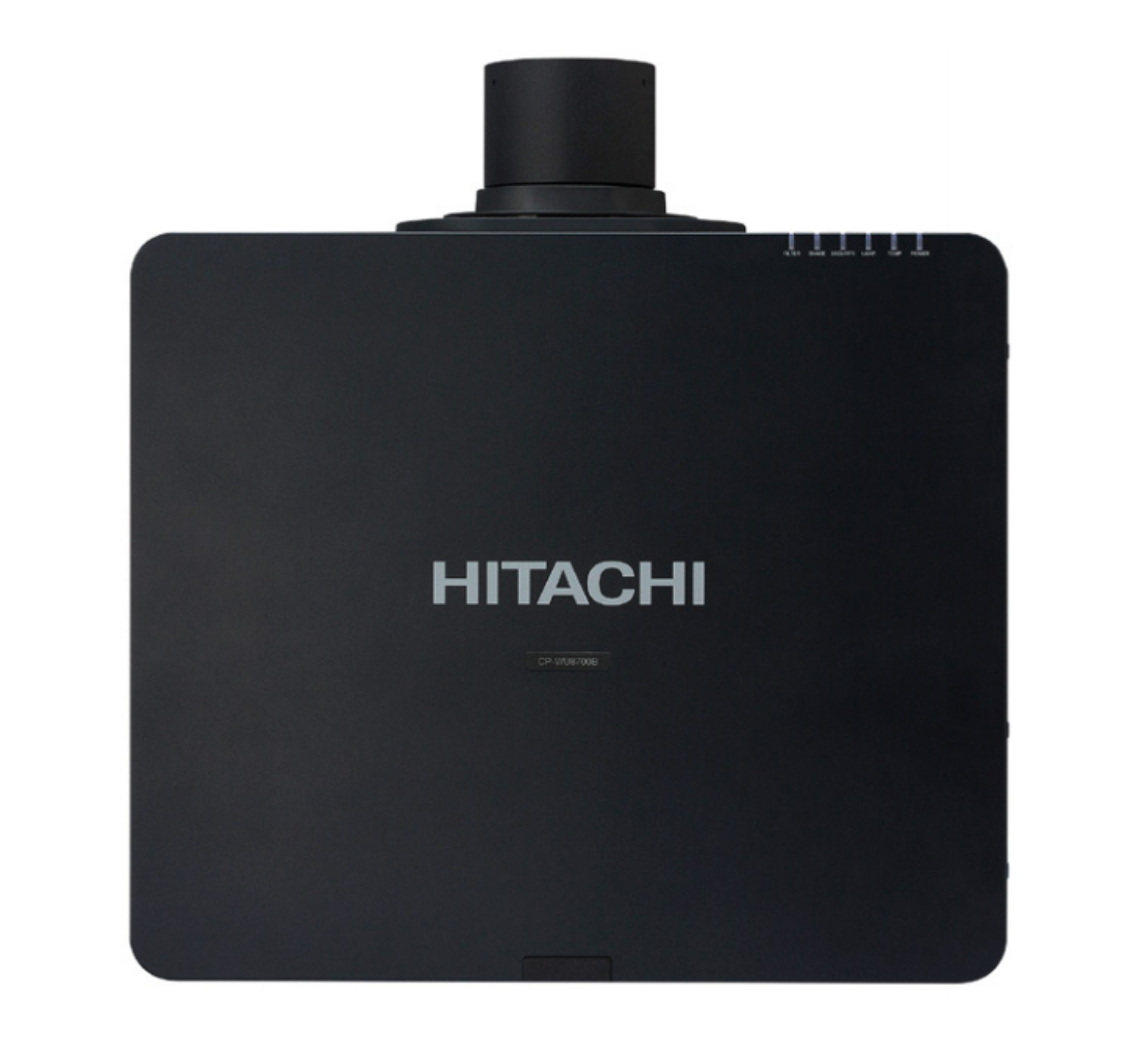

Hitachi 3LCD WXGA Projector - CPWU8700BML713
Hitachi’s installation-friendly CP-WU8700B LCD projector is designed to
provide maximum presentation impact in mid to large venue applications. It
offers a versatile array of innovative, performance-enhancing features along
with advanced video display technology providing bold, brilliant colors with
incredible image clarity and uniformity. The CP-WU8700B incorporates
original Hitachi technology Accentualizer, HDCR, Image Optimizer and Color
Management to deliver outstanding picture quality and visibility. Plus, with
motorized zoom, focus and superior lens shift, a variety of lens options, 360º
display rotation and status monitor, the CP-WU8700B is at the top of its
class when it comes to installation flexibility. All this, and with a lower cost of
ownership. For added peace of mind, Hitachi’s CP-WU8700B is also backed
by a generous and our world-class service and support programs.
Features
- 7000 ANSI Lumens
- 1920 x 1200 WUXGA Resolution
- 10,000:1 Contrast Ratio
Specifications
| Custom Aspect Ratio |
16:10 (WUXGA) |
| Native Resolution |
1920 x 1200 |
| Contrast Ratio |
10,000:1 |
| Throw Distance |
6.1 - 36.1 ft |
| Lens |
ML-713 Middle Throw Motorized x1.7x Zoom Lens |
| Inputs |
Composite (RCA), VGA In (Dsub-15pin), HDMI, Network (RJ-45), DisplayPort, HDBaseT (RJ-45), HD-SDI (BNC), Audio In (Mini Jack) |
| Outputs |
Audio Out (Mini Jack), VGA Out (Dsub-15pin) |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
8.0 W x 2 |
| Economode |
4,000 hrs |
| Audible Noise |
37.0 dB |
| Lamp Life |
2,000 hrs |
| Short Throw |
No |
| Aspect Ratio |
16:10 (WUXGA) |
| Image Size (Diagonal) |
29.8 - 300.1 in |
| Lens Shift |
Horizontal & Vertical |
| Data / Video Signals |
720p, 1080i, 1080p/60, 576i, 480p, 480i |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
24.5 lbs |
| Projector Methods |
Front, Rear, Ceiling Mount, Table Top |
| Dimensions (WxDxH) |
19.6 x 16.8 x 6.1 in |
| Power Consumption |
365W |
What our Experts Think
-
Crisp WXGA Resolution – 1280x800 resolution with 3LCD technology for vibrant, true-to-life images.
-
Ultra-Bright Projection – 7,000 lumens ensure clear visuals, even in large or well-lit spaces.
-
Flexible Installation – Motorized lens shift, zoom, and keystone correction for precise setup.
-
Advanced Imaging – HDCR (High Dynamic Contrast Range) enhances depth and clarity.
-
Versatile Connectivity – Equipped with HDMI, VGA, LAN, and USB for seamless device integration.
Q&A
Q: What is the resolution and brightness of this projector?
A: It features WXGA (1280x800) resolution with 7,000 lumens brightness for sharp, vibrant images.
Q: What projection technology does it use?
A: The CPWU8700BML713 uses 3LCD technology for true-to-life colors and consistent image quality.
Q: What is the contrast ratio?
A: It has a 5000:1 contrast ratio for crisp visuals and deep blacks.
Q: Does it support flexible installation?
A: Yes, with motorized lens shift, keystone correction, and multiple mounting options, installation is hassle-free.
Q: What connectivity options are available?
A: It includes HDMI, VGA, USB, and network connectivity for easy device integration.
Q: Is this projector ideal for large venues?
A: Yes, its high brightness and WXGA resolution make it perfect for auditoriums, conference rooms, and classrooms.
Maintenance Tips
-
Clean Air Filters – Regularly clean or replace filters for optimal airflow.
-
Ensure Proper Ventilation – Keep vents clear to prevent overheating.
-
Wipe Lens Carefully – Use a microfiber cloth to remove dust and smudges.
-
Update Firmware – Install the latest updates for enhanced performance.
-
Use a Surge Protector – Protect against power surges and fluctuations.
-
Minimize Dust & Humidity – Operate in a clean, dry space to extend lifespan.
-
Power Down Properly – Allow cooldown before turning off to protect internal components.
