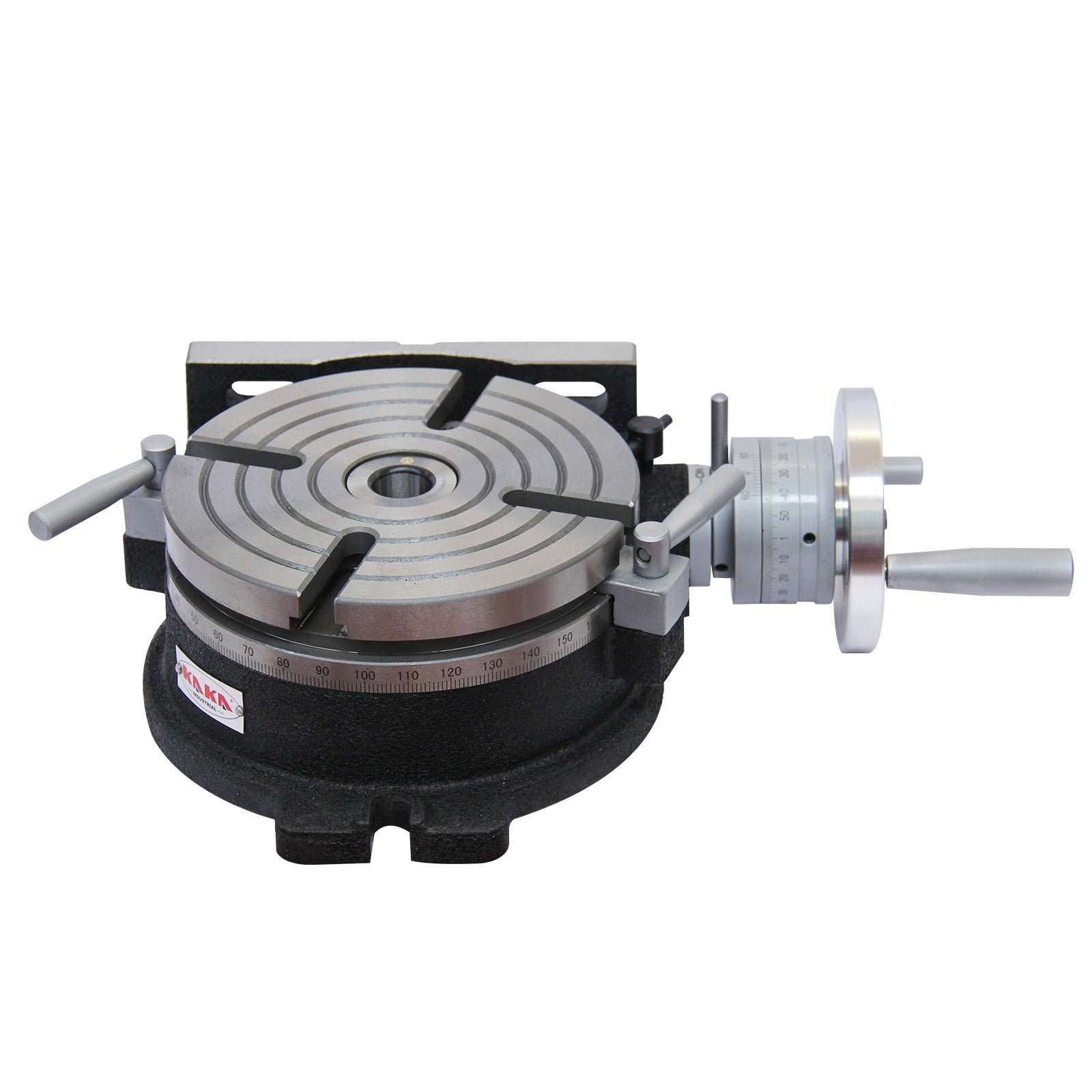

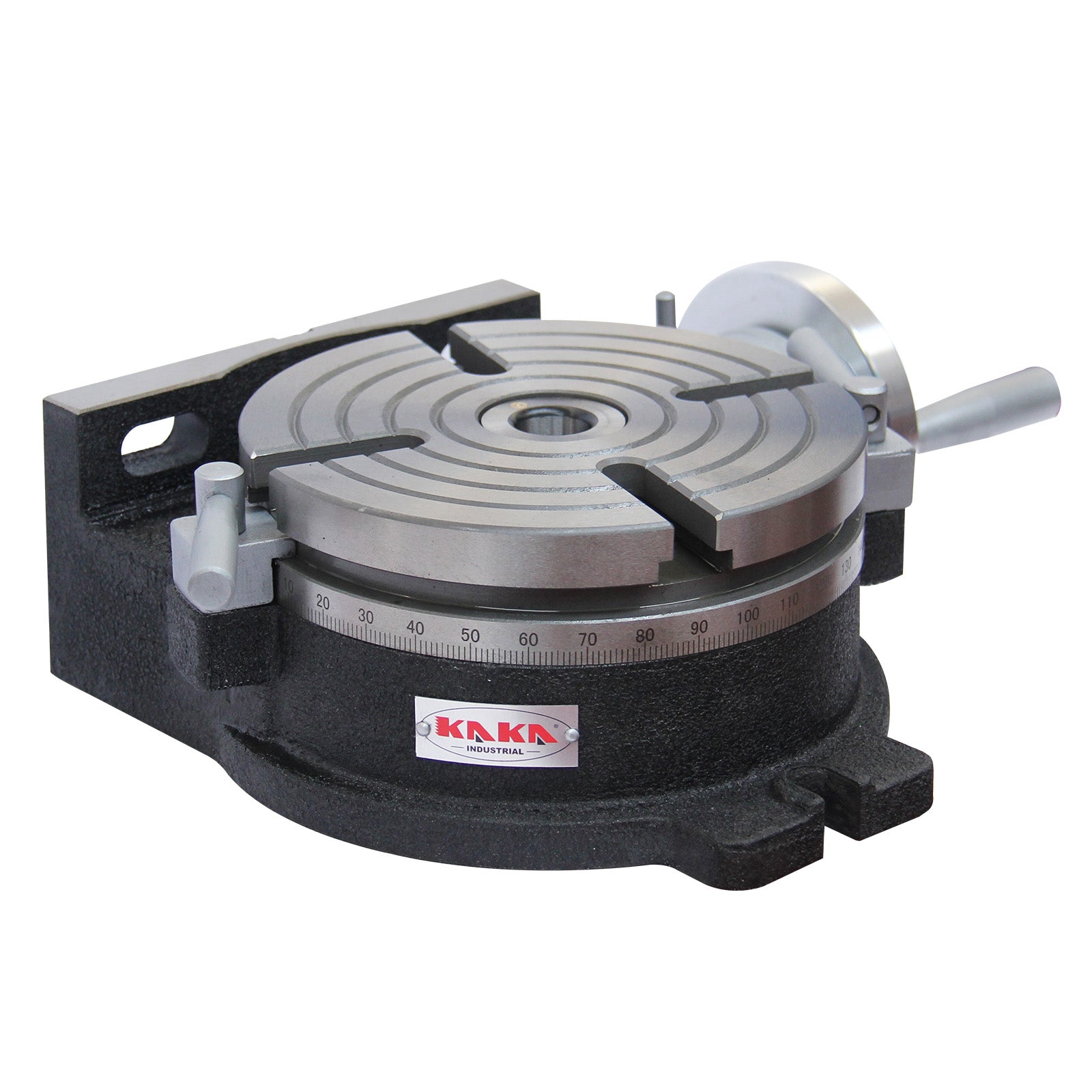

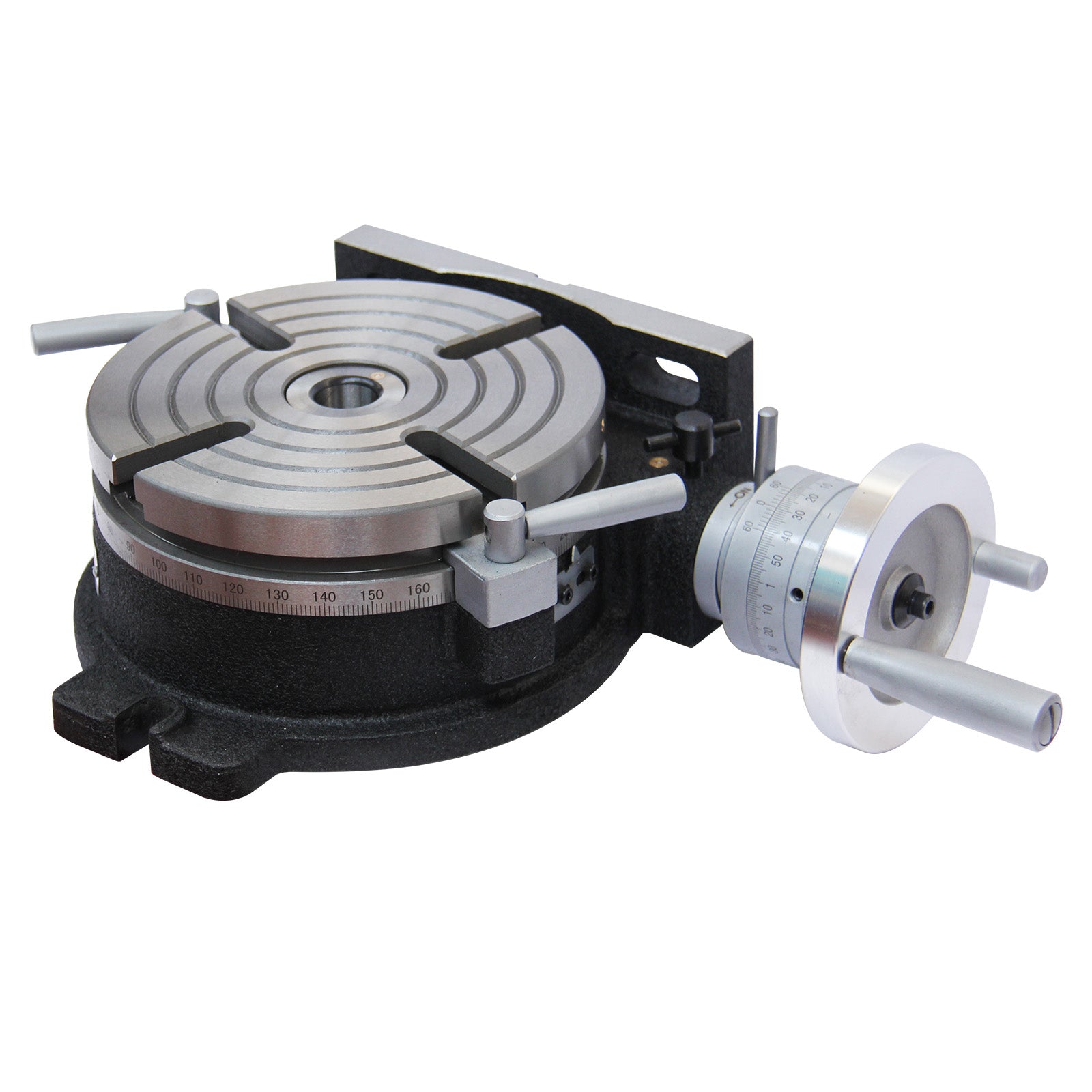

Kaka Industrial HV-8, 8" Horizontal Vertical Rotary Table Rotary table TSL Vertical & Horizontal MT3 Center Sleeve Rotary Table 4 slot Precision Milling Table 360 Degrees Precision Rotary Table - 161108
TSL vertical and horizontal rotary tables are among the leading accessories for milling machines. They are used for index boring, milling, circle cutting, spot facing, boring holes, etc.
The rotary table can be used on complex work for circle index boring and milling with optional tail stock.
Rigid cast iron body. Dual positive-action lock
One rotation of the handle equals four on the collar.

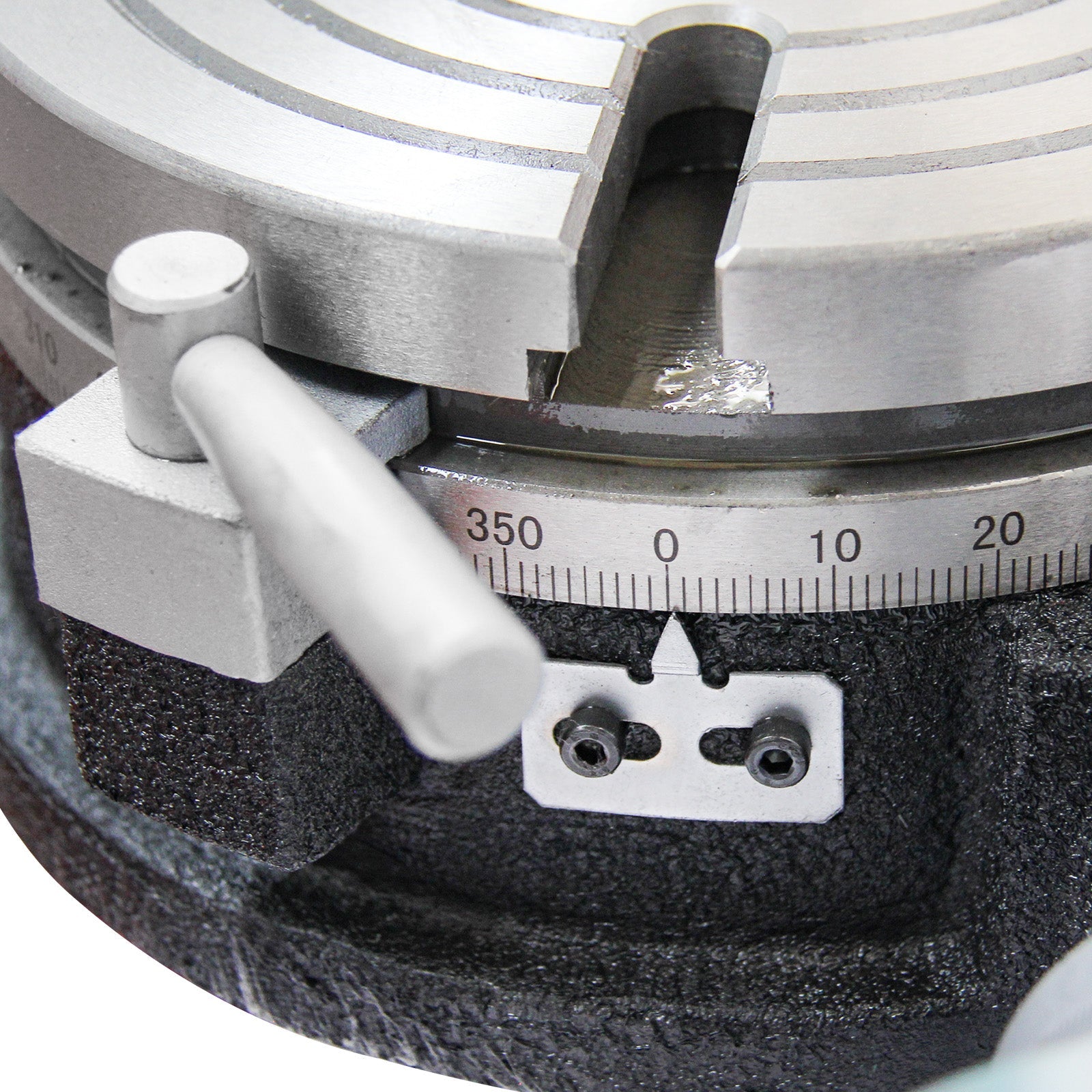

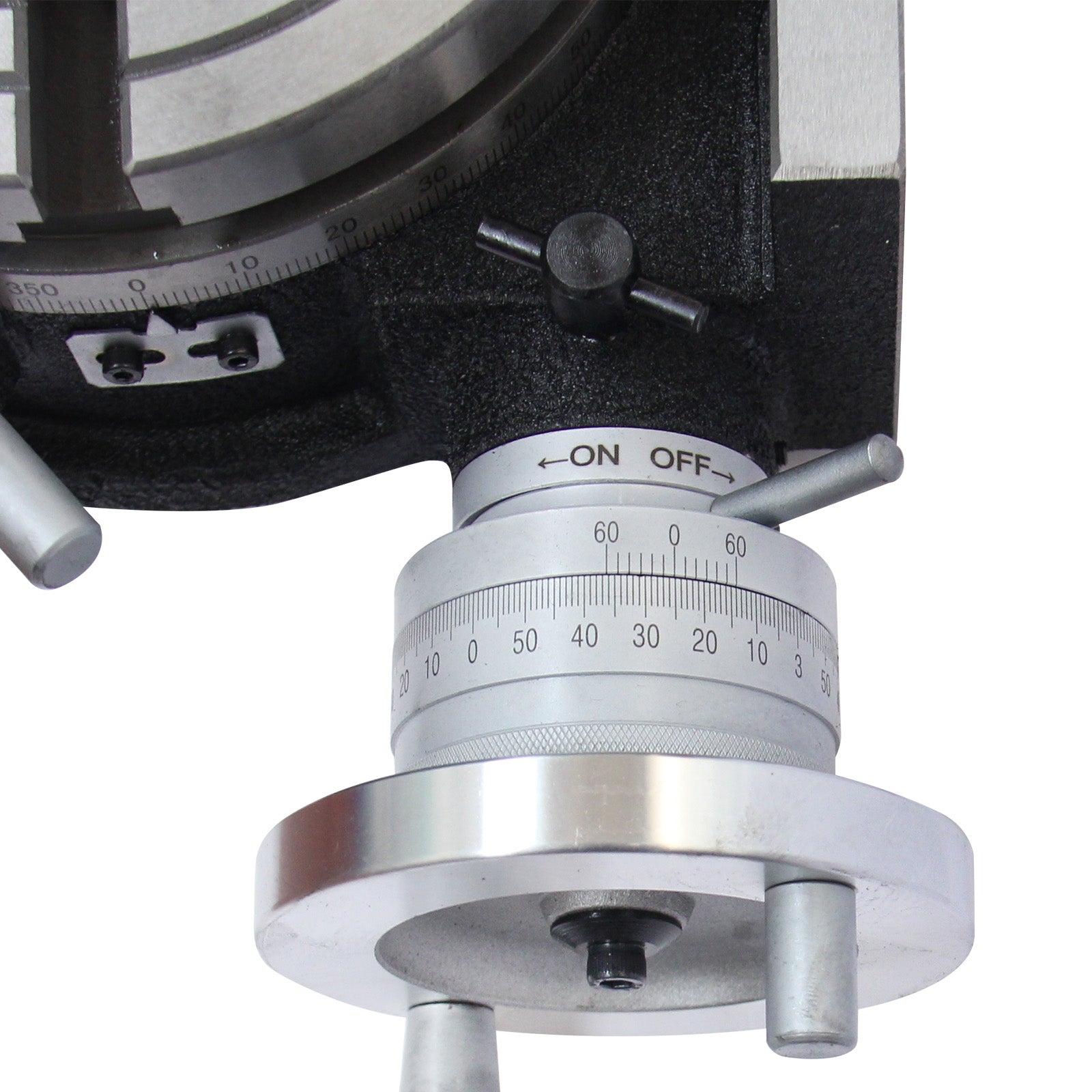

Min.10 second vernier reading
Gear ratio HV-4 1:72 HV6, HV-8, HV-10, HV-12 1:90
Harden and precision ground. Stain chrome dial
What Our Experts Think
-
The KAKA Industrial HV-8 Rotary Table (161108) is a precision-engineered 8-inch horizontal and vertical rotary table designed for accurate machining, milling, and indexing operations.
-

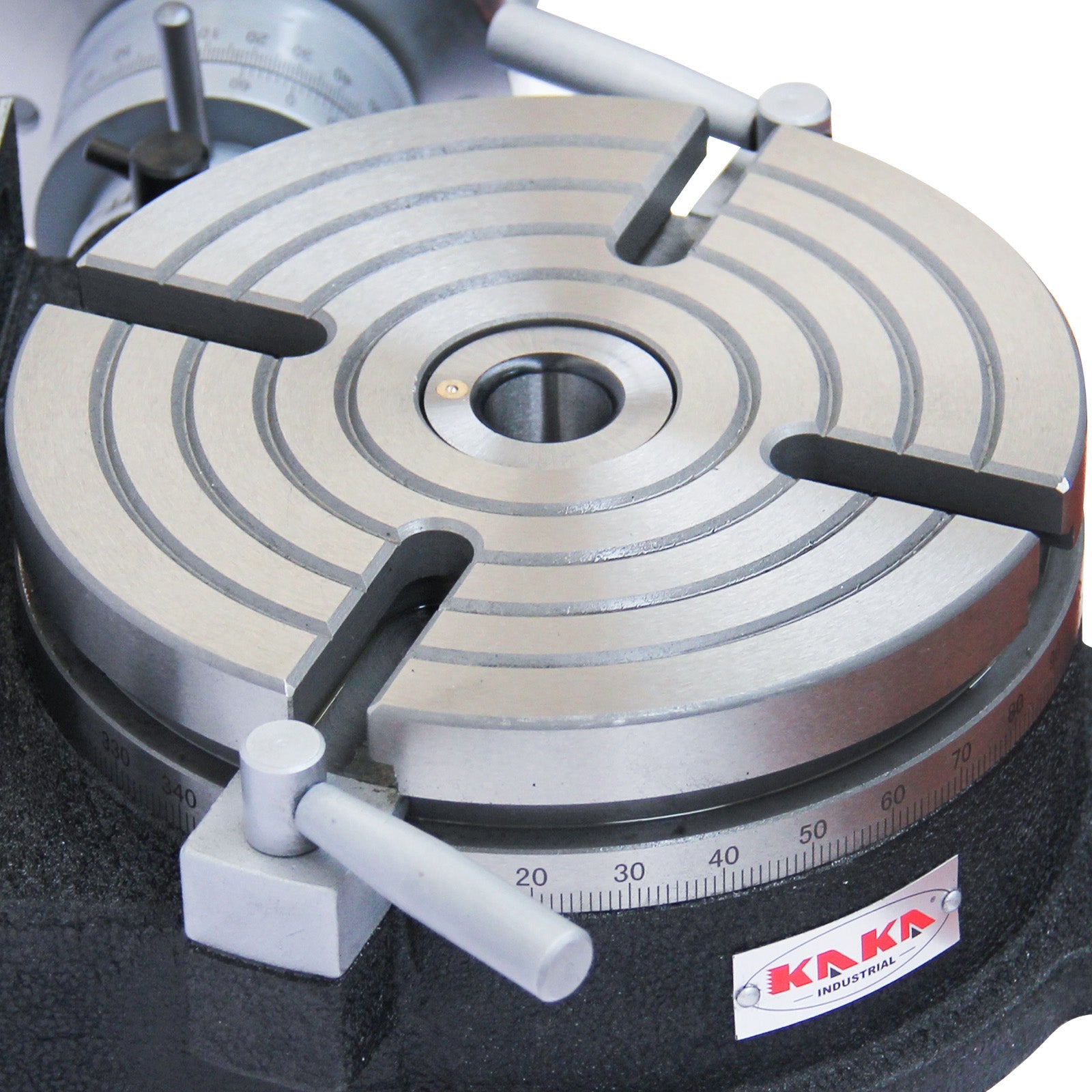

Features 360° smooth rotation with four T-slots for secure clamping of workpieces.
-

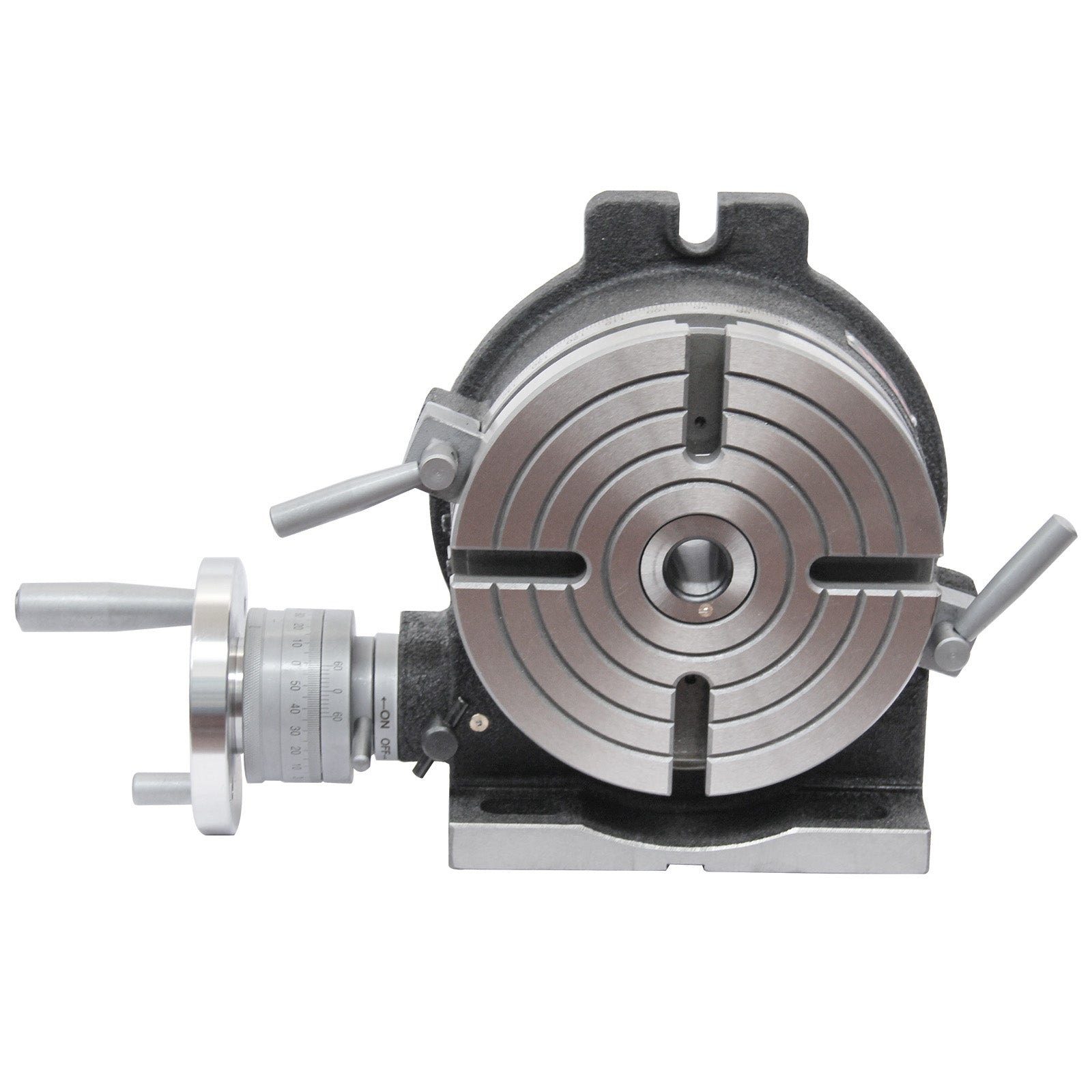

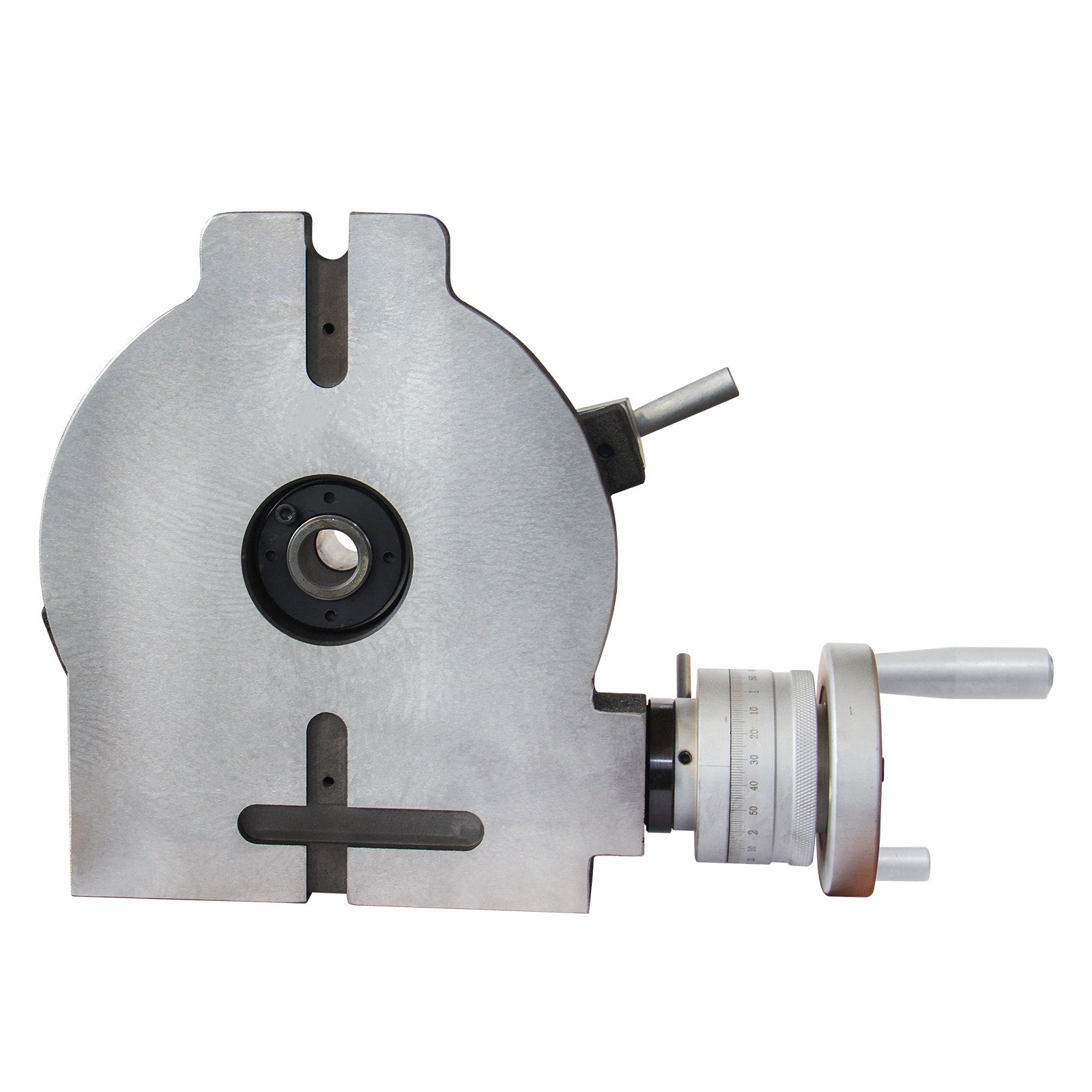

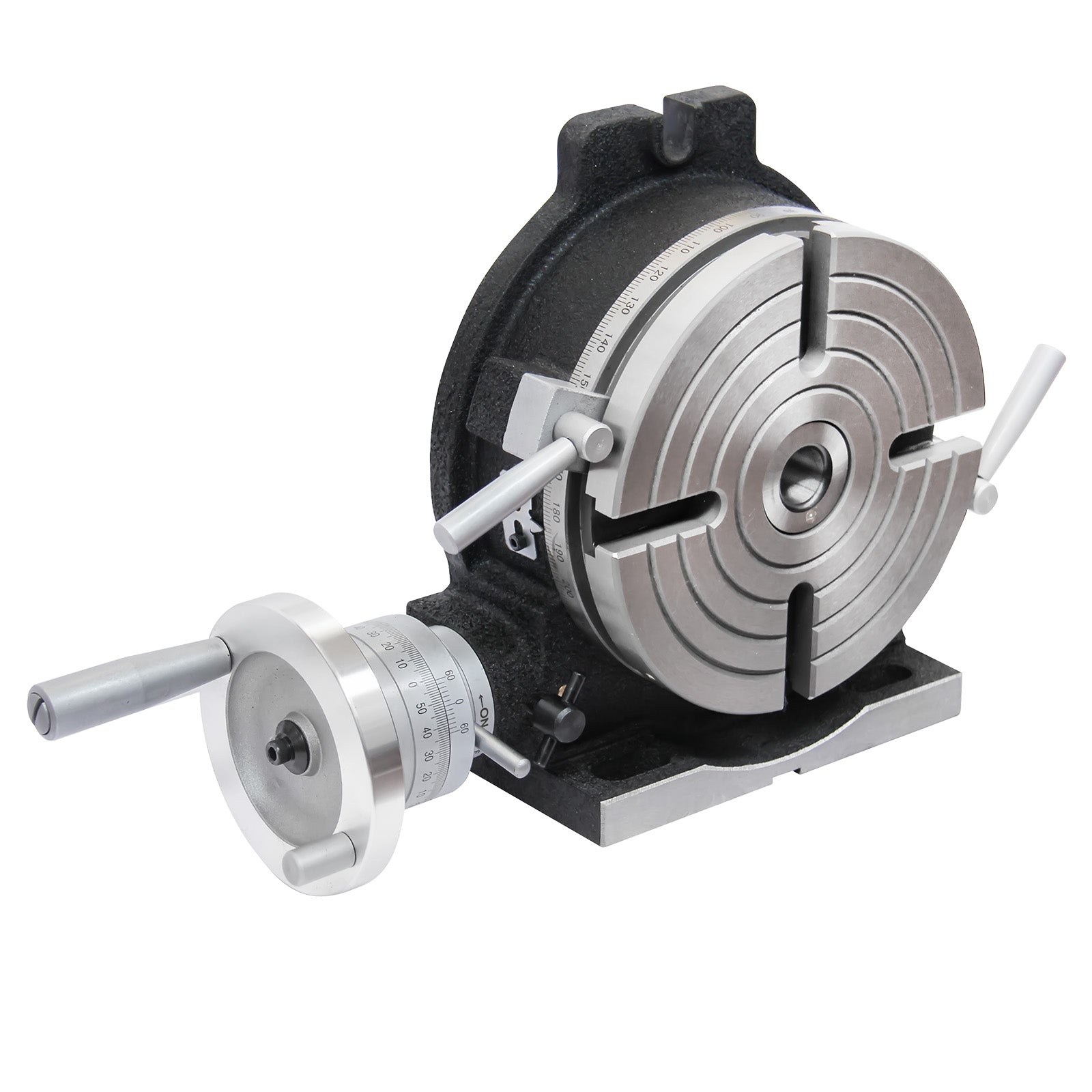

The dual-position design (horizontal & vertical) increases versatility for complex machining setups.
-
Equipped with an MT3 center sleeve, ensuring precise alignment and compatibility with a wide range of milling accessories.
Q&A
Q: What is the table size?
A: The rotary table has an 8-inch diameter, ideal for medium-size machining and milling applications.
Q: Can it be used both horizontally and vertically?
A: Yes, it’s designed for both horizontal and vertical mounting, offering maximum flexibility.
Q: What type of taper does it have?
A: It comes with an MT3 center sleeve for accurate centering and tool compatibility.
Q: How many slots are on the table?
A: The table includes four precision-machined T-slots for secure and stable workholding.
Maintenance Tips
-
Clean the table surface and slots after each use to prevent debris buildup.
-
Lubricate gears, bearings, and rotation handles regularly for smooth, accurate movement.
-
Check for backlash or play and adjust as needed to maintain precision.
-
Store in a dry, protected area to prevent rust and extend service life.
