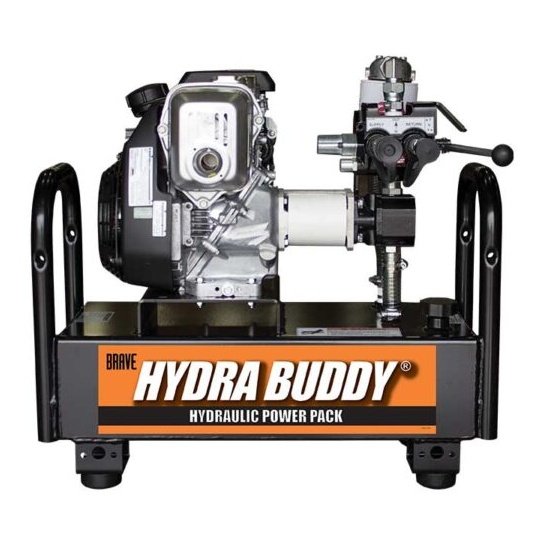

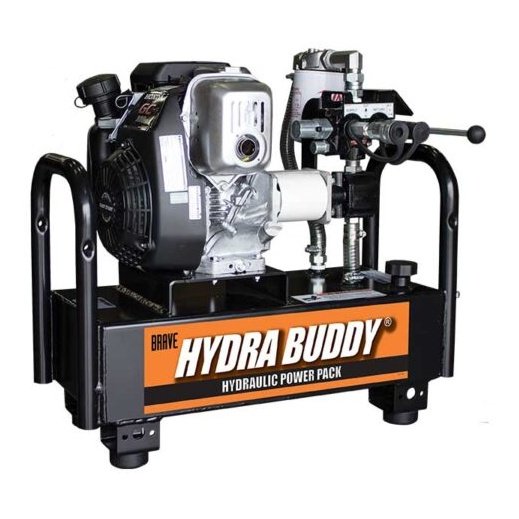

Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC)

Brave® Hydra Buddy™ Portable Hydraulic Unit (HBH16GC)

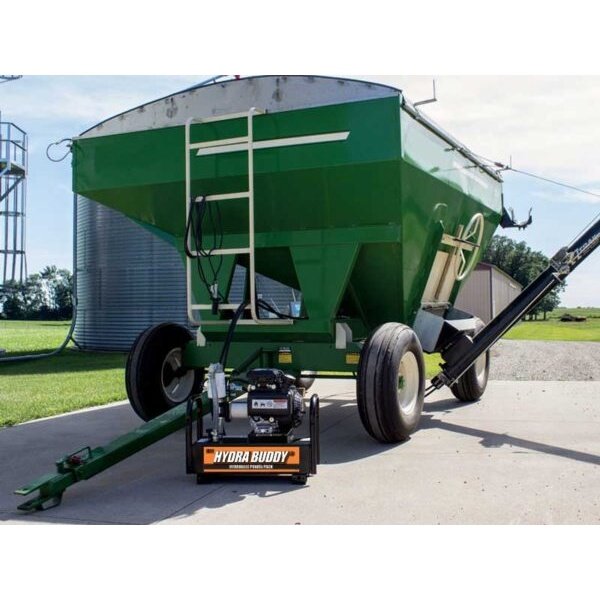

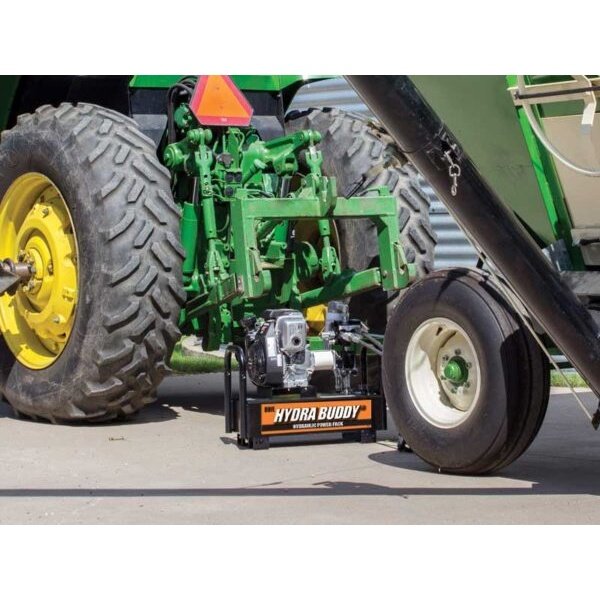

The Hydra Buddy™ replaces tractor power for augers, conveyors, dump wagons and more. These portable power units save you time & money by using less fuel and less maintenance than a tractor.

This Hydra Buddy™ unit comes with the standard Honda® GC160 motor. The 'big brother' of this unit (the HBH13GX) comes with the commercial Honda® GX160 engine.

With a 7 GPM Haldex Single-Stage Pump (900 PSI), will deliver a constant flow and pressure without spikes. Comes standard with 1/2” Stainless Steel Ports with Quick Disconnect Couplers which will minimize any downtime when changing applications.

The large 5.6-gallon hydraulic tank provides ample fluid for your applications.

• Shipping: Free (standard ground shipping)
• UPC: 011343000244
• Engine: Honda GC160
• Pump Capacity: 7 GPM
• Pump Ports: 1/2' (14 O-Ring)
• Pump Direction: Counterclockwise
• Hydraulic Fluid Type: AW32, ASLE H-150 or ISO 32
• Hydraulic Tank: 5.6 gal
• Hydraulic Tank: 3/16' Steel
• Tank Drain Port: Yes - 1/2' NPT
• Hydraulic Valve Rating: 900 PSI
• Valve Type: One-Way Detent, One Way Spring Return
• Hydraulic Valve Inlet: 3/4-14 NPT
• Hydraulic Valve Outlet: 3/4-14 NPT
• Filter Type: Parker 12AT25CN25BBN
• Quick Disconnects: ISO 7241-1 Series A
• Unit Dimensions: 27'L x 14'W x 25'H
• Weight: 133 lbs
• Warranty: 2 Year

2-Year Limited Warranty

Hydra Buddy Brochure
