Jabsco Ballast King Bronze DC Pump w/o Switch - 15 GPM - 22610-9007

Jabsco Ballast King Bronze DC Pump w/o Switch - 15 GPM - 22610-9007

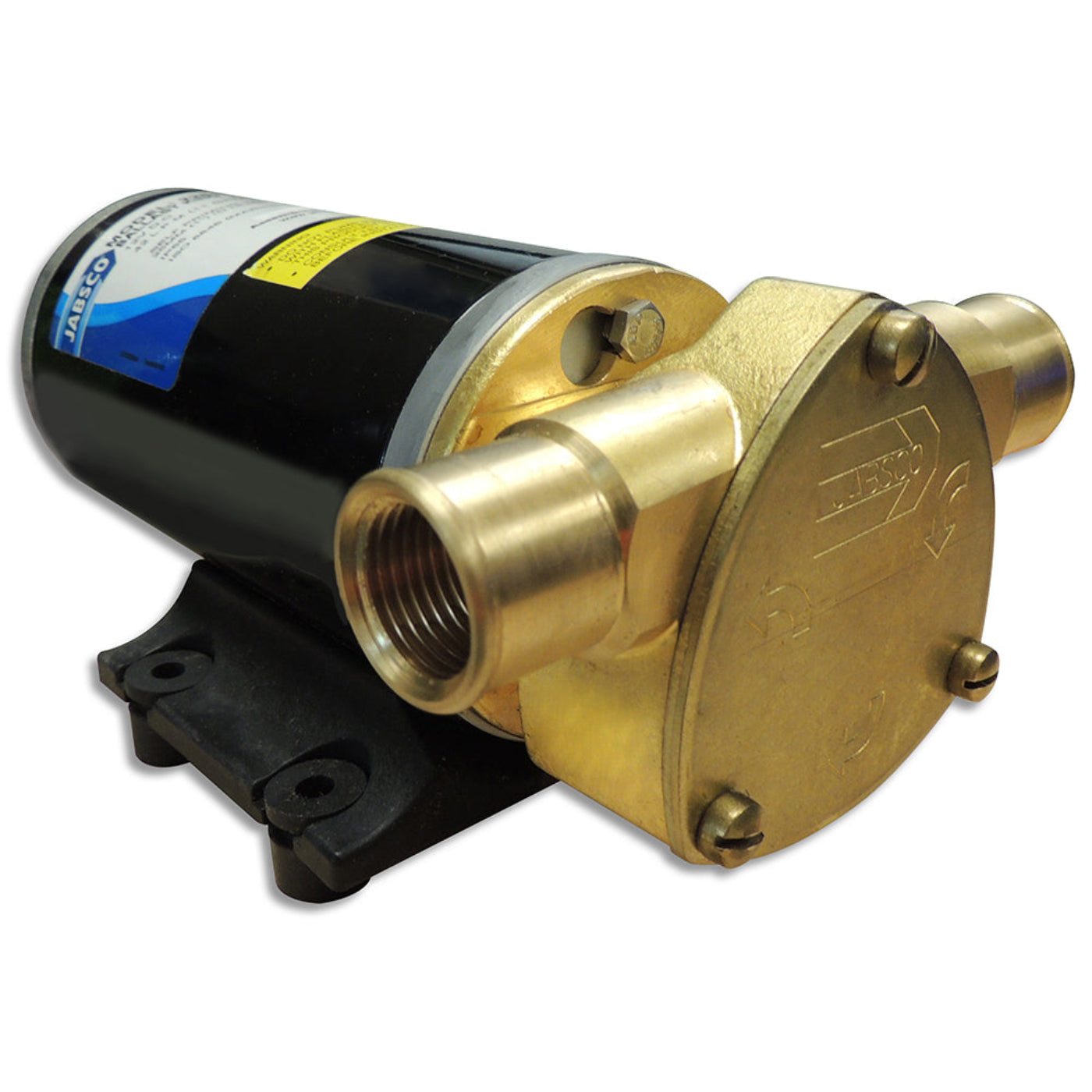

Ballast King Bronze DC Pump without Switch - 15 GPM

Wakeboard and Ski Boat Ballast Pump

Applications

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

Features

• Flow rate: 15 US gallons/min (57 Litres/min)
• Self-priming from dry up to 1.2m (4ft)
• Adds approx 125lbs (56kgs) of ballast per minute
• Reversible to both fill and empty tanks
• Simple design means fewer wearing parts.
• ISO 8846 MARINE (Ignition protection).

 Specifications

What our Experts Think

• Powerful Water Transfer – The Jabsco Ballast King Pump delivers an impressive 15 GPM flow rate, making it ideal for fast ballast system filling and draining.

• Durable Bronze Construction – Built with corrosion-resistant bronze, this pump is designed to handle the tough marine environment while ensuring long-lasting reliability.

• DC Powered – Operates on a DC system, offering efficient power usage and smooth performance for your boat's ballast needs.

• No Reversing Switch – This model is designed without a reversing switch, making it perfect for single-direction water transfer applications.

• Marine-Grade Quality – Engineered for high-performance use in wakeboard and ski boats, ensuring efficient ballast adjustments on the water.

Q&A

Q: What is the Jabsco Ballast King Bronze DC Pump?
A: A 12V DC pump designed for ballast systems, offering a flow rate of 15 GPM. It features durable bronze construction and is ideal for use in wakeboarding boats.

Q: Does this pump include a reversing switch?
A: No, the Jabsco Ballast King Pump does not come with a reversing switch. It is designed for filling or draining applications when used with an external switch.

Q: What makes this pump durable?
A: The pump's bronze construction ensures corrosion resistance, making it highly durable and ideal for marine environments.

Q: What is the flow rate of this pump?
A: The Jabsco Ballast King Pump provides a flow rate of 15 GPM, offering efficient water transfer for ballast tank systems.

Q: Is this pump suitable for other applications?
A: While it’s designed for ballast systems, the pump can be used for other water transfer needs in marine environments as long as the specifications are met.

Q: Does this pump require maintenance?
A: Routine checks for debris and cleaning the impeller are recommended to ensure optimal performance.

Maintenance Tips

• Flush After Use – Rinse the pump with fresh water after use to remove debris, salt, or sediment that could affect performance.

• Check Hoses – Inspect intake and discharge hoses for blockages, leaks, or kinks to ensure unrestricted flow.

• Examine Electrical Connections – Check the DC wiring for corrosion, wear, or loose connections to maintain a stable power supply.

• Lubricate Seals – Apply lubrication to seals and moving parts periodically to prevent wear and ensure smooth operation.

• Monitor Pump Performance – Regularly check for proper flow rate (15 GPM) and listen for unusual noises, which may indicate a blockage or malfunction.
