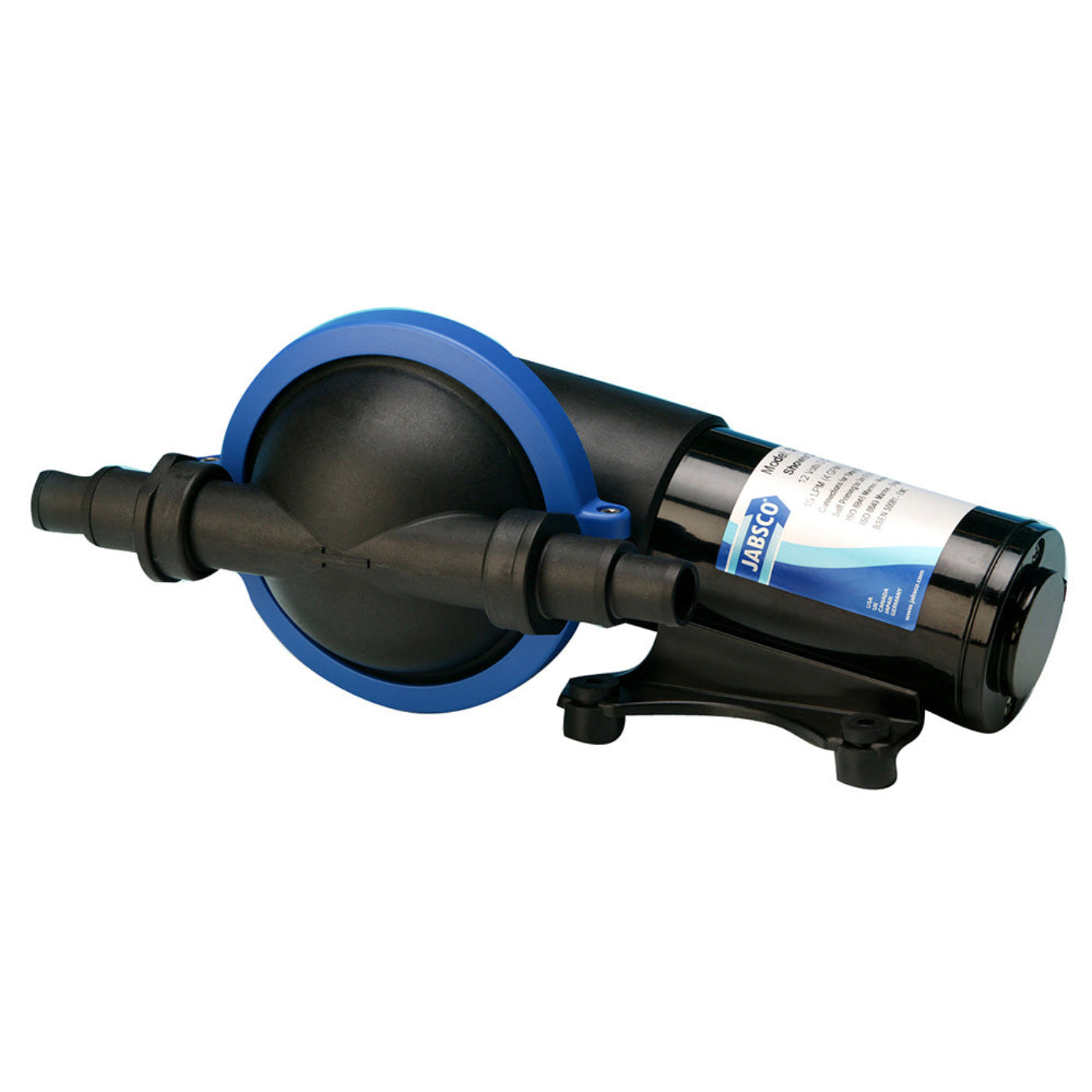

Jabsco Filterless Bilge/Sink/Shower Drain Pump - 4.2 GPM - 24V - CWR-96960

Jabsco Filterless Bilge/Sink/Shower Drain Pump - 4.2 GPM - 24V - CWR-96960

Self-priming diaphragm pump 24V DC.

Features

• Connections: - for 19mm (¾”) bore hose.
• Dimensions: - 294 mm long, 159mm wide, 132mm high
• Fuse Size: - 5(amp)
• Maximum Current: - 2.5(amps)
• Output - up to 16 litres/minute (3.5 gallons/minute). Maximum recommended total head 6m
• Robust, quiet single diaphragm design
• No strainer required
• Single diaphragm design allows extended dry running
• Self-primes up to 3m (9.5ft) vertical lift
• Multi-positional ports for easy mounting
• Rated for up to 30 minutes of continuous running
• Actual Weight: 2.98 Kg  (Approx. 3.48 Kg packed)

Specifications

What our Experts Think

• Versatile Drain Solution: Designed to handle bilge, sink, and shower drainage with a single pump, reducing installation complexity and inventory needs.

• Quiet, Reliable Operation: Robust single‑diaphragm design runs quietly while delivering up to 4.2 GPM (16 L/min) of flow for efficient water removal.

• Self‑Priming & Filterless: Self‑primes up to ~3 m (9.5 ft) vertical lift and requires no external strainer, simplifying setup and reducing maintenance points.

• Durable Marine‑Grade Design: Materials and construction withstand marine environments while the diaphragm allows extended dry running without damage.

• Flexible Installation: Multi‑positional ports and compact dimensions make it easy to fit in tight spaces onboard.

• Reliable Continuous Use: Rated for up to 30 minutes of continuous operation, ideal for demanding drainage needs.

Q&A

Q1: What is this pump designed for?
A: A 24 V diaphragm drain pump ideal for marine bilge, sink, and shower water removal without needing a strainer.

Q2: What flow rate does it deliver?
A: Delivers up to 4.2 GPM (≈16 L/min) for efficient water evacuation.

Q3: What type of design does it use?
A: Self‑priming single‑diaphragm design — quiet operation and capable of running dry without damage.

Q4: Does it need a strainer?
A: No strainer required, streamlining installation and maintenance.

Q5: How high can it self‑prime?
A: Self‑primes up to ~3 m (9.5 ft) vertical lift.

Q6: What hose sizes and connections does it support?
A: Designed for ¾″ (19 mm) hose connections.

Q7: What are the operating specs?
A: Operates on 24 V DC, draws ~2.5 A with a 5 A fuse recommended, and is rated for up to 30 min continuous run time.

Maintenance Tips

• Regular Inspection: Check hoses, clamps, and fittings for leaks, cracks, or wear; replace as needed.

• Electrical Check: Inspect wiring and terminals for secure, corrosion-free connections.

• Pump Cleaning: Flush periodically with fresh water to remove debris and prevent buildup.

• Operational Test: Run the pump regularly to confirm proper flow and detect unusual noises.

• Mounting Check: Ensure the pump is securely mounted and free of vibration that could cause damage.
