JET AFS-1000C Air Filtration System with Auto Control - JT9-713000

JET AFS-1000C Air Filtration System with Auto Control - JT9-713000

Improved design and added technology make the AFS1000C Air Filtration System a must have in any shop. The AFS-1000C detects dust levels and adjusts fan speed accordingly. The filter life is also monitored (by detecting air flow) and displayed on the tilted LED display panel. There are a few filter replacement options:

The AFS-1000C can be mounted from the ceiling using the installed eye hooks, or it can be set on a work surface. There is an additional plastic footing along the bottom that allows air flow to pass through to the dust sensor.

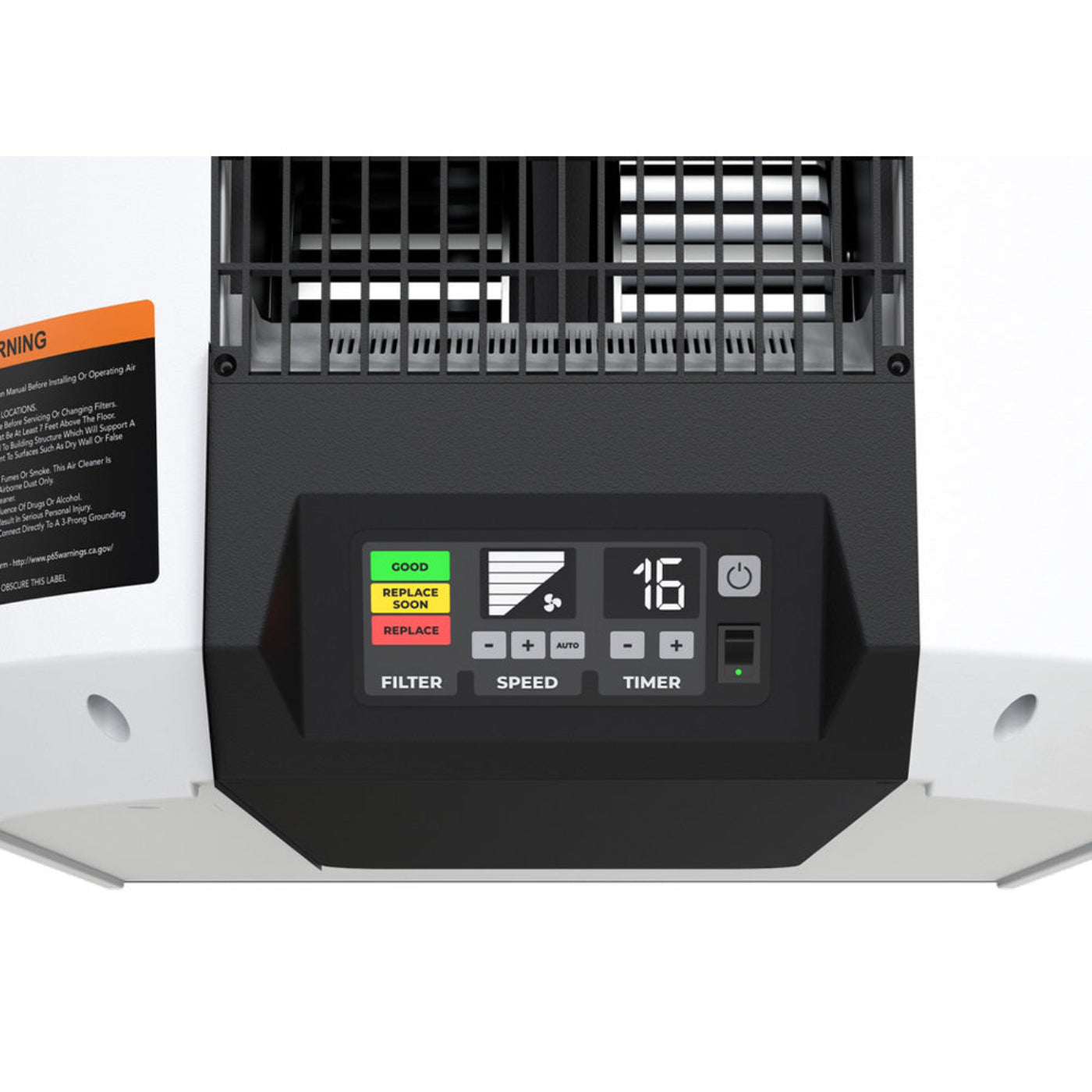

A bright LED display shows filter life, speed, and timer settings. A radio frequency (RF) remote control lets you change speed and set the timer (up to 16 hour) from anywhere in the shop. ABS injection molded body makes the unit lighter and less prone to damage.

JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

Features

• Automatic air quality sensor adjusts the six speeds based on air quality
• Captures particles down to 1 micron
• Timer can be set up to 16 hours
• Easy, tool-less filter change — just lift and remove
• Bright, clear, LED display panel is angled for easier viewing when ceiling mounted
• Two-Filter system with air Diffuser disperses air into a broader pattern
• LED notification of filter life updated by sensor
• Radio frequency remote makes adjusting speeds and setting the timer easy
• Quiet and efficient BLDC motor
• Strong injection molded plastic dampens vibration and noise

Specification

Gross weight: 42 lbs.
Net weight: 33 lbs.
Motor amps: 3.8
Motor power: 1/3hp
Motor voltage: 120 V
Overall dimensions (L x W x H): 30" x 24.2" x 15.4"
Prewired voltage: 120 V
Speeds: 450-1,000 CFM
Full load amps: 15
Sound rating (Db.): 51 - 67db @ 1 meter
Timer setting: 1-16 hours

Video

What Our Experts Think

• Powerful Filtration: Removes fine dust particles for a cleaner, healthier workshop.

• Auto Control Feature: Built-in sensor monitors air quality and adjusts fan speed automatically.

• Three-Speed Operation: Choose between 550, 702, and 1044 CFM to match shop size and dust load.

• Quiet and Efficient: Operates at low noise levels, ideal for continuous use in woodworking shops.

• Flexible Mounting Options: Can be ceiling-mounted or used as a portable filtration system.

Q&A

Q: What size shop is this best for?
A: Perfect for medium-sized workshops up to 1,000 sq. ft.

Q: Does it automatically adjust to dust levels?
A: Yes, the auto control detects particulates and adjusts speed accordingly.

Q: What filters does it use?
A: Uses a 5-micron outer filter and a 1-micron inner filter for fine dust capture.

Q: Can it be mounted on the ceiling?
A: Yes, it includes mounting hardware for overhead installation.

Maintenance Tips

• Check and clean filters weekly for optimal airflow.

• Replace filters as recommended (outer filter washable, inner filter replaceable).

• Keep intake and exhaust clear to maintain efficiency.

• Inspect auto sensor periodically to ensure accurate readings.

• Run the system after finishing dusty tasks to keep air clean.
